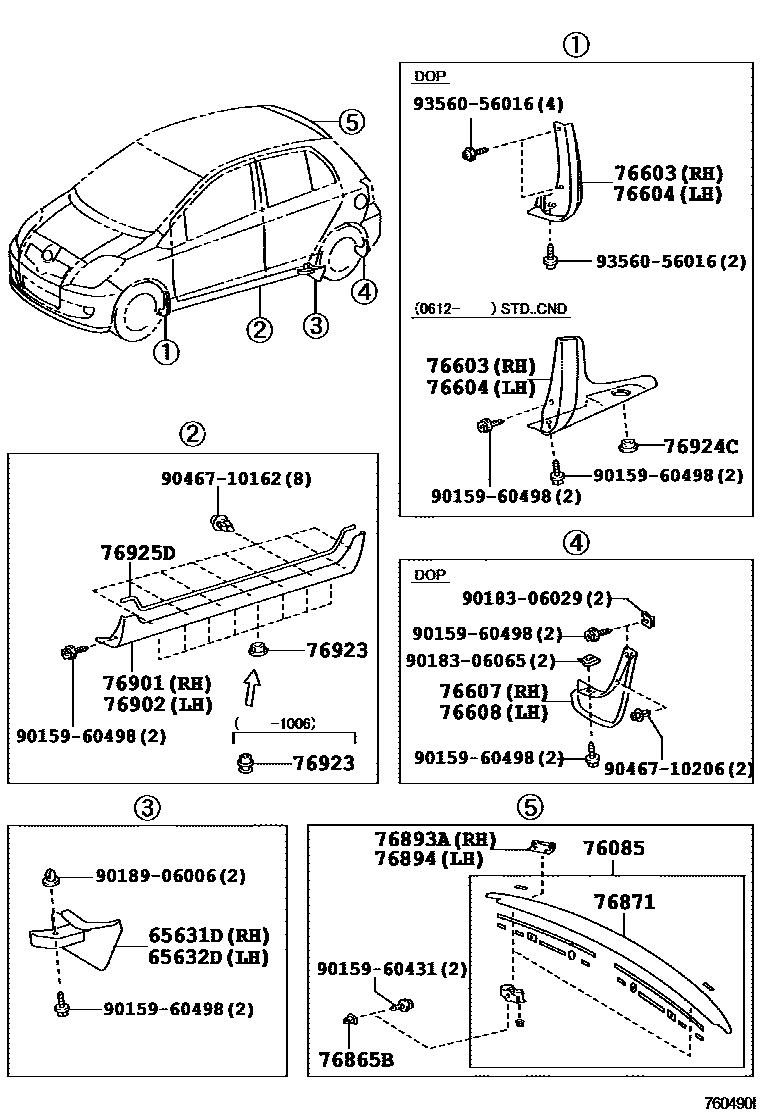

Toyota YARIS 挡泥板和扰流板 — Figure 7601
Toyota YARIS EPC diagram 7601, 挡泥板和扰流板, with 1 images and 11 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 65631D | Right rear wheel house front panel | 65631-52100 |
| 65632D | Left rear wheel house front panel | 65632-52100 |
| 76603 | Right front fender fender sub-assembly | 76621-52060 · 76621-52100 |
| 76604 | Left front fender fender sub-assembly | 76622-52060 · 76622-52100 |
| 76607 | Right rear side fender sub-assembly | 76625-52090 · 76625-52110 · 76625-52160 |
| 76608 | Left rear side fender sub-assembly | 76626-52090 · 76626-52110 · 76626-52160 |
| 76865B | Rear spoiler fixings | 76865-52030 |
| 76901 | Right fender sub-assembly | 76915-52901 |
| 76902 | Left fender sub-assembly | 76916-52901 |
| 76923 | Side fender fixings | 76923-52021 · 76924-12040 · 76924-52040 |
| 76924C | No. 2 side fender fixings | 76924-52040 |
