Toyota YARIS 侧防护条 — Figure 7503

Toyota YARIS EPC diagram 7503, 侧防护条, with 1 images and 13 PNC and OE references.

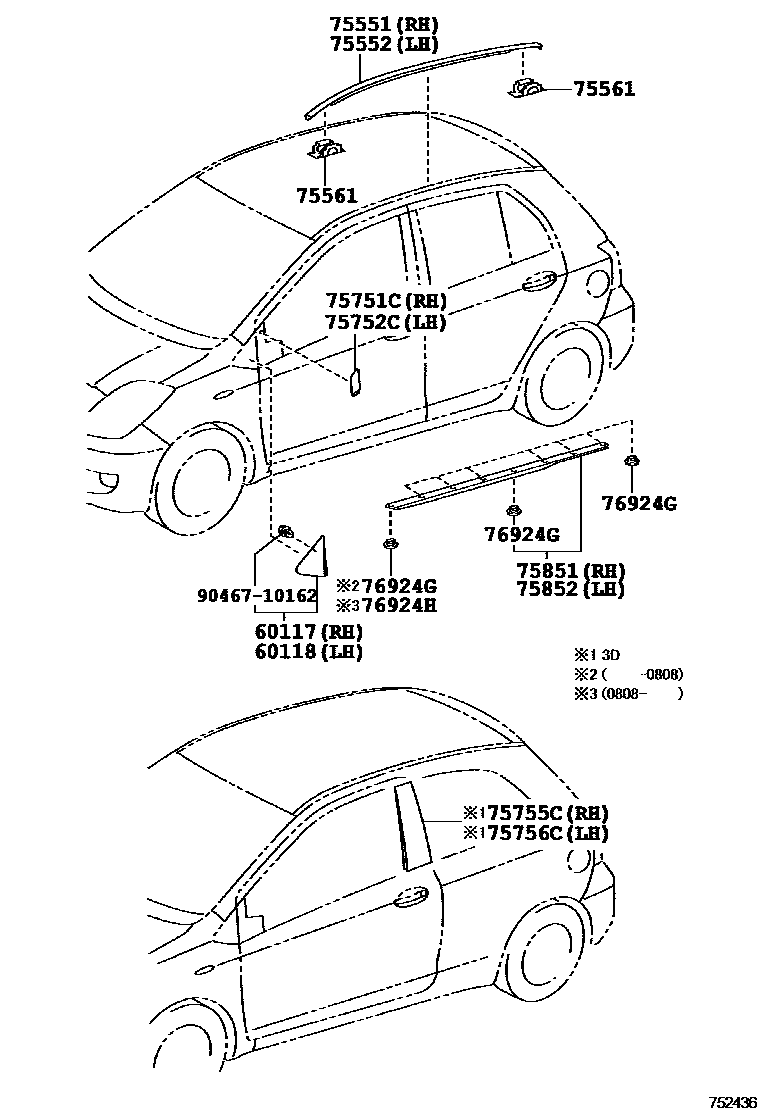

Toyota YARIS 侧防护条 EPC diagram — 752436
侧防护条 — 752436 (200508 – 999999)

PNC and OE references

PNCPart nameOE numbers
60117Right front pillar upper cover sub-assembly60117-52030
60118Left front pillar upper cover sub-assembly60118-52030
75551Drainage groove side decorative strip on the right side of the roof75551-52130
75552Drainage groove side decorative strip on the left side of the roof75551-52130
75561No. 1 roof drain channel side decorative strip clip75561-52040
75751CRight front door window frame front protective strip75751-52020 · 75751-52030
75752CLeft front door window frame front protective strip75752-52010 · 75752-52020
75755CRight front door window frame rear protective strip75755-52030
75756CLeft front door window frame rear protective strip75756-52020
75851Right side door sill panel protective strip75851-52050 · 75851-52051
75852Left side door sill panel protective strip75852-52050 · 75852-52051
76924GDoor sill panel protective strip fixings76924-12040 · 76924-52040
76924HNo. 2 side fender fixings76924-52040
