Toyota YARIS battery holder — Figure 7402

Toyota YARIS EPC diagram 7402, battery holder, with 1 images and 4 PNC and OE references.

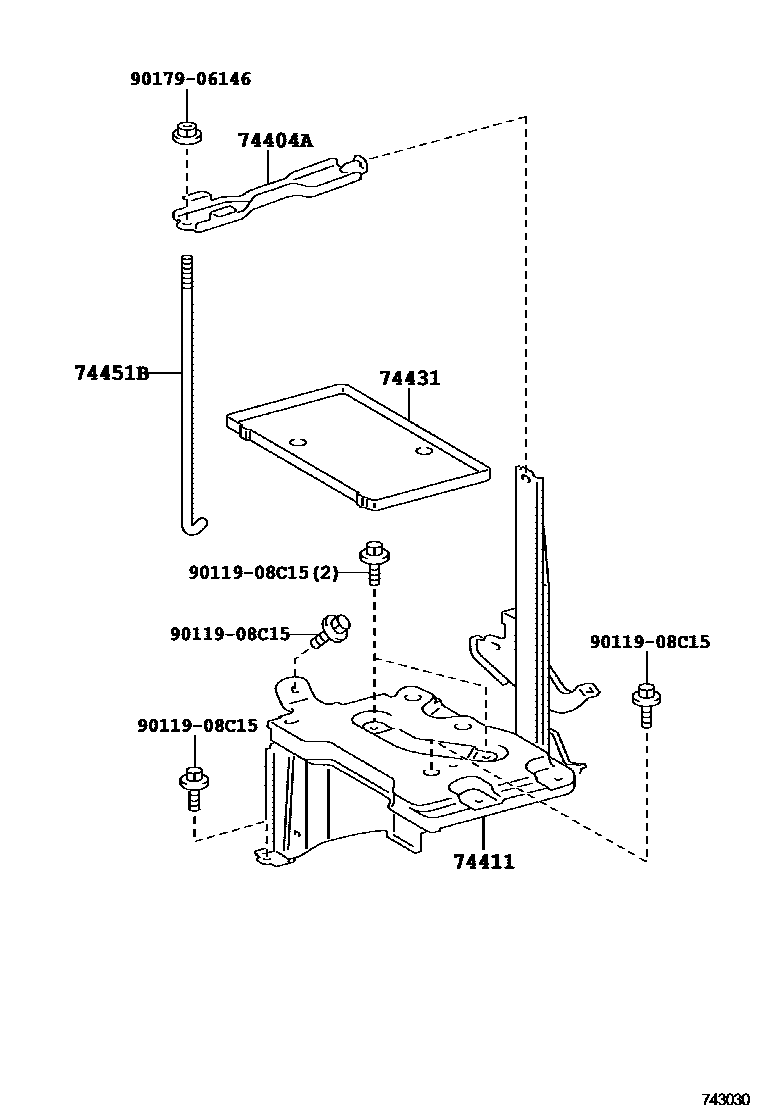

Toyota YARIS battery holder EPC diagram — 743030
battery holder — 743030 (200508 – 999999)

PNC and OE references

PNCPart nameOE numbers
74404ABattery clip sub-assembly74404-52080
74411battery holder74410-52020
74431battery tray74431-52110 · 74431-52111
74451BBattery clamp bolt74451-52070
