Toyota YARIS 前排座椅和座椅滑轨 — Figure 7101

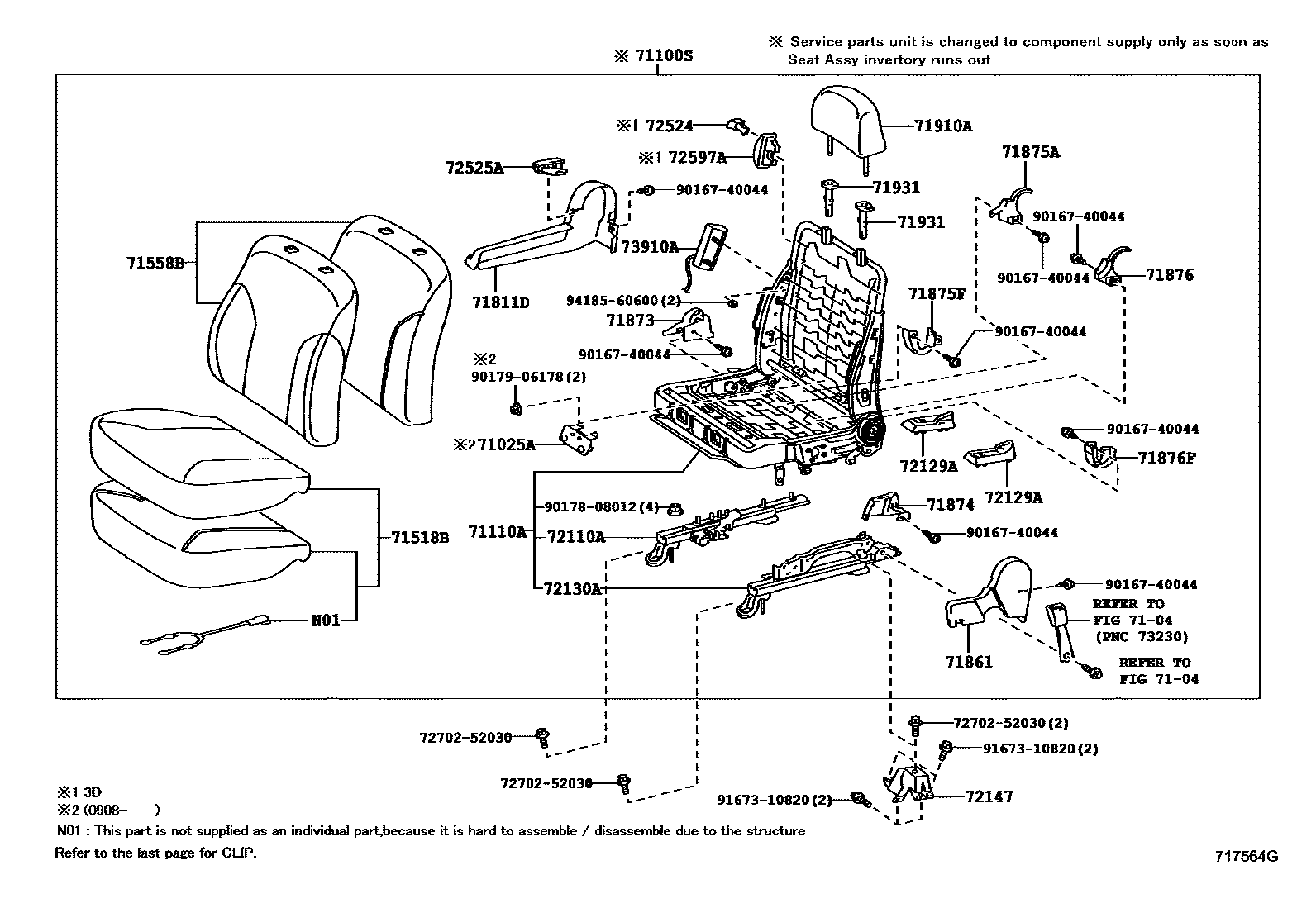

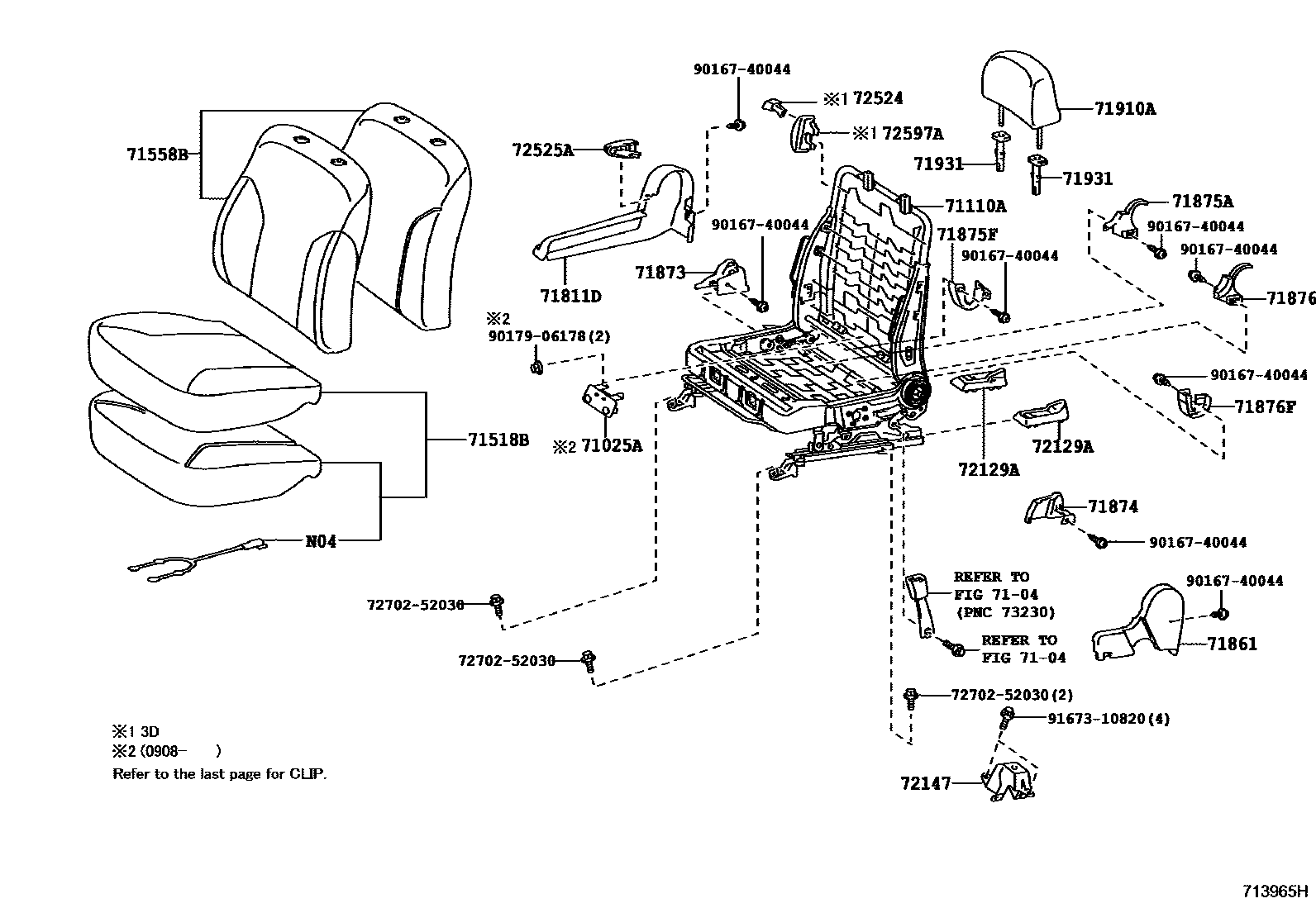

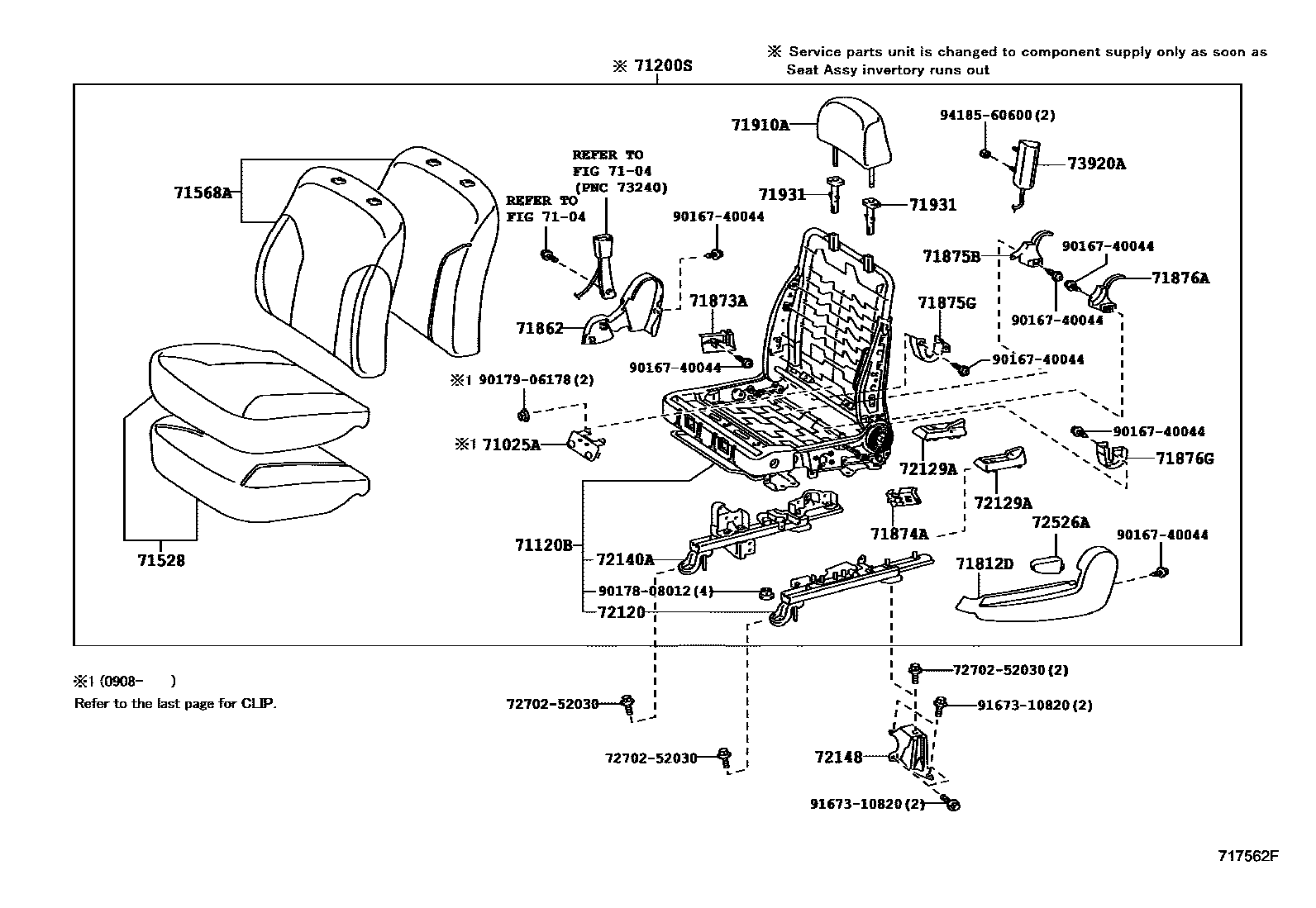

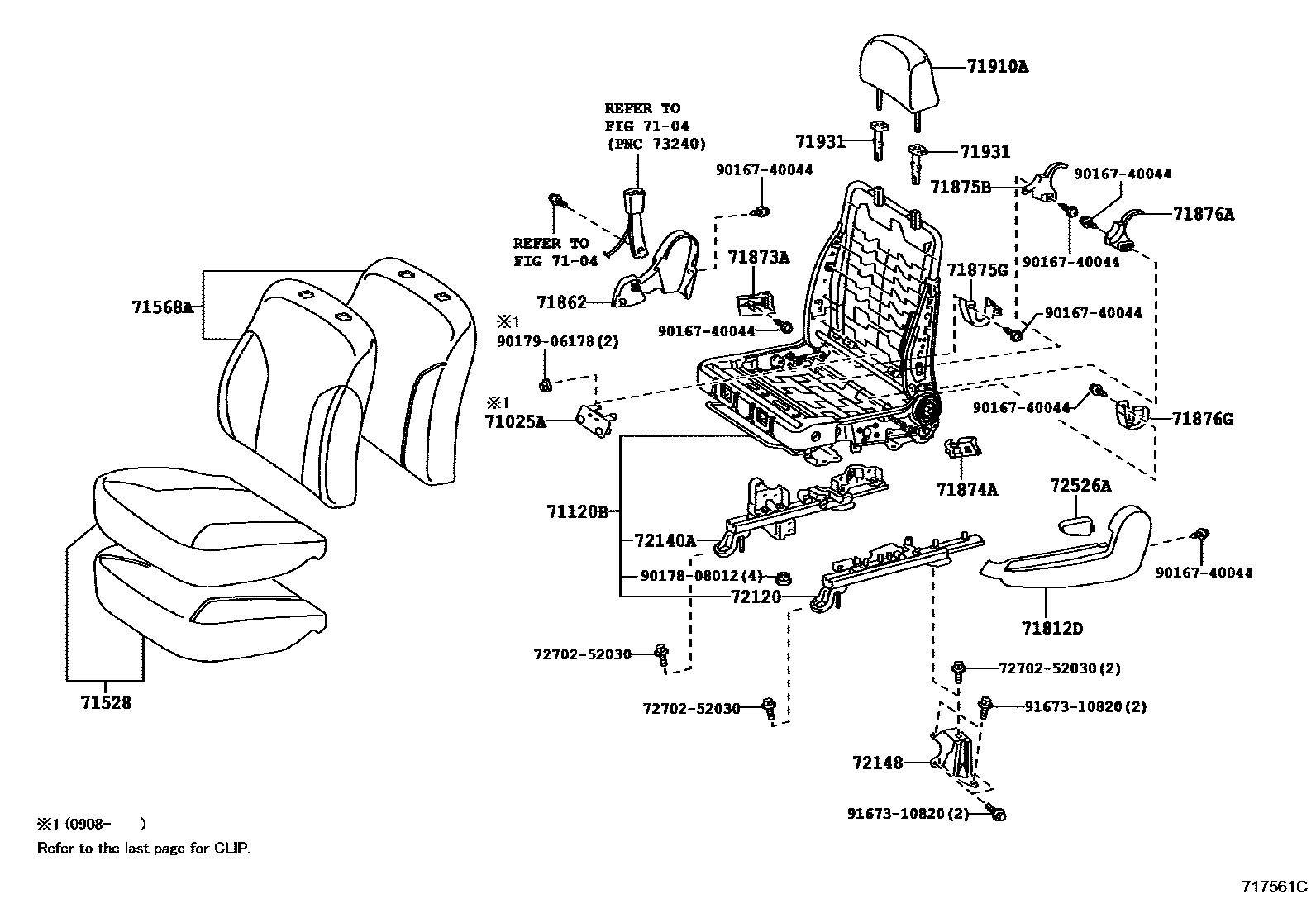

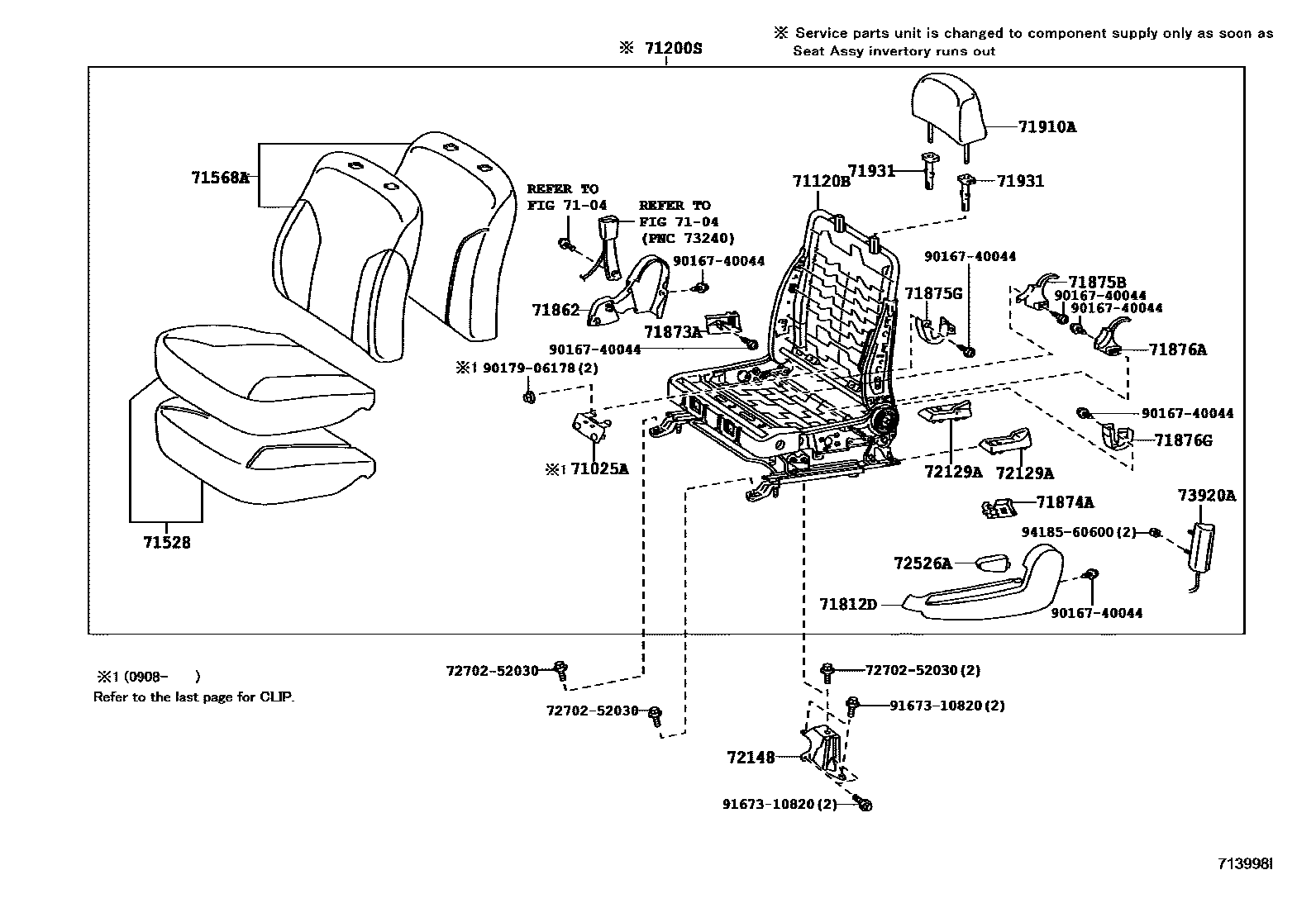

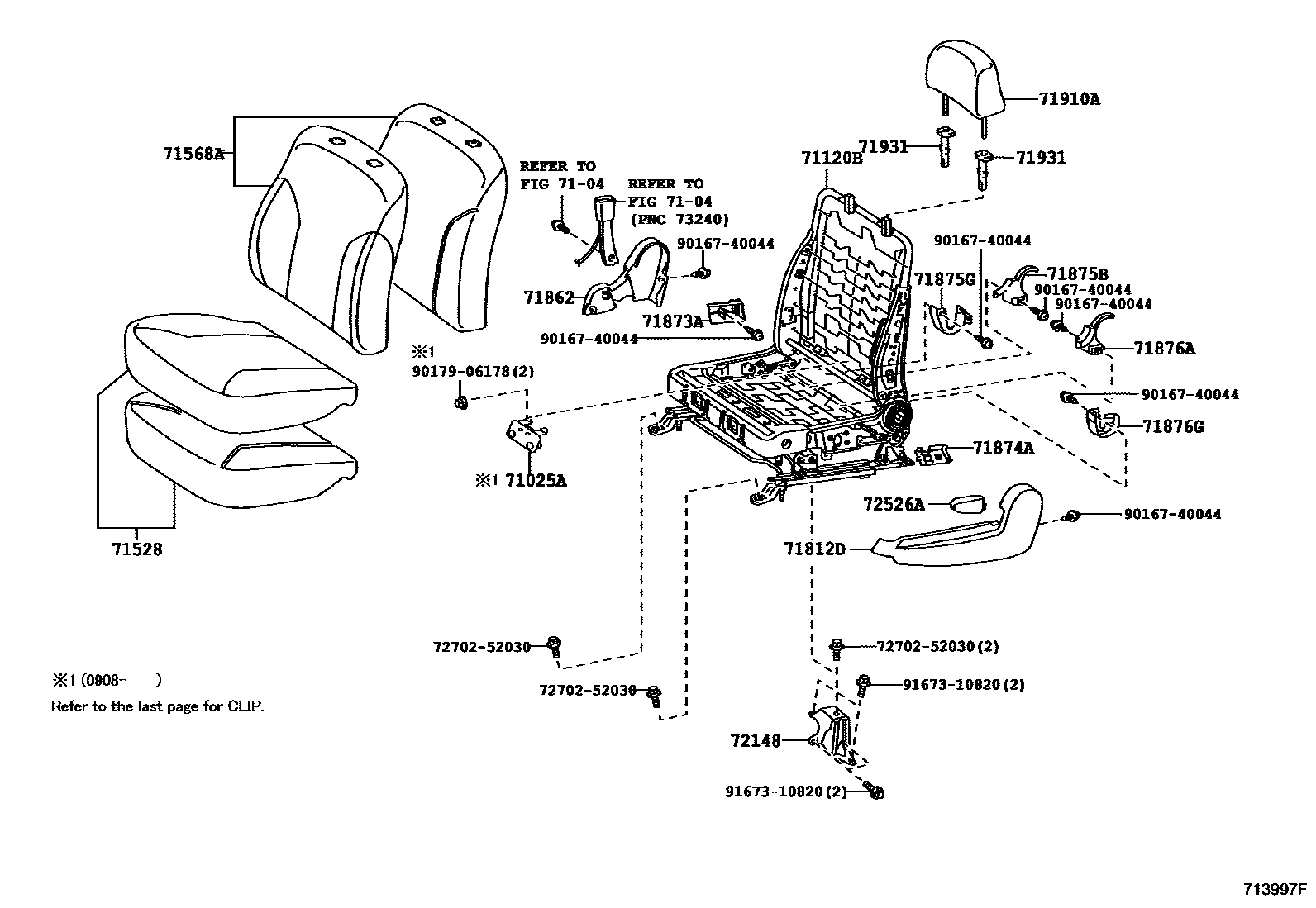

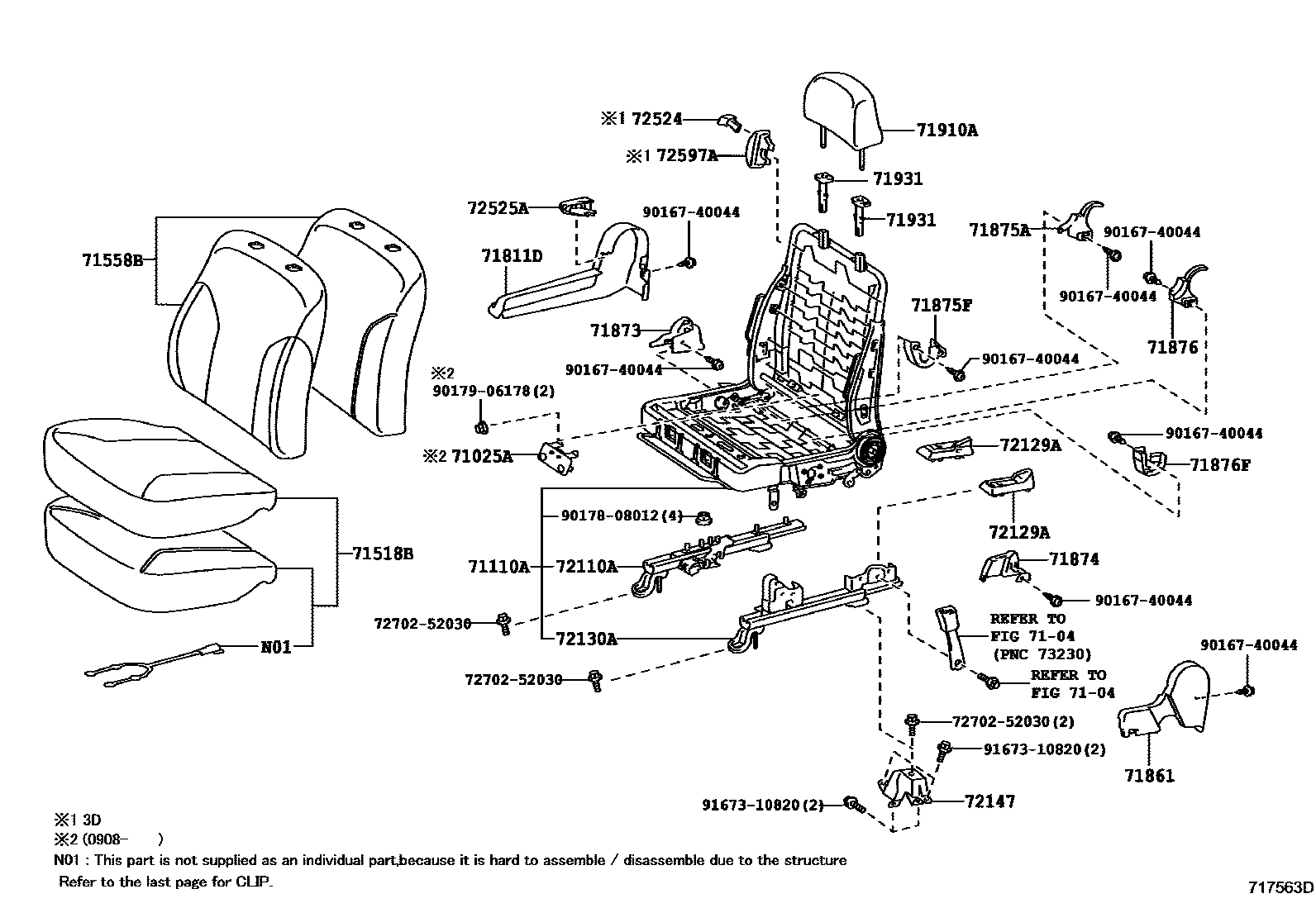

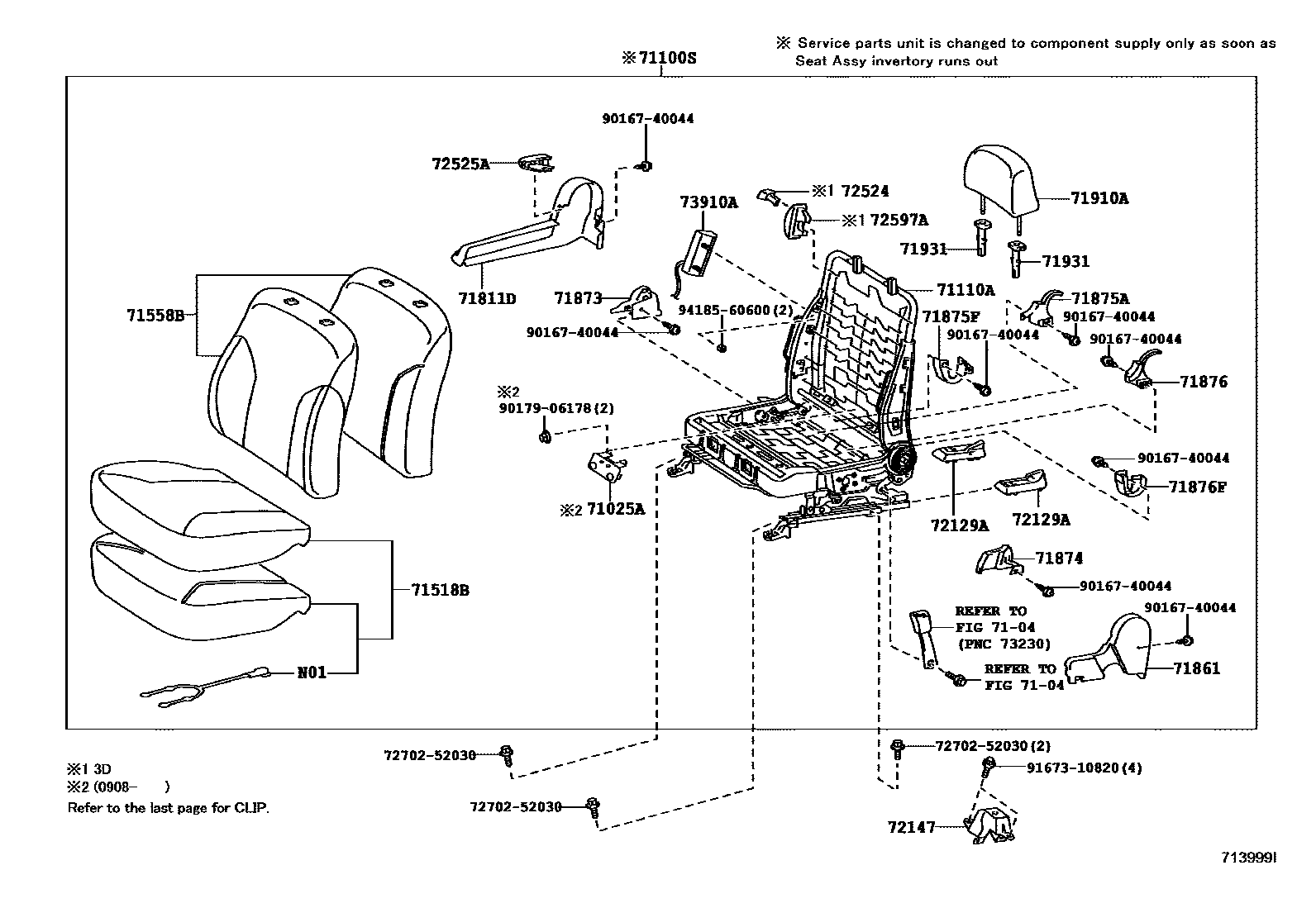

Toyota YARIS EPC diagram 7101, 前排座椅和座椅滑轨, with 9 images and 12 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 71025A | Front seat backrest bracket sub-assembly | 71025-52010 |
| 71110A | Front right seat (with adjuster) frame assembly | 71110-52230 · 71110-52231 · 71110-52232 · 71110-52300 · 71110-52301 · 71110-52302 · 71110-52310 · 71110-52311 · 71110-52312 · 71110-52400 · 71110-52401 · 71110-52402 |
| 71120B | Front left seat (with adjuster) frame assembly | 71120-52200 · 71120-52201 · 71120-52202 · 71120-52340 · 71120-52341 · 71120-52342 |
| 72110A | Front right seat outer slide rail assembly | 72110-52020 · 72110-52021 · 72110-52090 · 72110-52091 |
| 72120 | Front left seat outer slide rail assembly | 72120-52050 · 72120-52051 |
| 72129A | No. 2 seat slide rail lower rail ring protective cover | 72129-52030 |
| 72130A | Front right seat inner slide rail assembly | 72130-52120 · 72130-52121 · 72130-52150 · 72130-52151 |
| 72140A | Front left seat inner slide rail assembly | 72140-52120 · 72140-52121 |
| 72147 | Front right seat inner slide rail rear lower bracket | 72147-52020 |
| 72148 | Front left seat inner slide rail rear lower bracket | 72148-52010 |
| 73910A | Front right seat airbag assembly | 73910-52070 · 73910-52140 |
| 73920A | Front left seat airbag assembly | 73920-52070 · 73920-52140 |
