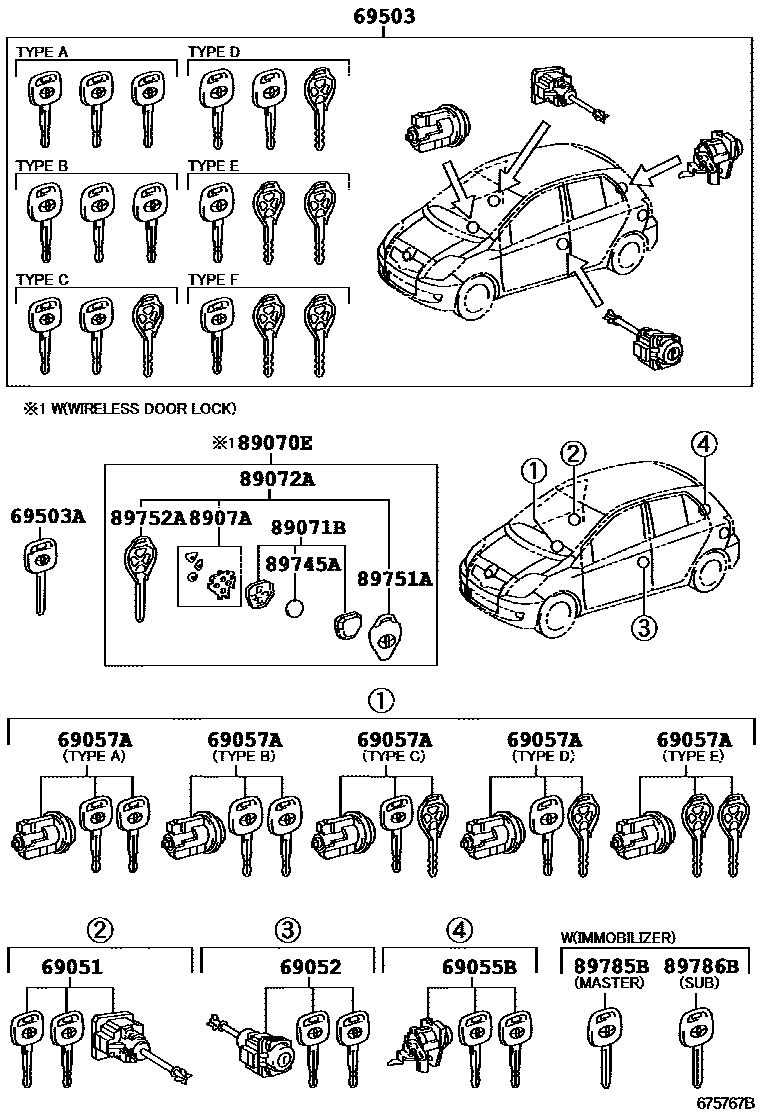

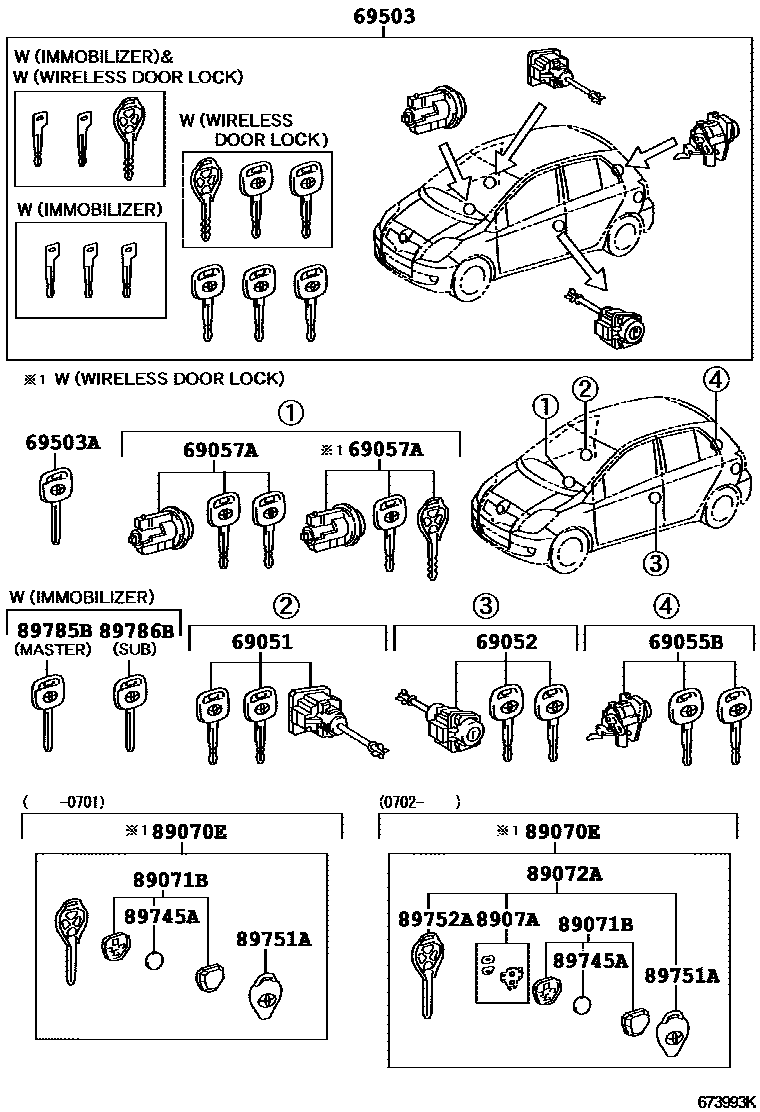

Toyota YARIS 锁芯组件 — Figure 6712
Toyota YARIS EPC diagram 6712, 锁芯组件, with 2 images and 15 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 69051 | Right door lock cylinder and key assembly | 69051-52420 |
| 69052 | Left door lock cylinder and key assembly | 69052-52330 |
| 69055B | Rear door lock cylinder and key assembly | 69055-52450 |
| 69057A | Ignition switch lock cylinder and key assembly | 69057-42221 · 69057-52510 · 69057-52530 · 69057-52540 · 69057-52600 · 69057-52840 · 69057-52850 · 69057-52860 |
| 69503 | Door lock cylinder components | 69005-52A90 · 69005-52B00 · 69005-52B20 · 69005-52B30 · 69005-52E60 · 69005-52F40 · 69005-52F50 · 69005-52G20 |
| 69503A | external tooth key | 90999-00199 |
| 89070E | Remote key assembly | 89070-52720 · 89070-52730 · 89070-52850 · 89070-52860 |
| 89071B | Remote key sub-assembly module assembly | 89071-21020 · 89071-21030 |
| 89072A | Remote key shell assembly | 89072-52440 · 89072-52450 |
| 8907A | Transmitter switch assembly | 8907A-21010 |
| 89745A | Transmitter battery | 89745-71010 |
| 89751A | Transmitter housing cover | 89751-52120 · 89751-52140 |
| 89752A | transmitter housing | 89752-71070 · 89752-71071 · 89752-71080 |
| 89785B | transceiver key master transmitter | 89785-60160 |
| 89786B | transceiver key secondary transmitter | 89786-60170 |
