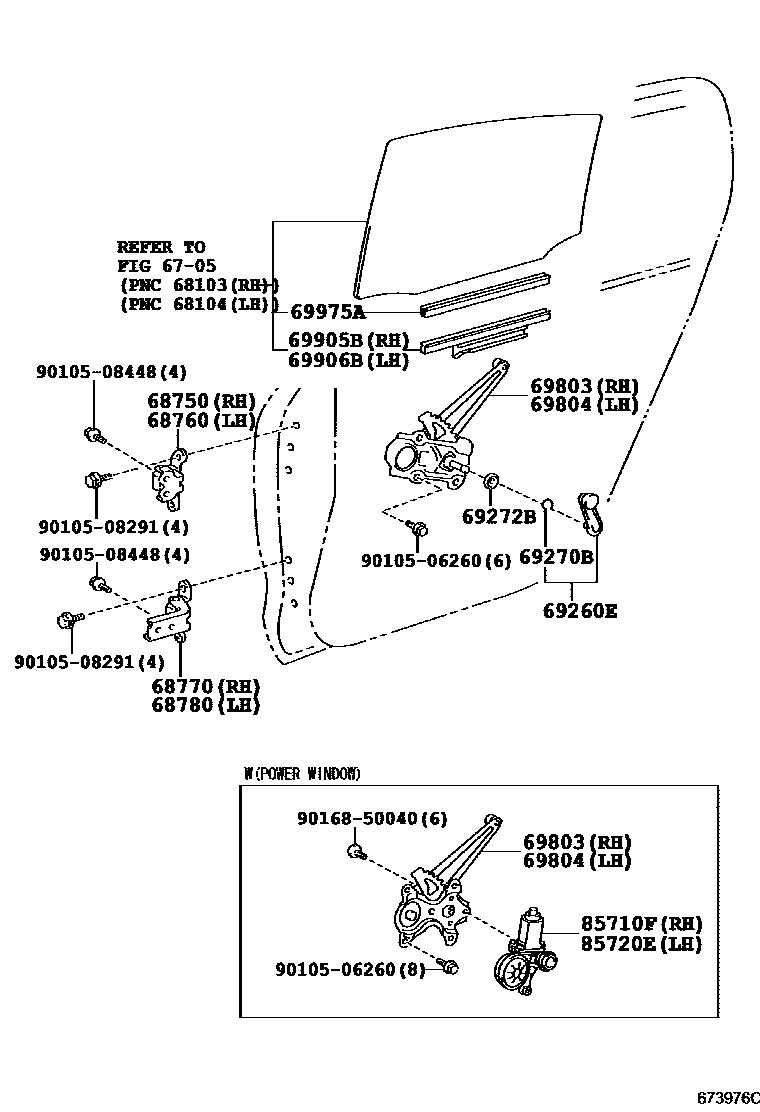

Toyota YARIS 后门车窗升降器和合页 — Figure 6707
Toyota YARIS EPC diagram 6707, 后门车窗升降器和合页, with 1 images and 13 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 68750 | Right rear door upper hinge assembly | 68750-20120 · 68750-20121 |
| 68760 | Left rear door upper hinge assembly | 68760-20120 · 68760-20121 |
| 68770 | Right rear door lower hinge assembly | 68770-52030 · 68770-52031 |
| 68780 | Left rear door lower hinge assembly | 68780-52030 · 68780-52031 |
| 69270B | Shaft snap ring (for rear door window regulator handle) | 90520-01274 |
| 69272B | Rear door window regulator inner handle plate | 69268-12020 · 69268-52010 |
| 69803 | Right rear door window lifter sub-assembly | 69803-52080 · 69830-52180 |
| 69804 | Left rear door window lifter sub-assembly | 69804-52090 · 69840-52180 |
| 69905B | Right rear door glass groove sub-assembly | 69905-52050 |
| 69906B | Left rear door glass groove sub-assembly | 69906-52050 |
| 69975A | Rear door glass channel filler | 69975-52010 |
| 85710F | Right power window lift motor assembly | 85720-35140 |
| 85720E | Left electric window lift motor assembly | 85710-35180 |
