Toyota YARIS 后门板和后门玻璃 — Figure 6705

Toyota YARIS EPC diagram 6705, 后门板和后门玻璃, with 2 images and 30 PNC and OE references.

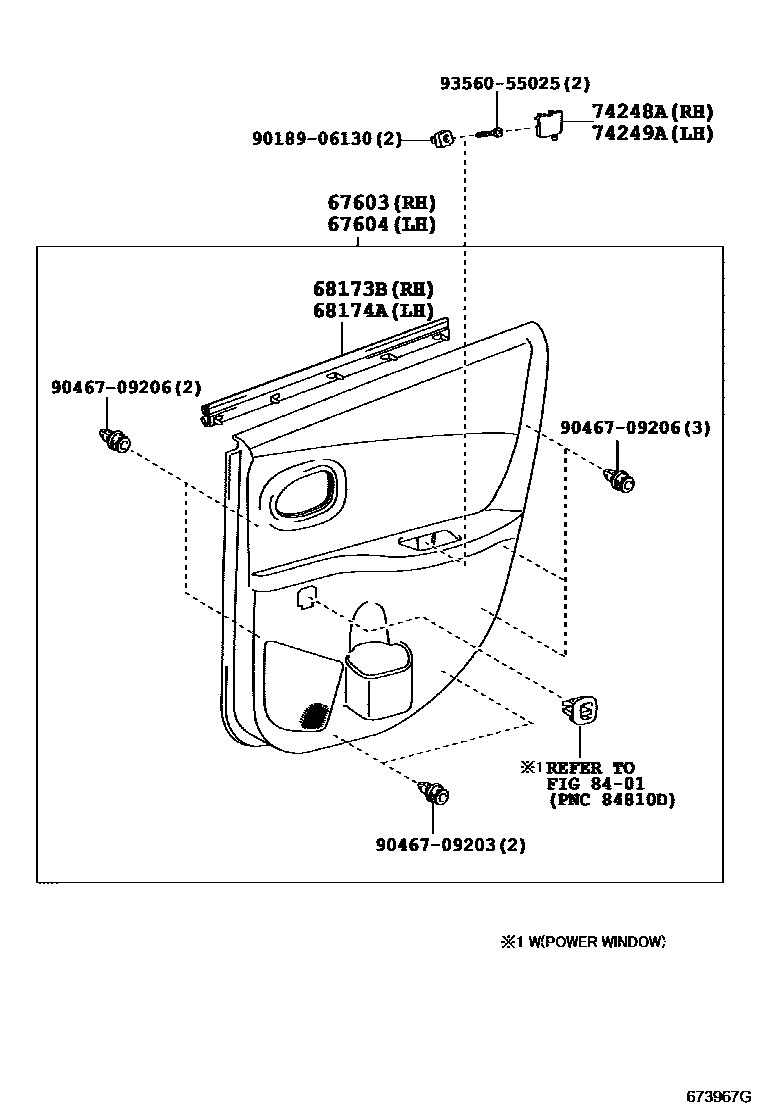

Toyota YARIS 后门板和后门玻璃 EPC diagram — 673967G
后门板和后门玻璃 — 673967G (200508 – 999999)

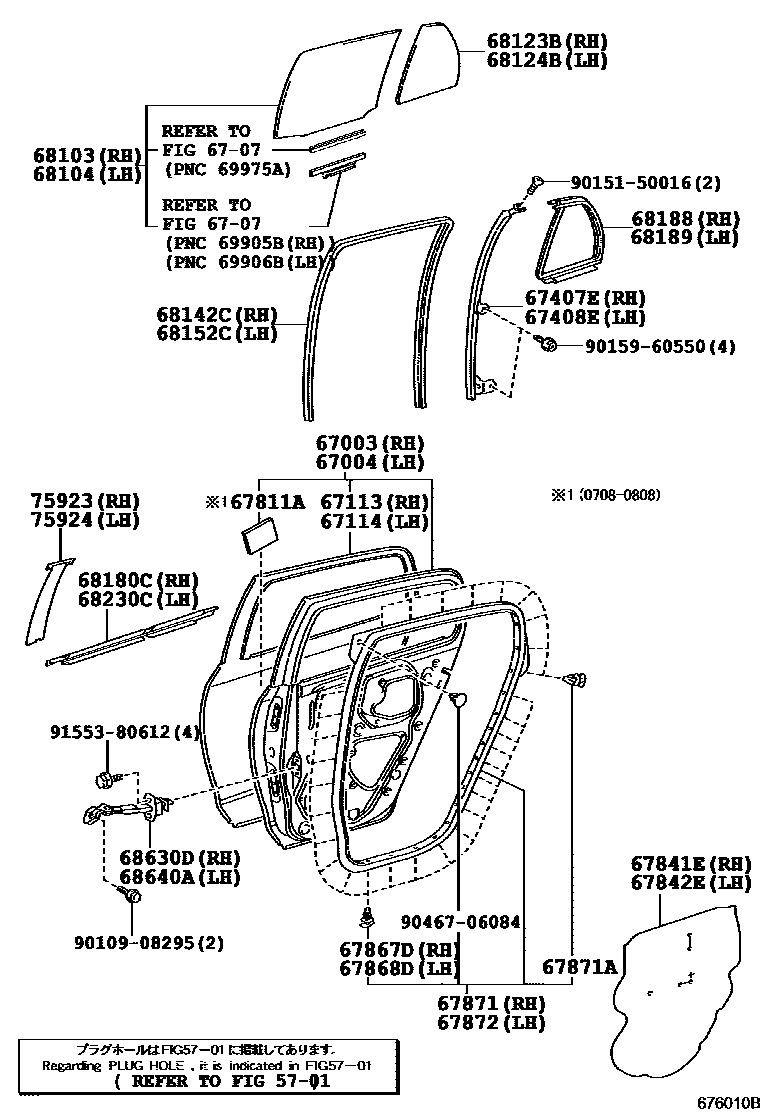

Toyota YARIS 后门板和后门玻璃 EPC diagram — 676010B
后门板和后门玻璃 — 676010B (200508 – 999999)

PNC and OE references

PNCPart nameOE numbers
67003Right rear door panel sub-assembly67003-52321 · 67003-52322 · 67003-52323
67004Left rear door panel sub-assembly67004-52321 · 67004-52322 · 67004-52323
67113Right rear door outer panel67113-52160
67114Left rear door outer panel67114-52160
67407ERight rear door window divider sub-assembly67407-52110
67408ELeft rear door window divider sub-assembly67408-52110
67811ARear door silencer pad67811-33040
67841ERight rear door access hole cover67841-52160 · 67841-52170
67842ELeft rear door access hole cover67841-52160 · 67841-52170
67867DRight rear door seal strip fixing67867-12150
67868DLeft rear door seal strip fixing67867-12150
67871Right rear door sealing strip67871-52130
67871AFixings (for rear door sealing strip)67867-52020 · 67867-52030
67872Left rear door sealing strip67872-52150
68103Right rear door glass sub-assembly68130-52211
68104Left rear door glass sub-assembly68140-52211
68123BRight rear door corner window glass68123-52130
68124BLeft rear door corner window glass68124-52130
68142CRight rear door glass lift slot68142-52131
68152CLeft rear door glass lift slot68152-52141
68173BRight rear door glass inner sealing strip68173-52110
68174ALeft rear door glass inner sealing strip68174-52110
68180CRight rear door glass outer sealing strip assembly68180-52100
68188Right rear door corner window seal68188-52070
68189Left rear door corner window seal68189-52070
68230CLeft rear door glass outer sealing strip assembly68230-52100
68630DRight rear door opening limiter assembly68630-52061 · 68630-52062
68640ALeft rear door opening limiter assembly68630-52061 · 68630-52062
75923No. 2 right side light-shielding film75923-52060
75924No. 2 left shading film75924-52060
