Toyota YARIS 前门板和前门玻璃 — Figure 6701

Toyota YARIS EPC diagram 6701, 前门板和前门玻璃, with 4 images and 38 PNC and OE references.

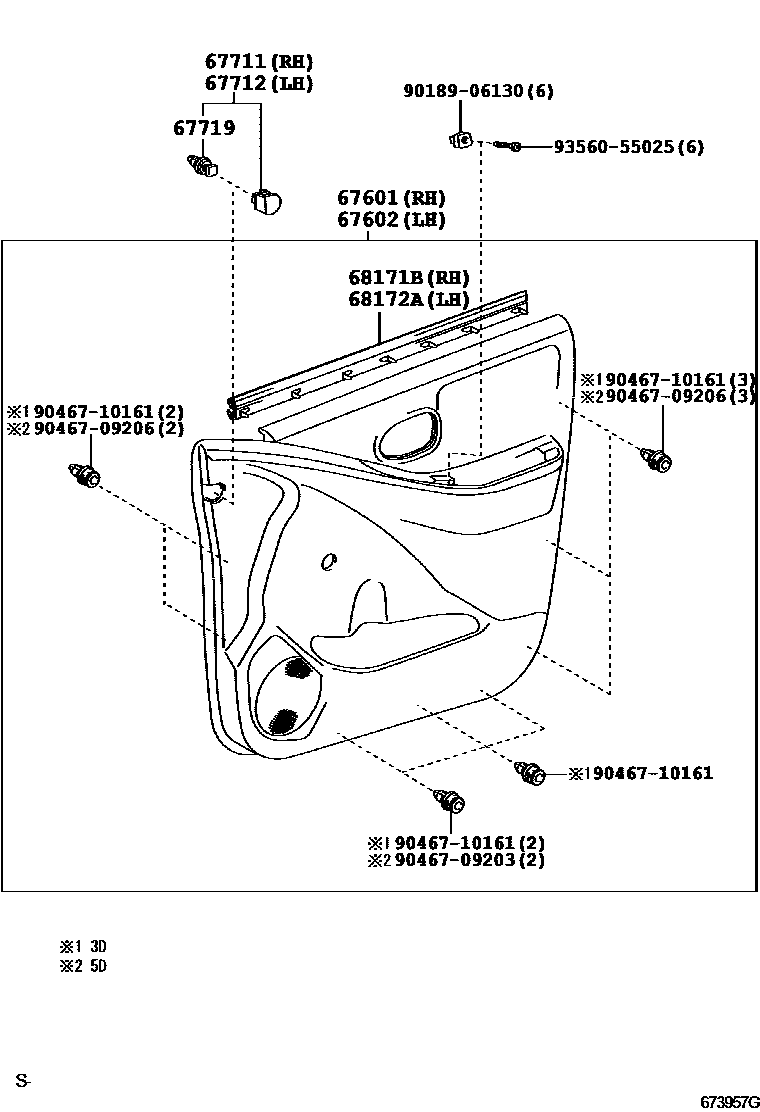

Toyota YARIS 前门板和前门玻璃 EPC diagram — 673957G
前门板和前门玻璃 — 673957G (200508 – 999999)

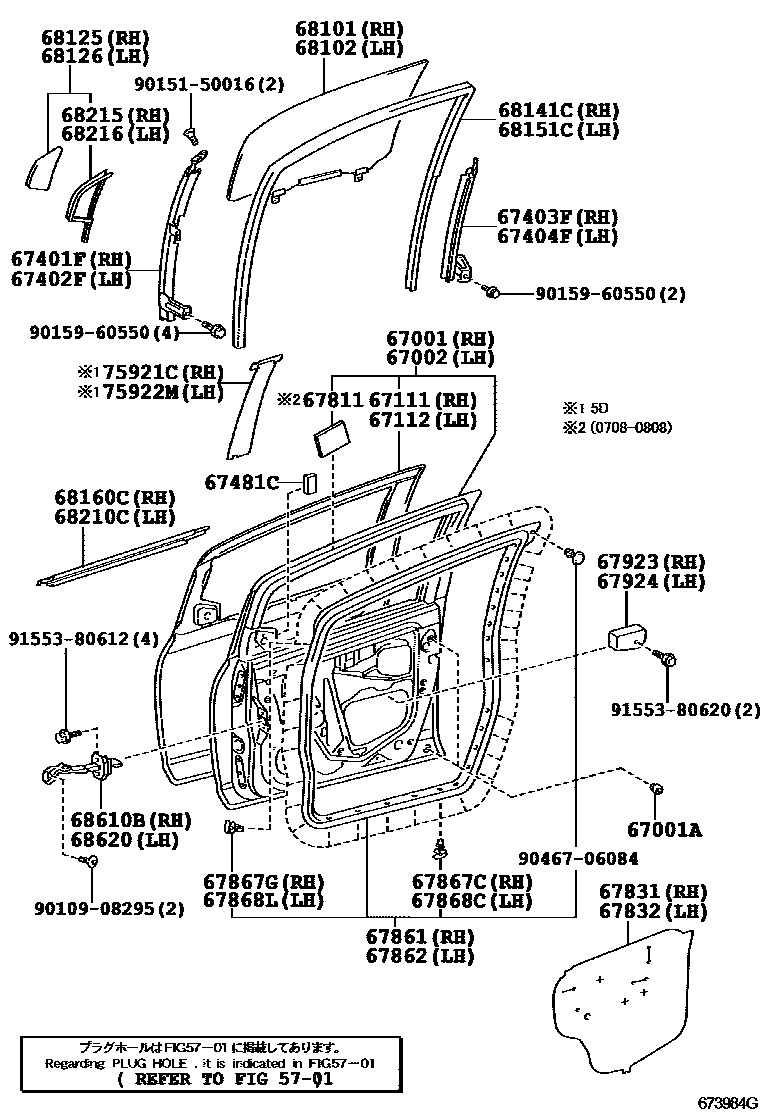

Toyota YARIS 前门板和前门玻璃 EPC diagram — 673984G
前门板和前门玻璃 — 673984G (200508 – 999999)
Toyota YARIS 前门板和前门玻璃 EPC diagram — 674660
前门板和前门玻璃 — 674660 (200508 – 999999)

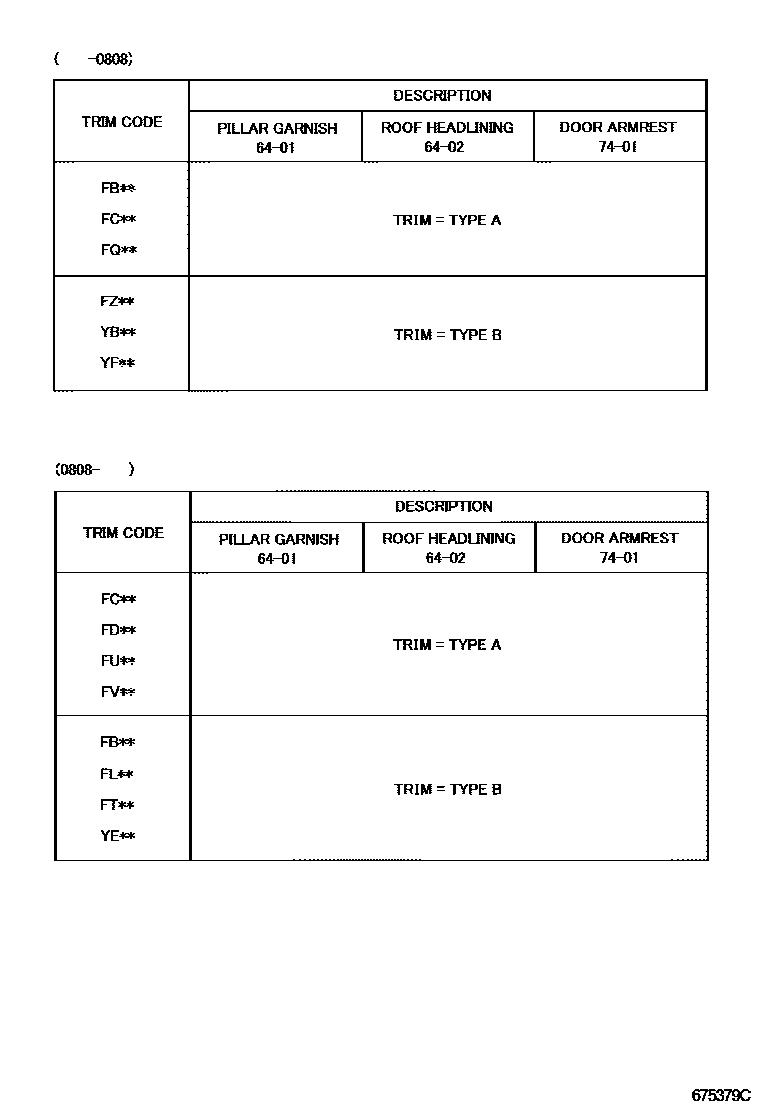

Toyota YARIS 前门板和前门玻璃 EPC diagram — 675379C
前门板和前门玻璃 — 675379C (200508 – 999999)

PNC and OE references

PNCPart nameOE numbers
67001Right front door panel sub-assembly67001-52350 · 67001-52370 · 67001-52380 · 67001-52460
67001AFront door panel cushion90541-09137
67002Left front door panel sub-assembly67002-52350 · 67002-52370 · 67002-52380 · 67002-52460
67111Outer right front door panel67111-52150 · 67111-52160
67112Outer left front door panel67112-52100 · 67112-52120
67401FRight front door front lower door frame sub-assembly67401-52090
67402FLeft front door front lower door frame sub-assembly67402-52060
67403FRight front door rear lower door frame sub-assembly67403-52160 · 67403-52161 · 67403-52170 · 67403-52171
67404FLeft front door rear lower door frame sub-assembly67404-52130 · 67404-52131 · 67404-52140 · 67404-52141
67481CFront door lower door frame seal67481-52010
67719Front door decorative cover67719-52010
67811Front door silencer pad67811-33040
67831Right front door access hole cover67831-52290 · 67831-52310
67832Left front door access hole cover67832-52130 · 67832-52190
67861Right front door seal67861-52150 · 67861-52151 · 67861-52160
67862Left front door seal67862-52150 · 67862-52151 · 67862-52160
67867CRight front door seal strip fixing67867-12150
67867GRight door sealing strip fixing67867-52010 · 67867-52020
67868CLeft front door seal strip fixing67867-12150
67868LLeft door seal strip fixing67867-52010 · 67867-52020
67923Front door No. 1 reinforcement cushion pad67923-52130
67924Front door No. 2 reinforcement cushion pad67924-52130
68101Right front door glass sub-assembly68110-52180 · 68110-52250
68102Left front door glass sub-assembly68120-52180 · 68120-52250
68125Right front door fixed window glass68101-52030 · 68101-52031
68126Left front door fixed window glass68102-52020 · 68102-52021
68141CRight front door glass lift channel68141-52170 · 68141-52180
68151CLeft front door glass lift channel68151-52150 · 68151-52170
68160CRight front door glass outer sealing strip assembly68160-52110 · 68160-52130
68171BRight front door glass inner sealing strip68171-52150 · 68171-52160
68172ALeft front door glass inner sealing strip68172-52050 · 68172-52130
68210CLeft front door glass outer sealing strip assembly68210-52110 · 68210-52130
68215Right front door fixed window seal68215-52010 · 68215-52011
68216Left front door fixed window seal68216-52010 · 68216-52011
68610BRight front door opening limiter assembly68610-52100 · 68610-52101
68620Left front door opening limiter assembly68610-52100 · 68610-52101
75921CNo. 1 right side light-shielding film75921-52070
75922MNo. 1 left shading film75922-52070
