Toyota YARIS 车顶内衬和消声垫 — Figure 6402

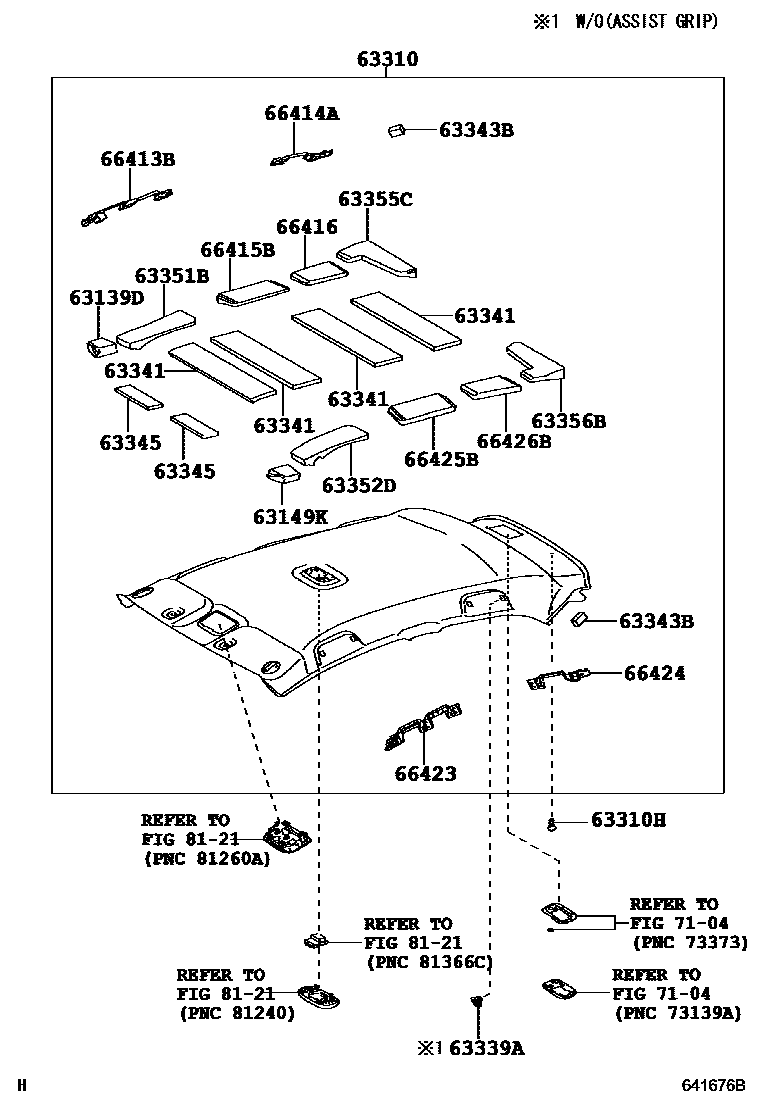

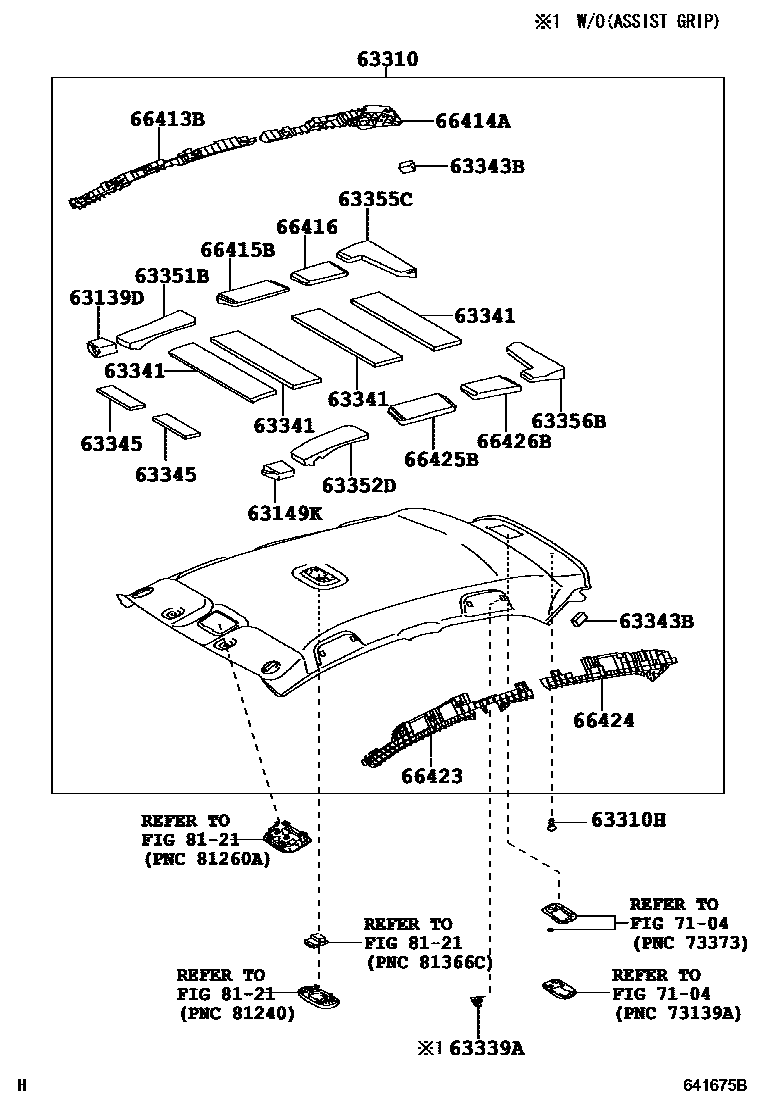

Toyota YARIS EPC diagram 6402, 车顶内衬和消声垫, with 2 images and 18 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 63139D | No. 3 roof panel lining | 63139-52020 |
| 63149K | No. 4 roof panel lining | 63149-52020 |
| 63310 | Headlining assembly | 63301-52080 |
| 63341 | No. 1 roof silencer mat | 63341-52150 · 63341-52160 · 63341-52200 |
| 63343B | Rear roof silencer pad | 63343-52040 |
| 63345 | No. 5 roof silencer mat | 63345-52030 |
| 63351B | roof lining pads | 63351-52030 · 63351-52050 |
| 63352D | No. 2 roof lining lining block | 63352-52020 · 63352-52050 |
| 63355C | Right side roof lining | 63355-52030 · 63355-52040 |
| 63356B | Roof left inner lining block | 63356-52030 · 63356-52060 |
| 66413B | Right front longitudinal member spacer | 66413-52160 · 66413-52180 · 66413-52190 · 66413-52270 |
| 66414A | Right rear longitudinal member spacer | 66414-52190 · 66414-52200 · 66414-52210 |
| 66415B | No. 2 right rear longitudinal beam spacer | 66415-52040 · 66415-52060 |
| 66416 | No. 3 right rear longitudinal beam spacer | 66416-52010 · 66416-52020 |
| 66423 | Left front longitudinal member spacer | 66423-52170 · 66423-52180 · 66423-52190 · 66423-52270 |
| 66424 | Left rear longitudinal member spacer | 66424-52180 · 66424-52190 · 66424-52200 |
| 66425B | No. 2 left rear longitudinal beam spacer | 66425-52040 · 66425-52060 |
| 66426B | No. 3 left rear longitudinal beam spacer | 66426-52010 · 66426-52020 |
