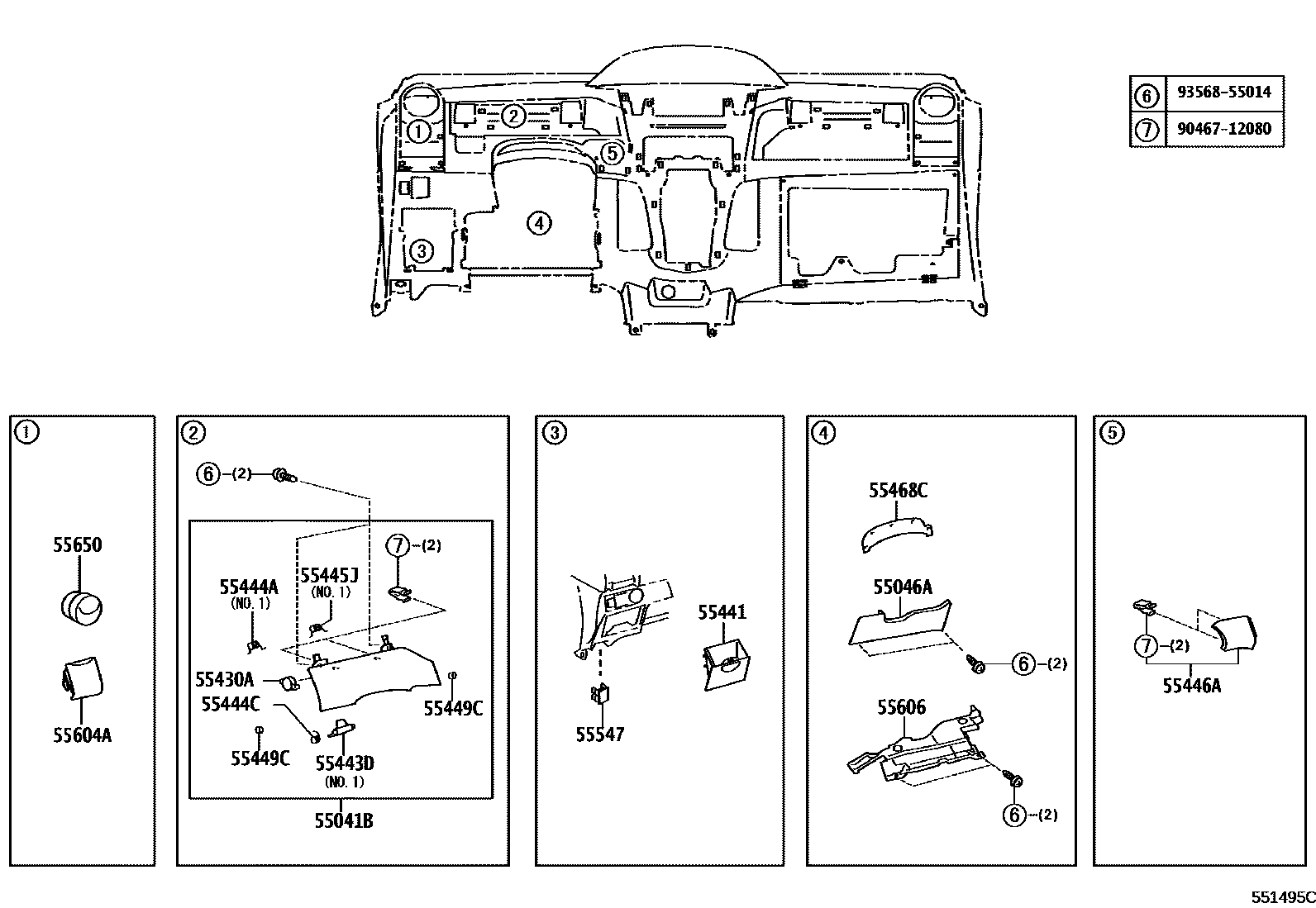

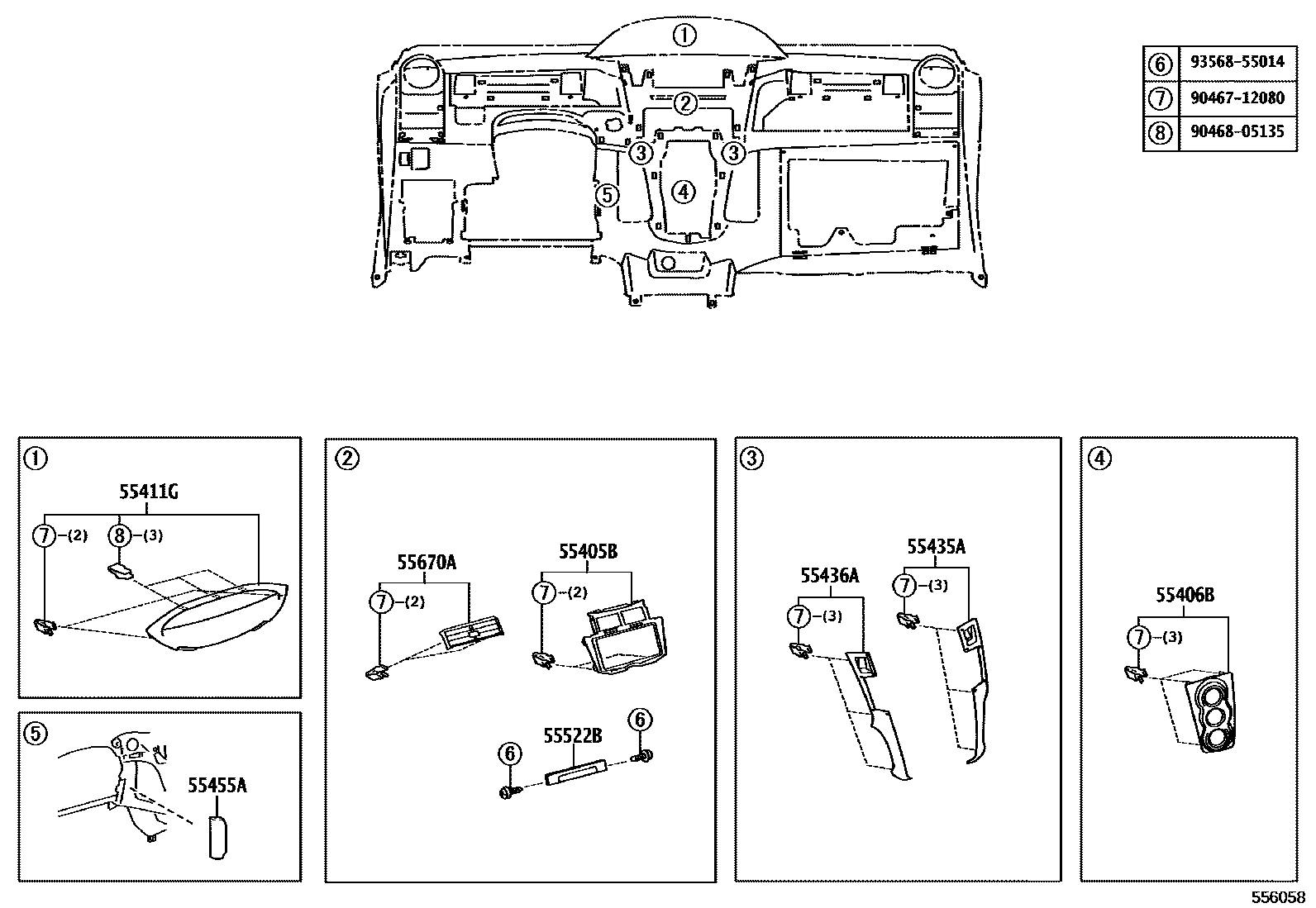

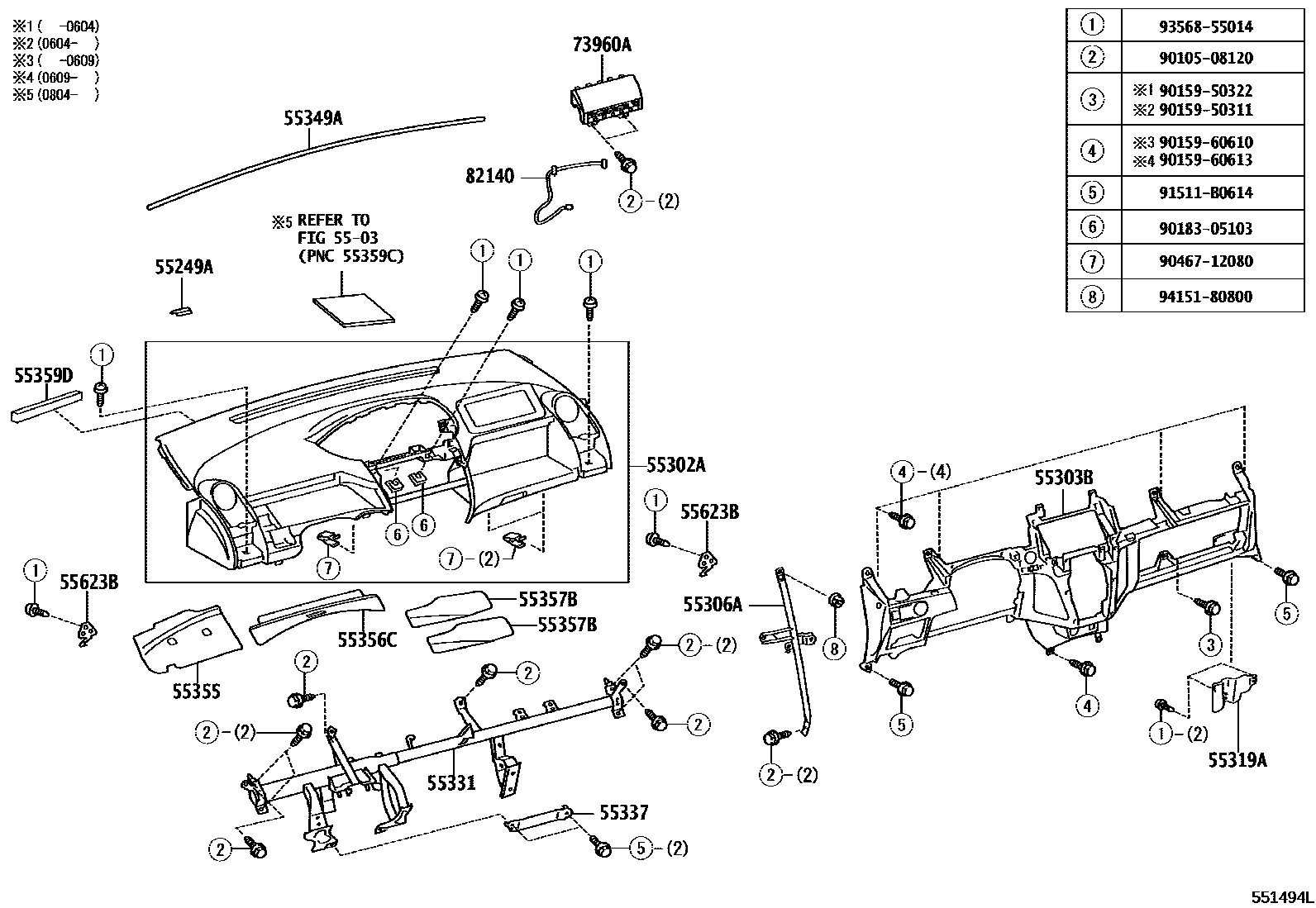

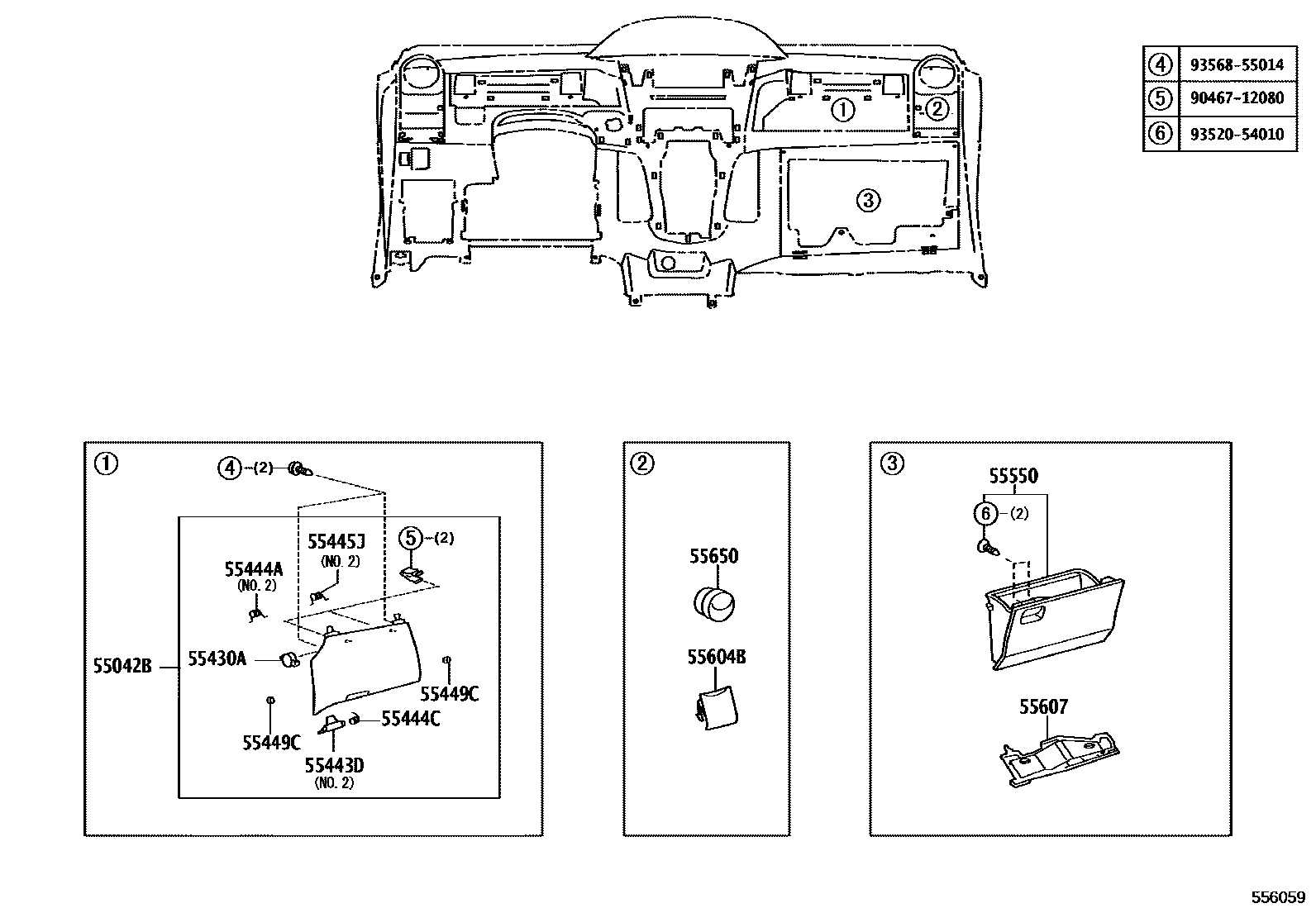

Toyota YARIS 仪表板和手套箱 — Figure 5501
Toyota YARIS EPC diagram 5501, 仪表板和手套箱, with 4 images and 23 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 55249A | front panel seal | 55249-52010 |
| 55306A | Instrument panel No. 1 bracket sub-assembly | 55306-52170 |
| 55319A | Instrument panel extension No. 2 | 55319-52060 |
| 55331 | Dashboard reinforcement | 55330-52390 · 55330-52391 |
| 55337 | Dashboard sub-reinforcement | 55337-52010 |
| 55349A | Dashboard cushion | 55349-52060 |
| 55355 | Dashboard No. 1 Cushion Pad | 55355-52100 |
| 55356C | Dashboard No. 2 Cushion Pad | 55356-52110 |
| 55357B | Dashboard No. 3 Cushion Pad | 55357-52080 |
| 55359D | Dashboard No. 5 Cushion Pad | 55359-52080 |
| 55430A | Instrument cluster decorative panel damper assembly | 55430-52020 |
| 55444A | Dashboard storage box spring | 55444-52230 · 55444-52270 |
| 55444C | Dashboard storage box spring | 55478-52020 |
| 55445J | Dashboard storage box spring | 55445-52160 · 55445-52180 |
| 55449C | Dashboard No. 2 decorative panel cushion | 55449-28020 |
| 55455A | Center dash lower pad | 55455-52020 · 55455-52021 |
| 55468C | Instrument cluster No. 1 decorative panel seal | 55468-52010 |
| 55522B | Radio tuner opening cover | 55522-52010 · 55522-52020 |
| 55606 | Instrument panel No. 1 bottom cover sub-assembly | 55606-52020 |
| 55607 | Instrument panel No. 2 bottom cover sub-assembly | 55607-52020 |
| 55623B | Dashboard cup holder spring | 55623-52020 |
| 73960A | Dashboard passenger air bag assembly without cover | 73960-52030 |
| 82140 | Instrument panel wiring harness assembly | 82140-52010 |
