Toyota YARIS 后保险杠及附件 — Figure 5202

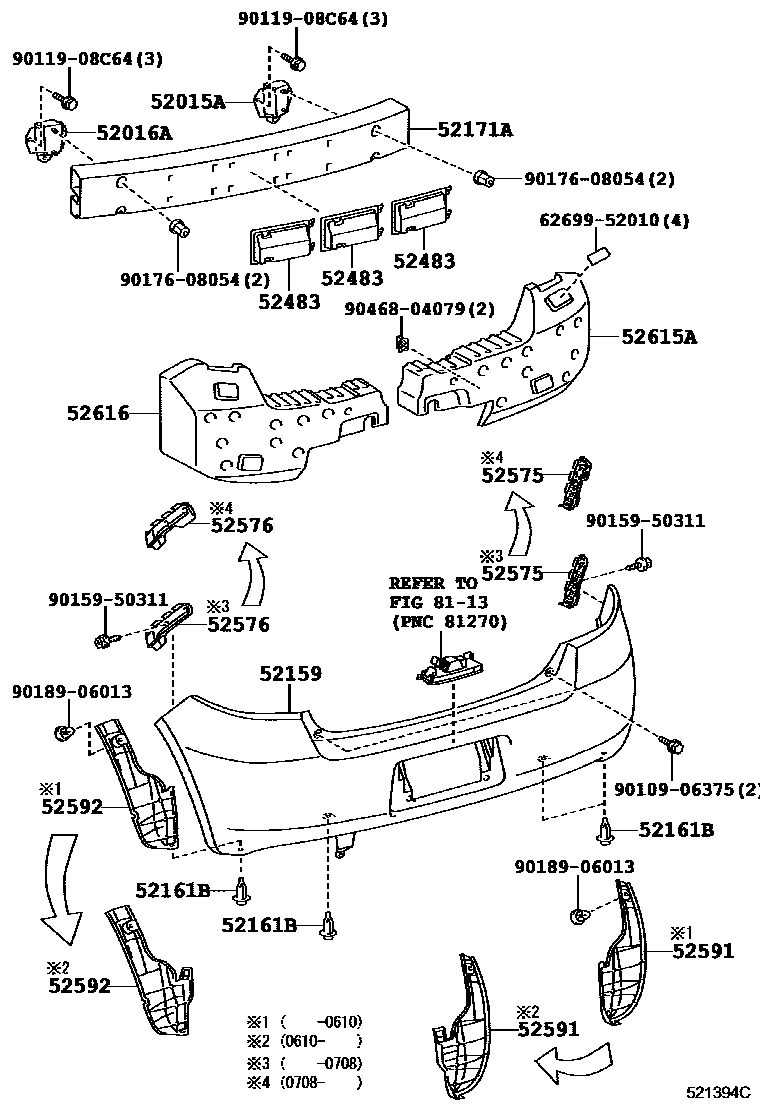

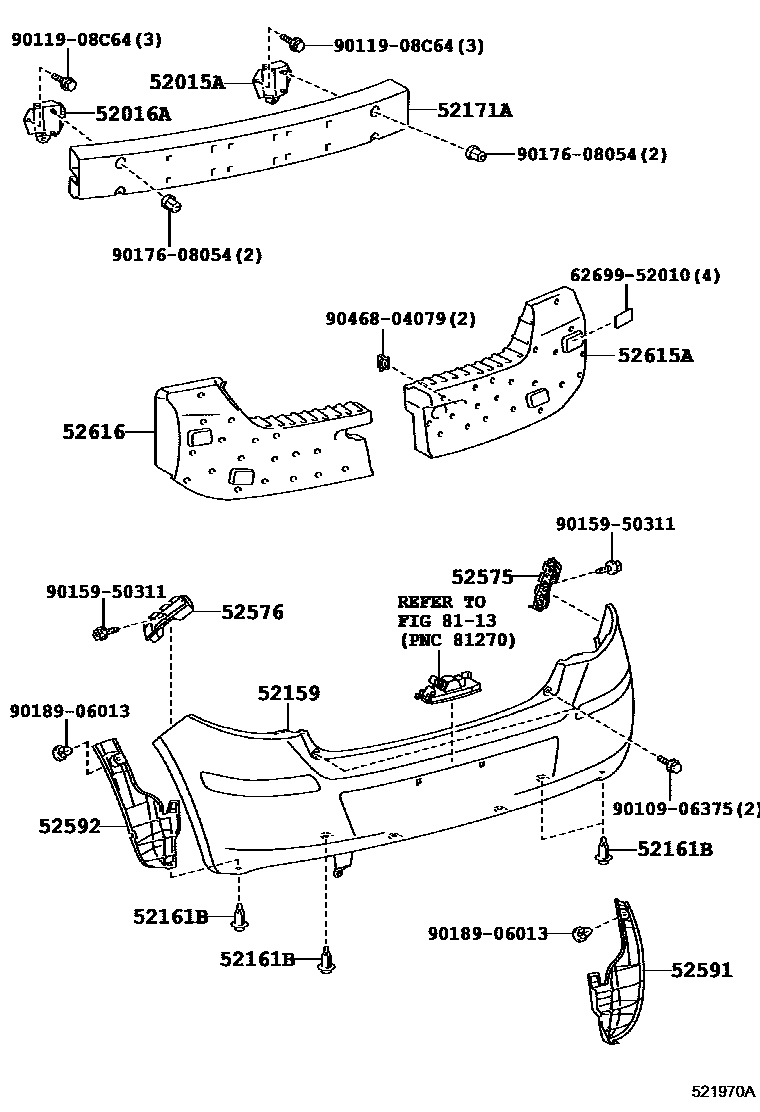

Toyota YARIS EPC diagram 5202, 后保险杠及附件, with 2 images and 12 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 52015A | Rear bumper right arm sub-assembly | 52181-52080 |
| 52016A | Rear bumper left arm sub-assembly | 52182-52080 |
| 52159 | rear bumper cover | 52159-52920 · 52159-52954 |
| 52161B | Rear bumper insert | 52161-16010 |
| 52171A | Rear bumper reinforcement No. 1 | 52171-52030 · 52171-52090 |
| 52483 | Rear bumper center guard bracket | 52483-52040 |
| 52575 | Rear bumper right side fixing bracket | 52575-52110 · 52575-52111 |
| 52576 | Rear bumper left side fixing bracket | 52576-52090 · 52576-52091 |
| 52591 | Rear bumper right seal | 52591-52180 · 52591-52181 · 52591-52270 |
| 52592 | Rear bumper left seal | 52592-52170 · 52592-52171 · 52592-52270 |
| 52615A | Rear bumper right energy absorber | 52615-52070 · 52615-52090 |
| 52616 | Rear bumper left energy absorber | 52616-52040 · 52616-52080 |
