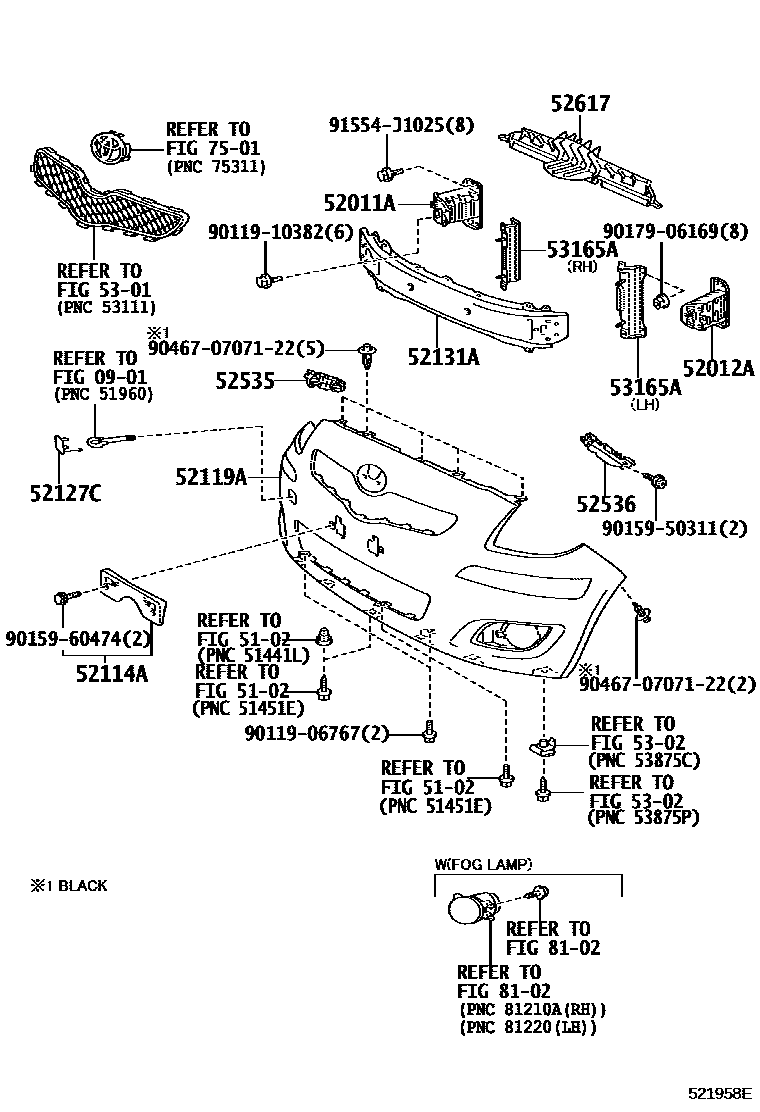

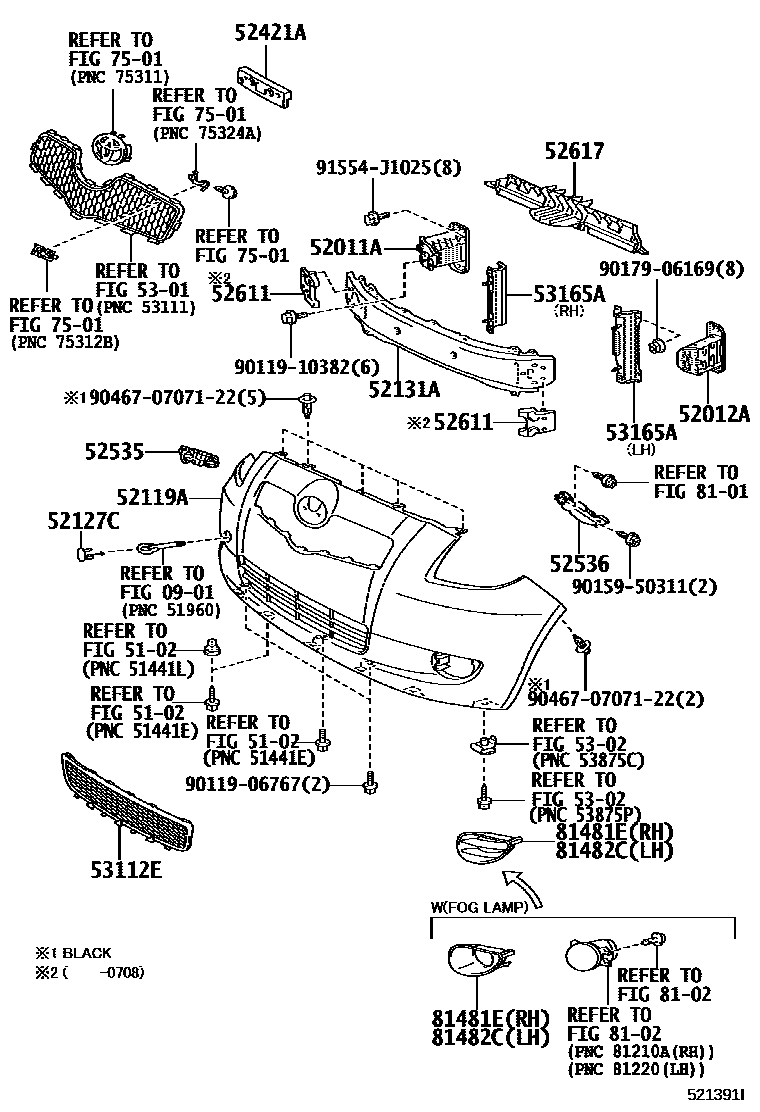

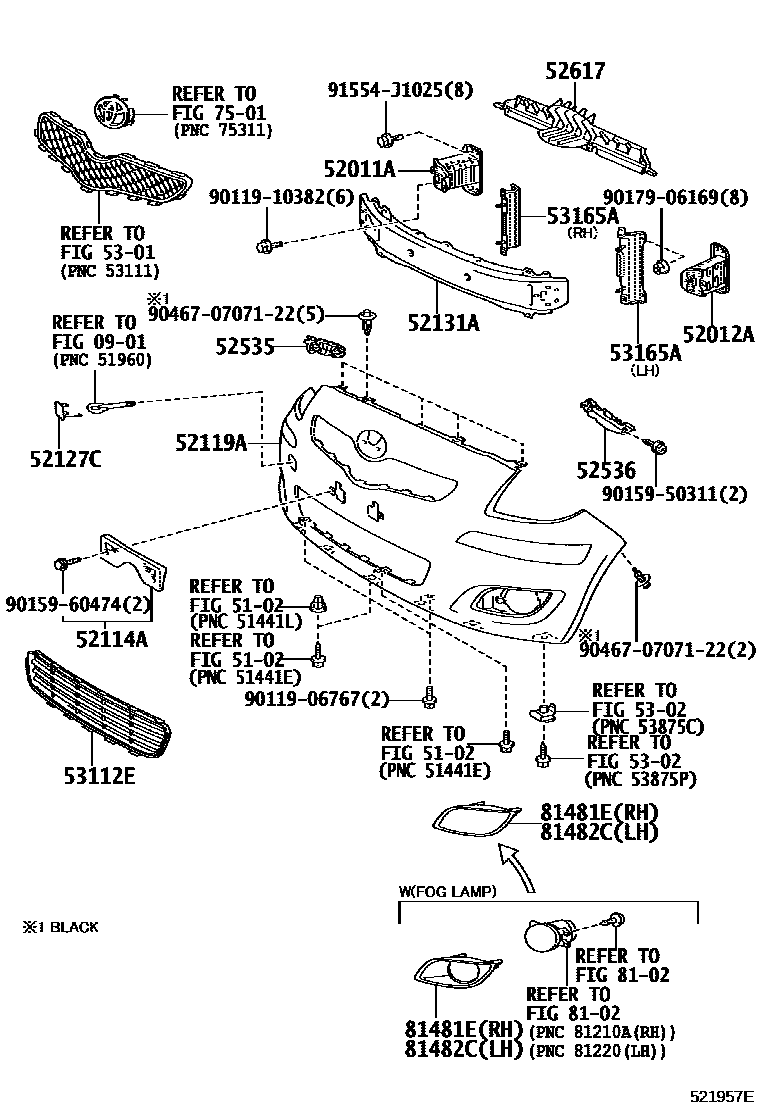

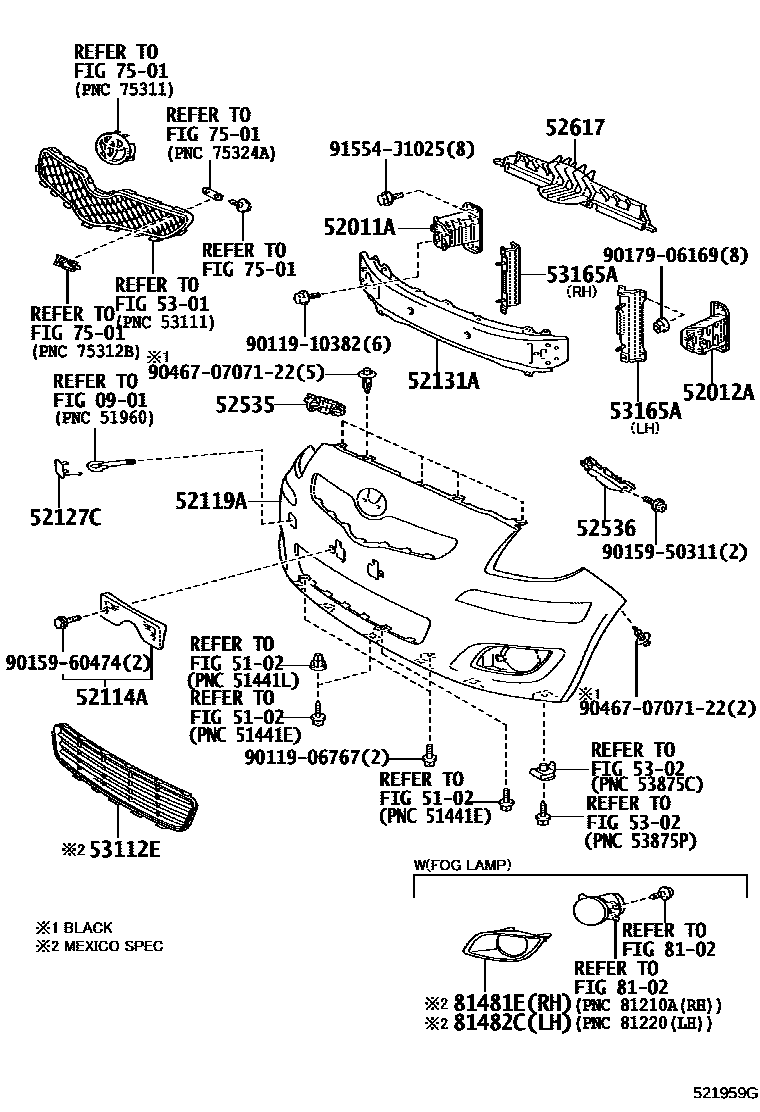

Toyota YARIS 前保险杠及附件 — Figure 5201
Toyota YARIS EPC diagram 5201, 前保险杠及附件, with 4 images and 15 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 52011A | Front bumper right arm sub-assembly | 52011-52020 |
| 52012A | Front bumper left arm sub-assembly | 52012-52020 |
| 52114A | Front bumper extension mounting bracket | 52114-52070 |
| 52119A | front bumper cover | 52119-52922 · 52119-52925 · 52119-52961 |
| 52127C | Front bumper hole cover | 52127-52909 · 52127-52925 |
| 52131A | Front bumper reinforcement | 52131-52250 · 52131-52270 · 52131-52271 · 52131-52280 |
| 52421A | front bumper lining | 52421-52020 |
| 52535 | Front bumper right side fixing bracket | 52535-52060 |
| 52536 | Front bumper left fixed bracket | 52536-52050 |
| 52611 | front bumper energy absorber | 52611-52120 |
| 52617 | Radiator upper bracket shock absorber | 52617-52020 |
| 53112E | No. 1 radiator lower grille | 53112-52180 · 53112-52310 |
| 53165A | Front bumper baffle No. 1 bracket | 53164-52020 · 53165-52030 |
| 81481E | Right fog light cover | 81481-52110 · 81481-52150 · 81481-52320 · 81481-52330 |
| 81482C | Left fog light cover | 81482-52100 · 81482-52110 · 81482-52250 · 81482-52260 |
