Toyota YARIS 悬架横梁和发动机底罩 — Figure 5102

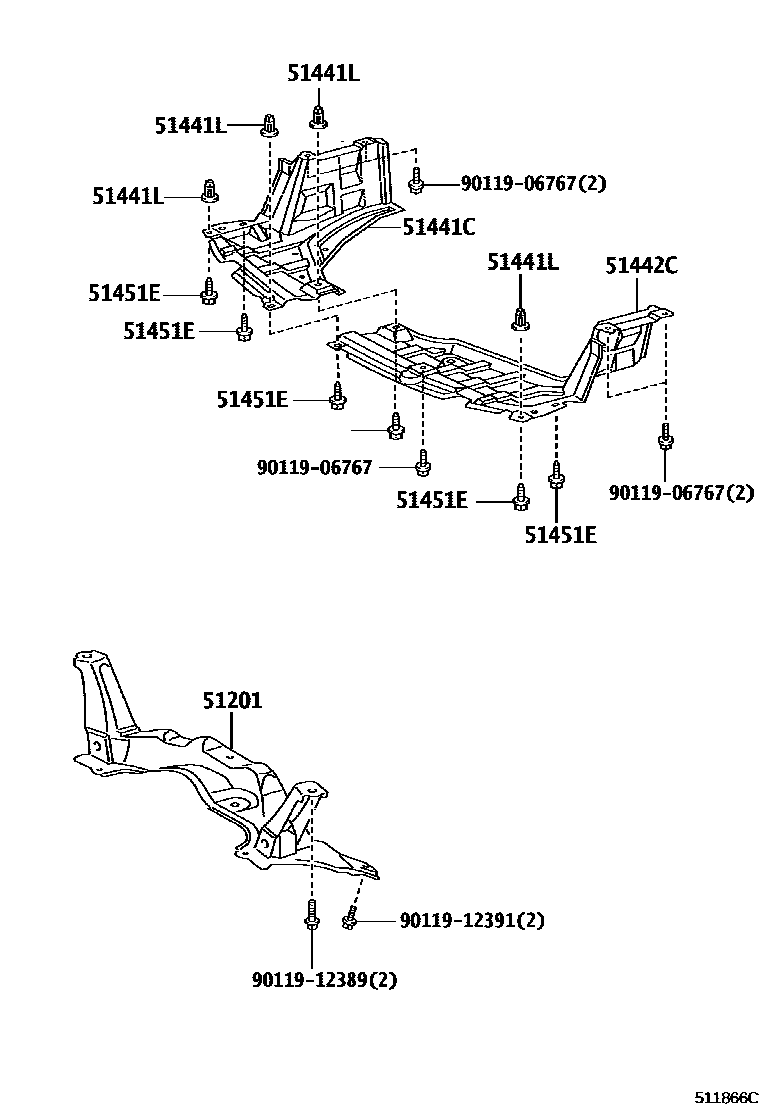

Toyota YARIS EPC diagram 5102, 悬架横梁和发动机底罩, with 1 images and 5 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 51201 | Front suspension cross member sub-assembly | 51201-52080 · 51201-52083 |
| 51441C | Engine right bottom cover | 51441-52140 · 51441-52141 · 51441-52180 · 51441-52250 |
| 51441L | OEILLET, NO.2(POUR PROTECTION SOUS MOTEUR) | 90189-06076 |
| 51442C | Engine left bottom cover | 51442-52080 · 51442-52081 · 51442-52082 · 51442-52090 · 51442-52110 |
| 51451E | VIS, NO.2 | 90159-60383 |
