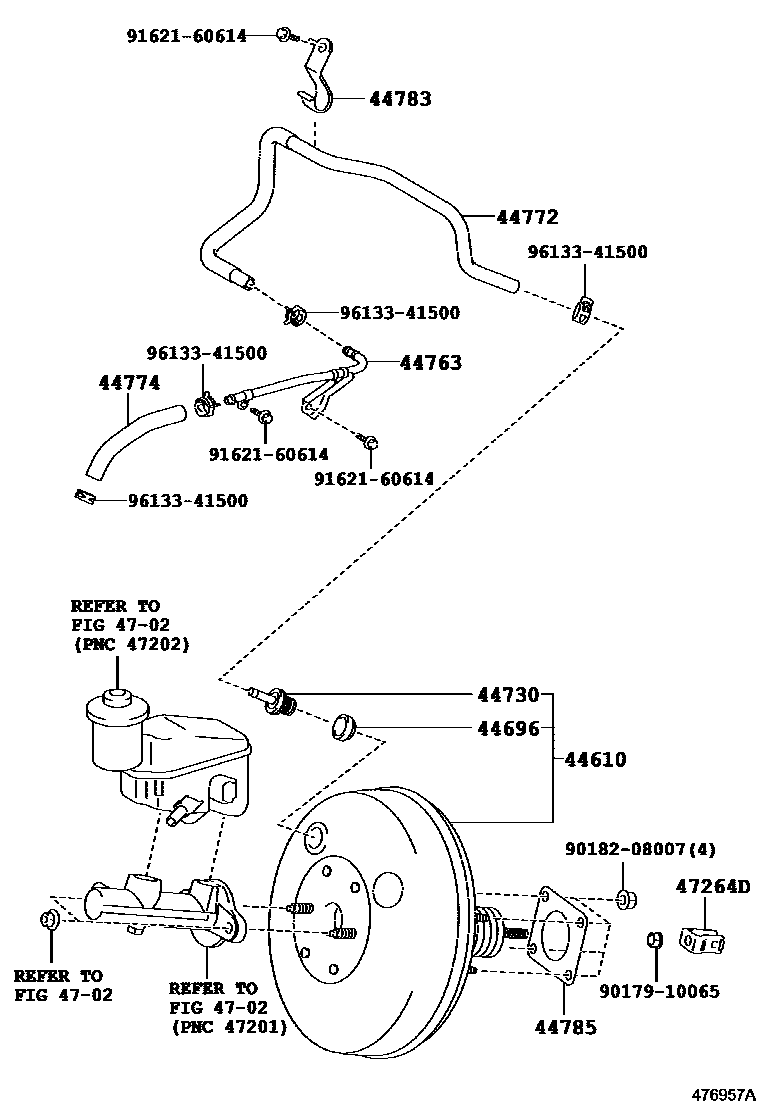

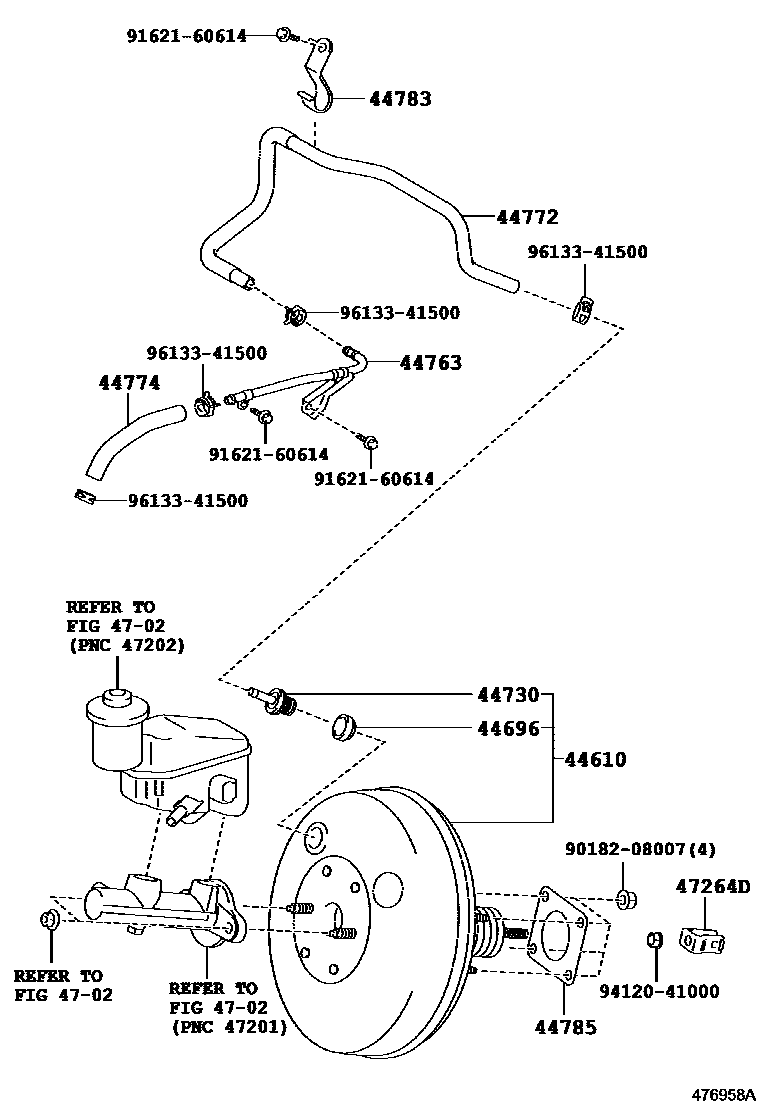

Toyota YARIS 制动助力器和真空管 — Figure 4703
Toyota YARIS EPC diagram 4703, 制动助力器和真空管, with 2 images and 9 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 44610 | brake booster assembly | 44610-52430 · 44610-52460 · 44610-52800 |
| 44696 | One-way valve seal | 90480-24439 |
| 44730 | Vacuum check valve assembly (for brake) | 44730-20080 |
| 44763 | booster vacuum tube | 44763-52080 |
| 44772 | Hoses (check valve to connector tube) | 44772-52090 |
| 44774 | Hoses (joints to connector tubes) | 95446-09130 |
| 44783 | Vacuum hose clamp | 44783-52040 |
| 44785 | brake booster pad | 44785-16020 |
| 47264D | Brake master cylinder push rod U-shaped clamp | 47264-52040 |
