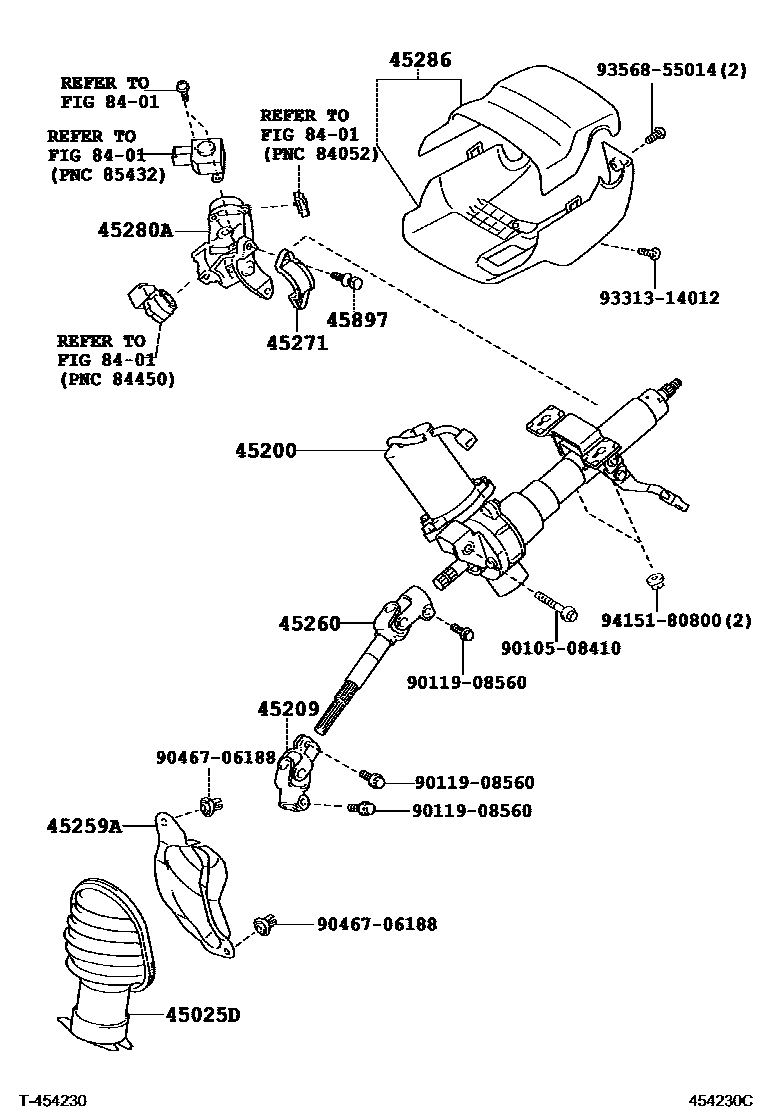

Toyota YARIS Steering Column & Shaft — Figure 4501
Toyota YARIS EPC diagram 4501, Steering Column & Shaft, with 1 images and 8 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 45025D | No. 1 steering column hole cover sub-assembly | 45025-52140 |
| 45200 | Steering column assembly | 45200-52300 |
| 45209 | Steering slip fork sub-assembly | 45209-52040 |
| 45259A | Steering column hole cover silencer plate | 45259-52020 |
| 45260 | No. 2 steering intermediate shaft assembly | 45260-52210 |
| 45271 | Clamp on steering column | 45271-52030 |
| 45280A | Steering column upper bracket assembly | 45280-22510 · 45280-52090 |
| 45897 | Steering lock fixing bolt | 45897-12020 |
