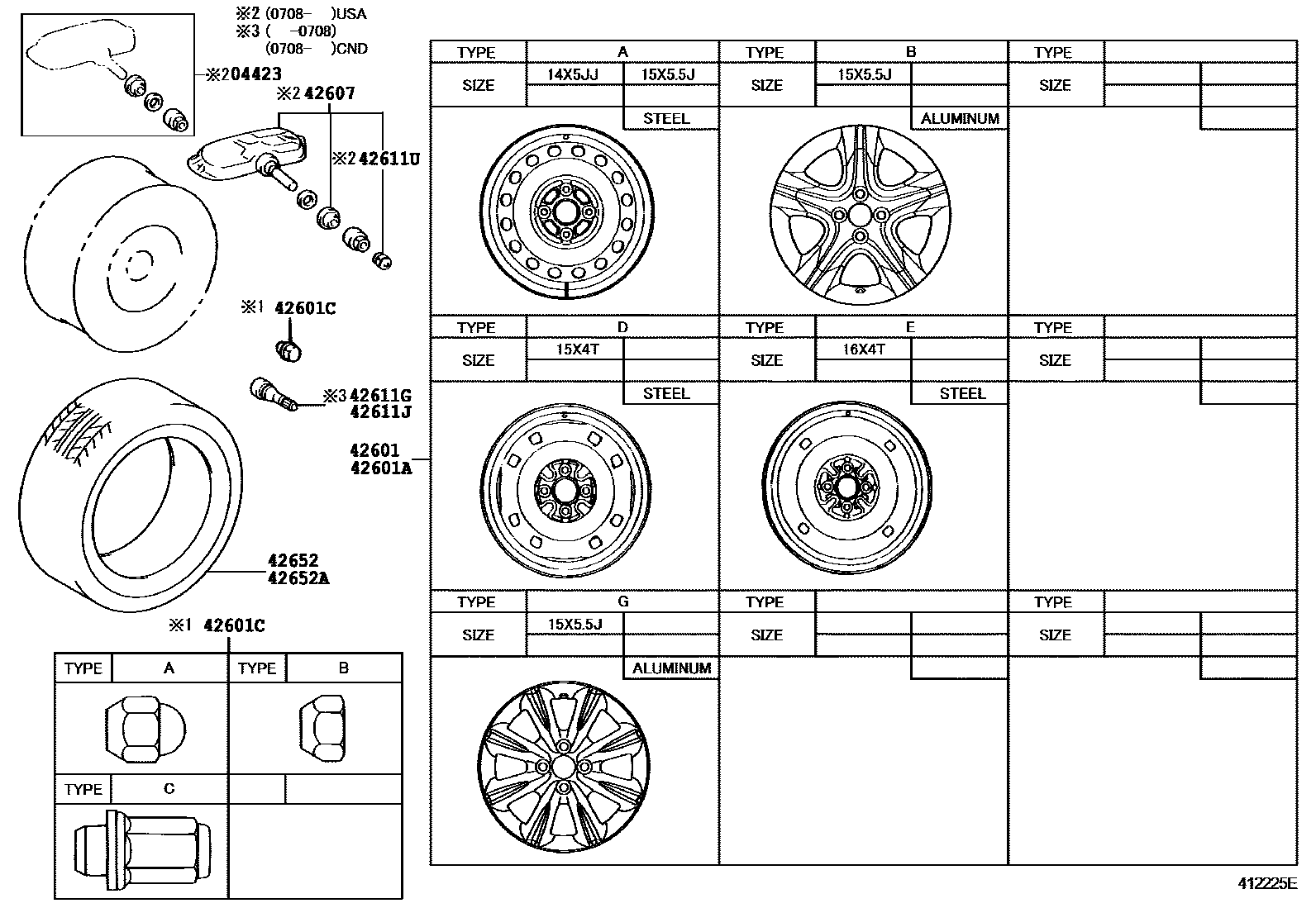

Toyota YARIS 车轮和车轮盖 — Figure 4103
Toyota YARIS EPC diagram 4103, 车轮和车轮盖, with 3 images and 12 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 04423 | Tire pressure monitoring valve or balancer valve mounting assembly | 04423-33030 |
| 42601 | spoke wheel | 42611-52490 · 42611-52491 · 42611-52492 · 42611-52493 · 42611-52500 · 42611-52501 · 42611-52502 · 42611-52510 · 42611-52511 · 42611-52530 · 42611-52540 · 42611-52541 |
| 42601A | Spoke wheel (for spare tire) | 42611-1A020 · 42611-1A240 |
| 42601C | Hub nut (for axle) | 90942-01007 · 90942-01021 · 90942-01033 |

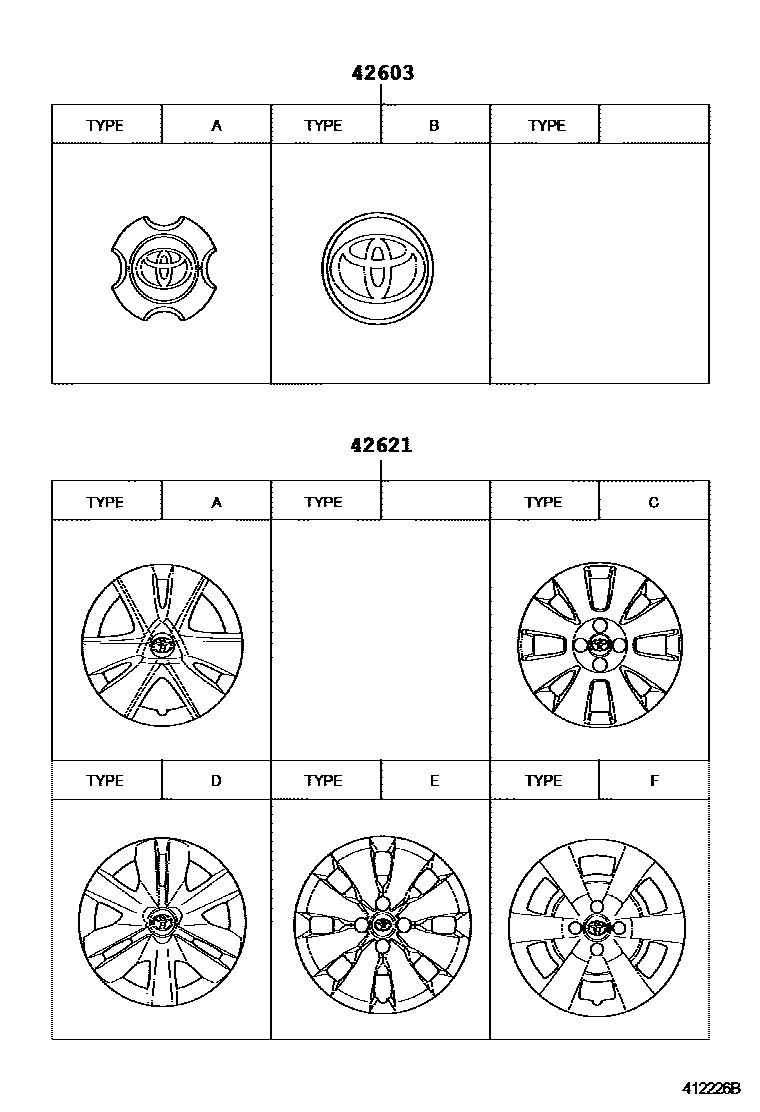

| 42603 | Wheel hub decorative parts sub-assembly | 42603-52110 · 42638-52020 |
| 42607 | Tire pressure monitoring valve sub-assembly | 42607-33011 · 42607-52010 · 42607-52030 |
| 42611G | Valve (for tubeless tires) | 90942-05009 |
| 42611J | Valve (for tubeless spare tire) | 90942-05009 |
| 42611U | tire valve cover | 90942-05039 |
| 42621 | wheel cover | 42602-52260 · 42602-52280 · 42602-52310 · 42602-52400 · 42602-52410 |
| 42652 | tires | 42652-52710 · 42652-52720 · 42652-52730 · 42652-52740 · 42652-52750 |
| 42652A | Tire (for Spare Wheel) | 42652-12E50 · 42652-32520 · 42652-47080 · 4265A-52020 |
