Toyota YARIS 变速器油冷却器和配管(ATM) — Figure 3514

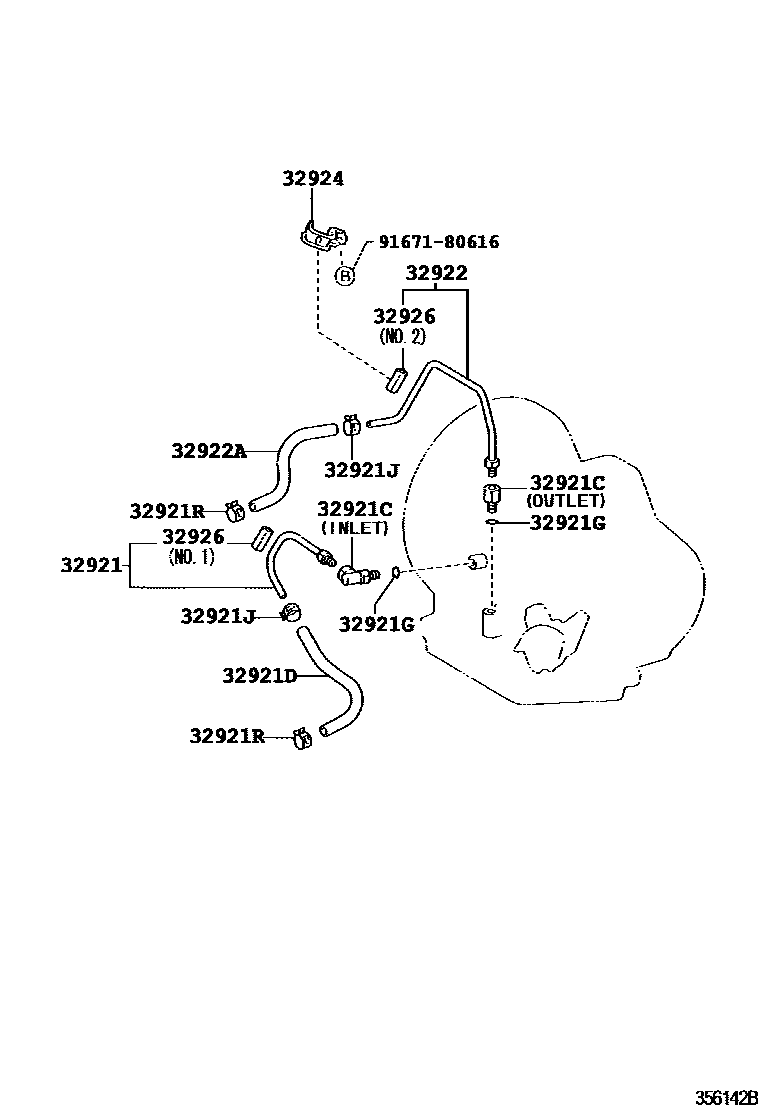

Toyota YARIS EPC diagram 3514, 变速器油冷却器和配管(ATM), with 1 images and 10 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 32921 | No. 1 transmission oil cooler oil inlet pipe | 32921-52060 |
| 32921C | Fitting (for transmission oil cooler tube) | 90404-14007 · 90407-14003 |
| 32921D | Hose (for transmission oil cooler oil inlet) | 90445-15046 |
| 32921G | O-ring (for transmission oil cooler pipe joint) | 90301-10189 |
| 32921J | Clamp (for transmission oil cooler hose) | 96135-51300 |
| 32921R | Clamp No. 2 (for transmission oil cooler hose) | 96135-51300 · 96137-41501 |
| 32922 | No. 1 transmission oil cooler oil outlet pipe | 32922-52060 |
| 32922A | Hoses (for transmission oil cooler oil outlet) | 90445-15044 |
| 32924 | No. 2 transmission oil cooler pipe clamp | 32924-52010 · 32924-52030 |
| 32926 | Automatic transmission oil cooler pipe cushion | 32926-10010 · 32926-22010 |
