Toyota YARIS 传动桥或变速器总成和衬垫组件(MTM) — Figure 3301

Toyota YARIS EPC diagram 3301, 传动桥或变速器总成和衬垫组件(MTM), with 2 images and 2 PNC and OE references.

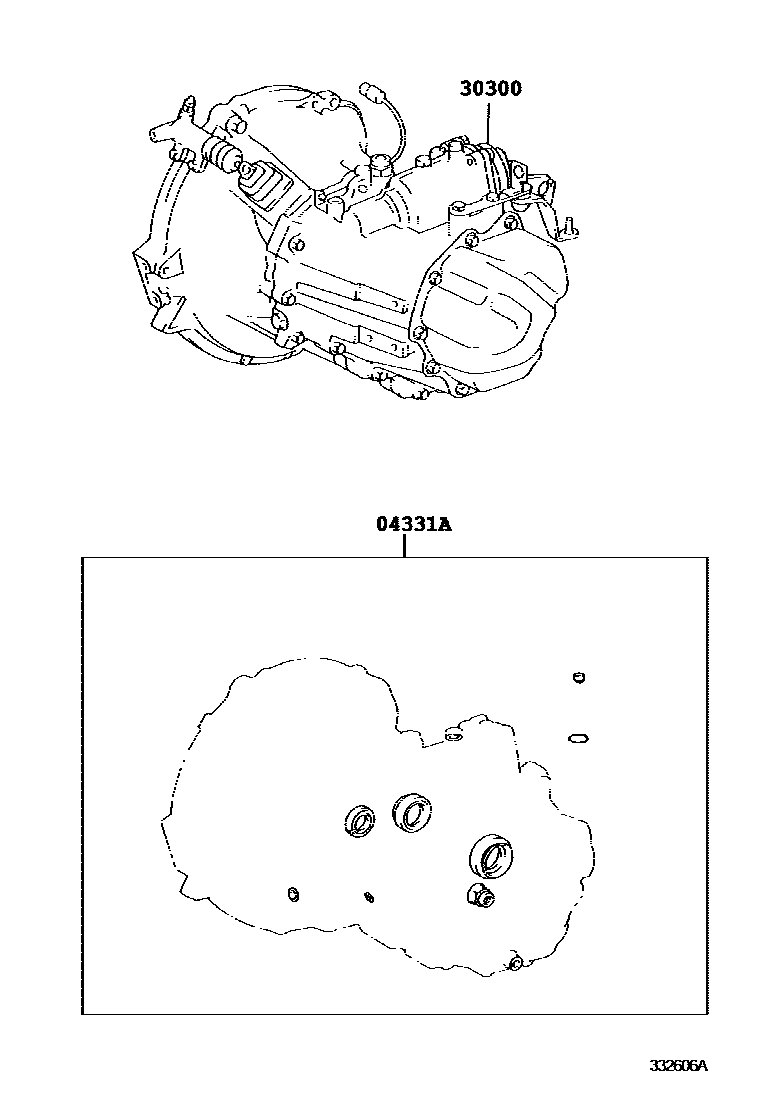

Toyota YARIS 传动桥或变速器总成和衬垫组件(MTM) EPC diagram — 332606A
传动桥或变速器总成和衬垫组件(MTM) — 332606A (200508 – 200611)

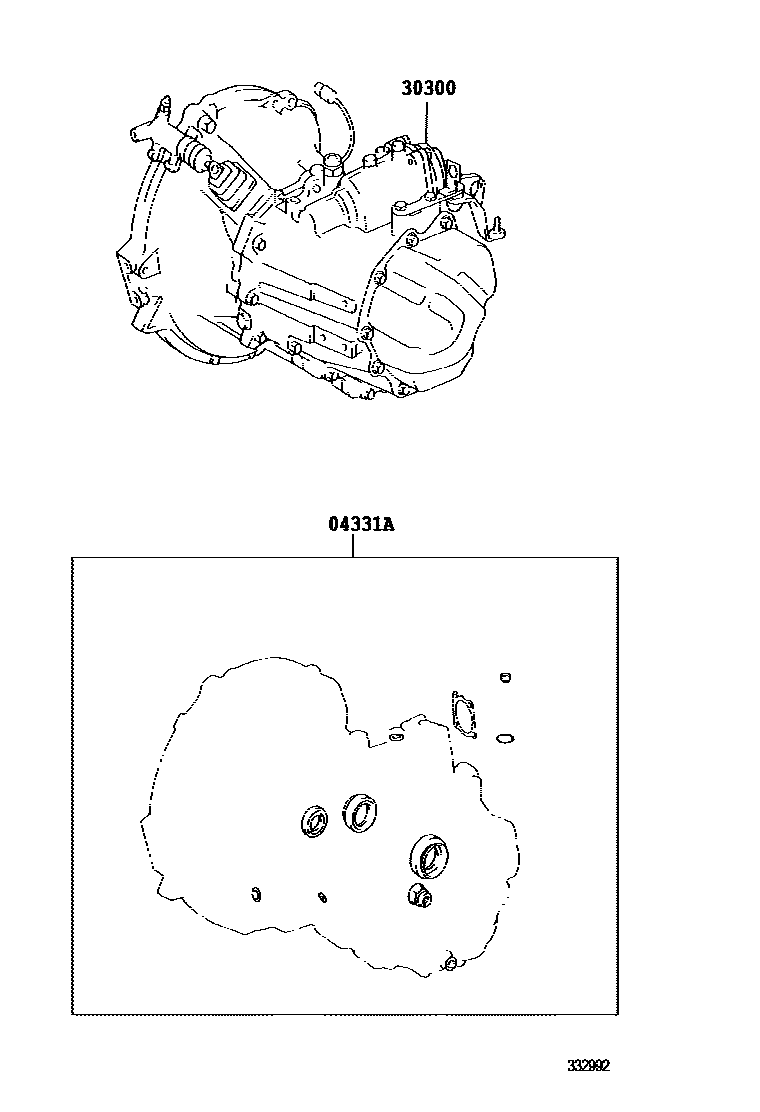

Toyota YARIS 传动桥或变速器总成和衬垫组件(MTM) EPC diagram — 332992
传动桥或变速器总成和衬垫组件(MTM) — 332992 (200611 – 999999)

PNC and OE references

PNCPart nameOE numbers
04331ATransaxle overhaul pad assembly (MTM)04331-12690 · 04331-12691 · 04331-12810 · 04331-52250 · 04331-52520
30300Manual transmission axle assembly30300-52360 · 30300-52710
