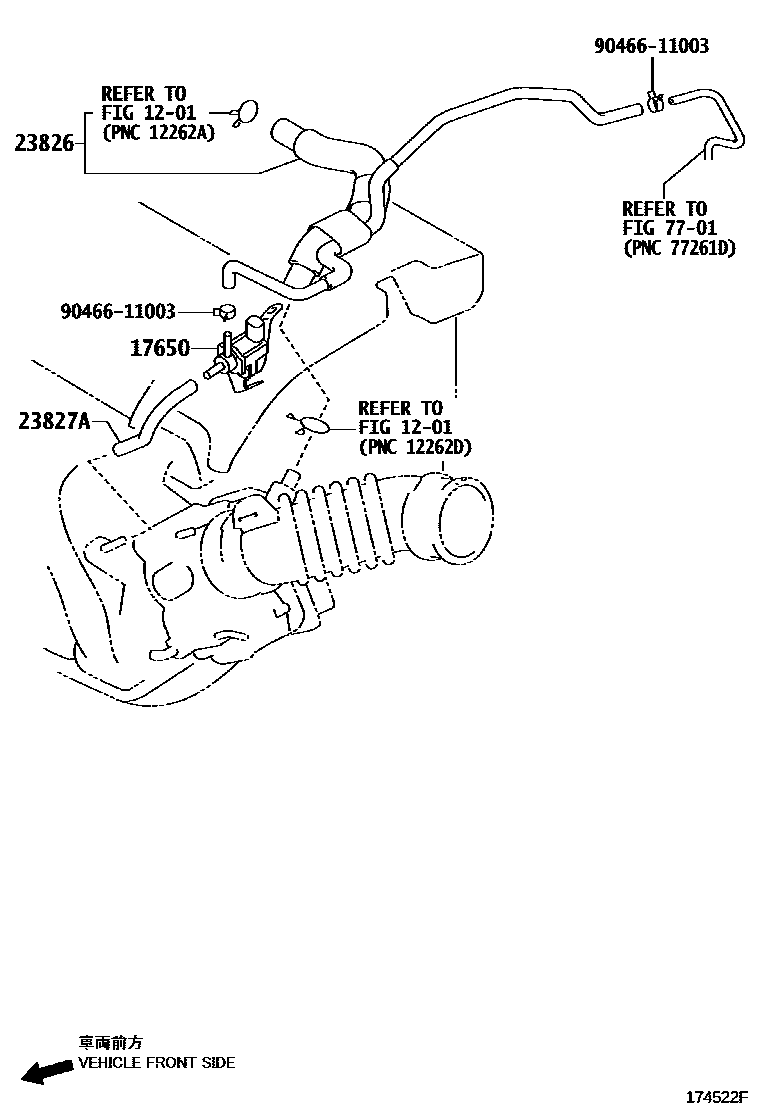

Toyota YARIS vacuum tube — Figure 1708
Toyota YARIS EPC diagram 1708, vacuum tube, with 1 images and 3 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 17650 | Vacuum switch valve assembly | 25860-21090 |
| 23826 | No. 1 fuel vapor supply hose | 23820-21100 |
| 23827A | No. 2 fuel vapor supply hose | 23827-21150 · 95328-07017 |
