Toyota YARIS Engine Mounting — Figure 1107

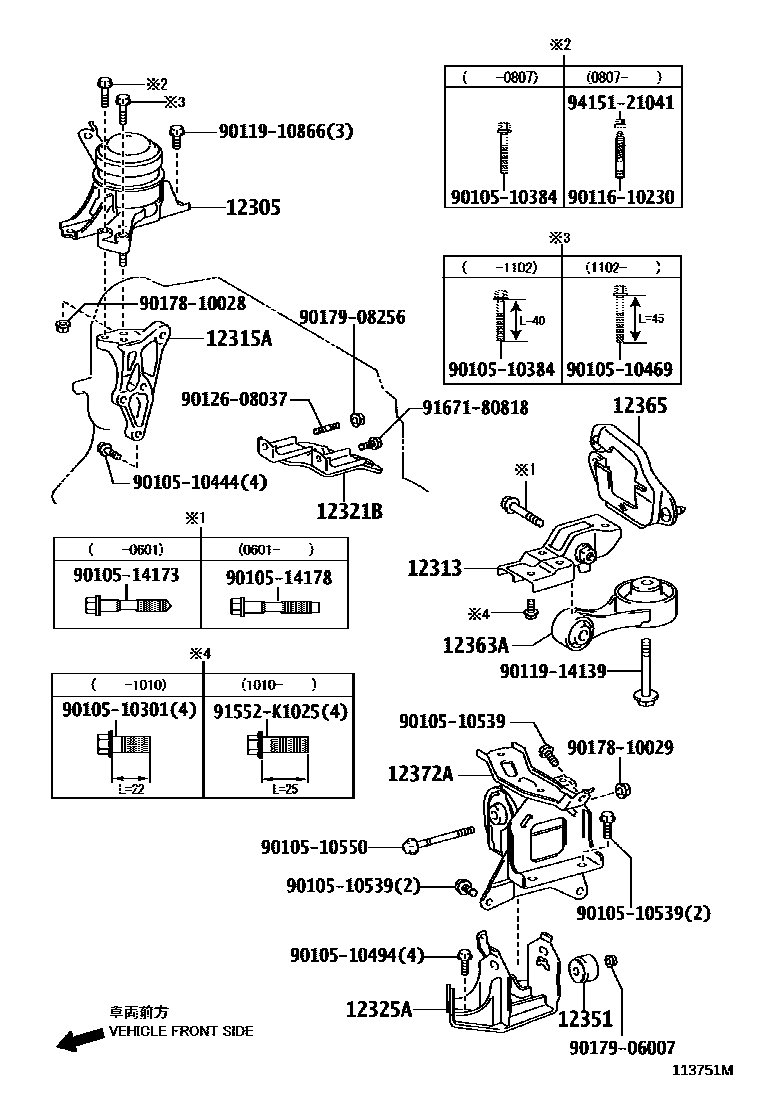

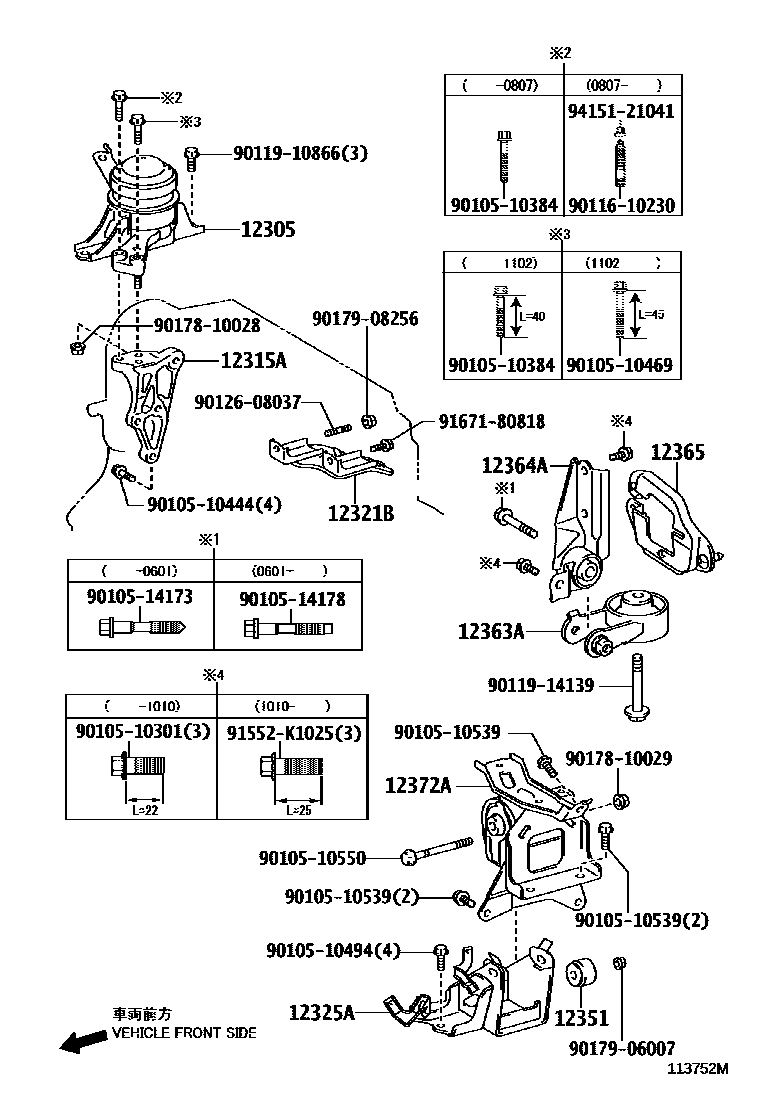

Toyota YARIS EPC diagram 1107, Engine Mounting, with 2 images and 10 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 12305 | Engine right side mounting vibration isolation pad sub-assembly | 12305-21200 · 12305-21220 |
| 12313 | Engine mount control bracket (for transversely mounted engines) | 12313-21040 |
| 12315A | Engine right side mounting bracket (for transversely mounted engine) | 12315-21040 · 12315-21041 · 12315-21042 · 12315-21043 |
| 12321B | Drive shaft heat insulation pad sub-assembly | 43409-52020 |
| 12325A | Engine left side mounting bracket (for transversely mounted engine) | 12325-21190 · 12325-21230 |
| 12351 | engine mount shock absorber | 12351-21090 |
| 12363A | Engine movement control lever | 12363-21040 · 12363-21060 |
| 12364A | Engine lateral control lever | 12364-21020 |
| 12365 | Engine motion control lever cover | 12365-40010 |
| 12372A | Engine left-side mounting vibration isolation pad (for transversely mounted engines) | 12372-21130 · 12372-21131 · 12372-21150 |
