Toyota YARIS Engine Overhaul Gasket Kit — Figure 1103

Toyota YARIS EPC diagram 1103, Engine Overhaul Gasket Kit, with 2 images and 2 PNC and OE references.

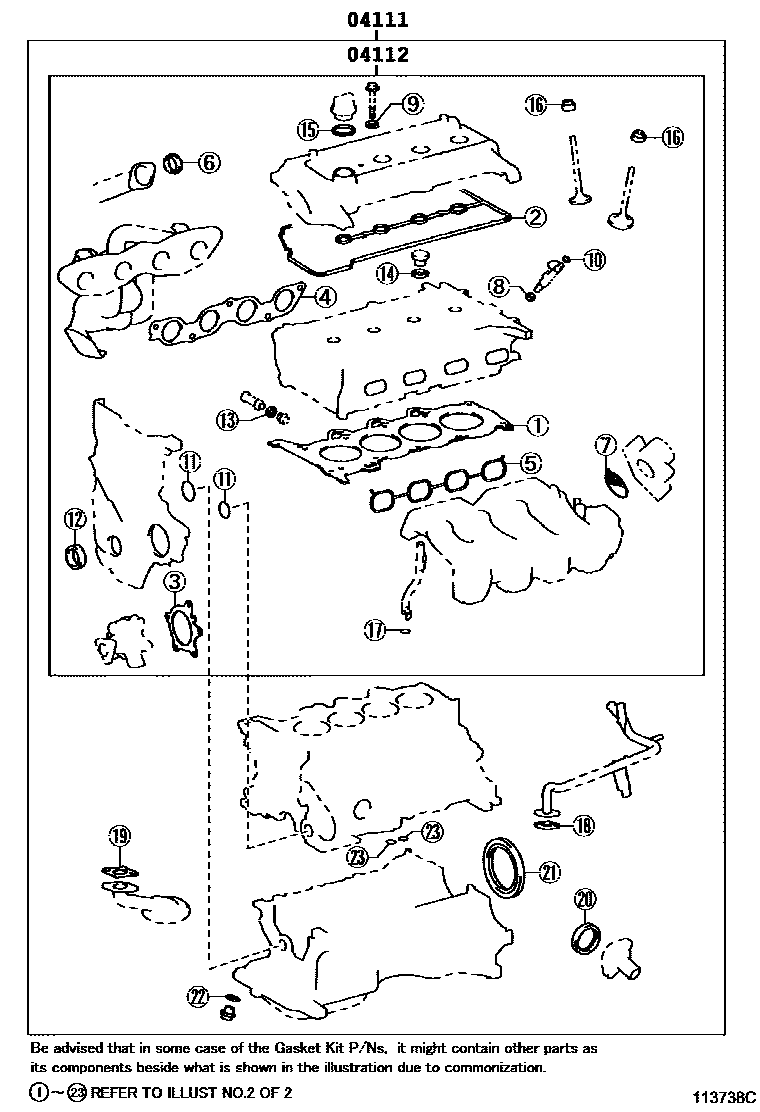

Toyota YARIS Engine Overhaul Gasket Kit EPC diagram — 113738C
Engine Overhaul Gasket Kit — 113738C (200508 – 999999)

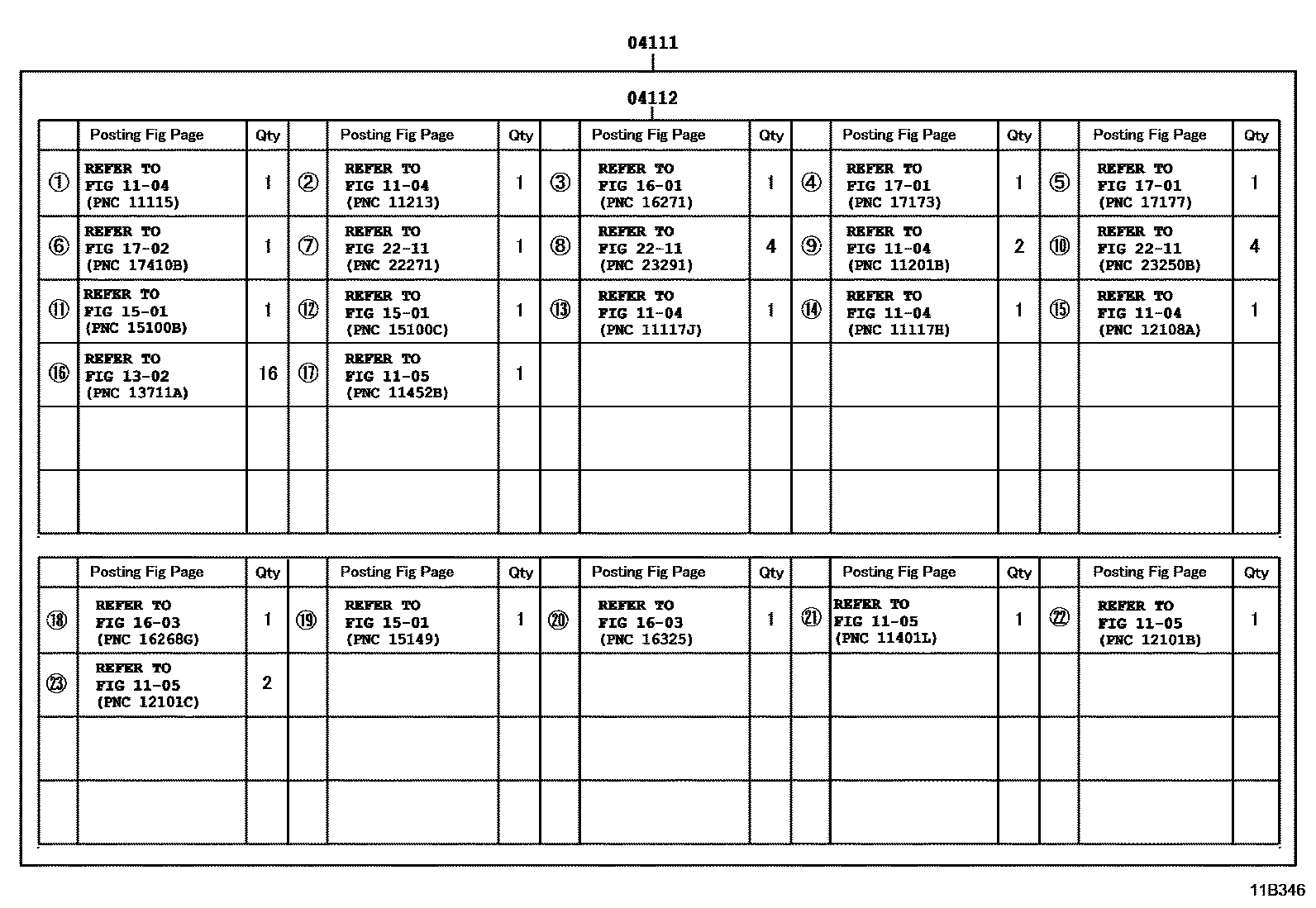

Toyota YARIS Engine Overhaul Gasket Kit EPC diagram — 11B346
Engine Overhaul Gasket Kit — 11B346 (200508 – 999999)

PNC and OE references

PNCPart nameOE numbers
04111Engine overhaul gasket assembly04111-21230 · 04111-21231 · 04111-21232 · 04111-21233
04112Engine valve grinding pad assembly04112-21230 · 04112-21231 · 04112-21232
