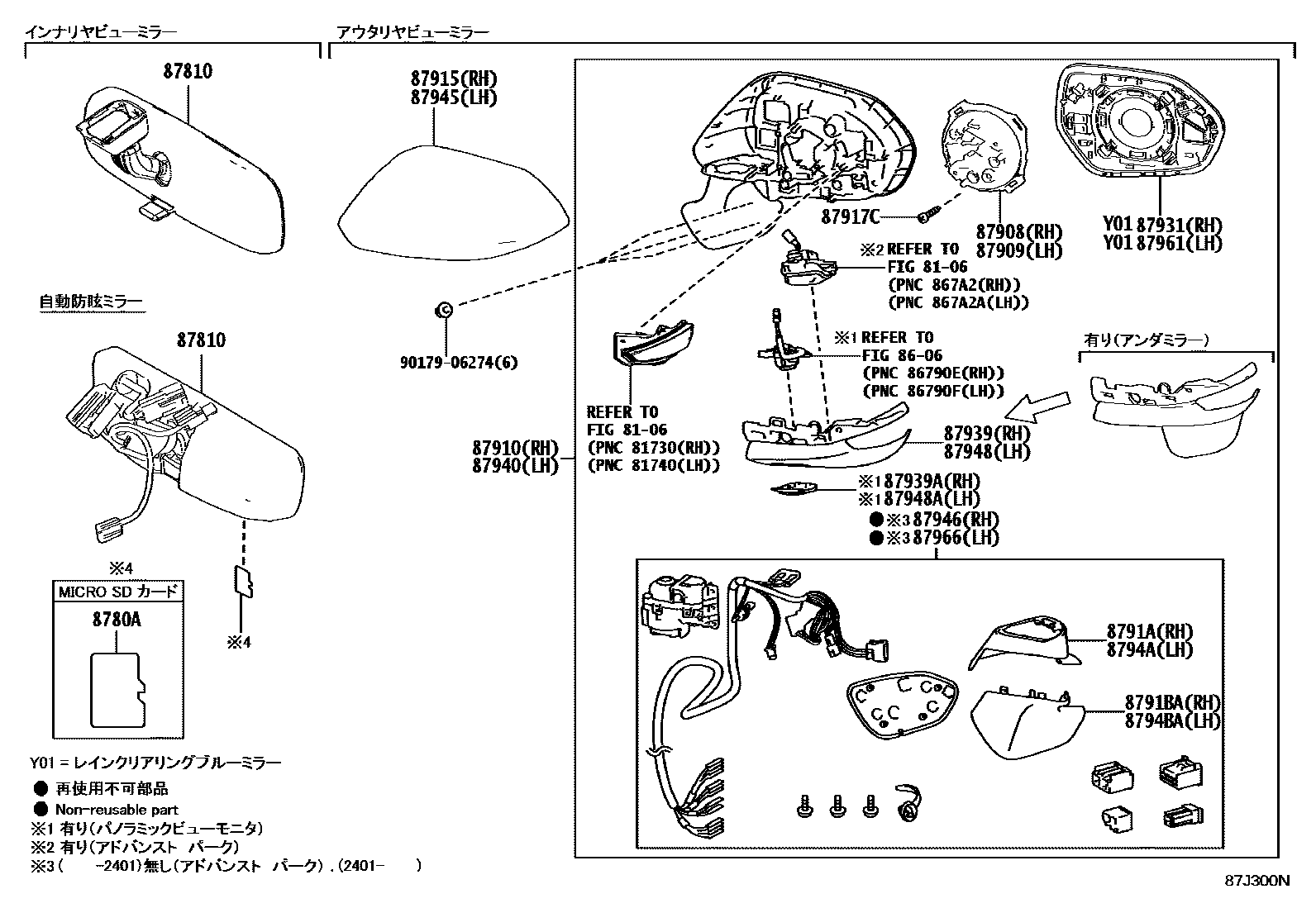

Toyota YARIS 后视镜 — Figure 8701
Toyota YARIS EPC diagram 8701, 后视镜, with 1 images and 19 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 8780A | Toyota part | 8780A-52010 |
| 87810 | Interior rearview mirror assembly | 87810-28140 · 87810-52041 · 87840-0W370 · 87840-0W371 · 87840-0W610 |
| 87908 | Right exterior rearview mirror actuator assembly | 87908-42E71 |
| 87909 | Left exterior rearview mirror actuator assembly | 87908-42E71 |
| 87910 | Right exterior rearview mirror assembly | 87910-52J10 · 87910-52J20 · 87910-52J30 · 87910-52J40 · 87910-52J41 · 87910-52J50 · 87910-52J51 · 87910-52J60 · 87910-52J70 · 87910-52N80 · 87910-52N90 · 87910-52P00 |
| 87917C | Exterior rearview mirror screws | 87917-15010 |
| 8791A | Right exterior rearview mirror cover No. 2 | 8791A-52J10 |
| 8791BA | Toyota part | 8791B-52J10 |
| 87931 | Right exterior rearview mirror | 87931-52J10 · 87931-52J20 · 87931-52J30 |
| 87939 | Right exterior rearview mirror hole cover | 87939-52J10 · 87939-52J40 · 87939-52J60 · 87939-52N80 · 87939-52P00 |
| 87939A | Right exterior rearview mirror hole cover | 87939-52J10 · 87939-52J50 · 87939-52N90 · 87939-52P00 |
| 87940 | Left exterior rearview mirror assembly | 87940-52G70 · 87940-52G80 · 87940-52G90 · 87940-52J00 · 87940-52J01 · 87940-52J10 · 87940-52J11 · 87940-52J20 · 87940-52J30 · 87940-52N90 · 87940-52P00 · 87940-52P10 |
| 87946 | Right exterior rearview mirror retractor | 00000-00000 · 87946-52J10 · 87946-52J20 · 87946-52J30 · 87946-52J40 · 87946-52J50 · 87946-52N80 · 87946-52N90 · 87946-52P00 |
| 87948 | Left exterior rearview mirror hole cover | 87948-52G70 · 87948-52J00 · 87948-52J20 · 87948-52N90 · 87948-52P10 |
| 87948A | Left exterior rearview mirror hole cover | 87948-52G70 · 87948-52J10 · 87948-52P00 · 87948-52P10 |
| 8794A | No. 2 left exterior rearview mirror cap | 8794A-52G70 |
| 8794BA | Toyota part | 8794B-52G70 |
| 87961 | Left exterior rearview mirror | 87961-52G70 · 87961-52G80 · 87961-52G90 |
| 87966 | Left exterior rearview mirror retractor | 00000-00000 · 87966-52G70 · 87966-52G80 · 87966-52G90 · 87966-52J00 · 87966-52J10 · 87966-52N90 · 87966-52P00 · 87966-52P10 |
