Toyota YARIS 预碰撞安全系统 — Figure 8617

Toyota YARIS EPC diagram 8617, 预碰撞安全系统, with 2 images and 5 PNC and OE references.

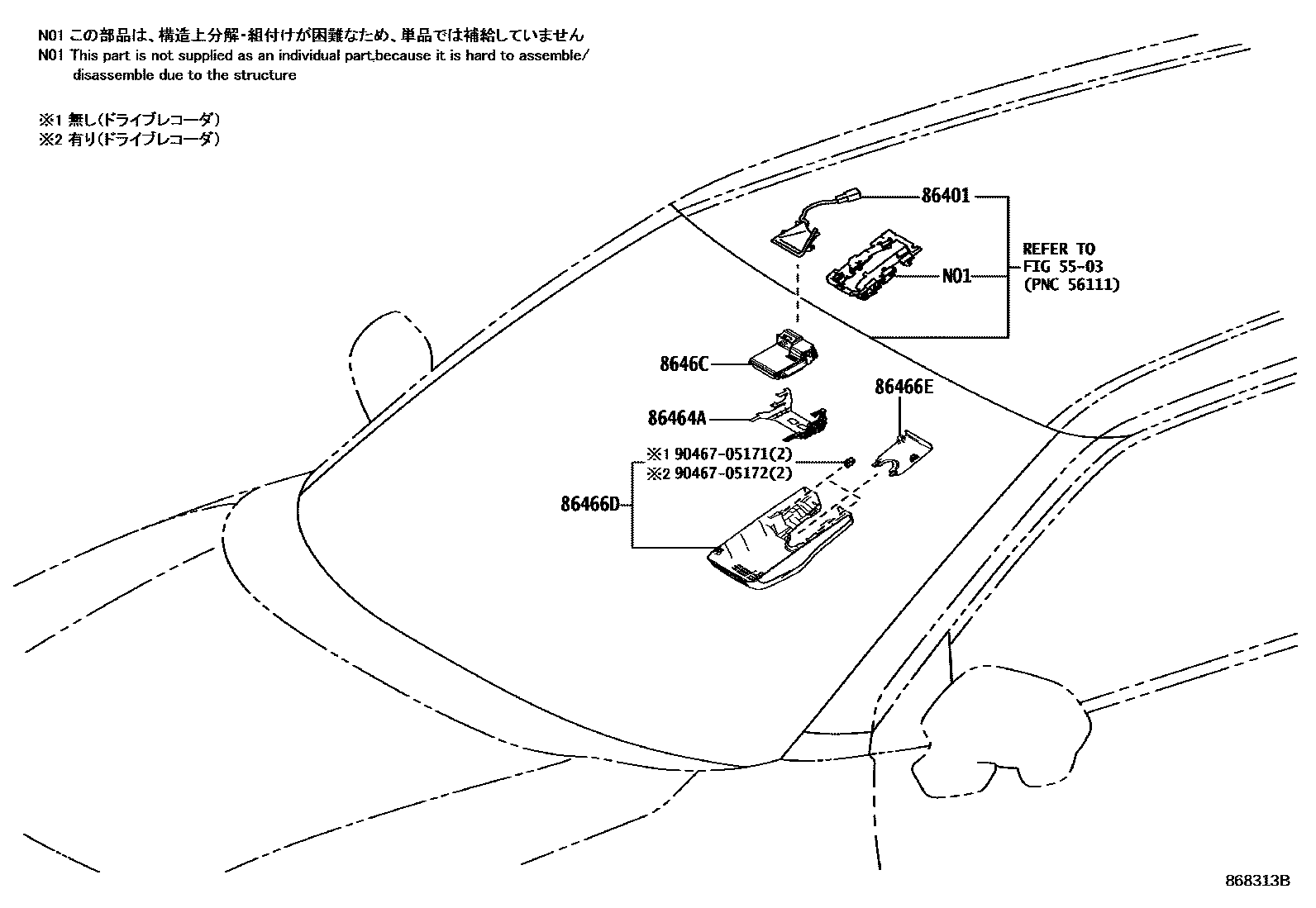

Toyota YARIS 预碰撞安全系统 EPC diagram — 868313B
预碰撞安全系统 — 868313B (202008 – 202401)

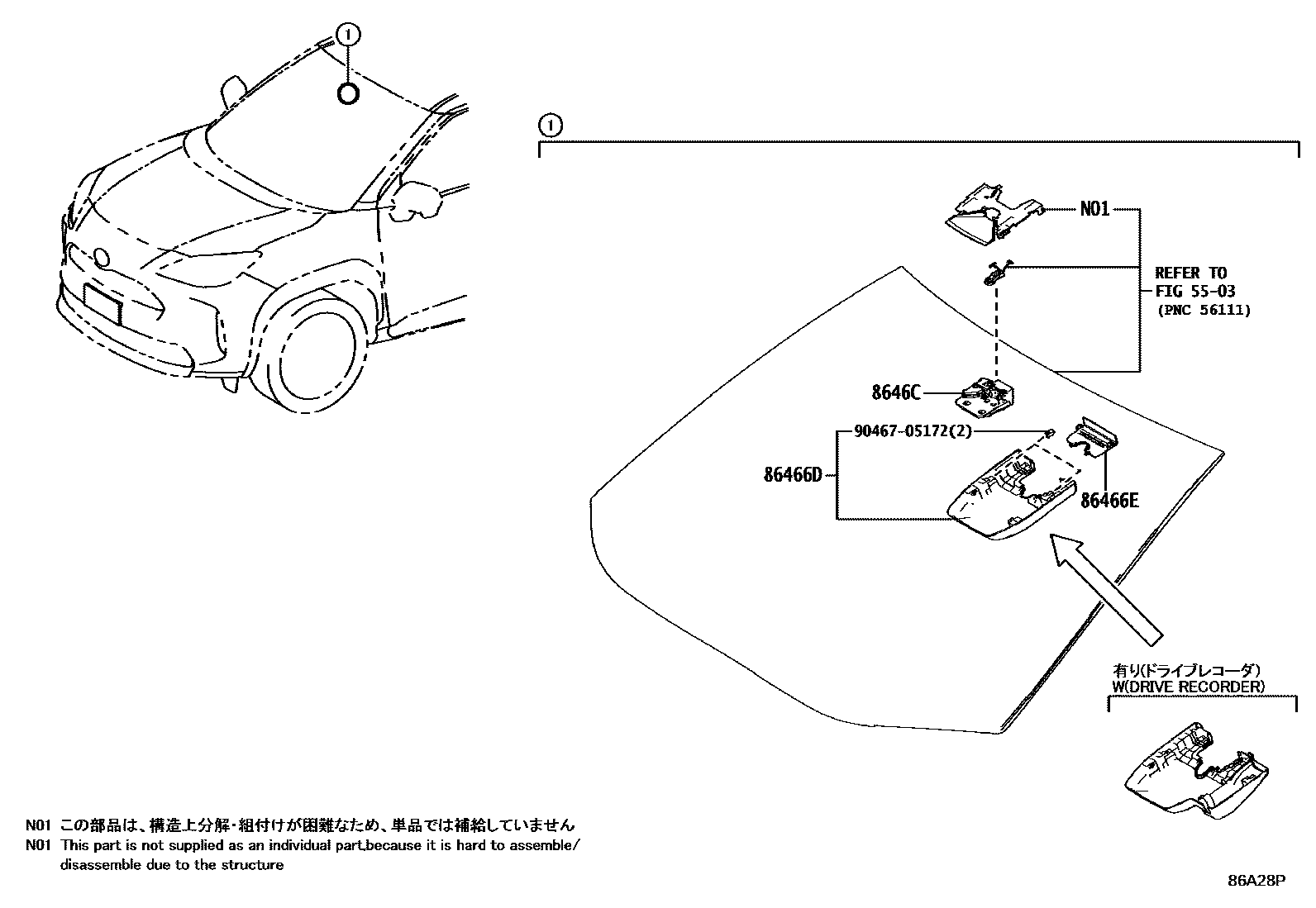

Toyota YARIS 预碰撞安全系统 EPC diagram — 86A28P
预碰撞安全系统 — 86A28P (202401 – 999999)

PNC and OE references

PNCPart nameOE numbers
86401Toyota part86401-K0010
86464AToyota part86464-K0010
86466DToyota part86466-52100 · 86466-52180 · 86466-52200 · 86466-K0010
86466EToyota part86466-K0020 · 86467-52080
8646CToyota part8646C-0D010 · 8646C-52050 · 8646C-52290
