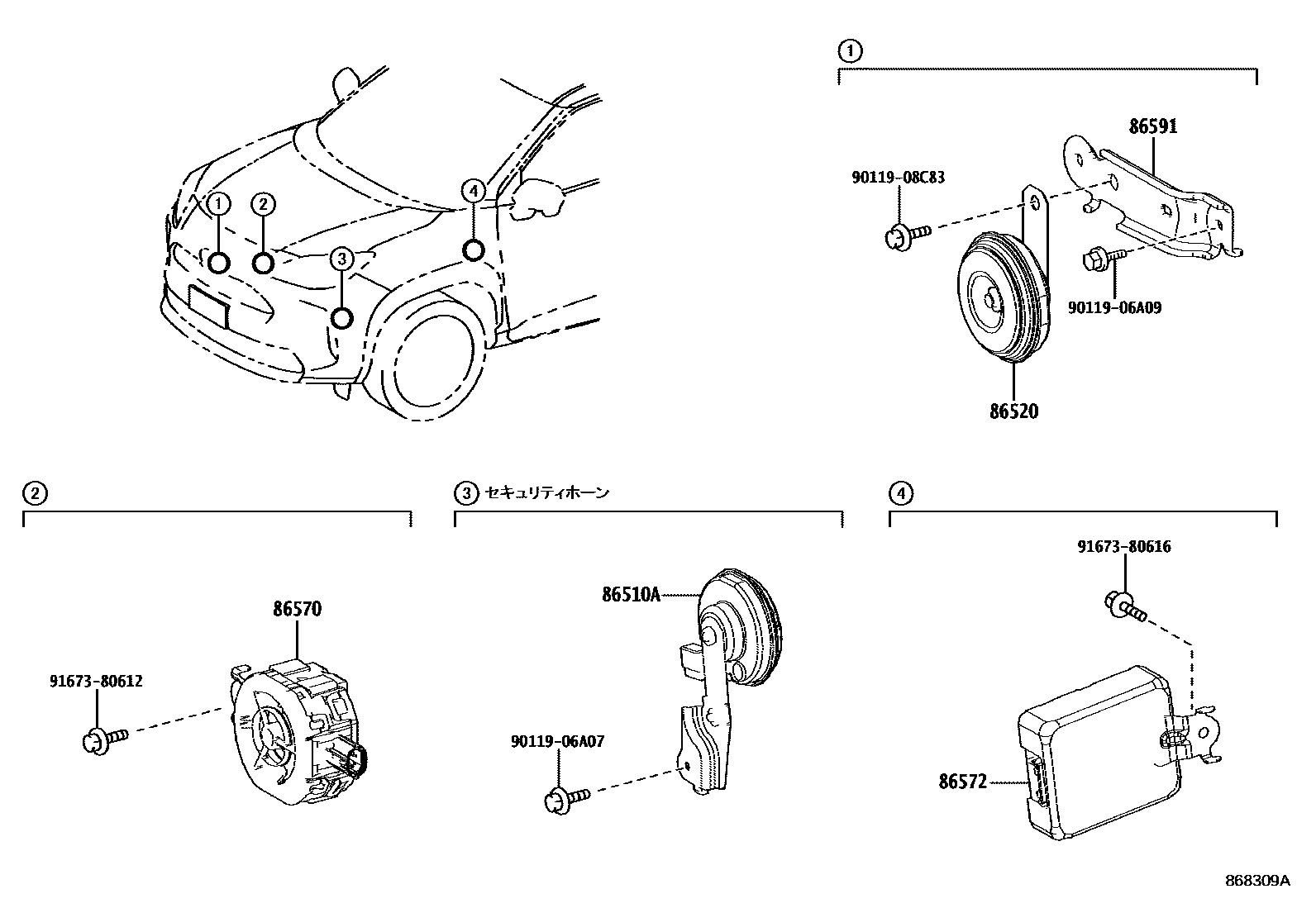

Toyota YARIS 喇叭 — Figure 8611
Toyota YARIS EPC diagram 8611, 喇叭, with 1 images and 5 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 86510A | Alarm horn assembly | 86560-K0020 |
| 86520 | Subwoofer assembly | 86520-52230 · 86520-52250 · 86520-68010 |
| 86570 | Vehicle intrusion speaker assembly | 86570-K0010 |
| 86572 | vehicle hacking speaker controller | 86572-52160 · 86572-52200 · 865H2-52030 · 865H2-52040 |
| 86591 | speaker bracket | 86591-52080 |
