VOCR EPC

Toyota YARIS 收音机通信和ETC — Figure 8610

Toyota YARIS EPC diagram 8610, 收音机通信和ETC, with 2 images and 4 PNC and OE references.

Toyota YARIS 收音机通信和ETC EPC diagram — 868305
收音机通信和ETC — 868305 (202008 – 202401)

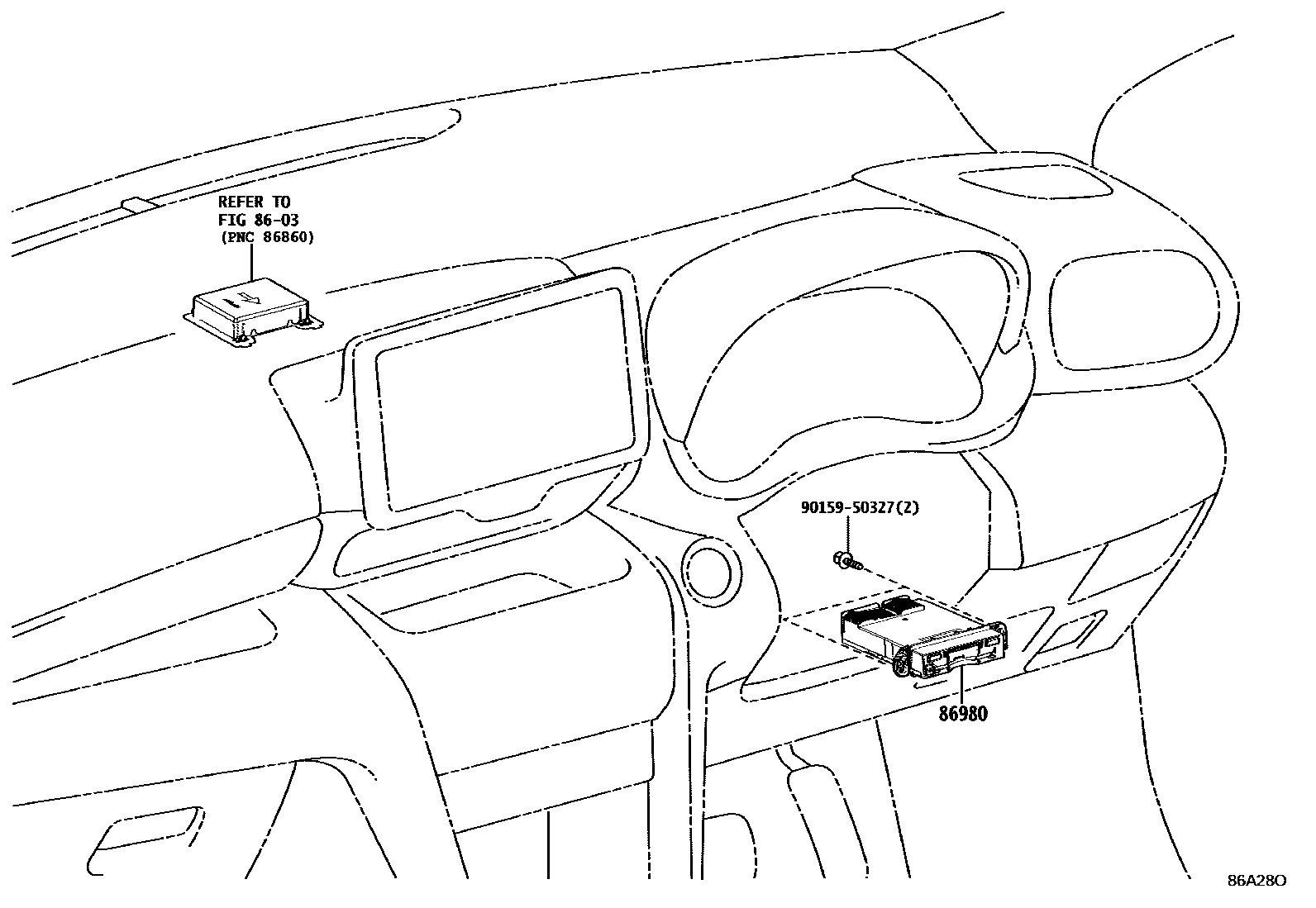

Toyota YARIS 收音机通信和ETC EPC diagram — 86A28O
收音机通信和ETC — 86A28O (202401 – 999999)

PNC and OE references

PNCPart nameOE numbers
86915AToyota part86915-K0010
86980Toll collection machine ECU assembly86980-52030 · 86980-78010 · 86980-78020 · 86980-K0010 · 86980-K0011 · 86980-K0020 · 86980-K0021
86982Toll collection machine wiring harness86982-K0010 · 86982-K0020
86988Toyota part86988-11010
