Toyota YARIS 倒车影像和摄像头 — Figure 8606

Toyota YARIS EPC diagram 8606, 倒车影像和摄像头, with 2 images and 13 PNC and OE references.

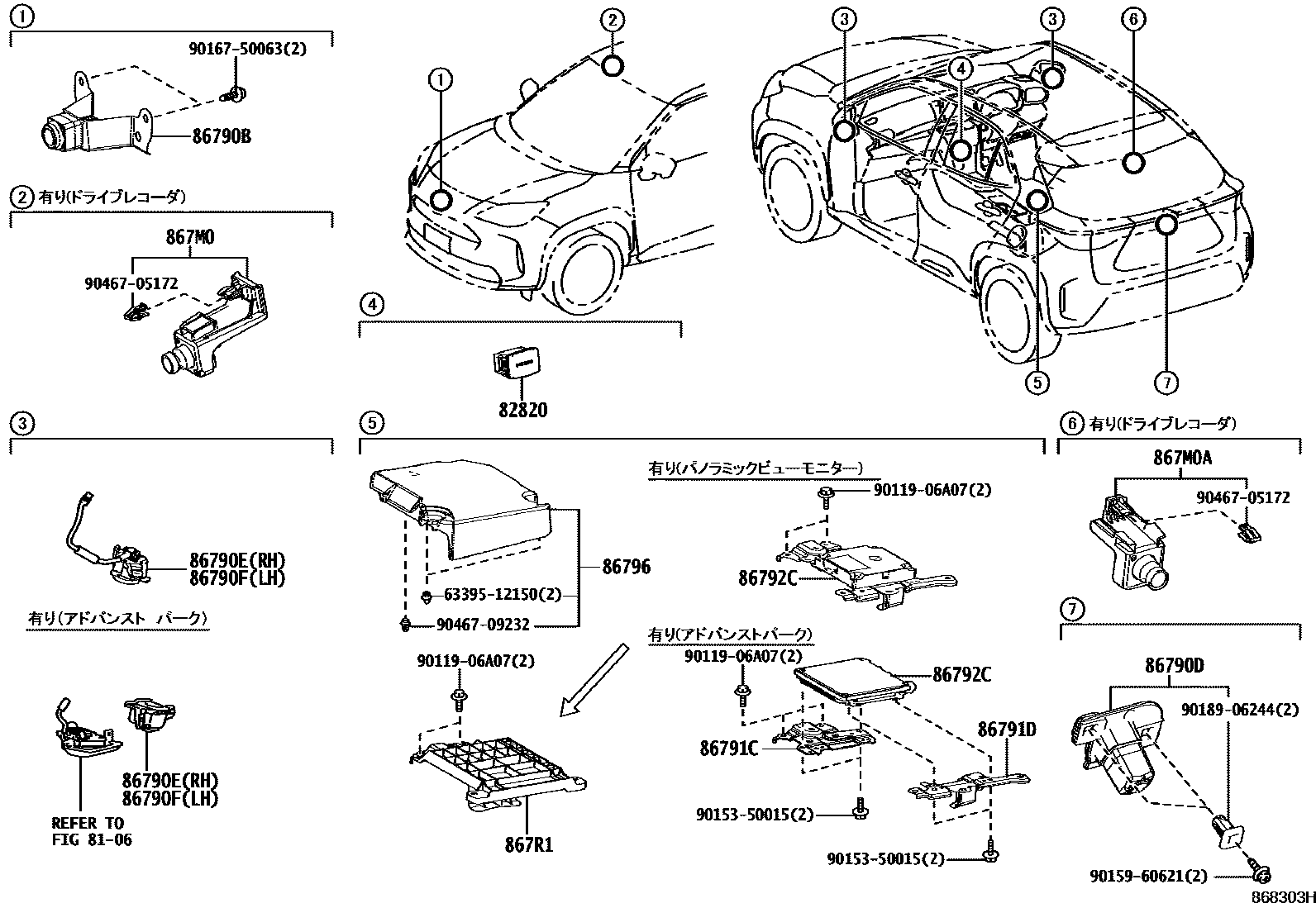

Toyota YARIS 倒车影像和摄像头 EPC diagram — 868303H
倒车影像和摄像头 — 868303H (202401 – 999999)

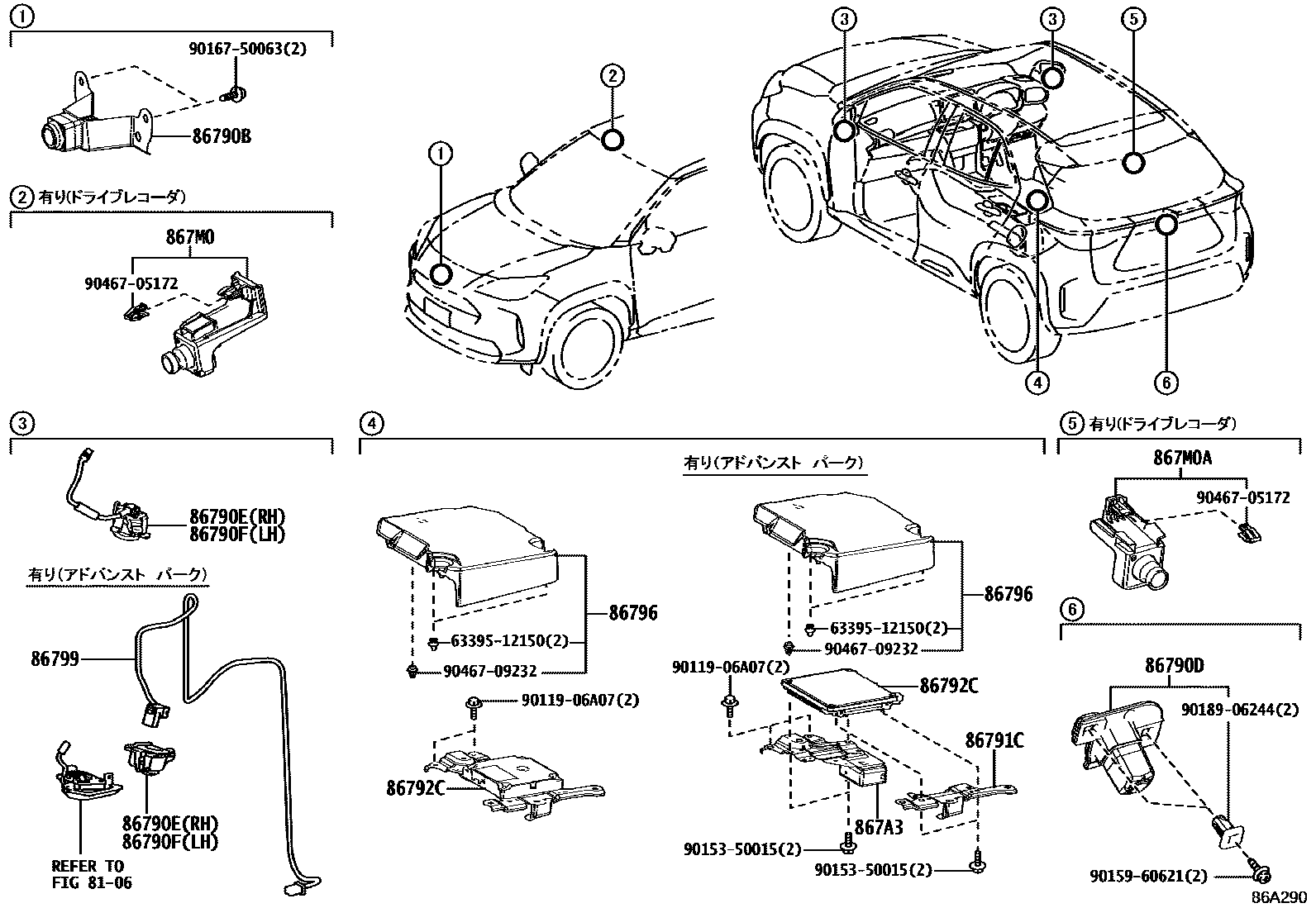

Toyota YARIS 倒车影像和摄像头 EPC diagram — 86A290
倒车影像和摄像头 — 86A290 (202008 – 202401)

PNC and OE references

PNCPart nameOE numbers
86790BFront image camera assembly86790-52290 · 86790-52291 · 86790-52300 · 86790-52750 · 86790-52760
86790DRear reversing image camera assembly86790-52280 · 86790-52480 · 86790-52730 · 86790-52740 · 867B0-52010 · 867B0-52130
86790EToyota part86790-52450 · 86790-52451 · 86790-52780 · 86790-52800 · 86795-K0020
86790FToyota part86790-52440 · 86790-52441 · 86790-52770 · 86790-52790 · 86795-K0010
86791CToyota part86791-52250 · 86791-K0020
86791DToyota part86791-52260
86792CParking assist ECU86792-52090 · 86792-52091 · 86792-52130 · 86792-52410 · 86792-52420
86796Parking assist ECU cover86796-K0010
86799Reversing image camera wiring harness86799-52020
867A3Toyota part867A3-K0010
867M0Toyota part867M0-0W010
867M0AToyota part867M0-0W020
867R1Toyota part867R1-52010
