Toyota YARIS antenna — Figure 8604

Toyota YARIS EPC diagram 8604, antenna, with 1 images and 9 PNC and OE references.

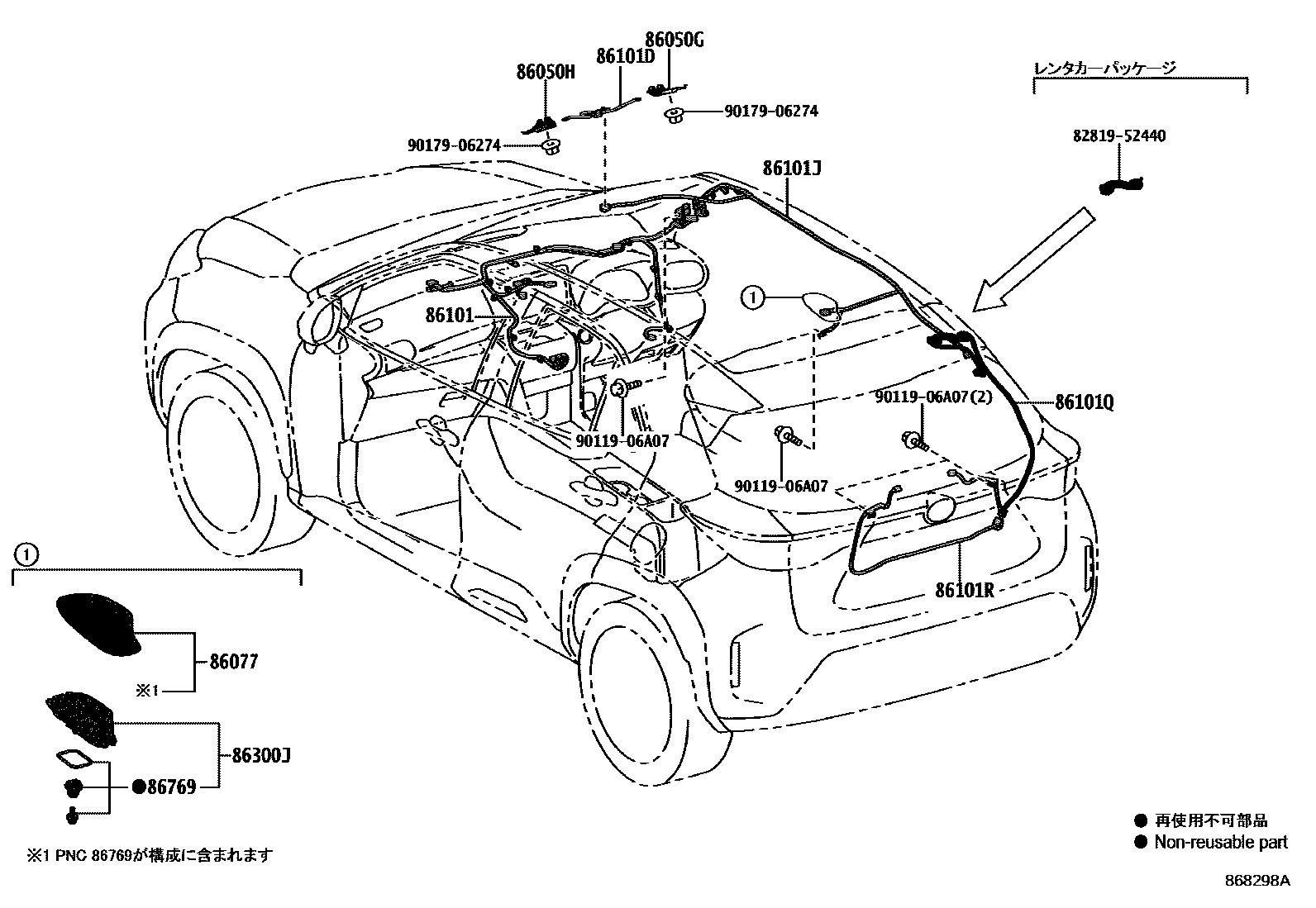

Toyota YARIS antenna EPC diagram — 868298A
antenna — 868298A (202008 – 999999)

PNC and OE references

PNCPart nameOE numbers
86050GToyota part86050-53180
86050HToyota part86050-53190
86101Antenna wire sub-assembly86101-52L20 · 86101-52R30 · 86101-52R40 · 86101-52S20 · 86101-K0820
86101DNo. 3 antenna wire sub-assembly86101-52S30 · 86101-K0010
86101JNo. 2 antenna wire sub-assembly86101-52C00 · 86101-52L10 · 86101-52Q20 · 86101-52Q50
86101QNo. 4 antenna wire sub-assembly86101-52D80 · 86101-52S60
86101RNo. 5 antenna wire sub-assembly86101-52F20 · 86101-52S70
86300JRoof antenna assembly86760-K0010
86769Toyota part86769-K0010
