Toyota YARIS 收音机、放大器和冷凝器 — Figure 8601

Toyota YARIS EPC diagram 8601, 收音机、放大器和冷凝器, with 2 images and 9 PNC and OE references.

Toyota YARIS 收音机、放大器和冷凝器 EPC diagram — 868293C
收音机、放大器和冷凝器 — 868293C (202008 – 999999)

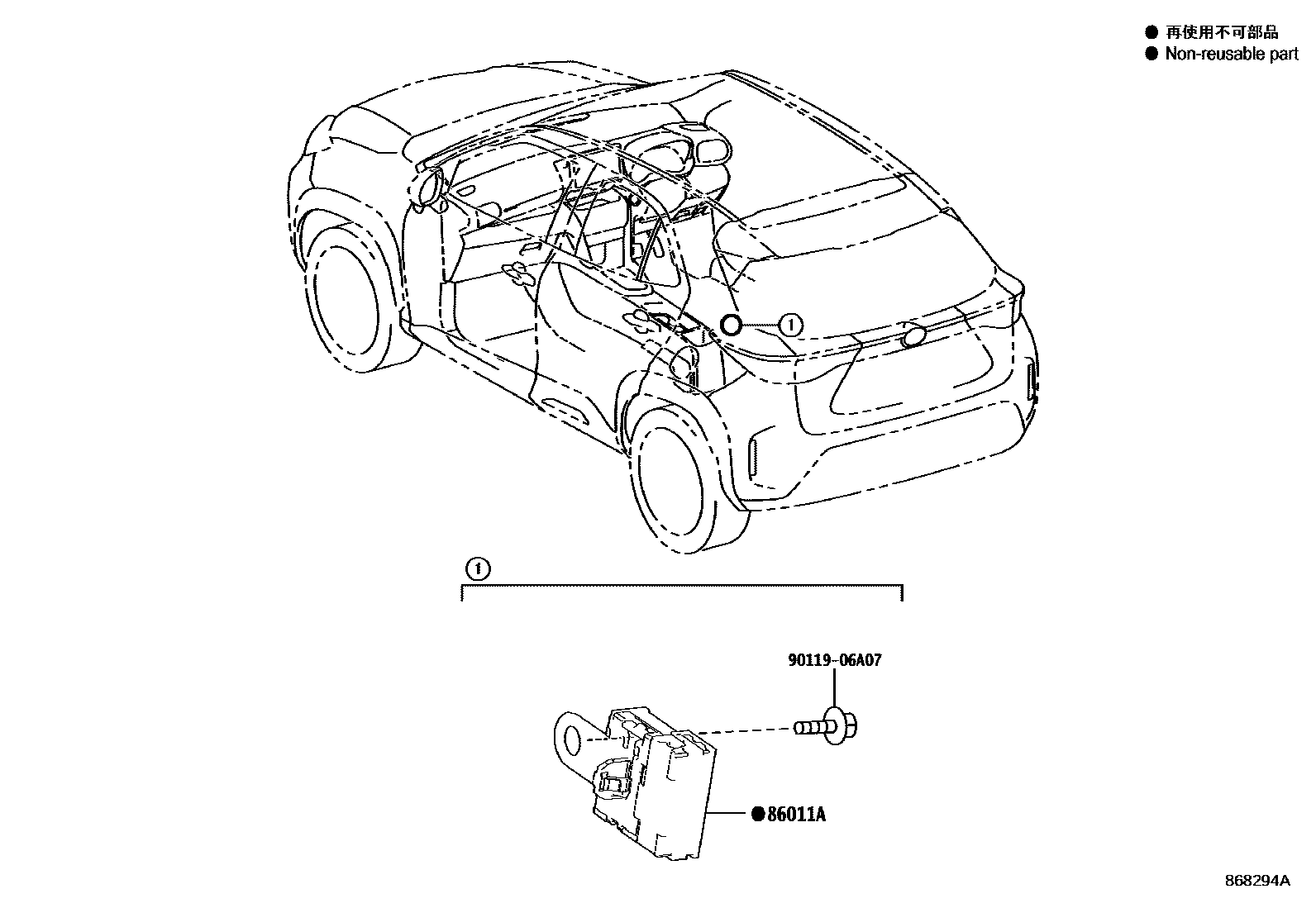

Toyota YARIS 收音机、放大器和冷凝器 EPC diagram — 868294A
收音机、放大器和冷凝器 — 868294A (202008 – 999999)

PNC and OE references

PNCPart nameOE numbers
86008Toyota part86008-K0010
86011Aradio settings phase modulator90980-04189 · 90980-04213
86190CStereo socket connector assembly No. 186190-12080 · 86190-52070
86211No. 1 radio bracket86211-52390
86212No. 2 radio bracket86212-52390
86270ACD player assembly86270-K0010
86274ACD player stand86274-K0010
86276Disc player cover86276-K0010
8627AToyota part8627A-K0010
