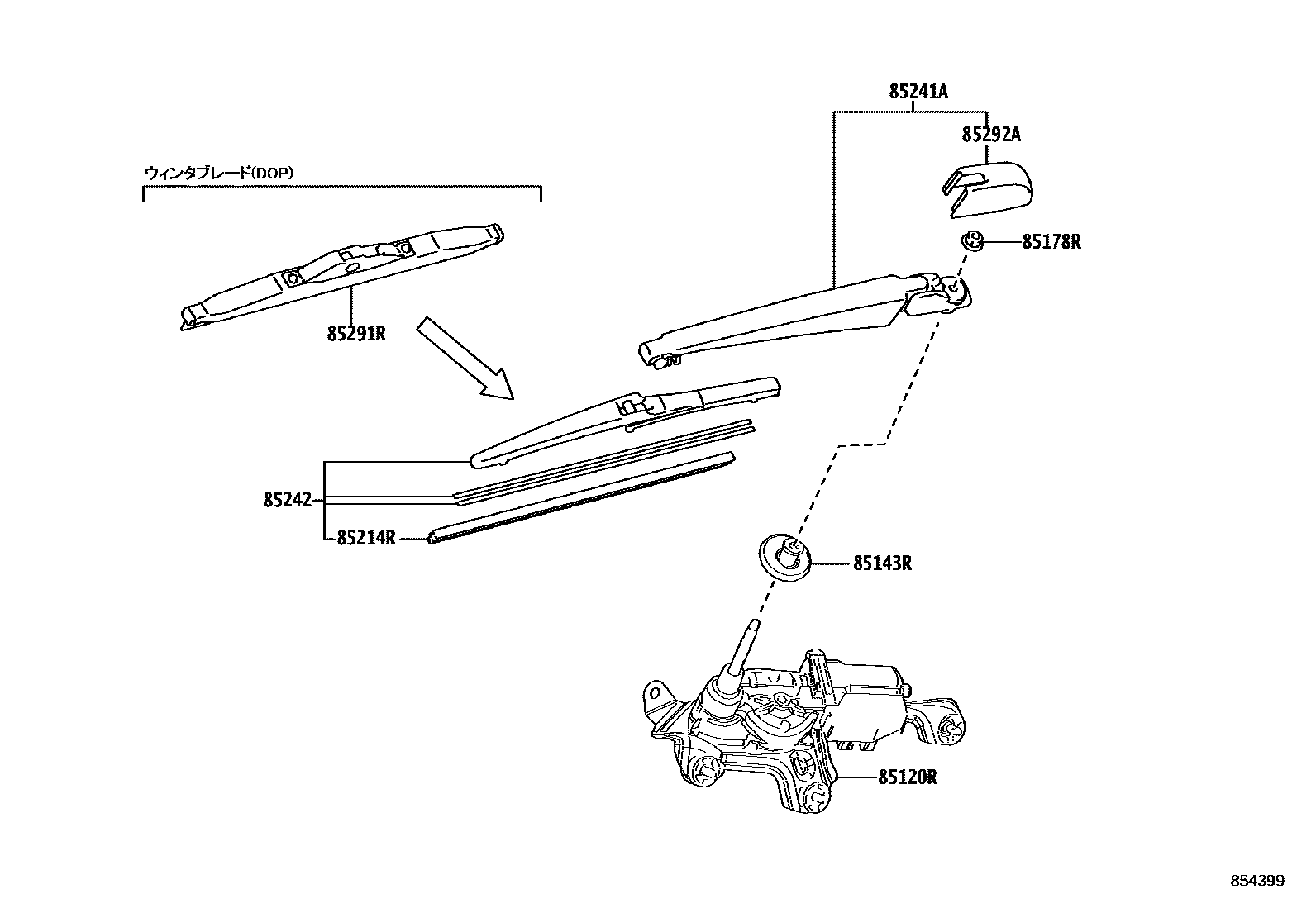

Toyota YARIS 后刮水器 — Figure 8502
Toyota YARIS EPC diagram 8502, 后刮水器, with 1 images and 8 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 85120R | Rear wiper motor and bracket assembly | 85130-52280 |
| 85143R | Rear wiper motor seal | 85143-28070 |
| 85178R | Nut (for securing rear wiper arm) | 90179-06158 |
| 85214R | Rear wiper rubber strip | 85214-42040 |
| 85241A | rear wiper arm | 85241-52250 |
| 85242 | Rear wiper blade | 85242-72010 |
| 85291R | Rear wiper blade for winter | 85291-13060 |
| 85292A | Rear wiper arm cap | 85292-42010 |
