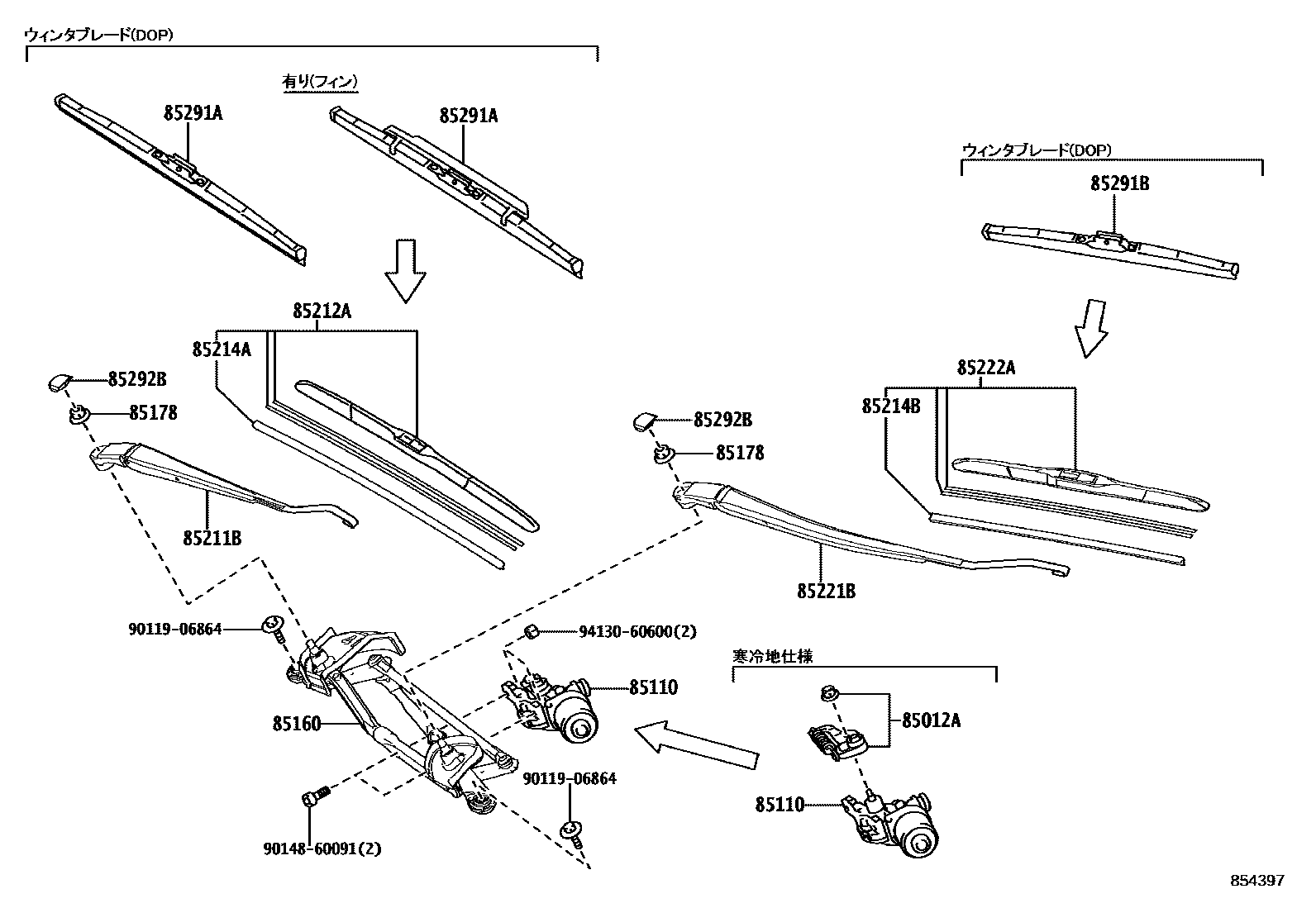

Toyota YARIS 挡风玻璃刮水器 — Figure 8501
Toyota YARIS EPC diagram 8501, 挡风玻璃刮水器, with 2 images and 15 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 85012A | Front wiper elbow tie rod sub-assembly | 85012-50010 |
| 85110 | Windshield wiper motor assembly | 85110-46040 · 85110-K0090 · 85110-K0100 |
| 85160 | Windshield wiper connecting rod assembly | 85150-52430 |
| 85178 | Nut (for securing front wiper arm) | 90182-10006 |
| 85211B | Right front wiper arm | 85211-52580 |
| 85212A | Right front wiper blade | 85212-K0010 |

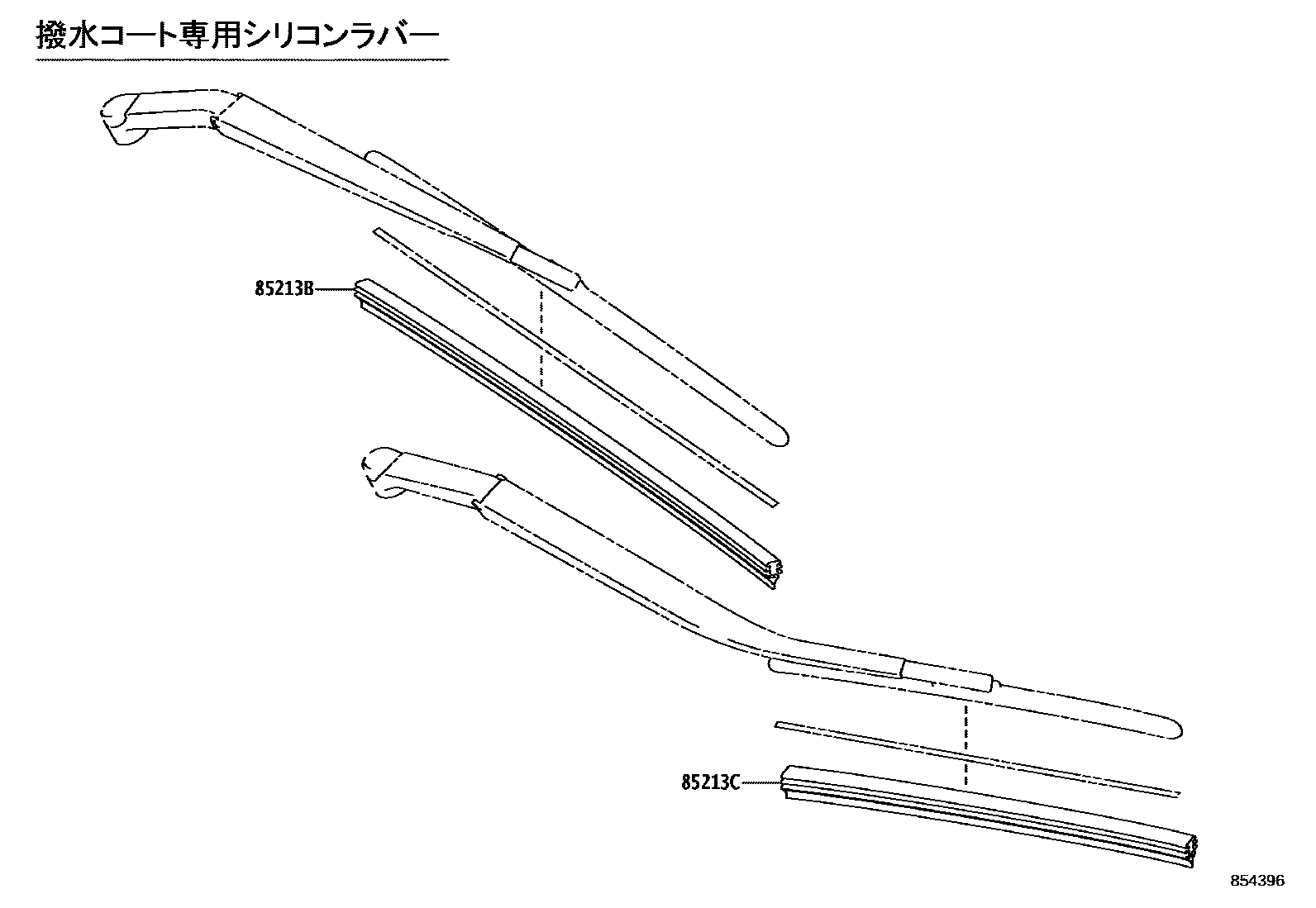

| 85213B | Toyota part | 85213-50050 |
| 85213C | Toyota part | 85213-28120 |
| 85214A | Right wiper rubber strip | 85214-30380 |
| 85214B | Left wiper rubber strip | 85214-28090 |
| 85221B | Left front wiper arm | 85221-52530 |
| 85222A | Left front wiper blade | 85222-K0010 |
| 85291A | Right front wiper blade for winter use | 85291-60040 · 85291-K0010 |
| 85291B | Left front wiper blade for winter use | 85291-28150 |
| 85292B | Front wiper arm cap | 85292-13010 |
