Toyota YARIS HV控制ECU — Figure 8433

Toyota YARIS EPC diagram 8433, HV控制ECU, with 1 images and 1 PNC and OE references.

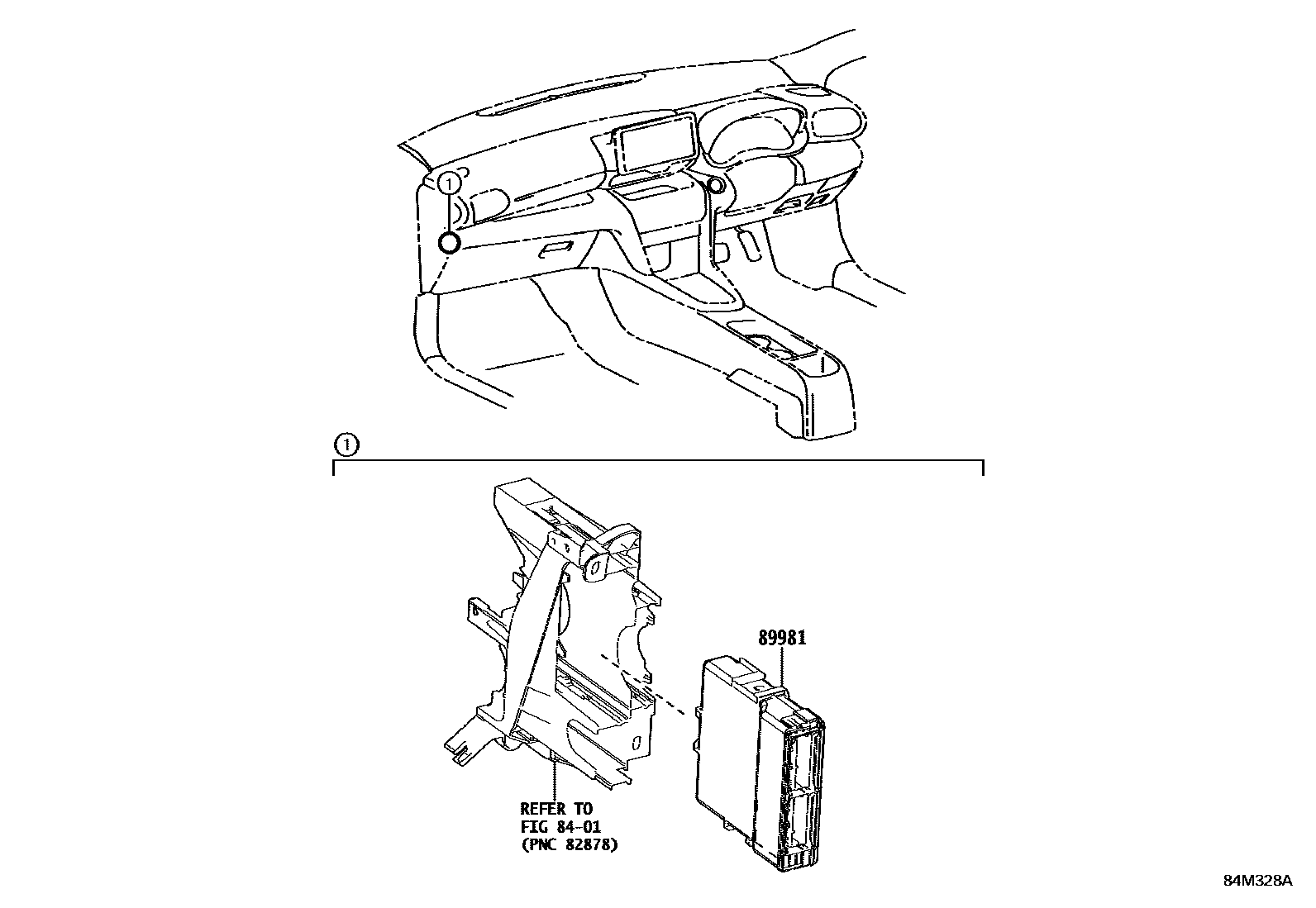

Toyota YARIS HV控制ECU EPC diagram — 84M328A
HV控制ECU — 84M328A (202008 – 999999)

PNC and OE references

PNCPart nameOE numbers
89981Hybrid vehicle control ECU89981-52430 · 89981-52440 · 89981-52780 · 89981-52790 · 89981-52A20 · 89981-52A30 · 89981-52A40 · 89981-52B50 · 89981-52B60 · 89981-52C00
