Toyota YARIS HV逆变器 — Figure 8431

Toyota YARIS EPC diagram 8431, HV逆变器, with 4 images and 13 PNC and OE references.

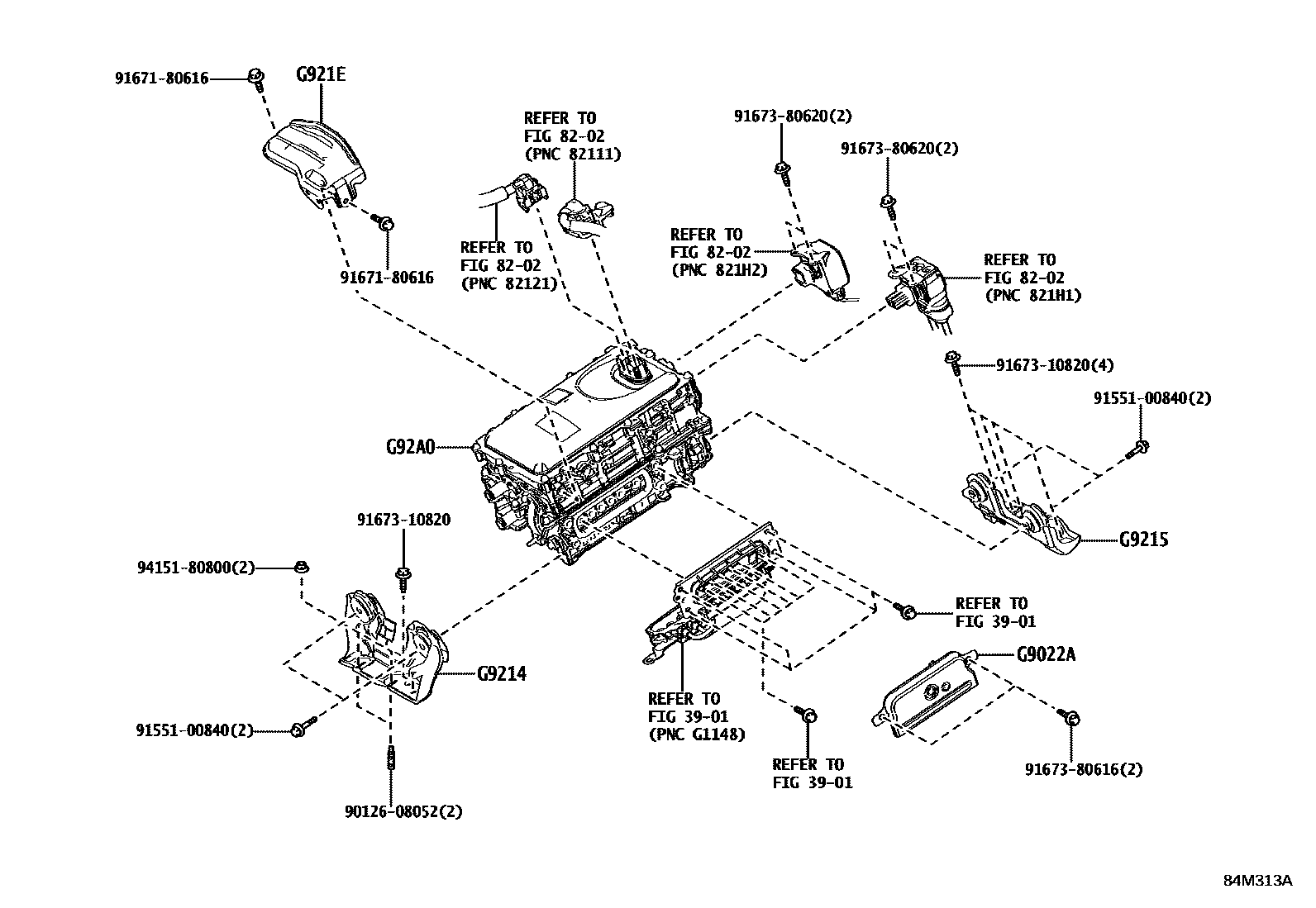

Toyota YARIS HV逆变器 EPC diagram — 84M313A
HV逆变器 — 84M313A (202008 – 999999)

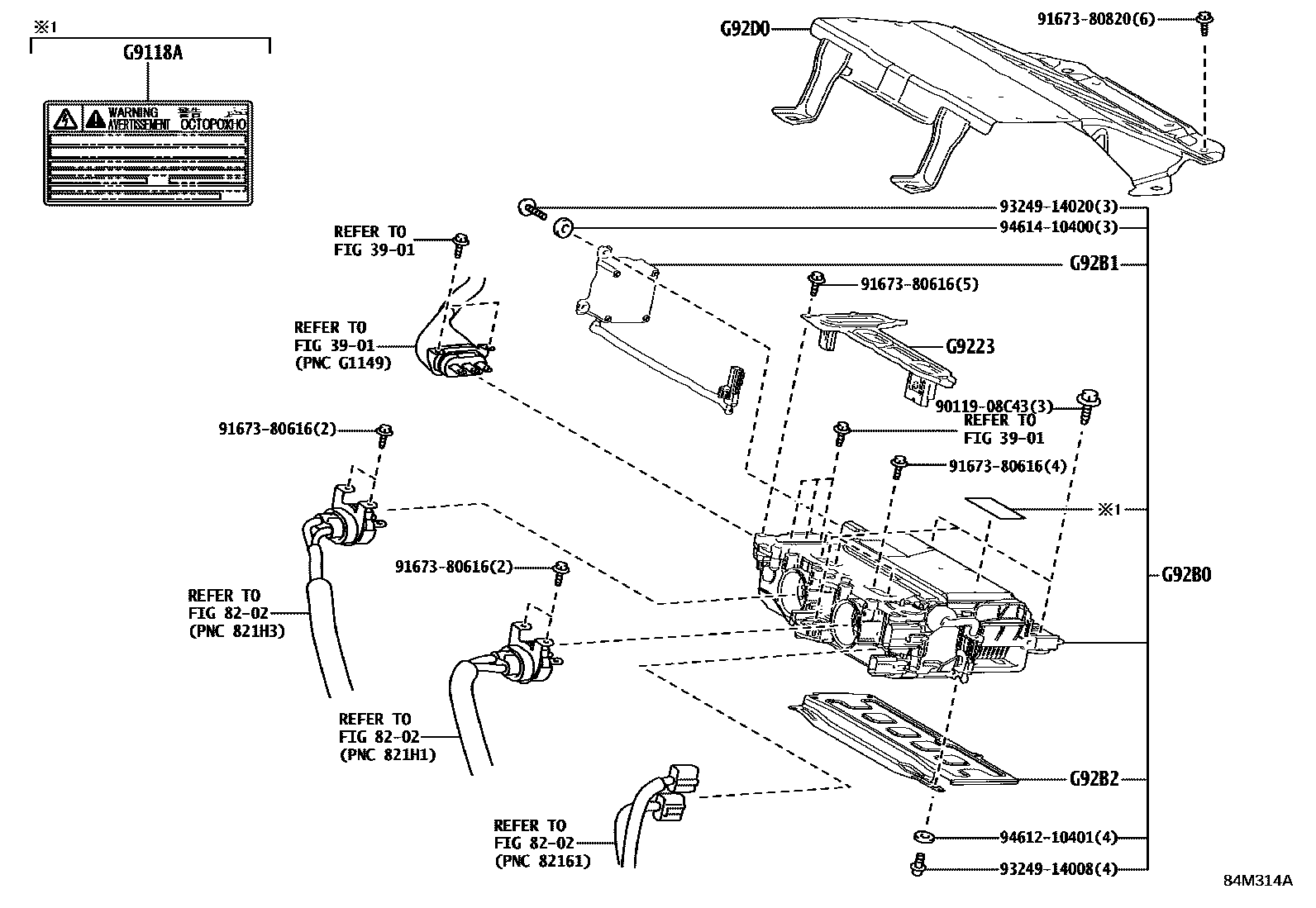

Toyota YARIS HV逆变器 EPC diagram — 84M314A
HV逆变器 — 84M314A (202008 – 999999)

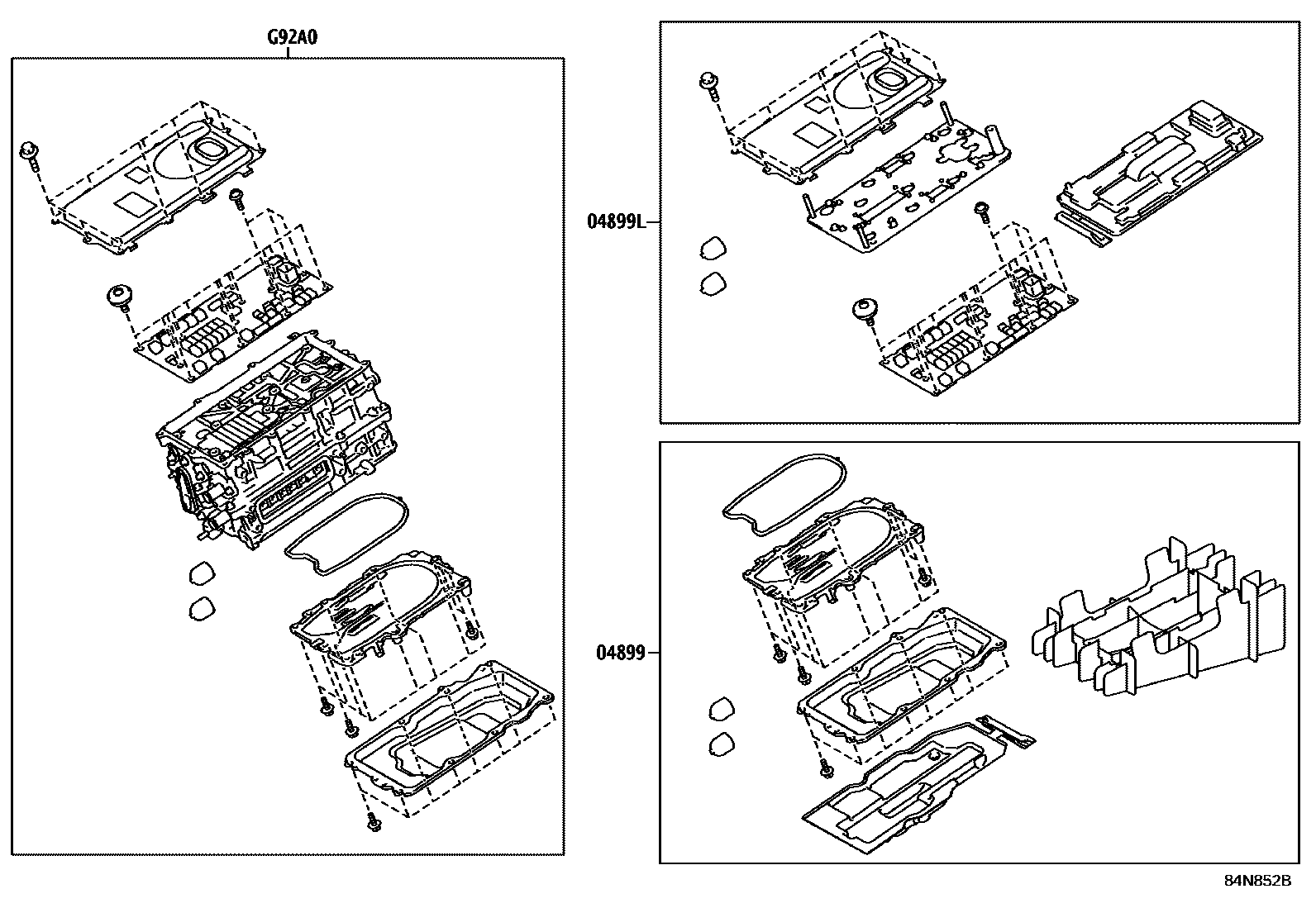

Toyota YARIS HV逆变器 EPC diagram — 84N852B
HV逆变器 — 84N852B (202008 – 202301)

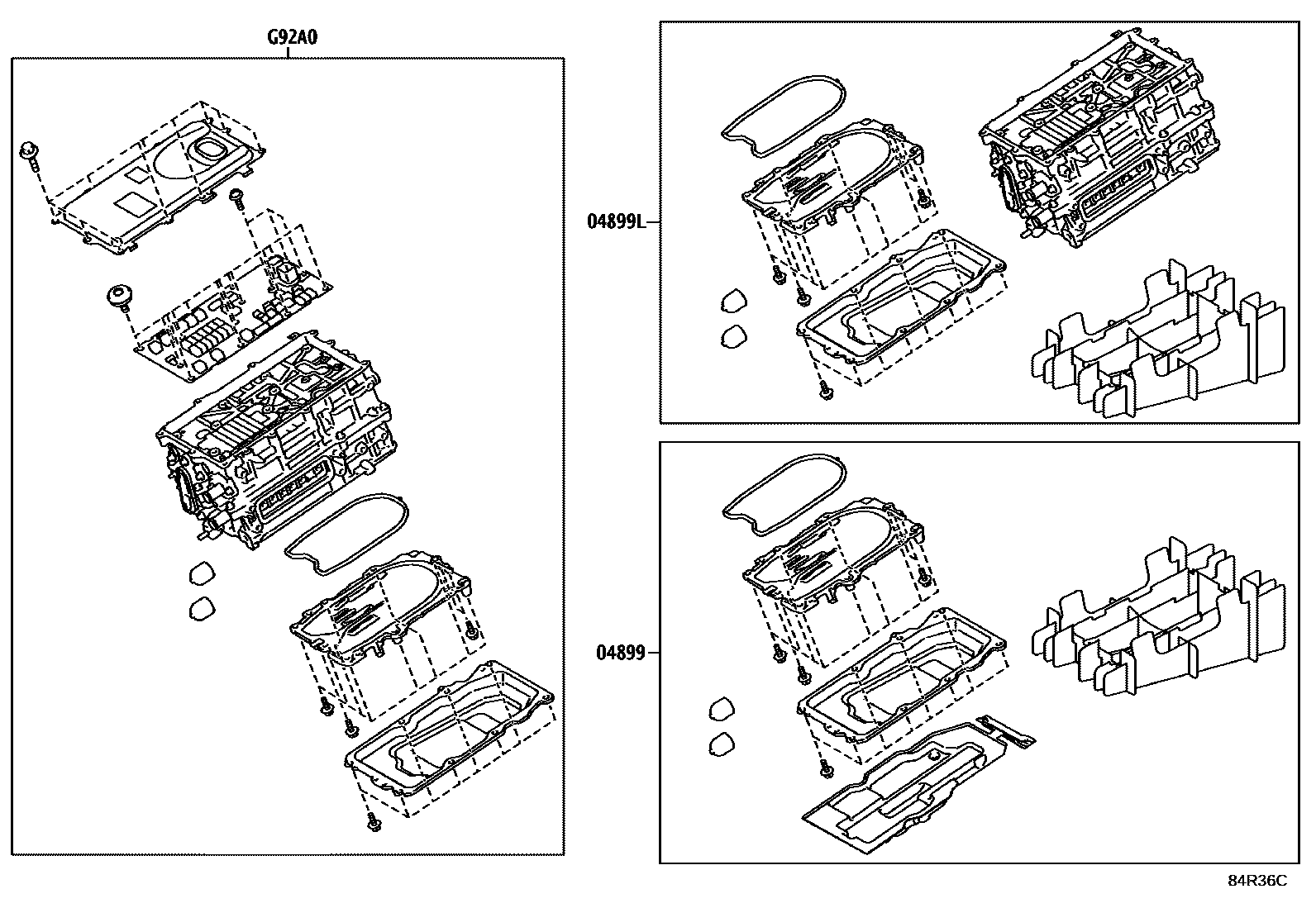

Toyota YARIS HV逆变器 EPC diagram — 84R36C
HV逆变器 — 84R36C (202301 – 999999)

PNC and OE references

PNCPart nameOE numbers
04899Toyota part04899-K0030 · 04899-K2030
04899LToyota part04899-52050 · 04899-52060 · 04899-K0011 · 04899-K2010 · 04899-K2011 · 04899-K2012 · 04899-K2020 · 04899-K2021 · 04899-K2022
G9022AToyota partG9022-47050
G9118ANo. 1 Electric Vehicle Device Controller Warning LabelG9118-76010
G9214No. 1 inverter bracketG9214-K0010
G9215No. 2 inverter bracketG9215-K0010
G921EInverter protection deviceG921E-K0010
G9223Inverter terminal coverG9223-47030
G92A0Hybrid motor control inverter assemblyG9200-K9011 · G92A0-52150 · G92A0-52160 · G92A0-52170 · G92A0-52180 · G92A0-52181 · G92A0-K2010 · G92A0-K2011 · G92A0-K2020 · G92A0-K2021
G92B0Rear HV motor control inverter assemblyG92B0-52010 · G92B0-52011 · G92B0-52012 · G92B0-K0010
G92B1Toyota partG92B1-47010
G92B2Toyota partG92B2-47010
G92D0HV inverter protection device assemblyG92D0-K0010
