Toyota YARIS 空气囊 — Figure 8421

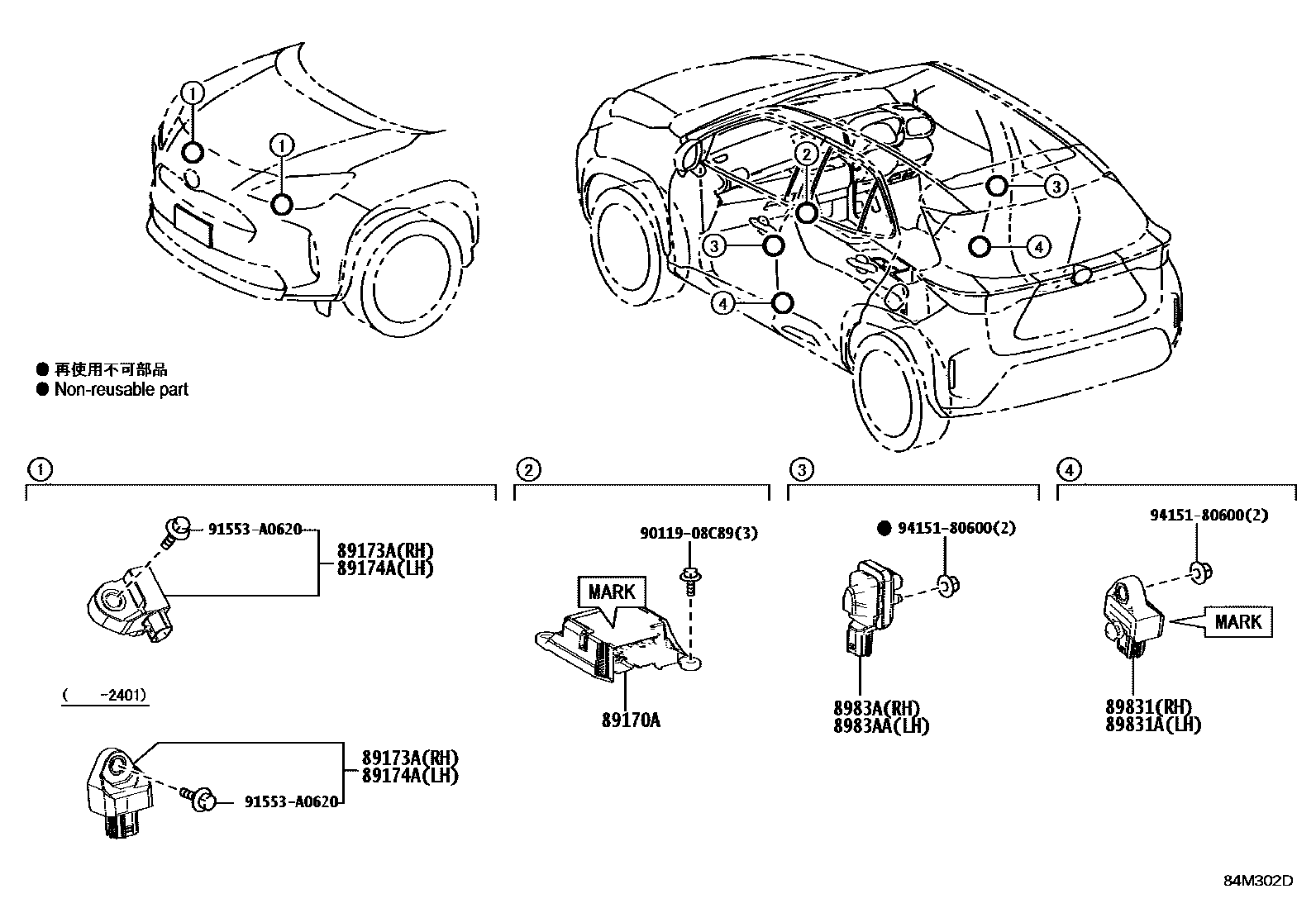

Toyota YARIS EPC diagram 8421, 空气囊, with 1 images and 7 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 89170A | Air bag ECU assembly | 89170-52P60 · 89170-52Q70 · 89170-52T60 · 89170-52U30 |
| 89173A | Right front air bag sensor | 89173-19515 · 89173-59335 · 89173-59415 |
| 89174A | Left front air bag sensor | 89173-19515 · 89173-59335 · 89173-59415 |
| 89831 | Toyota part | 89831-52120 · 89831-52180 |
| 89831A | Toyota part | 89831-52120 · 89831-52180 |
| 8983A | Toyota part | 8983A-12030 · 8983A-52010 · 8983A-52011 |
| 8983AA | Toyota part | 8983A-12030 · 8983A-52010 · 8983A-52011 |
