Toyota YARIS 测距雷达和倒车雷达 — Figure 8417

Toyota YARIS EPC diagram 8417, 测距雷达和倒车雷达, with 1 images and 8 PNC and OE references.

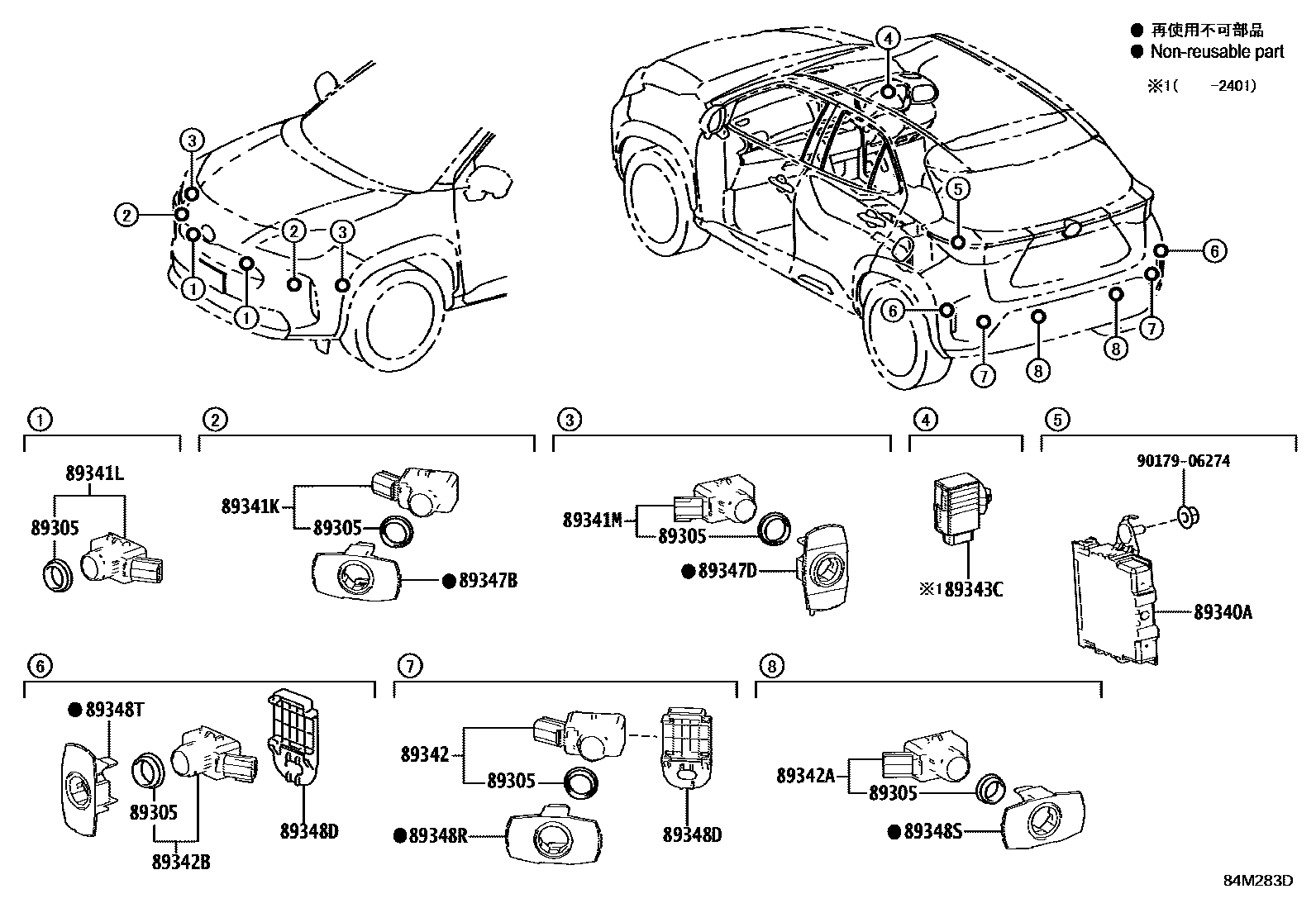

Toyota YARIS 测距雷达和倒车雷达 EPC diagram — 84M283D
测距雷达和倒车雷达 — 84M283D (202008 – 999999)

PNC and OE references

PNCPart nameOE numbers
89305Toyota part89305-52010
89340ADistance warning ECU assembly89340-52090 · 89340-52100 · 89340-52230 · 89340-52240 · 89340-52390 · 89340-52400 · 89340-52440
89343CNo. 1 distance warning buzzer89343-48010
89347BToyota part89348-K0230 · 89348-K0231
89348DUltrasonic sensor clip89348-58130
89348RToyota part89348-K0230 · 89348-K0231
89348SToyota part89348-K0230 · 89348-K0231
89348TToyota part89348-52160 · 89348-52161
