Toyota YARIS ABS 和 VSC — Figure 8414

Toyota YARIS EPC diagram 8414, ABS 和 VSC, with 3 images and 9 PNC and OE references.

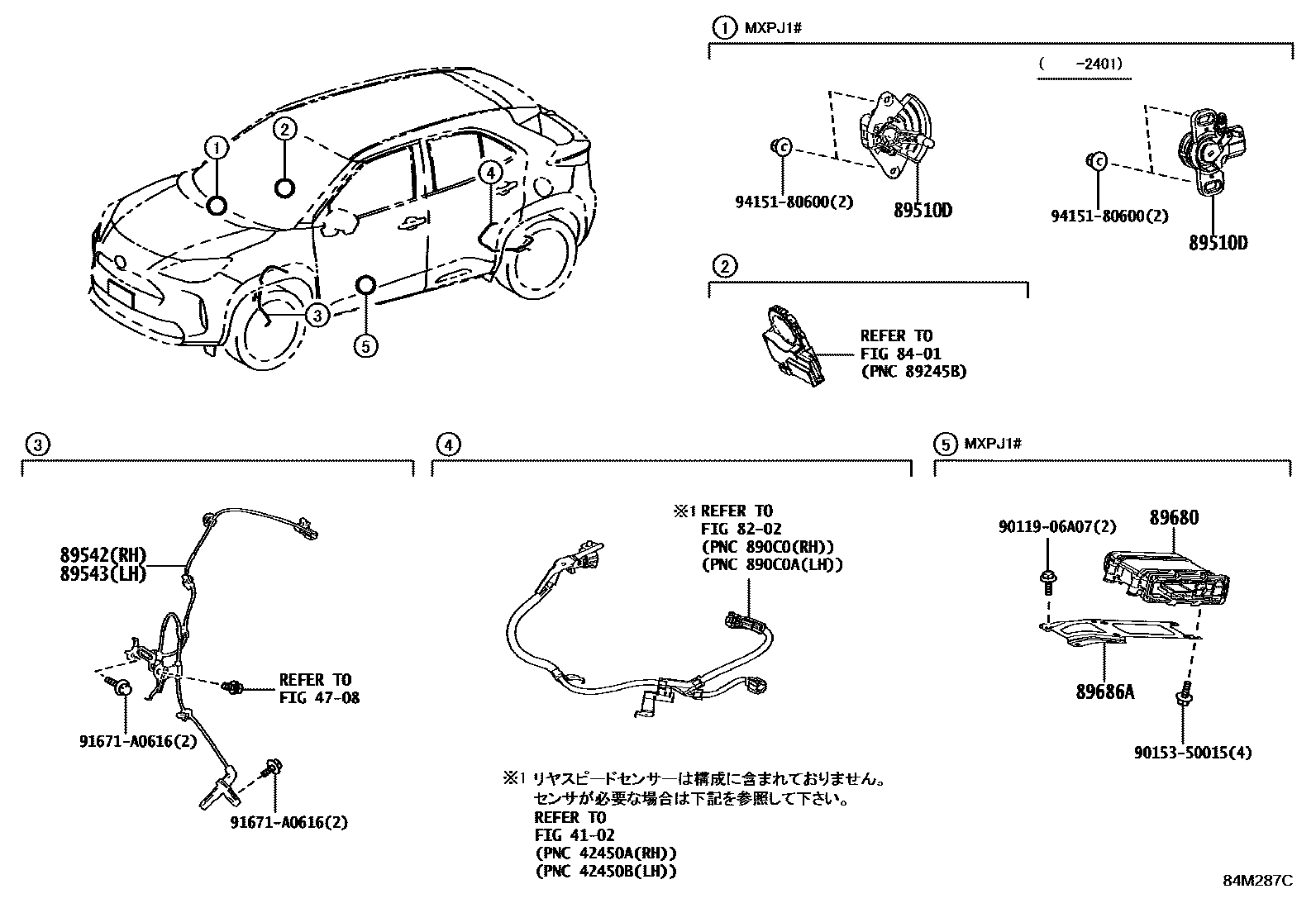

Toyota YARIS ABS 和 VSC EPC diagram — 84M287C
ABS 和 VSC — 84M287C (202008 – 999999)

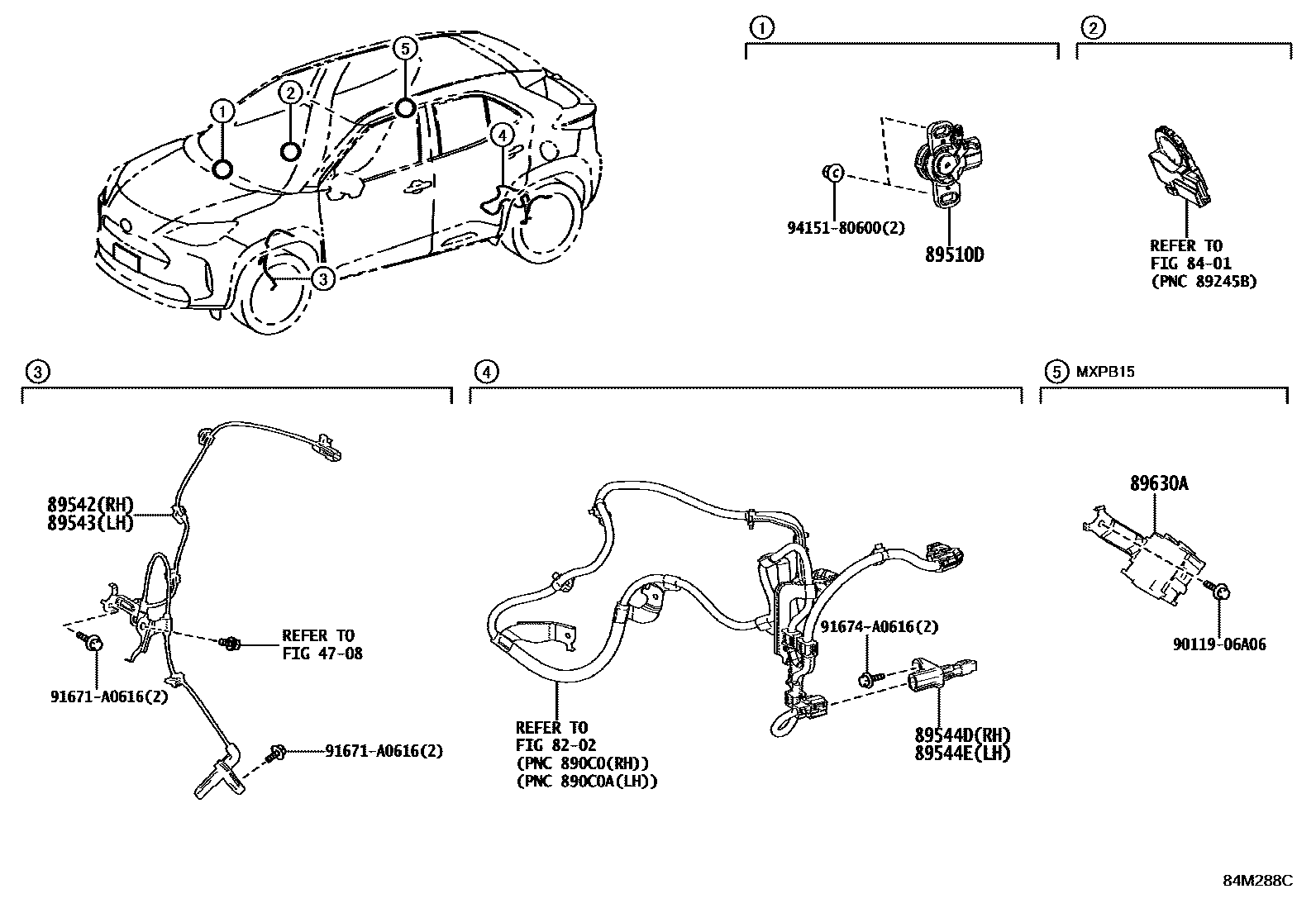

Toyota YARIS ABS 和 VSC EPC diagram — 84M288C
ABS 和 VSC — 84M288C (202008 – 202401)

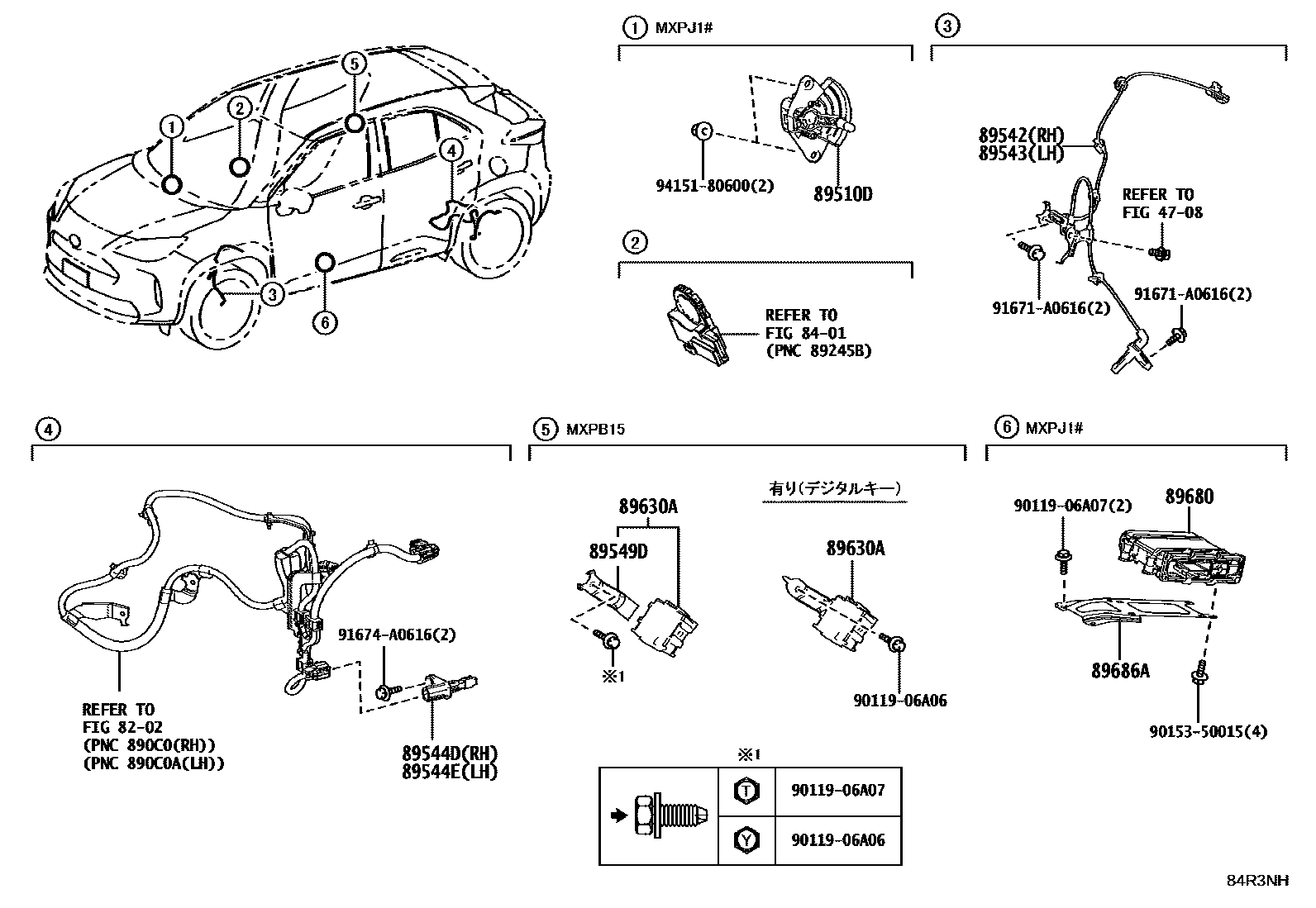

Toyota YARIS ABS 和 VSC EPC diagram — 84R3NH
ABS 和 VSC — 84R3NH (202401 – 999999)

PNC and OE references

PNCPart nameOE numbers
89510DBrake pedal stroke sensor assembly89510-47030 · 89510-K0021
89542Right front wheel speed sensor89542-52110
89543Left front wheel speed sensor89543-52110
89544DToyota part89544-52050
89544EToyota part89544-52050
89549DFour-wheel drive ECU bracket89634-52060
89630AFour-wheel drive ECU assembly89630-52080 · 89630-52210 · 89630-52220
89680Brake control power supply assembly89680-48030
89686ANo. 1 brake control power bracket89686-52020
