Toyota YARIS 超速档和电子控制变速器 — Figure 8410

Toyota YARIS EPC diagram 8410, 超速档和电子控制变速器, with 1 images and 6 PNC and OE references.

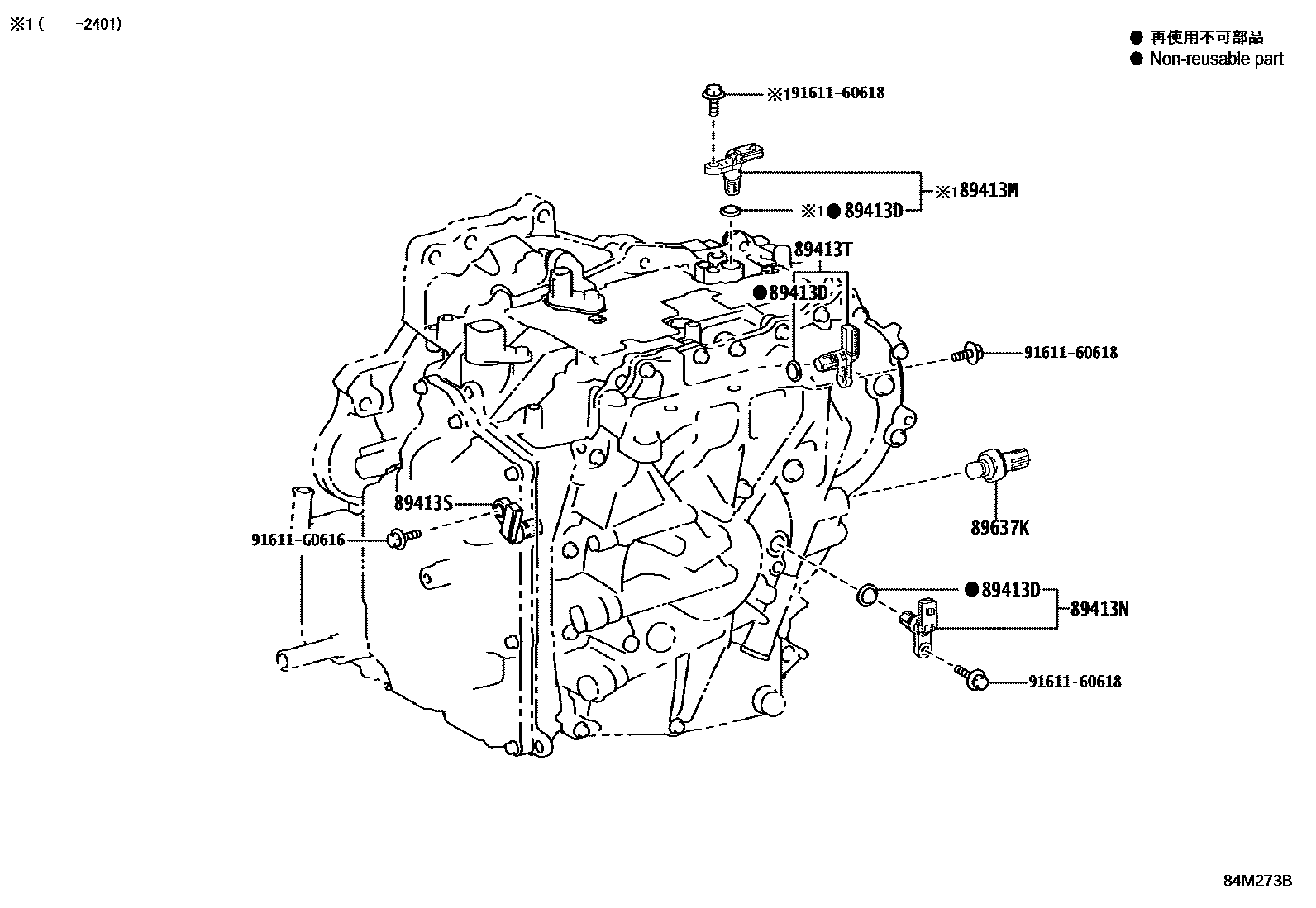

Toyota YARIS 超速档和电子控制变速器 EPC diagram — 84M273B
超速档和电子控制变速器 — 84M273B (202008 – 999999)

PNC and OE references

PNCPart nameOE numbers
89413DO-ring (for transmission speed sensor)90301-11008
89413MToyota part89413-12010
89413NToyota part89413-12010
89413SToyota part89413-11021
89413TToyota part89413-12010
89637Koil pressure sensor89637-12040
