Toyota YARIS 开关和继电器和ECU — Figure 8401

Toyota YARIS EPC diagram 8401, 开关和继电器和ECU, with 13 images and 130 PNC and OE references.

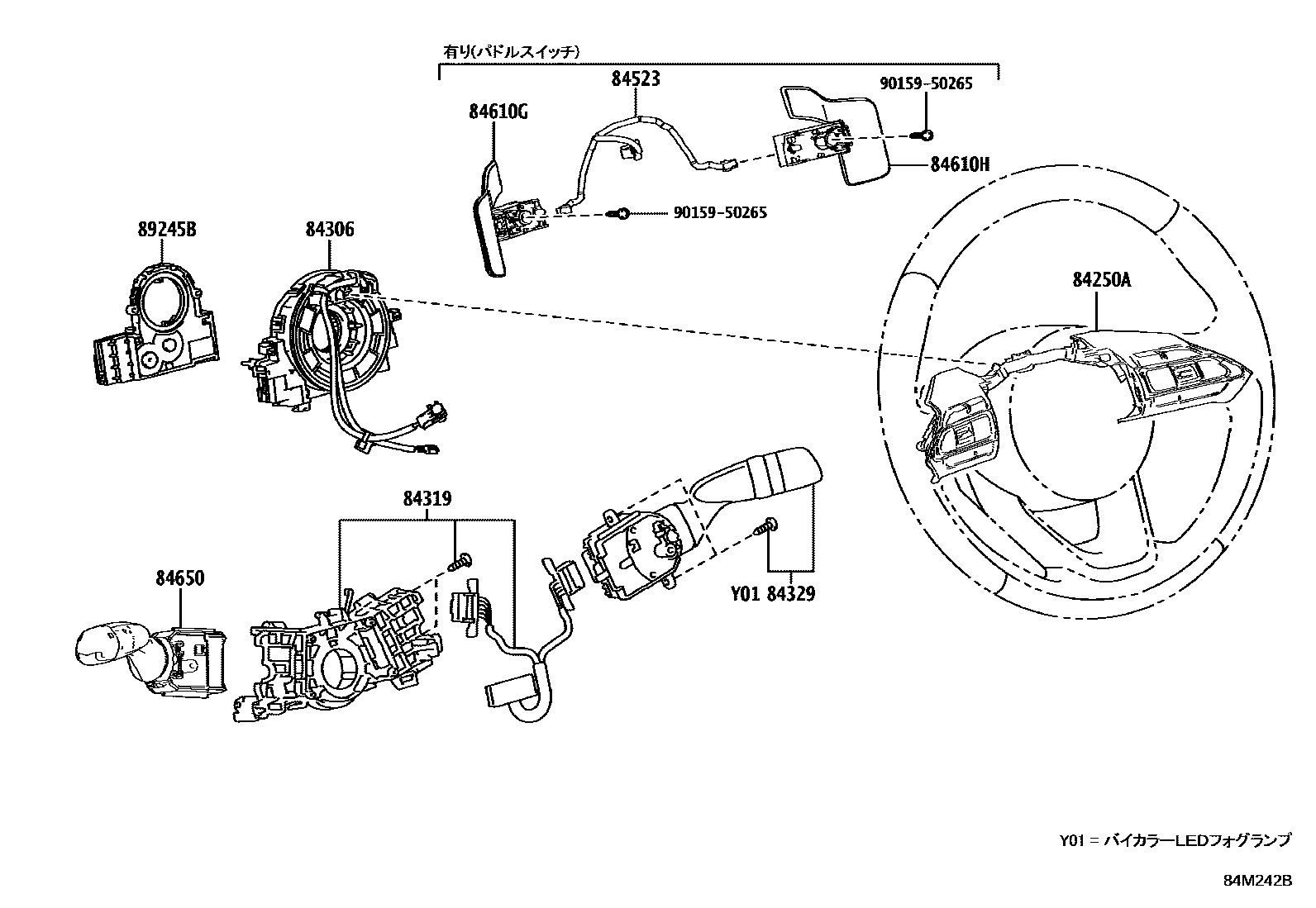

Toyota YARIS 开关和继电器和ECU EPC diagram — 84M242B
开关和继电器和ECU — 84M242B (202008 – 999999)

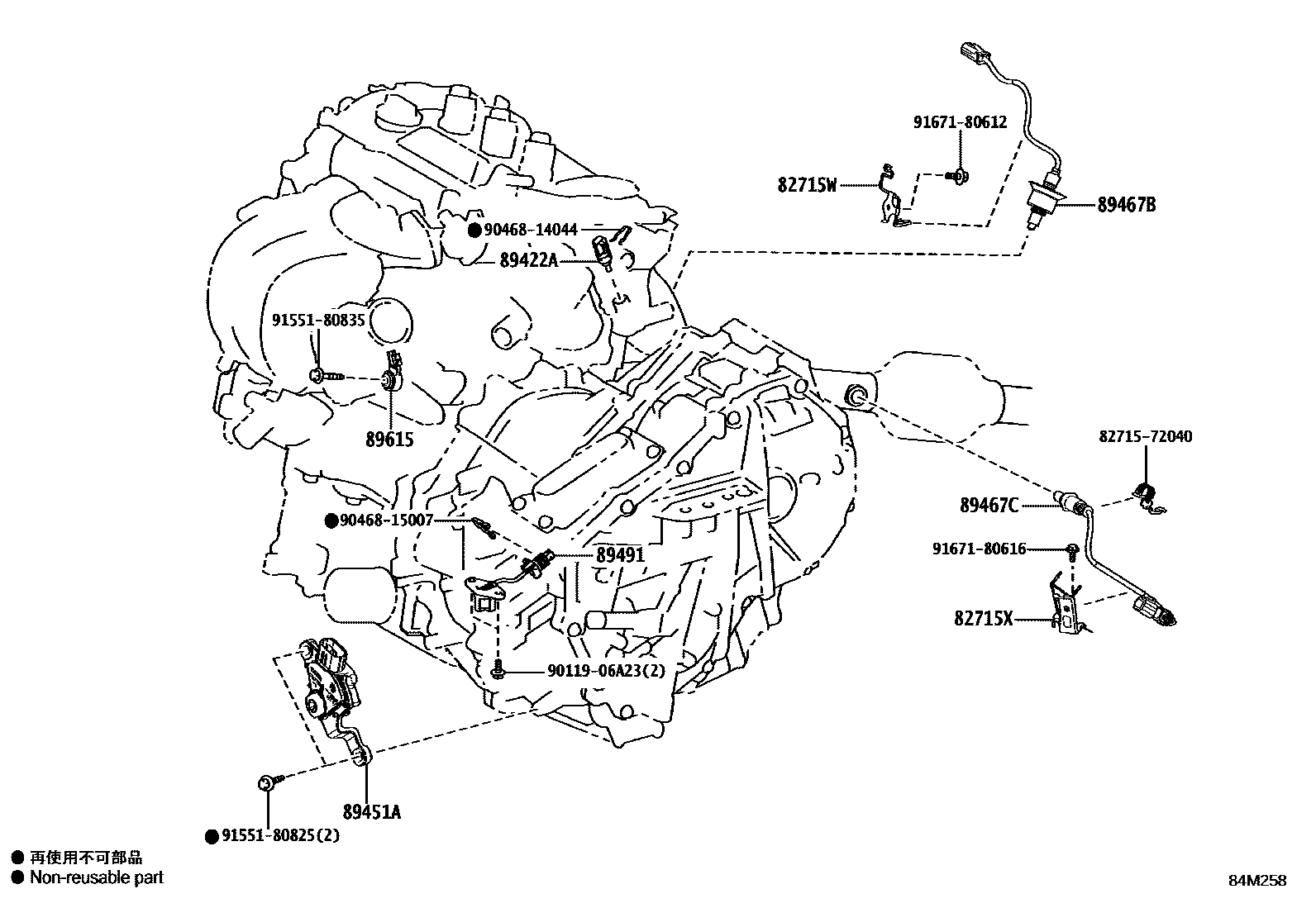

Toyota YARIS 开关和继电器和ECU EPC diagram — 84M258A
开关和继电器和ECU — 84M258A (202008 – 999999)

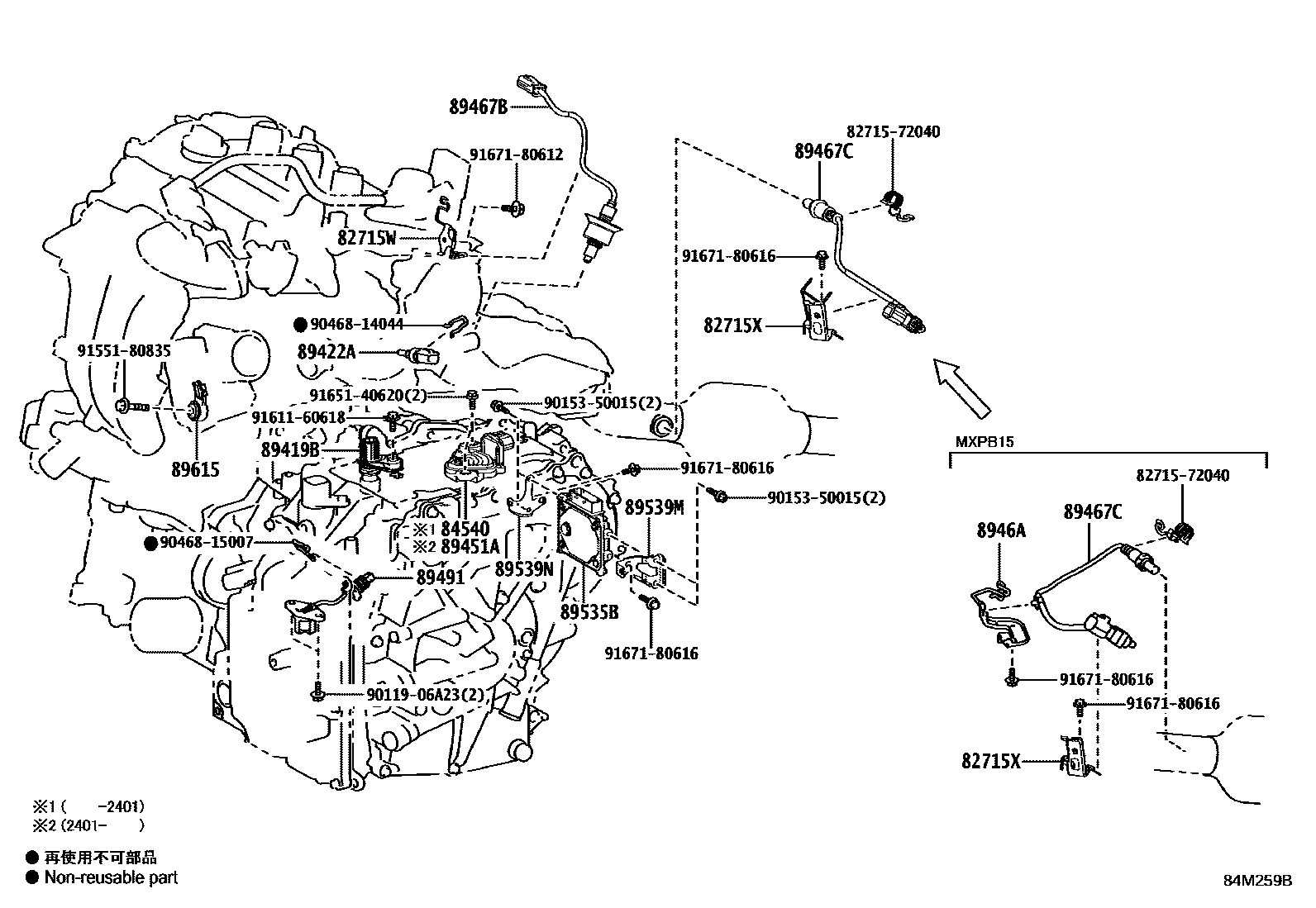

Toyota YARIS 开关和继电器和ECU EPC diagram — 84M259B
开关和继电器和ECU — 84M259B (202008 – 999999)

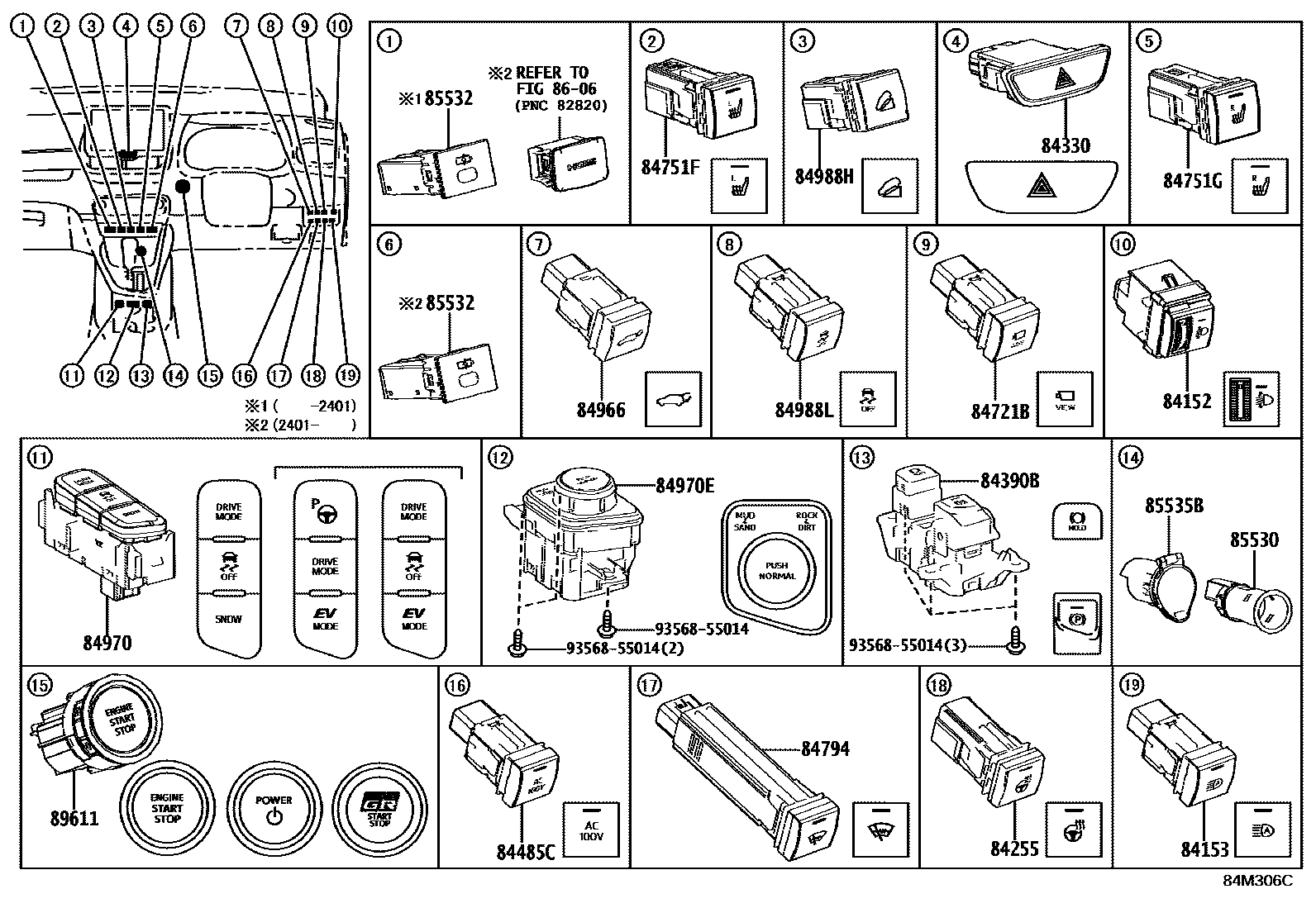

Toyota YARIS 开关和继电器和ECU EPC diagram — 84M306C
开关和继电器和ECU — 84M306C (202008 – 999999)

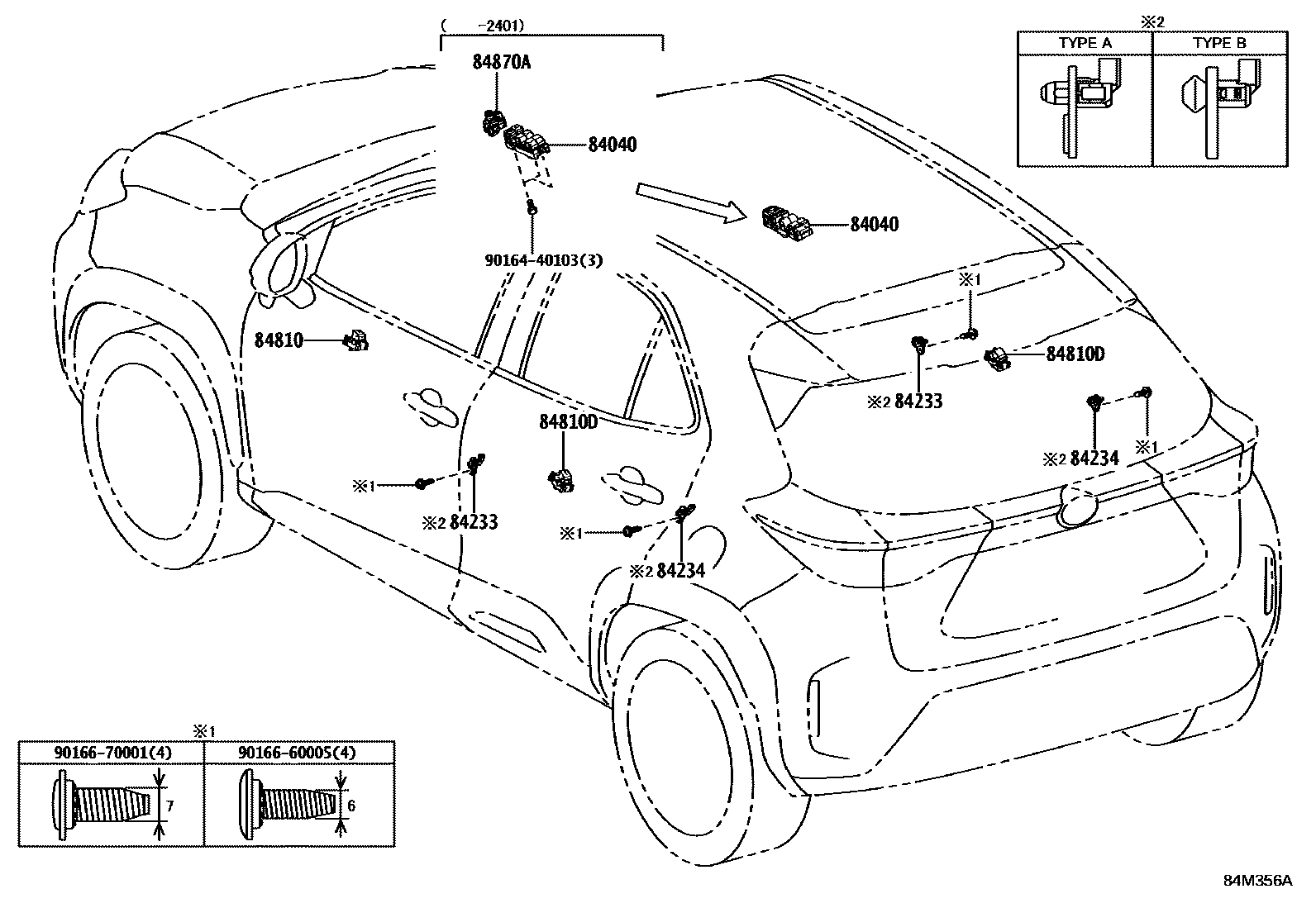

Toyota YARIS 开关和继电器和ECU EPC diagram — 84M356A
开关和继电器和ECU — 84M356A (202008 – 999999)

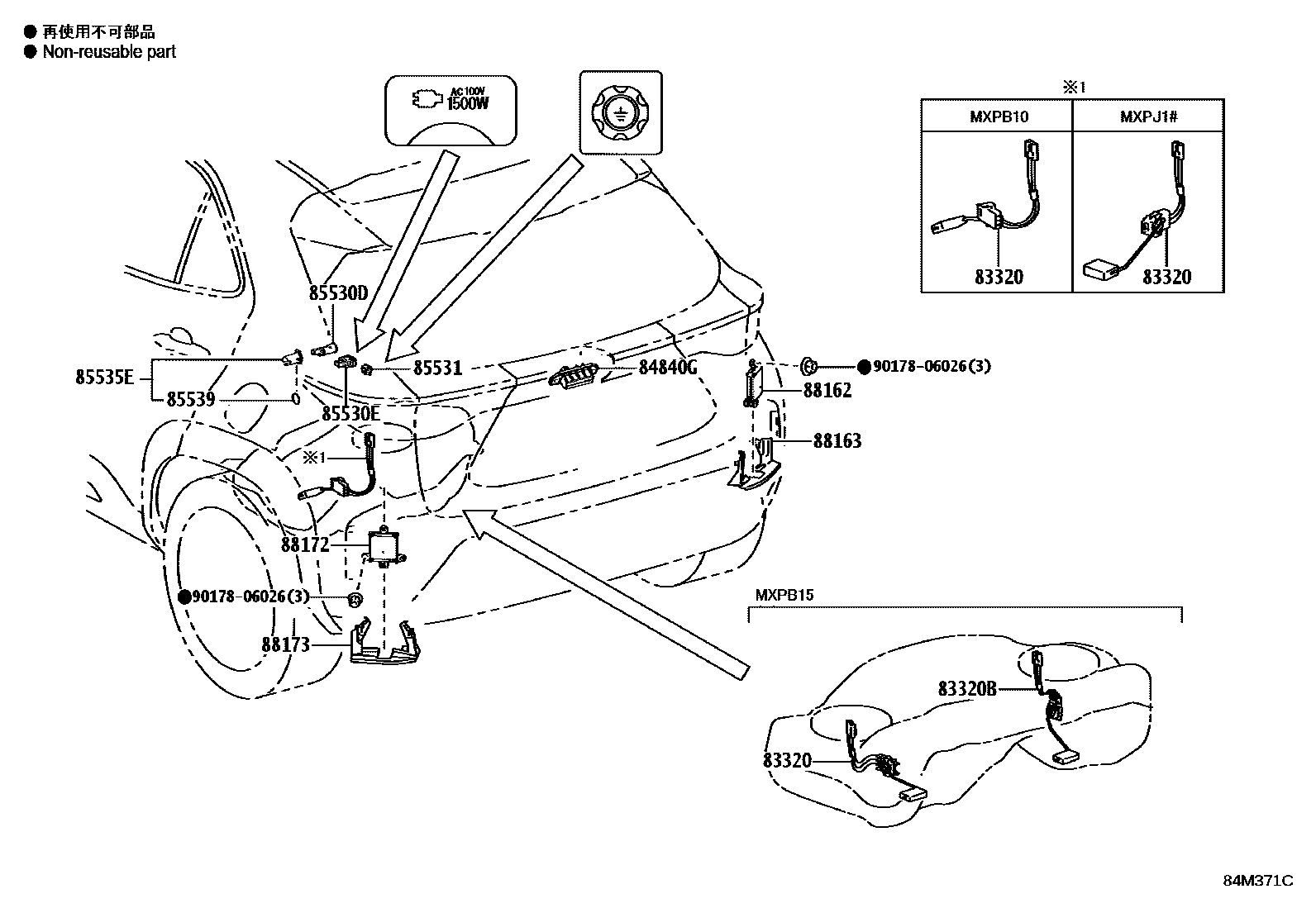

Toyota YARIS 开关和继电器和ECU EPC diagram — 84M371C
开关和继电器和ECU — 84M371C (202008 – 999999)

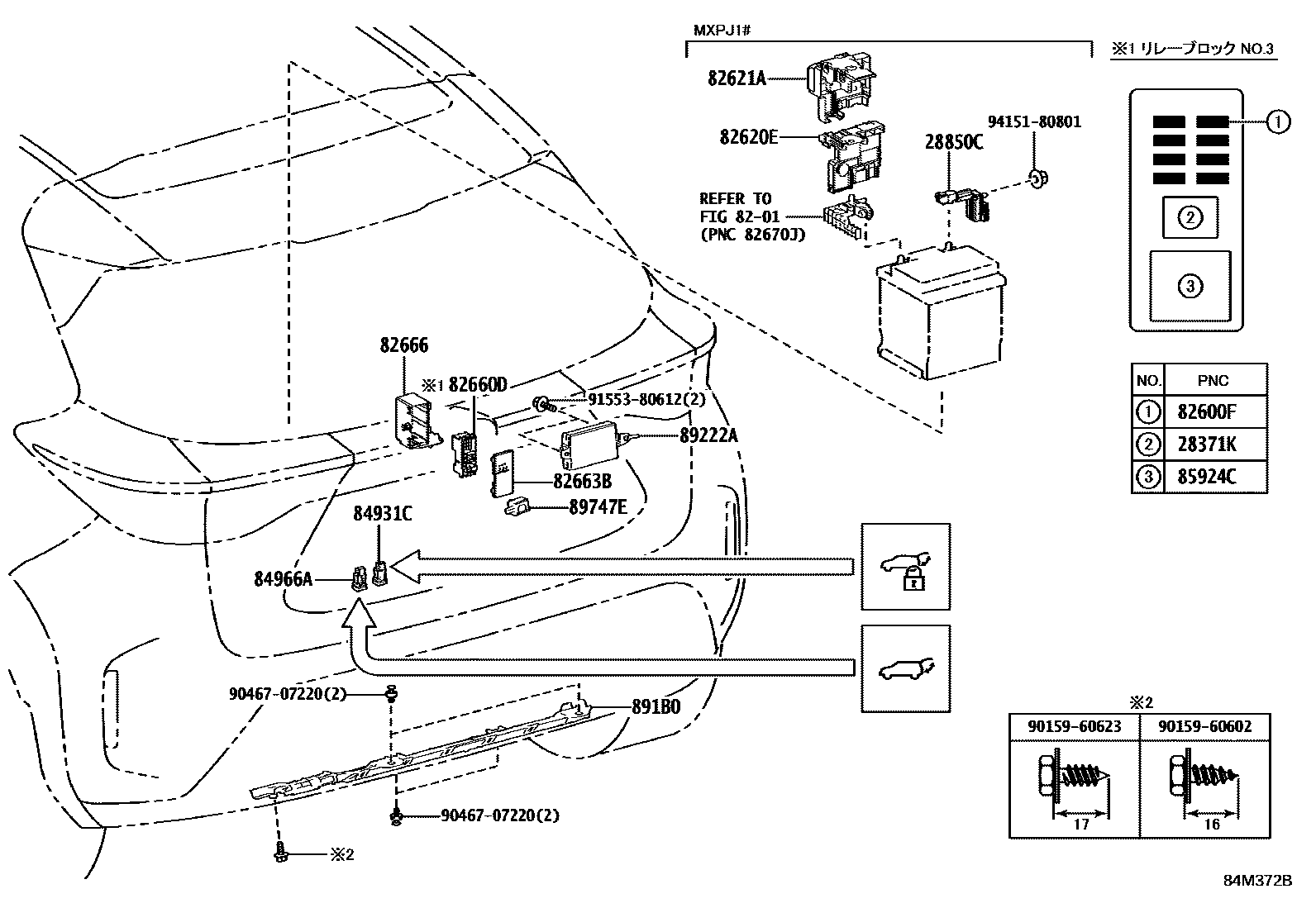

Toyota YARIS 开关和继电器和ECU EPC diagram — 84M372B
开关和继电器和ECU — 84M372B (202008 – 999999)

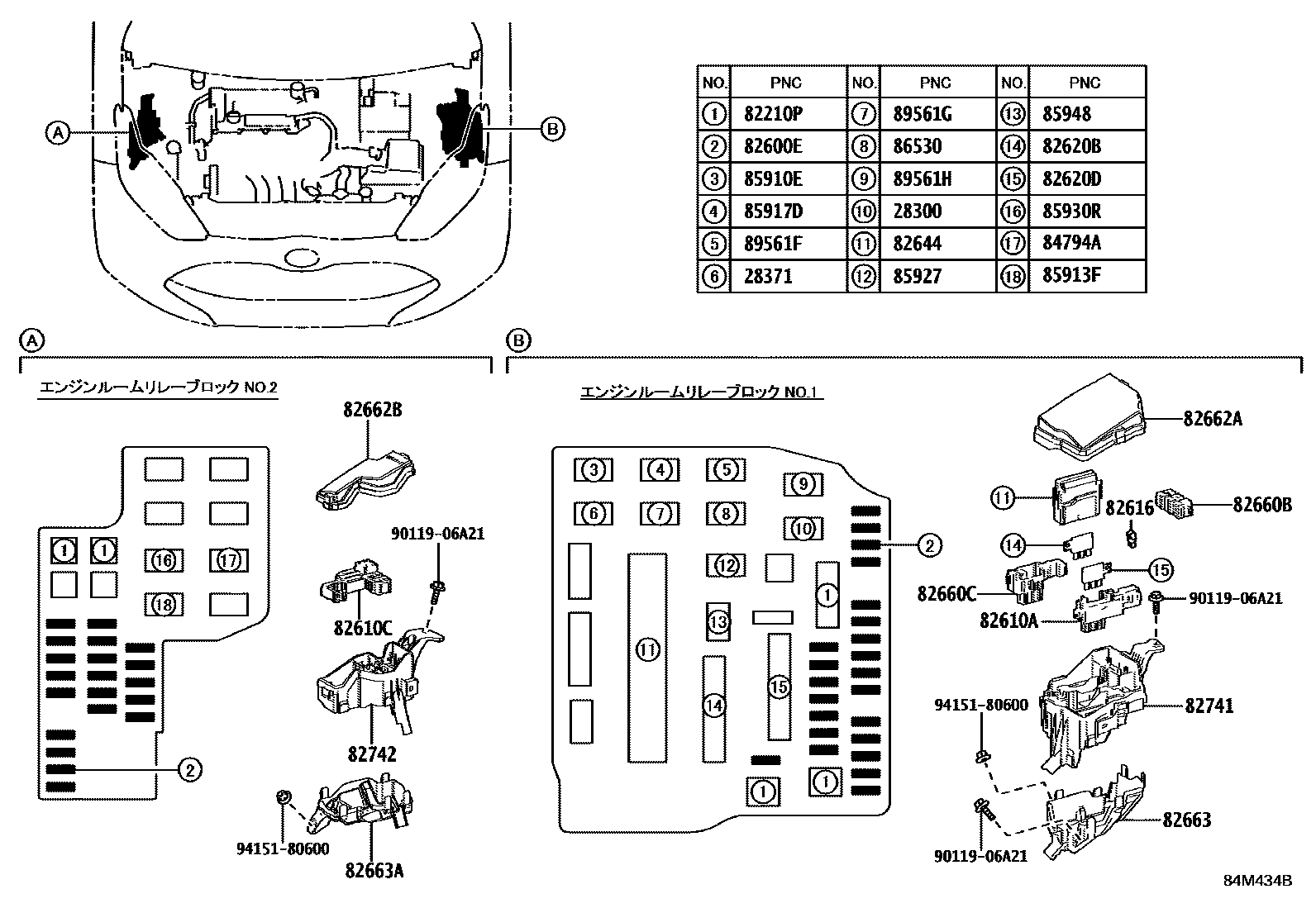

Toyota YARIS 开关和继电器和ECU EPC diagram — 84M434B
开关和继电器和ECU — 84M434B (202008 – 999999)

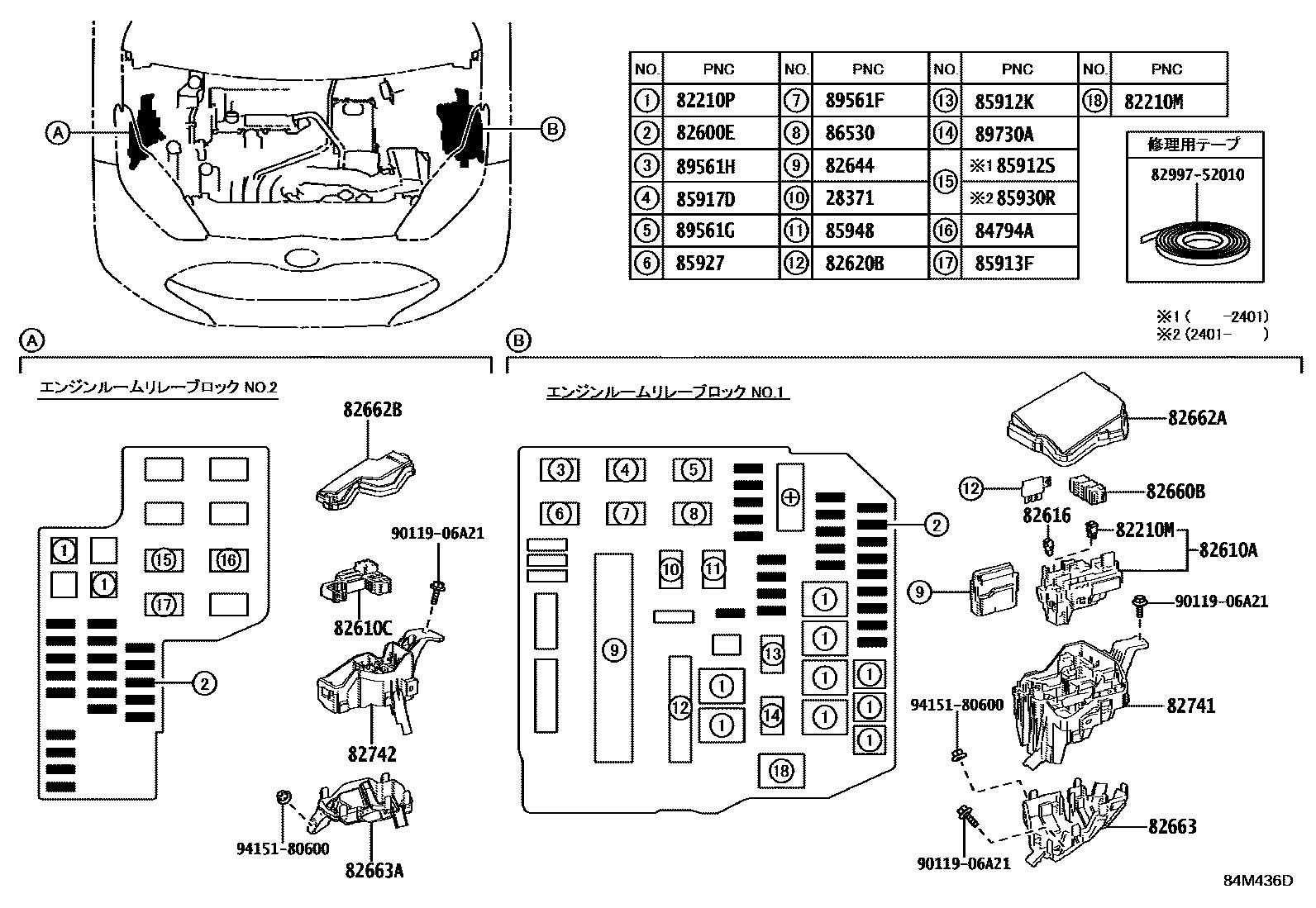

Toyota YARIS 开关和继电器和ECU EPC diagram — 84M436D
开关和继电器和ECU — 84M436D (202008 – 999999)

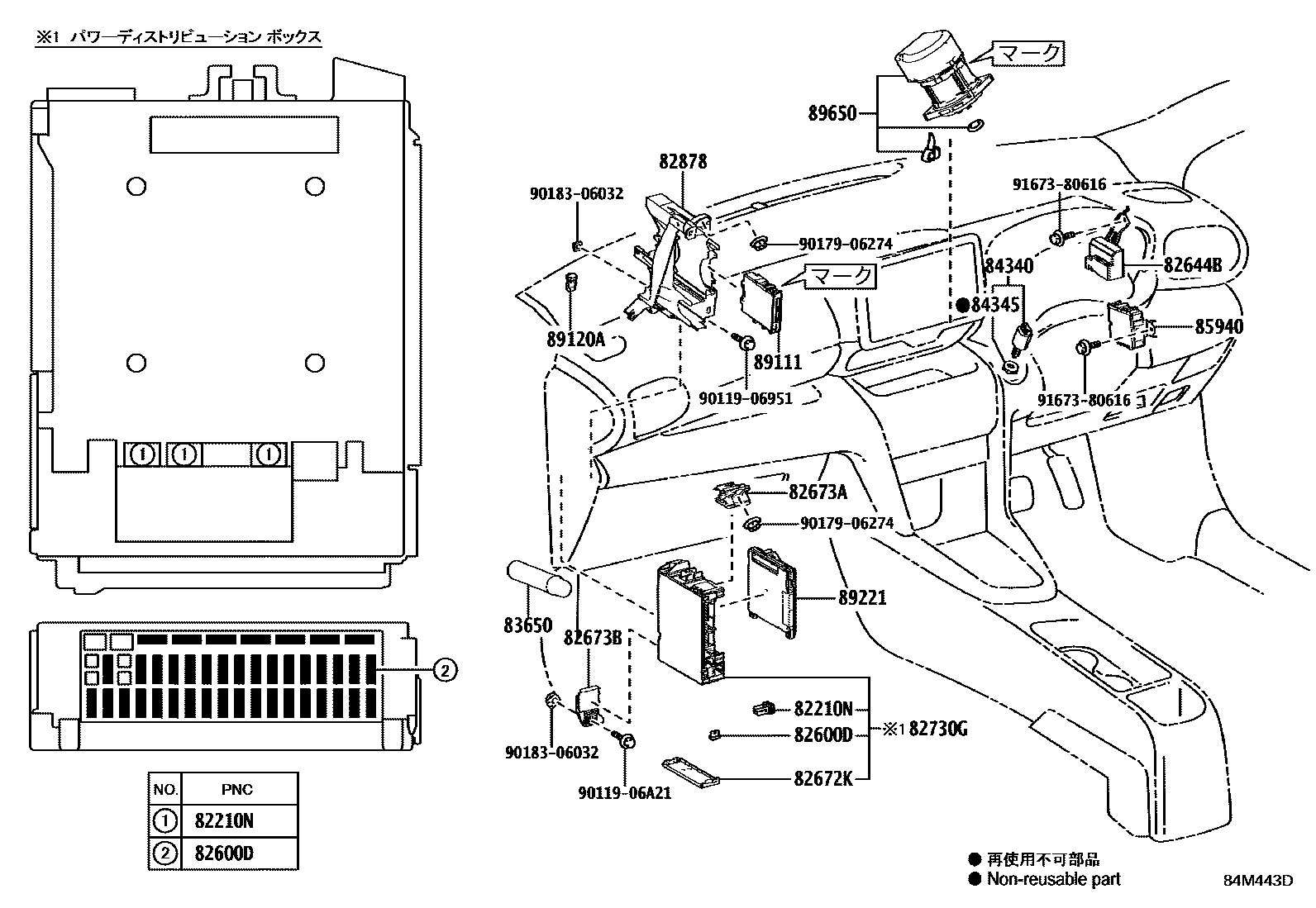

Toyota YARIS 开关和继电器和ECU EPC diagram — 84M443D
开关和继电器和ECU — 84M443D (202008 – 999999)

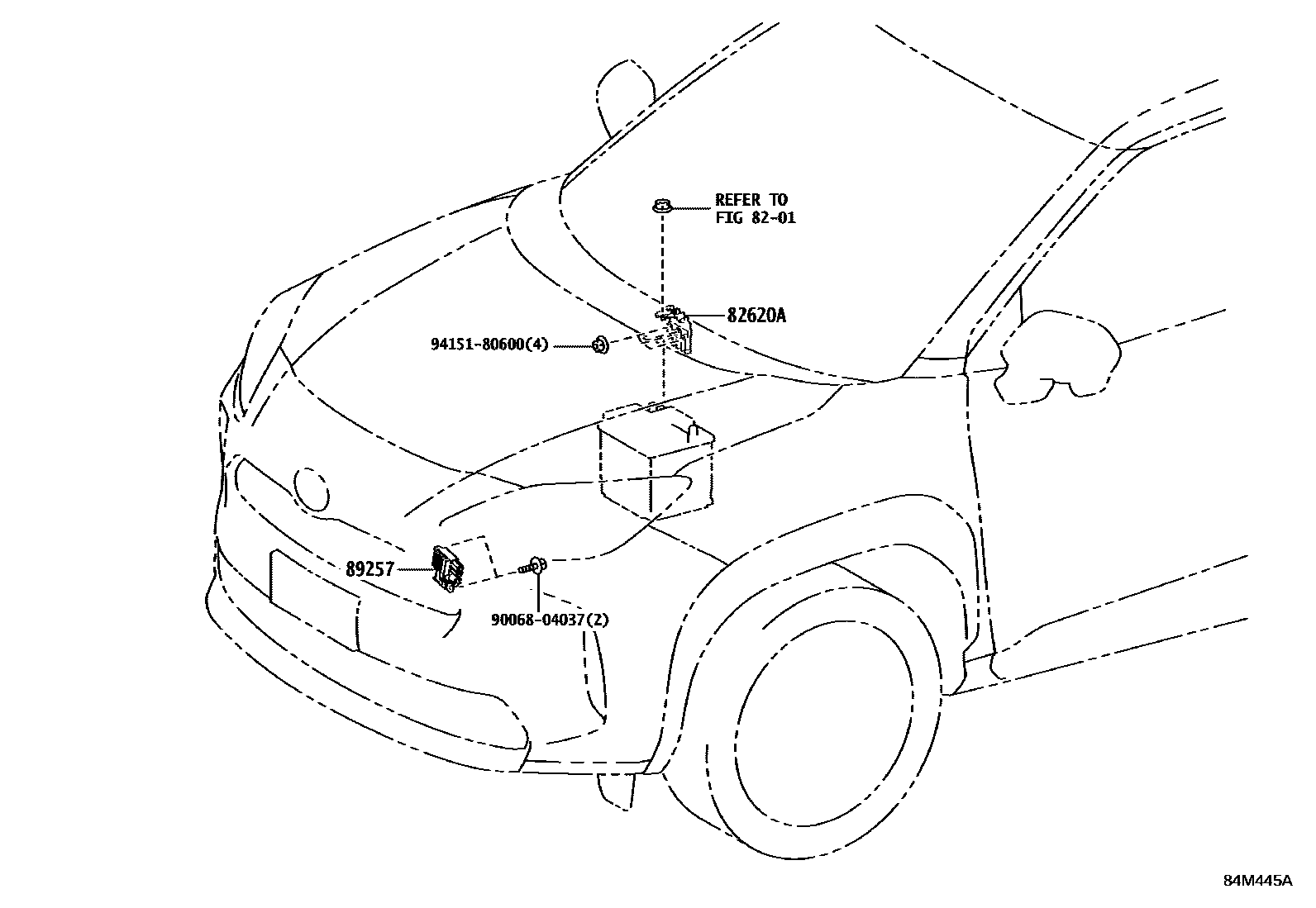

Toyota YARIS 开关和继电器和ECU EPC diagram — 84M445A
开关和继电器和ECU — 84M445A (202008 – 999999)

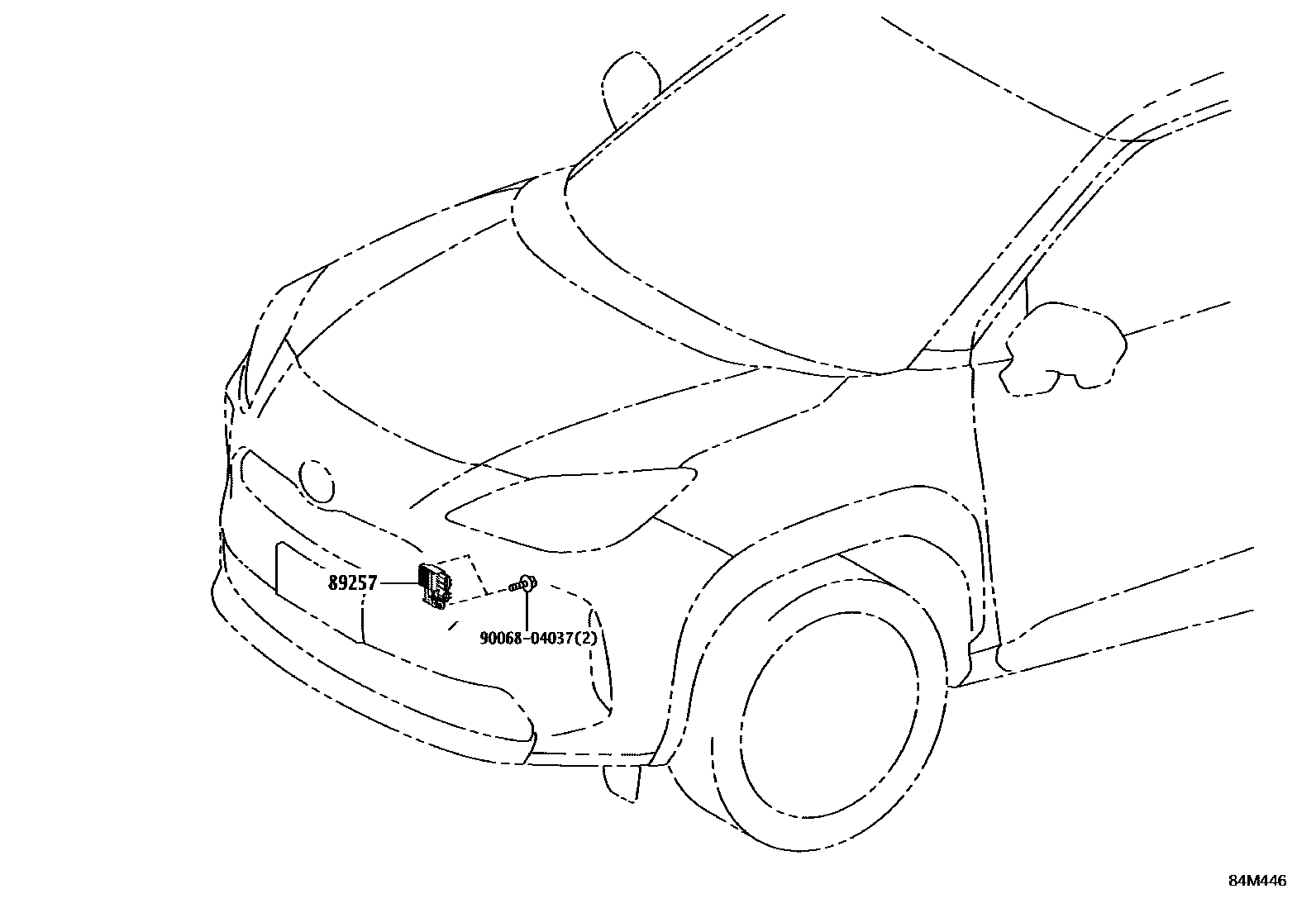

Toyota YARIS 开关和继电器和ECU EPC diagram — 84M446
开关和继电器和ECU — 84M446 (202008 – 999999)
Toyota YARIS 开关和继电器和ECU EPC diagram — 84R3LSA
开关和继电器和ECU — 84R3LSA (202008 – 999999)

PNC and OE references

PNCPart nameOE numbers
28300Starter relay assembly28300-21020
28371No. 1 ignition relay90987-02027
28371KToyota part90987-02027
28850CToyota part28850-K0020
82210Mfuse90982-08274
82210NInstrument panel fuse90982-08306 · 90982-08311
82210PEngine room fuse90982-08294 · 90982-08295 · 90982-08296 · 90982-08299 · 90982-08300 · 90982-08301 · 90982-08302 · 90982-08303 · 90982-08304 · 90982-08305 · 90982-08307 · 90982-08308
82600DDashboard fuse90982-09019 · 90982-09020 · 90982-09021 · 90982-09022 · 90982-09023 · 90982-09024 · 90982-09025
82600EEngine room fuse90982-09019 · 90982-09020 · 90982-09021 · 90982-09022 · 90982-09023 · 90982-09024 · 90982-09025
82600FSpare fuse90982-09019 · 90982-09020 · 90982-09021 · 90982-09022 · 90982-09023 · 90982-09024 · 90982-09025
82610AFuse box assembly82610-K0010 · 82610-K0020
82610CFuse box assembly82610-K0030
82611fuse box cover82611-47060
82613Afuse box base82613-47020
82616fuse puller82616-58010
82620AFuse box assembly82620-K0030
82620BFuse box assembly82620-K0040 · 82620-K0050 · 82620-K0060
82620DFuse box assembly82620-K0060
82620EFuse box assembly82620-K0020
82621AFuse cover82621-52180
82644Toyota part82644-52010 · 82644-52020 · 82644-52050 · 82644-52060 · 82644-K0050 · 82644-K0100
82644BToyota part82644-52040 · 82644-K0060
82660BRelay assembly82660-K0030
82660CRelay assembly82660-K0020
82660DRelay assembly82660-K0010
82662ANo. 1 relay box upper cover82662-52C20 · 82662-52C30 · 82662-52D80 · 82662-52D90
82662BNo. 2 relay box upper cover82662-52B90 · 82662-52C10 · 82662-52D60 · 82662-52D70
82663Relay box lower cover82663-K0050 · 82663-K0060
82663ANo. 2 relay box lower cover82663-K0070
82663BNo. 3 relay box lower cover82663-K0040
82666Connector holder82666-K0090
82672KToyota part82672-52230 · 82672-K0020
82673AJunction box bracket82673-K0010
82673BJunction box bracket82673-K0020
82715WToyota part82715-K0030
82715XToyota part82715-K0080 · 8946A-52030
82730GToyota part82730-52S30 · 82730-52S70 · 82730-K0030 · 82730-K0040 · 82730-K0050
82741Engine room relay box82741-K0040 · 82741-K0050
82742Engine room No. 2 relay box82741-K0060
82878Left ECU integrated box82878-52010
83320Fuel gauge sensor assembly83320-K0020 · 83320-K0030 · 83320-K0031 · 83320-K0060
83320BFuel gauge No. 2 sensor assembly83320-K0040
83650fuse90986-01005
84040Multi-channel network main switch assembly84040-42040 · 84040-52180
84152Headlight beam height adjustment switch84152-12100 · 84152-16040
84153Automatic high beam switch84153-16010 · 84153-33040
84233Door control light switch assembly (for front door)84231-52020 · 84231-53010
84234Door control light switch assembly (for rear door)84231-52020 · 84231-53010
84255Steering heater switch84255-16010 · 84255-33010
84306Spiral cable sub-assembly84308-12020 · 84308-33110 · 84308-52010 · 84308-78040
84319Steering wheel switch housing84319-33030
84329turn signal switch84329-52010 · 84329-K0010 · 84329-K0020 · 84329-K0030
84330Hazard warning signal switch assembly84332-52200
84340brake light switch assembly84340-49105
84345Brake light switch base adjuster84345-51010
84390BElectric parking brake switch assembly84390-52010 · 84390-52040
84485CToyota part84485-12010 · 84485-12020
84523No. 1 switch harness84523-11010
84540Neutral start switch assembly84540-K0010
84610GToyota part84610-33011
84610HToyota part84610-33021
84650Windshield wiper switch assembly84652-12B40 · 84652-12B50
84721BToyota part84721-60030 · 84721-K0010
84751FSeat heater switch84751-15020 · 84751-52120
84751GSeat heater switch84751-15030 · 84751-52180
84794Front wiper de-icer switch84794-33050 · 84794-62010
84794AFront wiper de-icer relay90987-02027
84810Electric window lift switch assembly84810-12100
84810DRear electric window lift switch assembly84810-12100
84840GBack door opener switch assembly84840-47040
84870AExterior rearview mirror switch assembly84872-47070
84931CBack door control switch84930-16040 · 84930-52090
84966Toyota part84966-52010 · 84966-52030
84966AToyota part84966-16030 · 84966-52020
84970Combination switch assembly84970-52210 · 84970-52300 · 84970-52530 · 84970-52540 · 84970-52560 · 84970-52630 · 84970-52680 · 84970-K0020 · 84970-K0030
84970ENo. 2 combination switch assembly84970-52190 · 84970-52200 · 84970-52610 · 84970-52620
84988HDownhill assist control switch84988-60050 · 84988-60080
84988LVSC off switch84988-52070 · 84988-52100
85530No. 1 power socket assembly85530-42010
85530DNo. 2 power socket assembly85530-42010
85532Toyota part85532-12010 · 85532-47040 · 85532-60010
85535BNo. 1 power outlet cover85535-30020
85535ENo. 2 power outlet cover85535-30020
85539Power socket attention labels85539-60010
85910EInjector relay90987-02027
85912KToyota part90987-02027
85912SToyota part90987-02027
85913FSteering heater relay90987-02027
85917DToyota part90987-02027
85924CToyota part90987-02031
85927cooling fan relay90987-02027
85930RToyota part90987-02027
85940Windshield wiper relay assembly85940-K0010
85948windshield wiper relay90987-02027
86210DHigh voltage fuse90982-11053
86247AVoltage inverter bracket86247-K0010 · 86247-K0080
86247CToyota part86247-K0070 · 86247-K0090
8624AToyota part8624A-52020 · 8624A-K0010
8624BToyota part8624B-52010
86530Speaker relay assembly90987-02027
88162Blind spot monitor right sensor88162-52010 · 88162-52080
88163Blind spot monitor right side cover88163-52010
88172Blind spot monitor left sensor88162-52010 · 88162-52080
88173Blind spot monitor left cover88173-52010
89111Network gateway ECU89111-52090 · 89111-52140 · 89111-52200 · 89111-60140
89120AAutomatic light control sensor89121-30020
891B0Toyota part891B0-52010 · 891B0-52011 · 891B0-52060
89221Multi-channel network body ECU89220-52C90 · 89220-52C91 · 89220-52C92 · 89220-52C93 · 89220-52F40 · 89220-52F41 · 89220-52F42 · 89220-52F43 · 89220-52F50 · 89220-52F51 · 89220-52F52 · 89220-52F53 · 89220-52F60 · 89220-52F61 · 89220-52F62 · 89220-52F63 · 89220-52G10 · 89220-52G11 · 89220-52G12 · 89220-52G13 · 89220-52G20 · 89220-52G21 · 89220-52G22 · 89220-52G23 · 89220-52G30 · 89220-52G31 · 89220-52G32 · 89220-52G33 · 89220-52G40 · 89220-52G41 · 89220-52G42 · 89220-52G43 · 89220-5C440 · 89220-5C450 · 89220-5C460 · 89220-5C470 · 89220-5C480 · 89220-5C490 · 89220-5C500 · 89220-5C510
89222AMulti-channel network door ECU89222-52010 · 89222-52011 · 89222-52012 · 89222-52013 · 89222-52030
89245Bsteering sensor8924B-60010 · 8924B-K0010 · 8924B-V1010
89257Cooling fan ECU89257-K0020
89419BToyota part89419-K2010
89422Awater temperature sensor89422-33040
89451Ashift lever position sensor89451-10010 · 89451-42010
89467Bair fuel ratio sensor89467-52390 · 89467-K0020
89467CNo. 2 air-fuel ratio sensor89467-52370 · 89467-52380 · 89467-K0030 · 89467-K0040
8946AToyota part8946A-52090
89491Engine oil level sensor89491-50081 · 89491-50082
89535BToyota part89535-52100 · 89535-52110
89539MNo. 1 transmission control ECU bracket89539-K0010
89539NNo. 2 transmission control ECU bracket89539-K0020
89561FToyota part90987-02027
89561GToyota part90987-02027
89561HToyota part90987-02033
89611push button start switch89611-12010 · 89611-12020 · 89611-42030 · 89611-52080
89615knock control sensor89615-20090
89650Power steering ECU assembly89650-52G60 · 89650-52M40 · 89650-52P20 · 89650-52R10 · 89650-52R20 · 89650-52R30 · 89650-52R40
89730ARelay (for safety warnings)90987-02027
89747EElectric back door warning buzzer89747-30040
G9221AInverter top coverG9221-K0030
