Toyota YARIS 车内灯 — Figure 8121

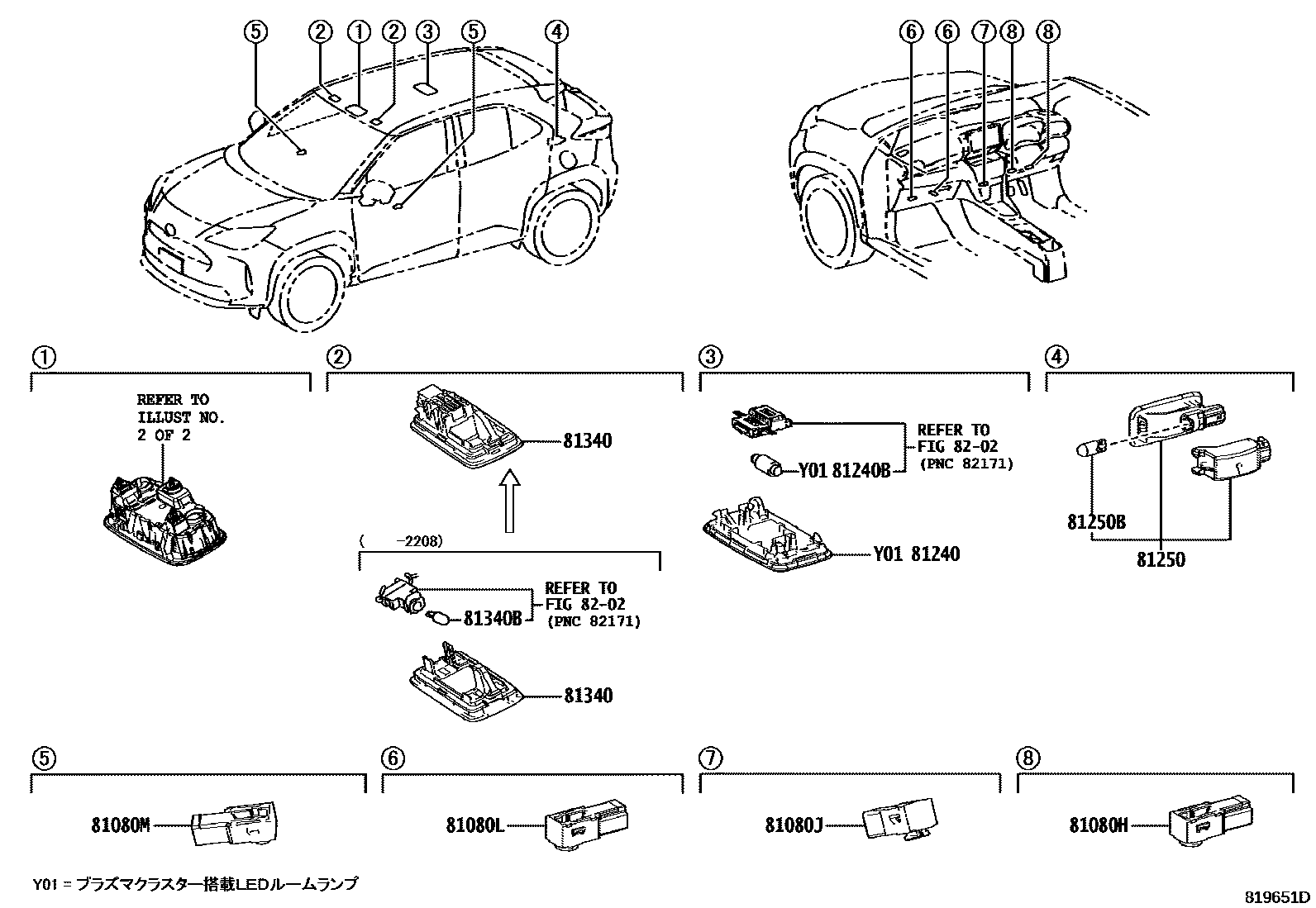

Toyota YARIS EPC diagram 8121, 车内灯, with 2 images and 10 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|

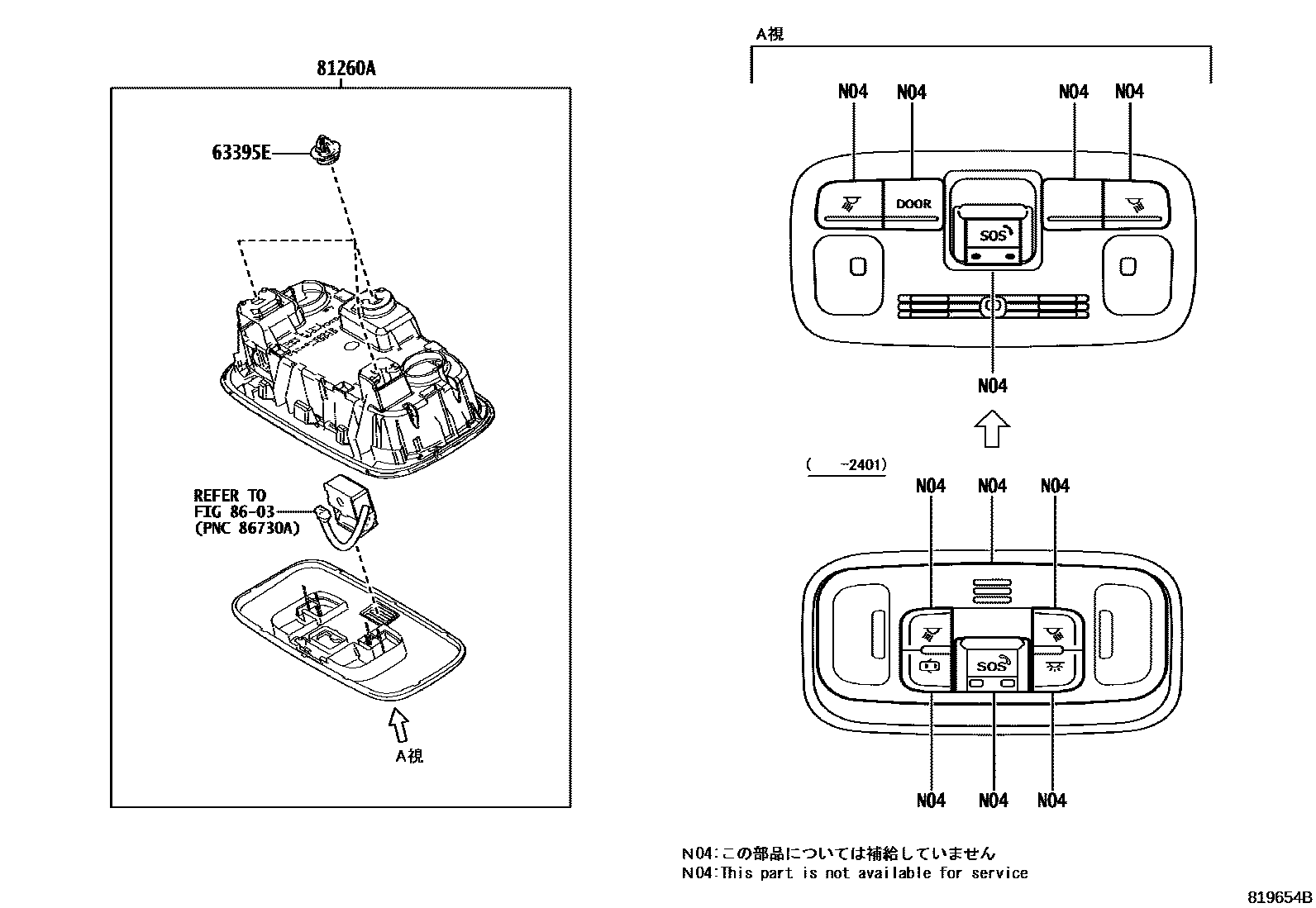

| 63395E | Clip (for reading lamp) | 90467-09240 |
| 81080H | Right No. 1 interior lighting assembly | 81080-33280 · 81080-33290 |
| 81080J | No. 1 interior lighting assembly | 81080-33280 · 81080-33290 |
| 81080L | No. 1 interior lighting assembly on the left | 81080-33280 · 81080-33290 |
| 81080M | No. 1 interior lighting assembly | 81080-33280 · 81080-33290 |
| 81240B | Interior light bulb No. 1 | 90981-14011 |
| 81250 | No. 2 interior light assembly | 81250-30210 |
| 81250B | Interior light bulb No. 2 | 99132-12050 |
| 81340 | Vanity light assembly | 81340-30110 · 81340-33170 |
| 81340B | Bulb (for vanity lights) | 90981-11062 |
