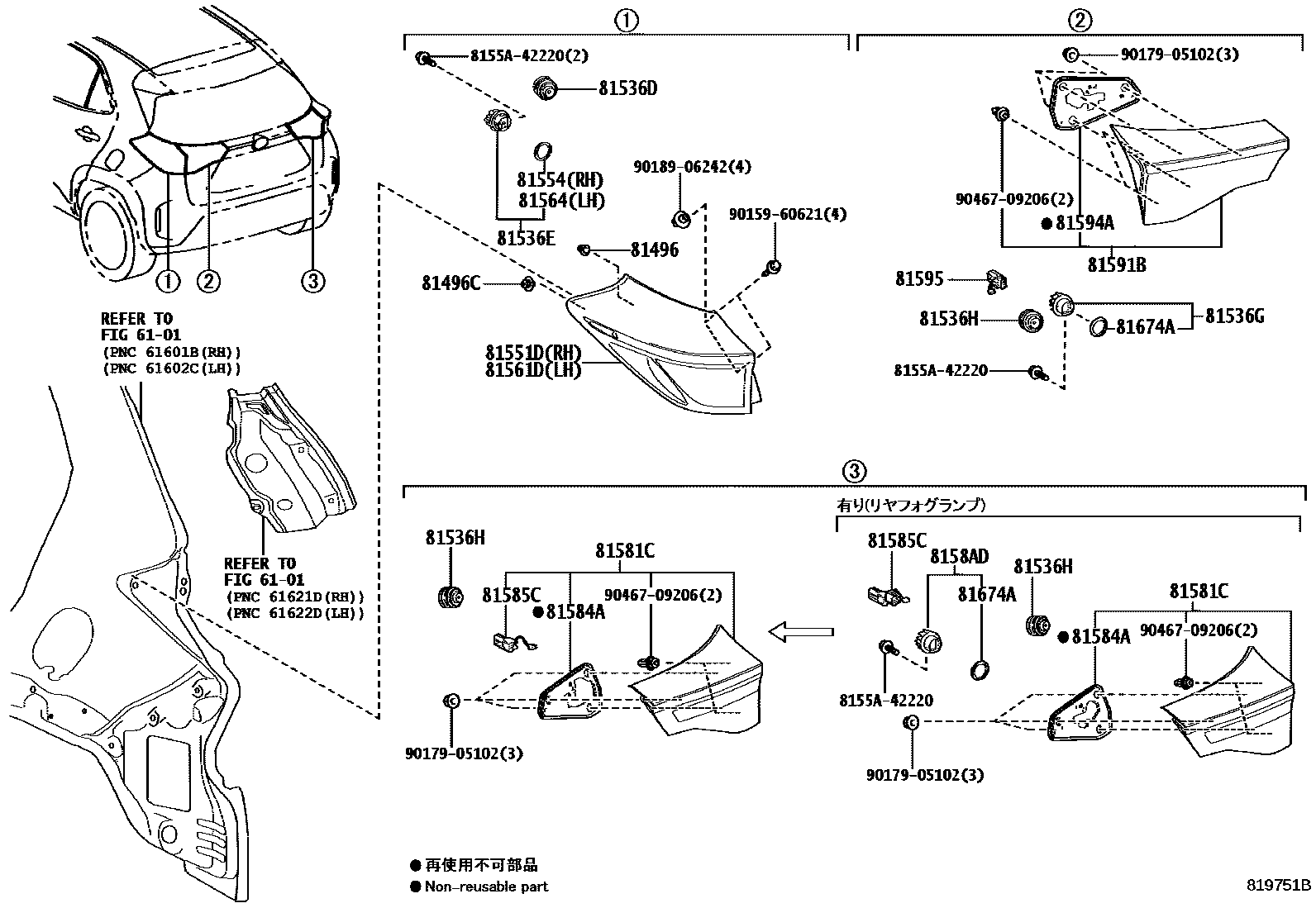

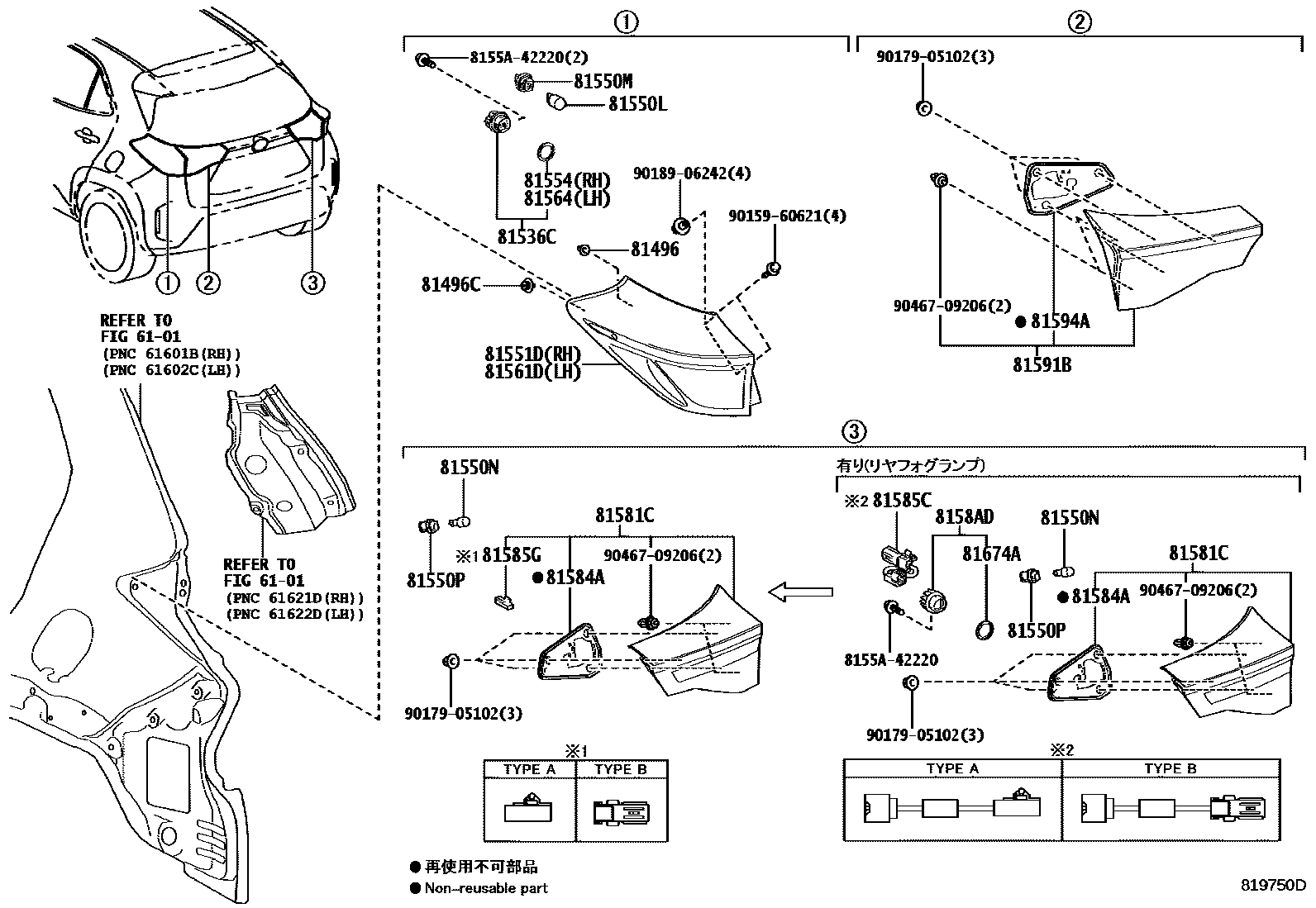

Toyota YARIS 后组合灯 — Figure 8111
Toyota YARIS EPC diagram 8111, 后组合灯, with 2 images and 24 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 81496 | Rear combination light guide block | 81496-52020 |
| 81496C | No. 2 rear combination light guide block | 81496-60010 |
| 81536C | Toyota part | 81536-42230 |
| 81536D | Toyota part | 81536-52E60 |
| 81536E | Toyota part | 81536-42230 |
| 81536G | Toyota part | 8159A-52420 |
| 81536H | Toyota part | 81536-52E60 |
| 81550L | Rear turn signal light bulb | 90981-15011 |
| 81550M | Rear turn signal lamp holder | 81515-42050 |
| 81550N | reversing light bulb | 90981-11059 |
| 81550P | Reversing light lamp holder | 81615-12590 |
| 81551D | Right rear combination lamp shade and lamp body | 81551-52E50 · 81551-52E60 |
| 81554 | Right rear combination lamp body gasket | 81538-42200 |
| 81561D | Left rear combination lamp lampshade and lamp body | 81561-52E50 · 81561-52E60 |
| 81564 | Left rear combination lamp body gasket | 81538-42200 |
| 81581C | Right rear light lampshade and lamp body | 81581-52400 · 81581-52401 · 81581-52402 · 81581-52410 · 81581-52411 · 81581-52420 · 81581-52421 · 81581-52430 · 81581-52431 |
| 81584A | Right rear light gasket | 81584-52400 · 81584-52420 |
| 81585C | Right rear light lamp holder and wiring harness | 81585-52410 · 81585-52411 · 81585-52420 · 81585-52421 · 81585-52430 · 81585-52431 |
| 81585G | Toyota part | 81585-52400 · 81585-52401 |
| 8158AD | Toyota part | 8158A-52410 |
| 81591B | Left rear light shade and body | 81590-52400 · 81590-52401 · 81591-52420 · 81591-52421 |
| 81594A | Left rear light gasket | 81584-52400 · 81584-52420 |
| 81595 | Left rear light lamp holder and wiring harness | 81595-52420 · 81595-52421 |
| 81674A | Reversing light gasket | 81538-42200 |
