Toyota YARIS Fog Lamp — Figure 8102

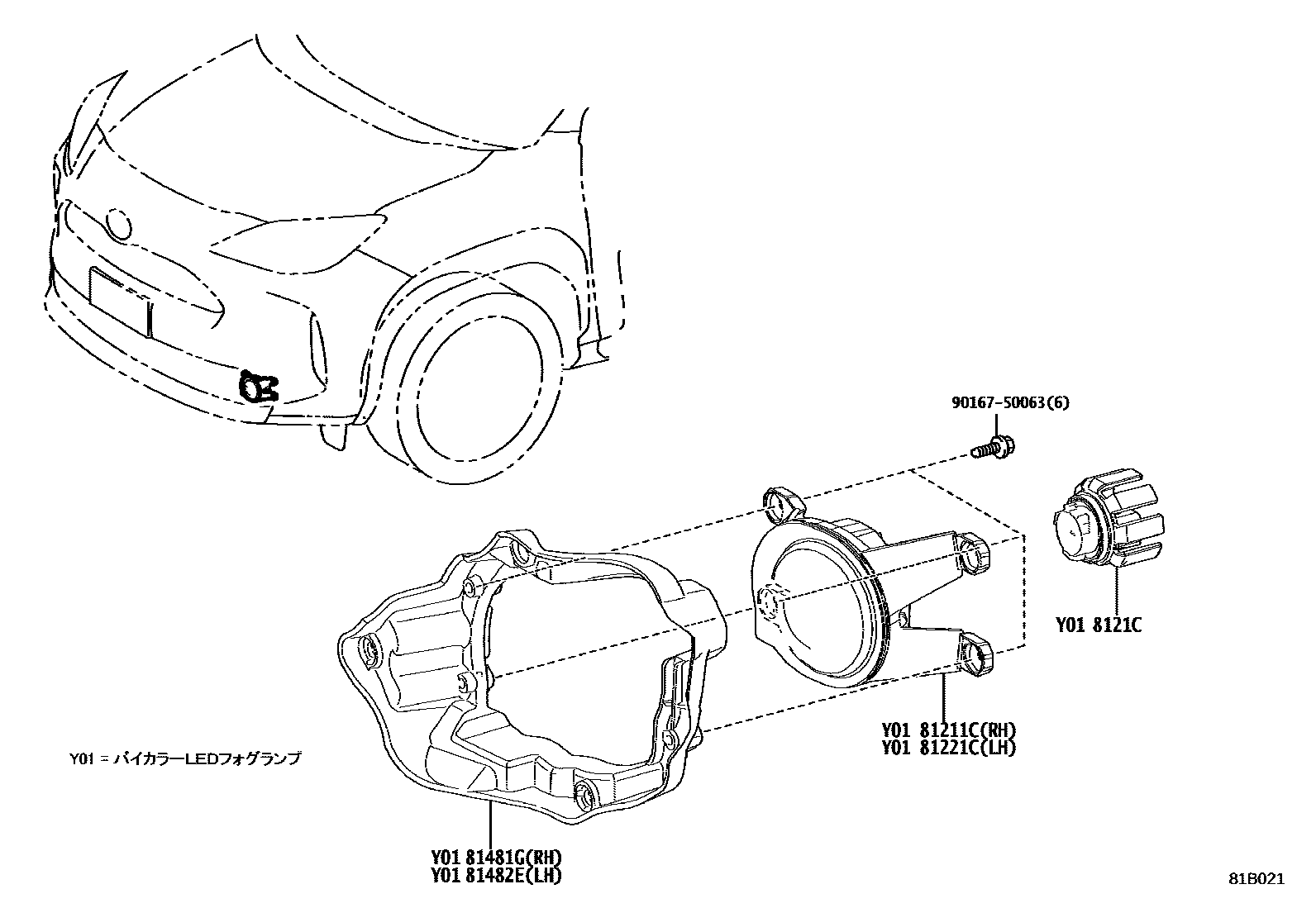

Toyota YARIS EPC diagram 8102, Fog Lamp, with 1 images and 5 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 81211C | Right fog light assembly | 81211-52140 |
| 8121C | DMY | 8121C-52140 · 81965-52050 |
| 81221C | Left fog light assembly | 81221-52120 |
| 81481G | Right fog light bracket | 52112-52120 |
| 81482E | Left fog light bracket | 52113-52120 |
