Toyota YARIS Headlamp — Figure 8101

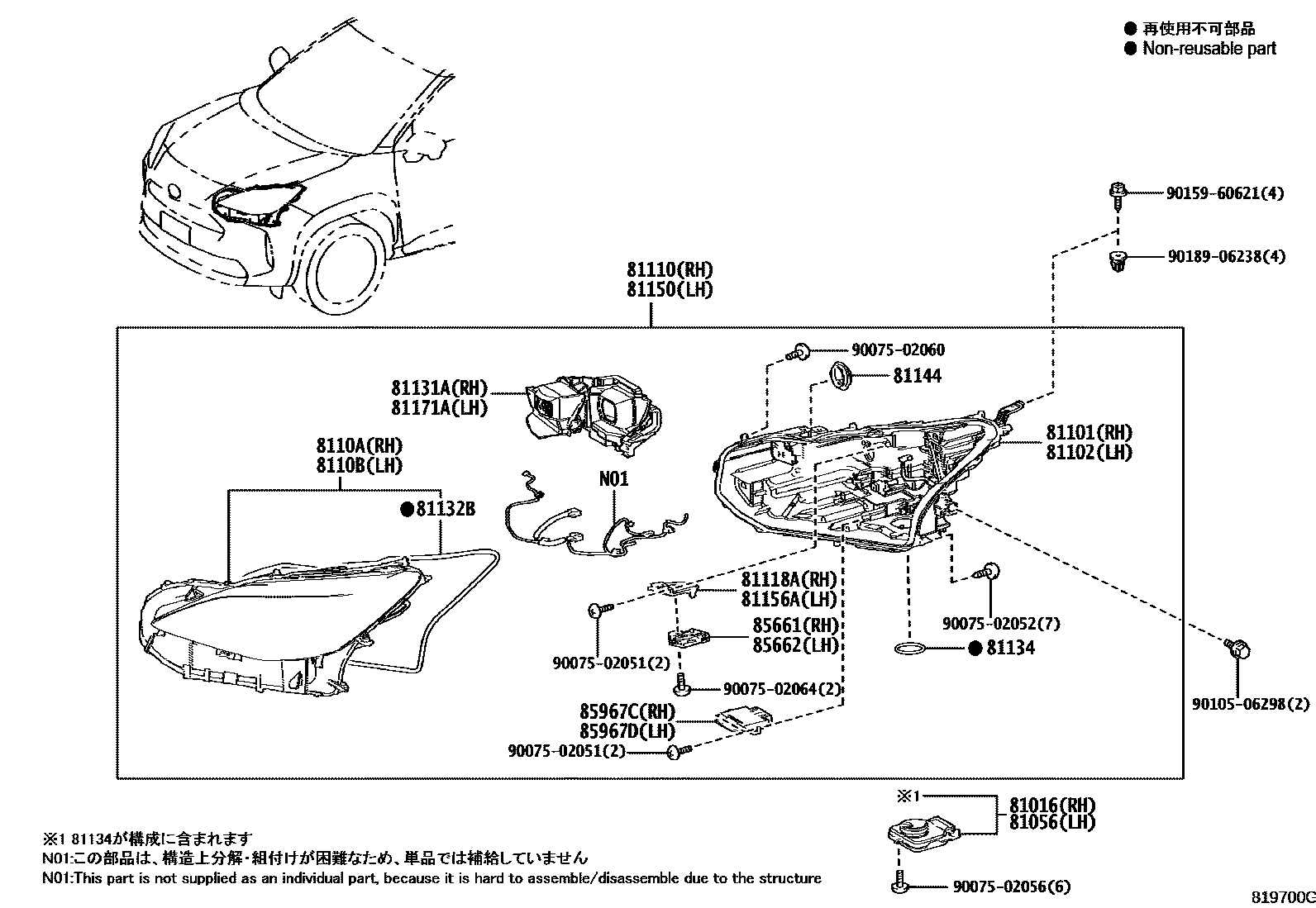

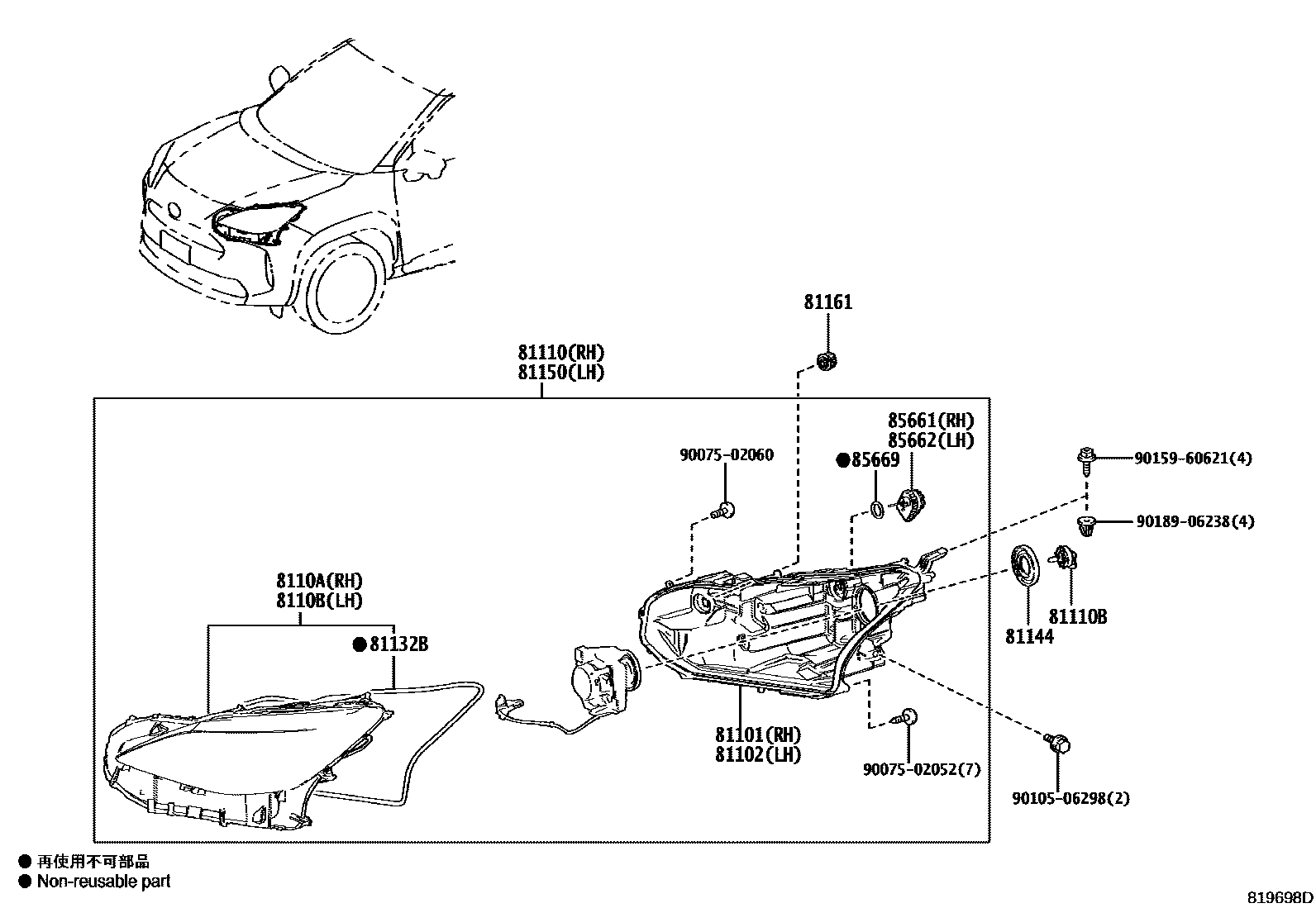

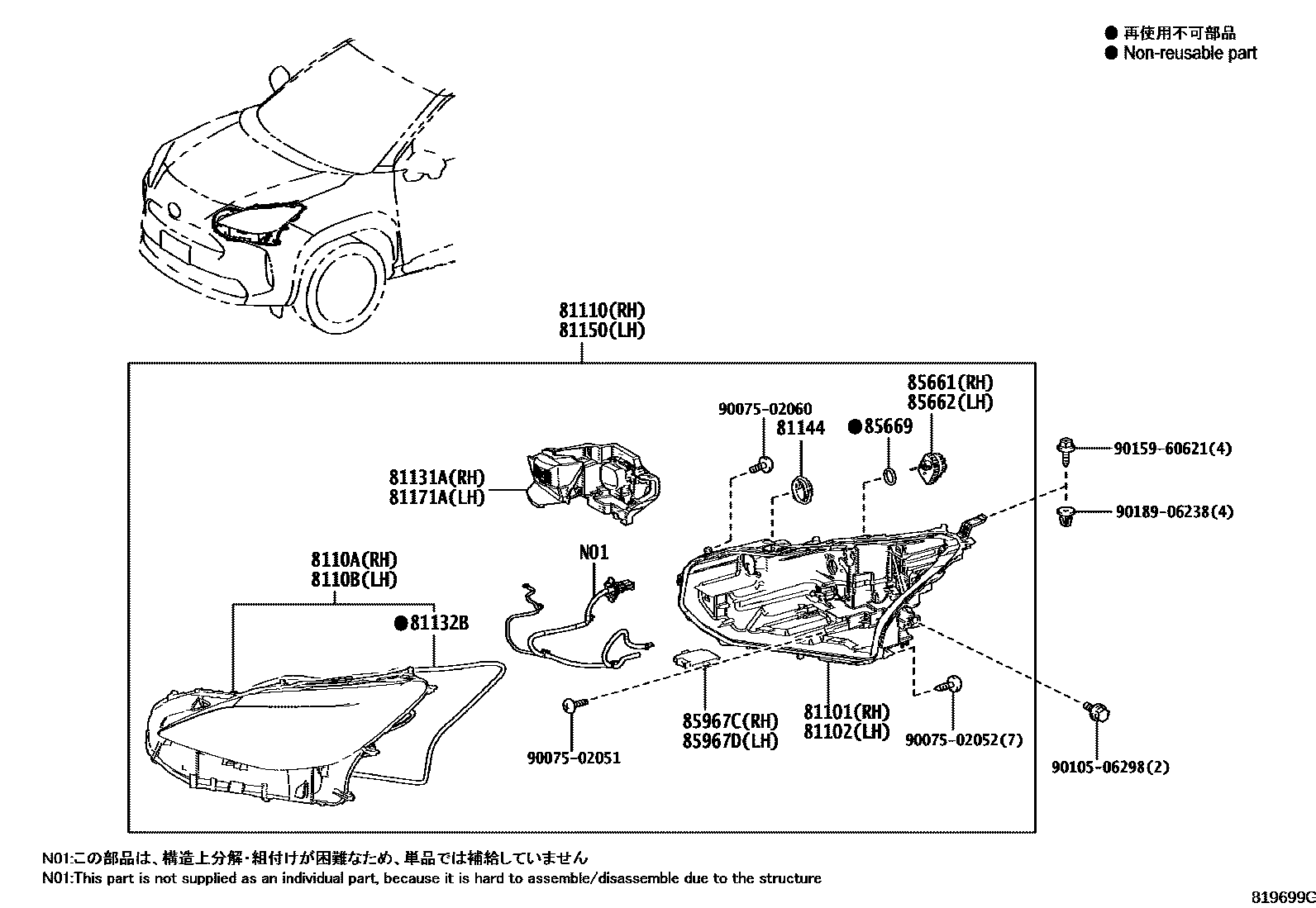

Toyota YARIS EPC diagram 8101, Headlamp, with 3 images and 22 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 81016 | Right No. 1 headlight ECU sub-assembly | 81016-52N30 · 81016-52P90 |
| 81056 | Left No. 1 headlight ECU sub-assembly | 81056-52N30 · 81056-52P90 |
| 81101 | Toyota part | 8111B-52N10 · 8111B-52N20 · 8111B-52N30 · 8111B-52P90 |
| 81102 | Toyota part | 8115B-52N10 · 8115B-52N20 · 8115B-52N30 · 8115B-52P90 |
| 8110A | Toyota part | 8110A-52N10 · 8110A-52N20 |
| 8110B | Toyota part | 8110B-52N10 · 8110B-52N20 |
| 81110 | Right headlight assembly | 81110-52N20 · 81110-52N21 · 81130-52N10 · 81145-52N30 · 81145-52P90 |
| 81110B | Bulb (for headlight No. 1) | 90981-13091 |
| 81118A | Right headlight bracket | 81118-78240 |
| 81131A | Right headlight assembly assembly | 81130-52N20 · 81130-52N30 · 81130-52P90 |
| 81132B | Headlight cover gasket | 81132-50590 |
| 81134 | headlight gasket | 90075-23003 |
| 81144 | No. 1 headlight cover | 90075-65006 · 90075-66016 |
| 81150 | Left headlight assembly | 81150-52N20 · 81150-52N21 · 81170-52N10 · 81185-52N30 · 81185-52P90 |
| 81156A | Left headlight bracket | 81118-78240 |
| 81161 | Toyota part | 81161-52N10 · 81965-52060 |
| 81171A | Left headlight assembly assembly | 81170-52N20 · 81170-52N30 · 81170-52P90 |
| 85661 | Right headlight beam height adjustment motor | 85661-12010 · 85661-45010 |
| 85662 | Left headlight beam height adjustment motor | 85661-12010 · 85691-45010 |
| 85669 | Headlight beam height adjustment motor base seal | 90075-99120 |
| 85967C | Toyota part | 85967-48100 · 8596A-52020 · 8596A-52021 |
| 85967D | Toyota part | 85967-48090 · 8596A-52010 · 8596A-52011 |
