Toyota YARIS 侧防护条 — Figure 7503

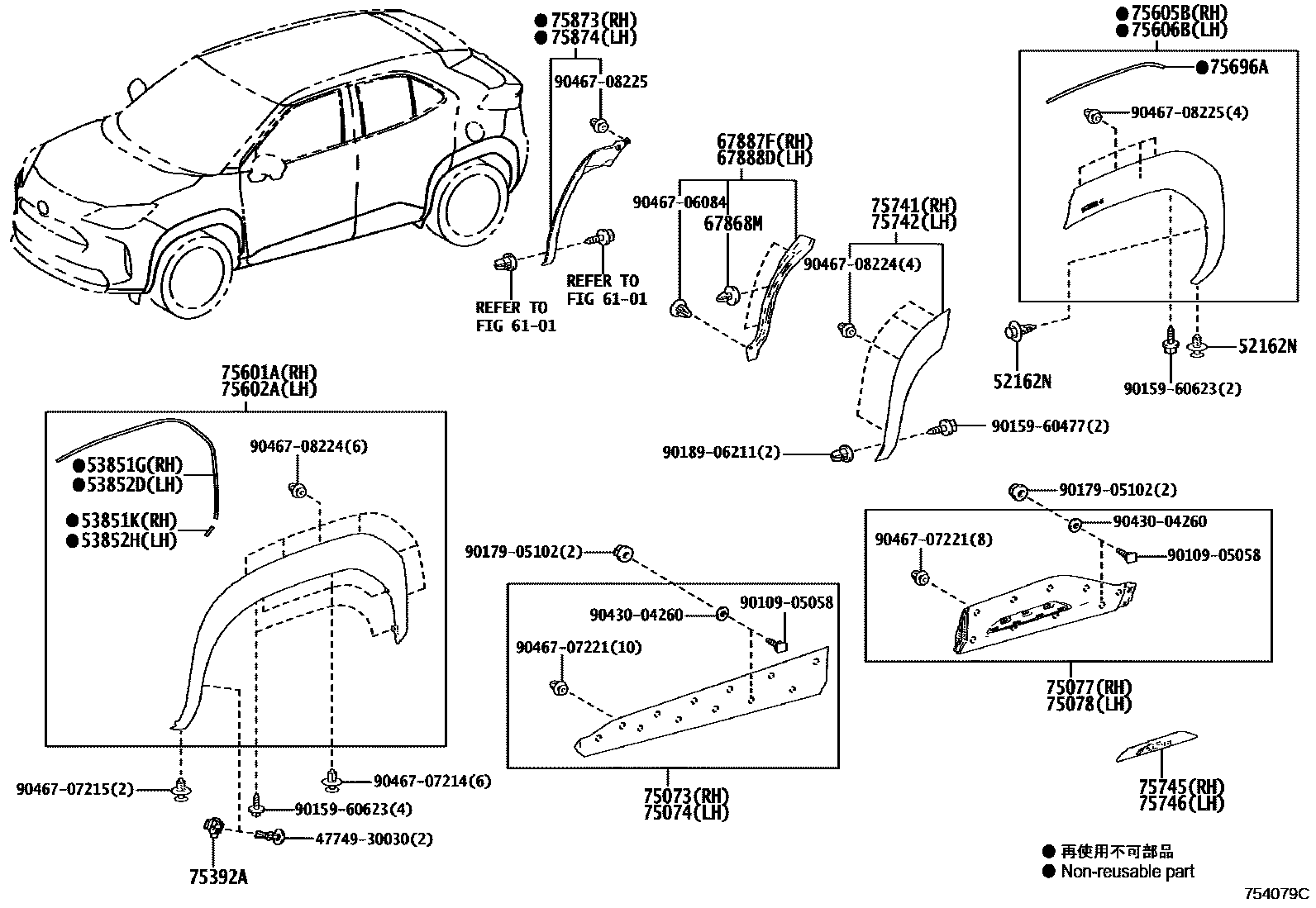

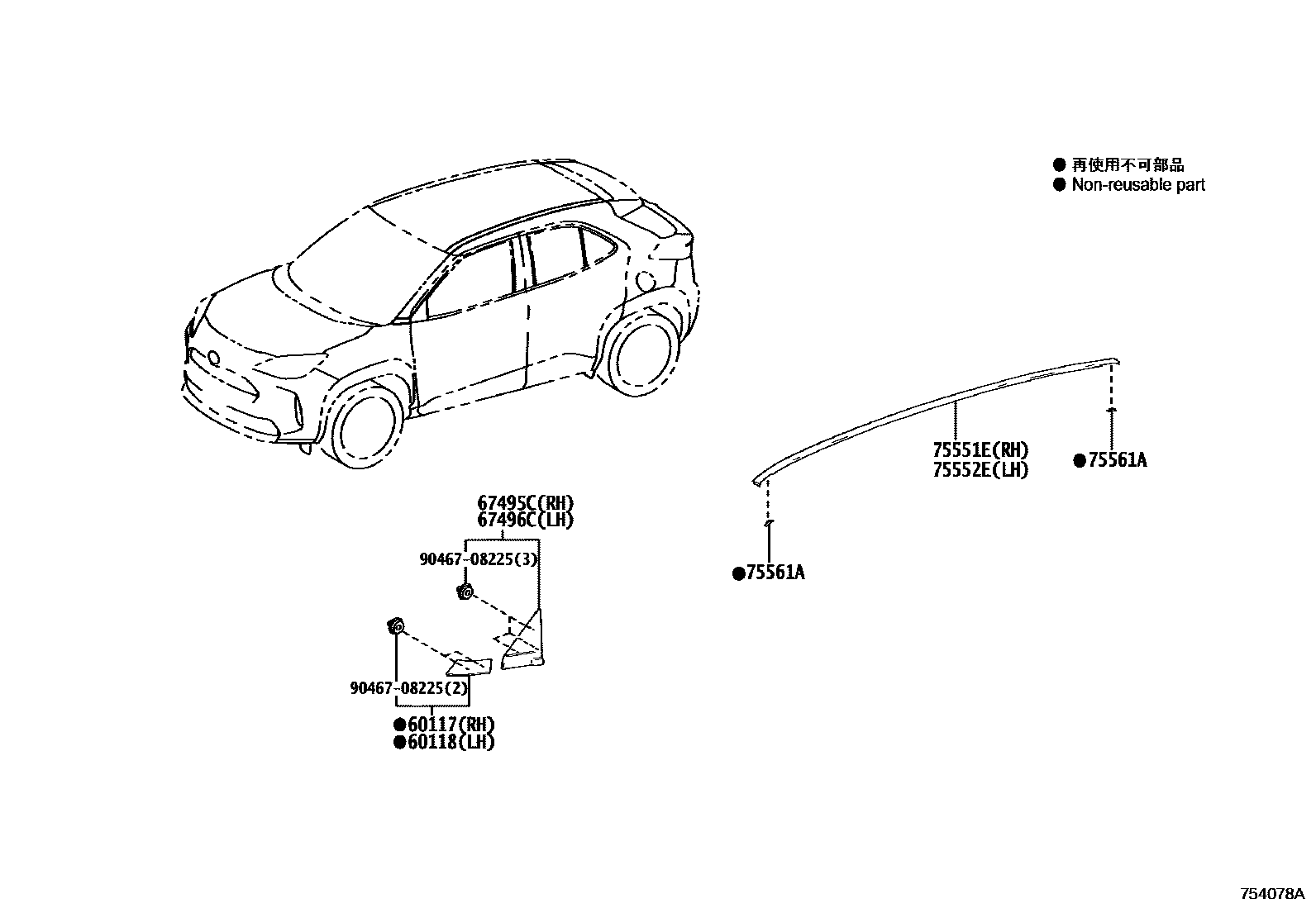

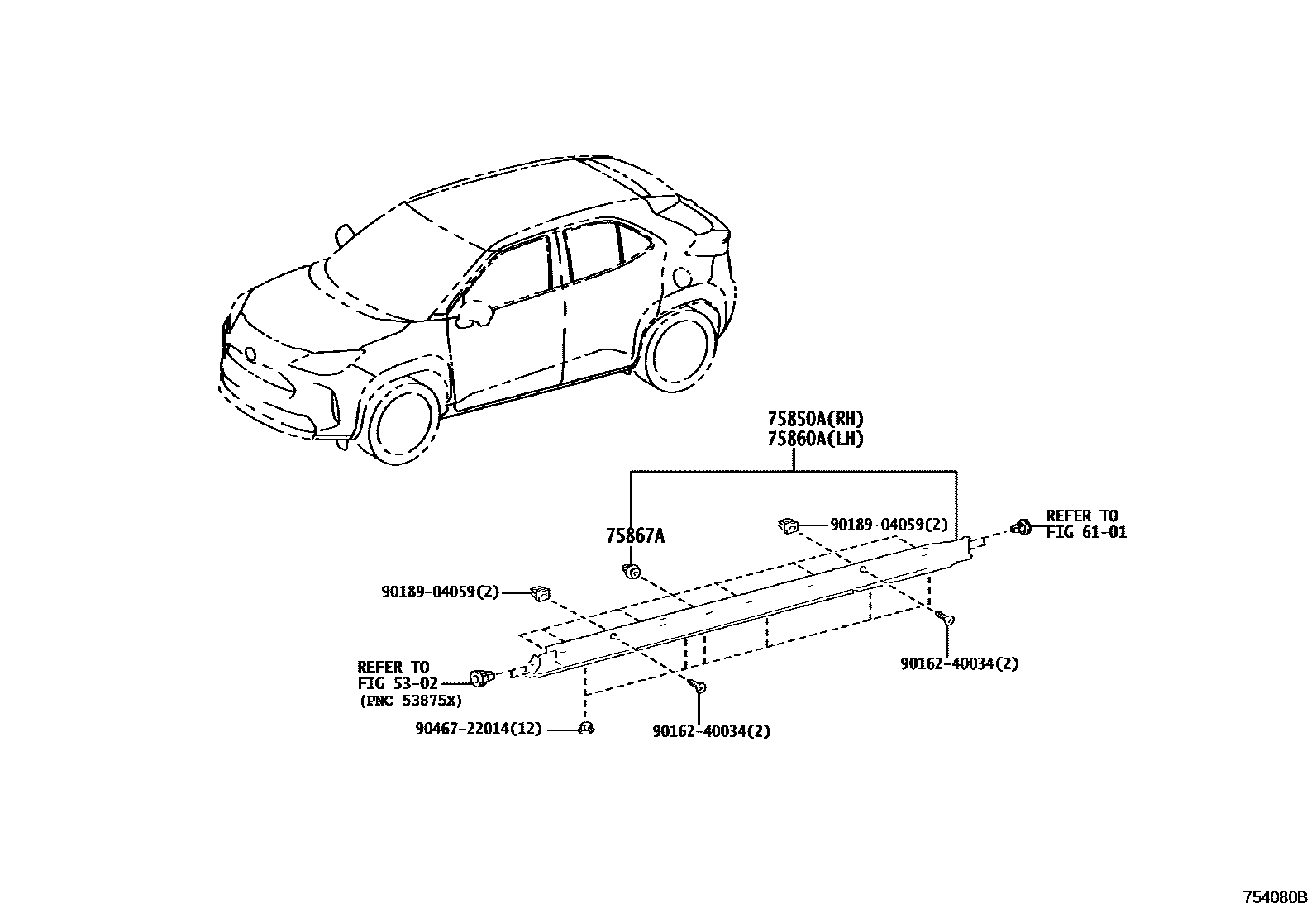

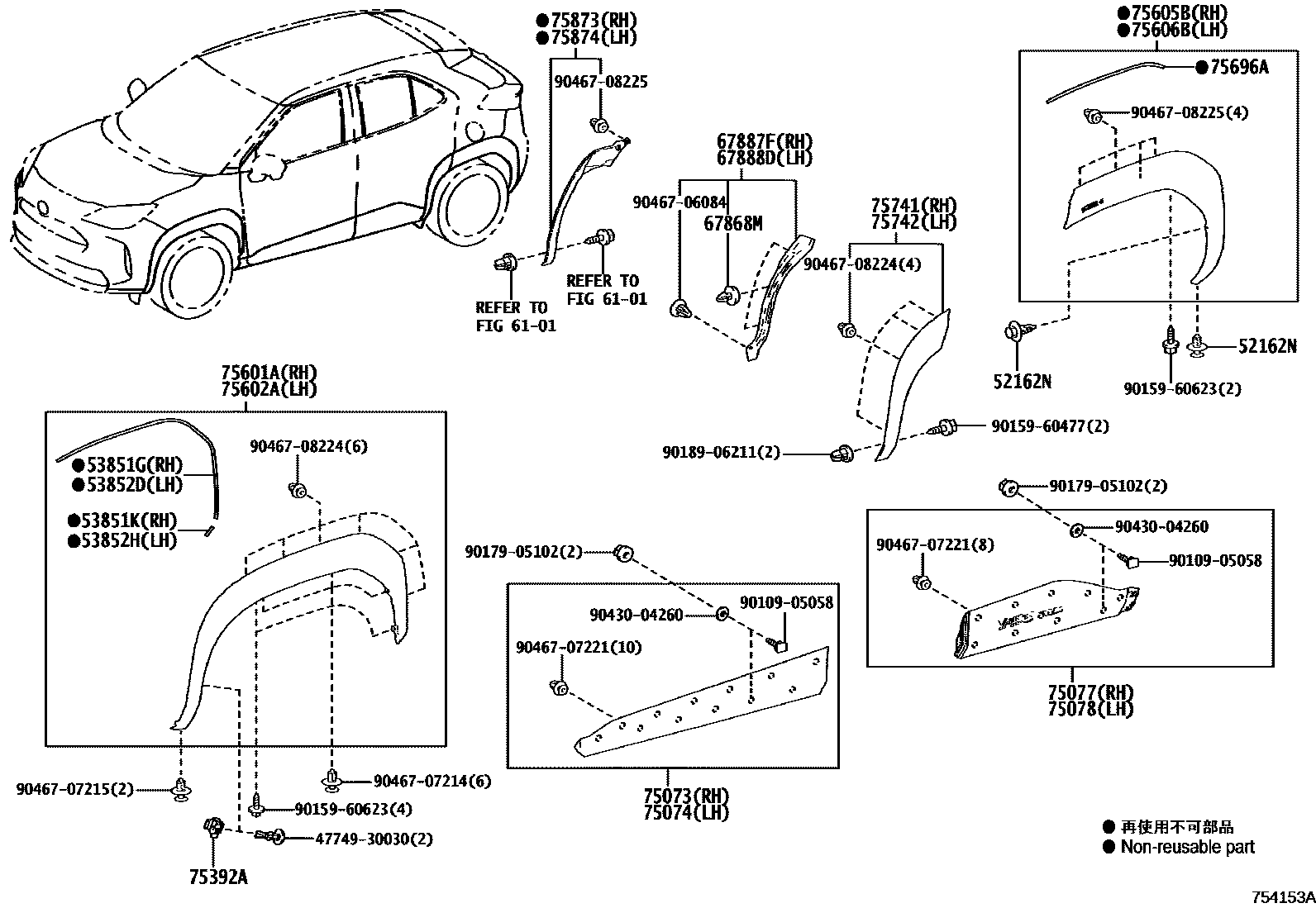

Toyota YARIS EPC diagram 7503, 侧防护条, with 4 images and 32 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 52162N | Toyota part | 52161-16010 |
| 53851G | Right front fender outer panel pad | 53851-52220 |
| 53851K | Right front fender outer panel pad | 53851-52260 |
| 53852D | Left front fender exterior panel pad | 53851-52220 |
| 53852H | Left front fender exterior panel pad | 53851-52260 |
| 60117 | Right front pillar upper cover sub-assembly | 60117-52140 |
| 60118 | Left front pillar upper cover sub-assembly | 60118-52130 |
| 67495C | Right front door front lower door frame upper cover | 67495-52030 |
| 67496C | Left front door front lower door frame upper cover | 67496-52030 |
| 67868M | Car door seal strip clip | 67867-12150 |
| 67887F | Right rear door seal No. 2 | 67887-52030 |
| 67888D | Left rear door seal No. 2 | 67888-52050 |
| 75073 | Toyota part | 75073-52030 |
| 75074 | Toyota part | 75074-52030 |
| 75077 | Right rear door outer lower protective strip sub-assembly | 75077-52020 · 75077-52030 |
| 75078 | Left rear door outer lower protective strip sub-assembly | 75078-52020 · 75078-52030 |
| 75392A | No. 1 outer protective strip fixings | 53879-30060 |
| 75551E | Drainage groove side decorative strip on the right side of the roof | 75551-52240 · 75551-52290 · 75551-52291 |
| 75552E | Drainage groove side decorative strip on the left side of the roof | 75552-52250 · 75552-52251 · 75552-52280 |
| 75561A | Roof drain channel side decorative strip clip | 75561-52050 |
| 75601A | Right front fender protection strip sub-assembly | 75601-52040 |
| 75602A | Left front fender protection strip sub-assembly | 75602-52040 |
| 75605B | Right side enclosure outer protective strip sub-assembly | 75605-52090 · 75605-52140 |
| 75606B | Left side enclosure outer protective strip sub-assembly | 75606-52090 · 75606-52140 |
| 75696A | Body exterior protective strip lining | 75696-52010 |
| 75741 | Right rear door outer protective strip | 75087-52010 |
| 75742 | Left rear door outer protective strip | 75088-52010 |
| 75850A | Right body door sill panel protective strip assembly | 75850-52090 |
| 75860A | Left body door sill panel protective strip assembly | 75860-52090 |
| 75867A | Door sill panel protective strip clip | 75867-30130 |
| 75873 | Right side panel wheel mouth protection strip | 75873-52010 |
| 75874 | Left side panel wheel mouth protection strip | 75874-52010 |
