Toyota YARIS 警示铭牌(车外和车内) — Figure 7403

Toyota YARIS EPC diagram 7403, 警示铭牌(车外和车内), with 3 images and 21 PNC and OE references.

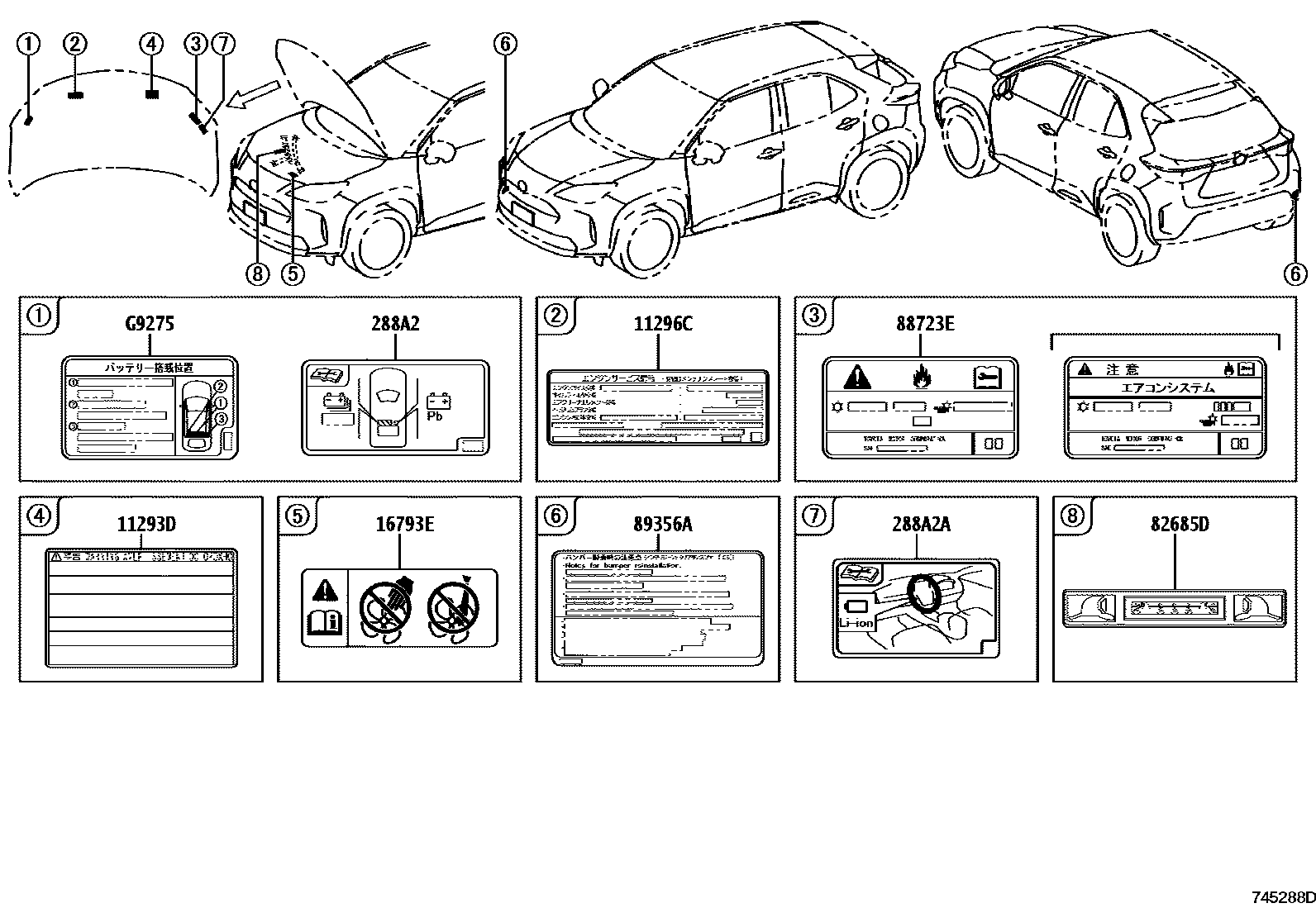

Toyota YARIS 警示铭牌(车外和车内) EPC diagram — 745288D
警示铭牌(车外和车内) — 745288D (202008 – 999999)

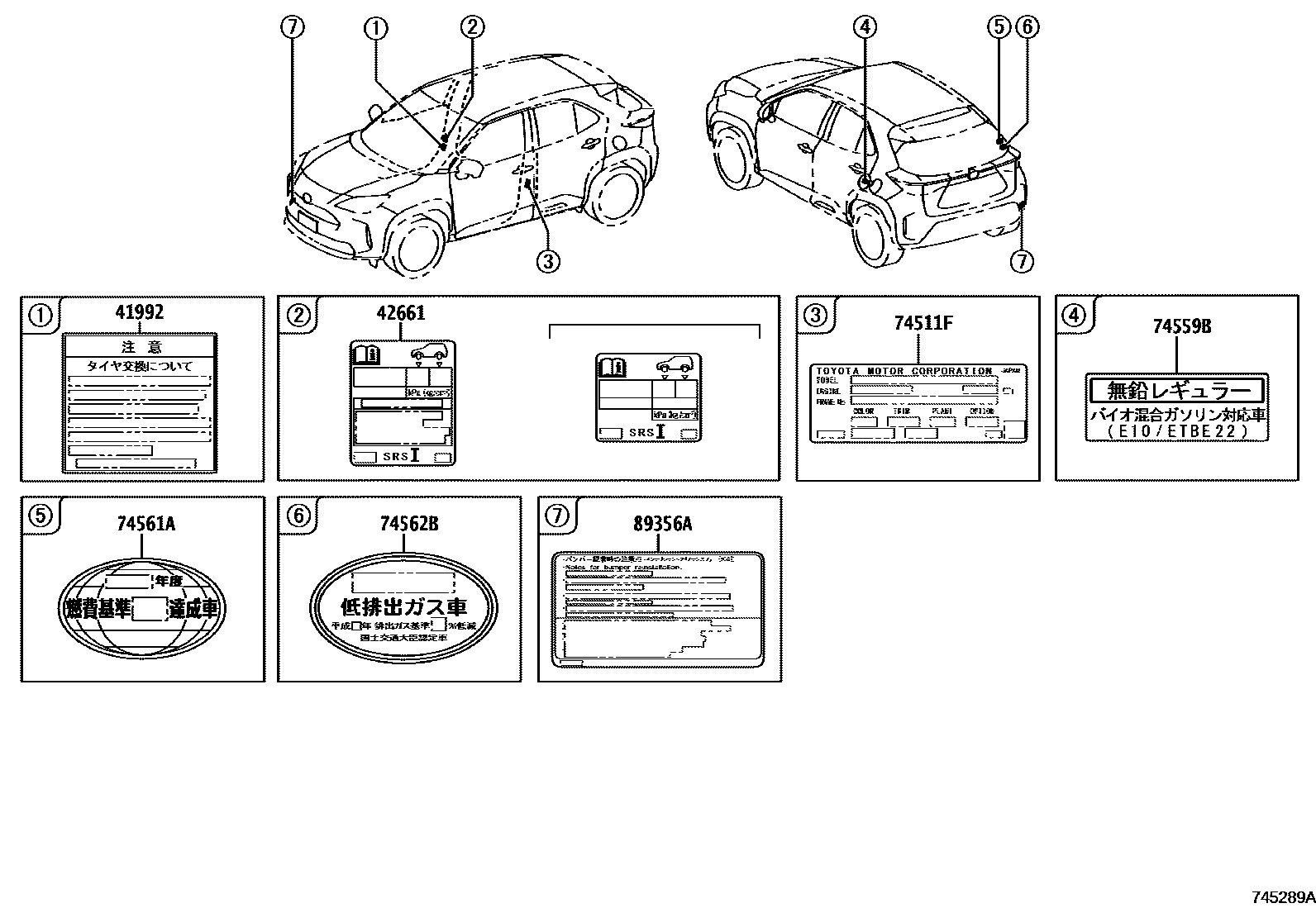

Toyota YARIS 警示铭牌(车外和车内) EPC diagram — 745289A
警示铭牌(车外和车内) — 745289A (202008 – 999999)

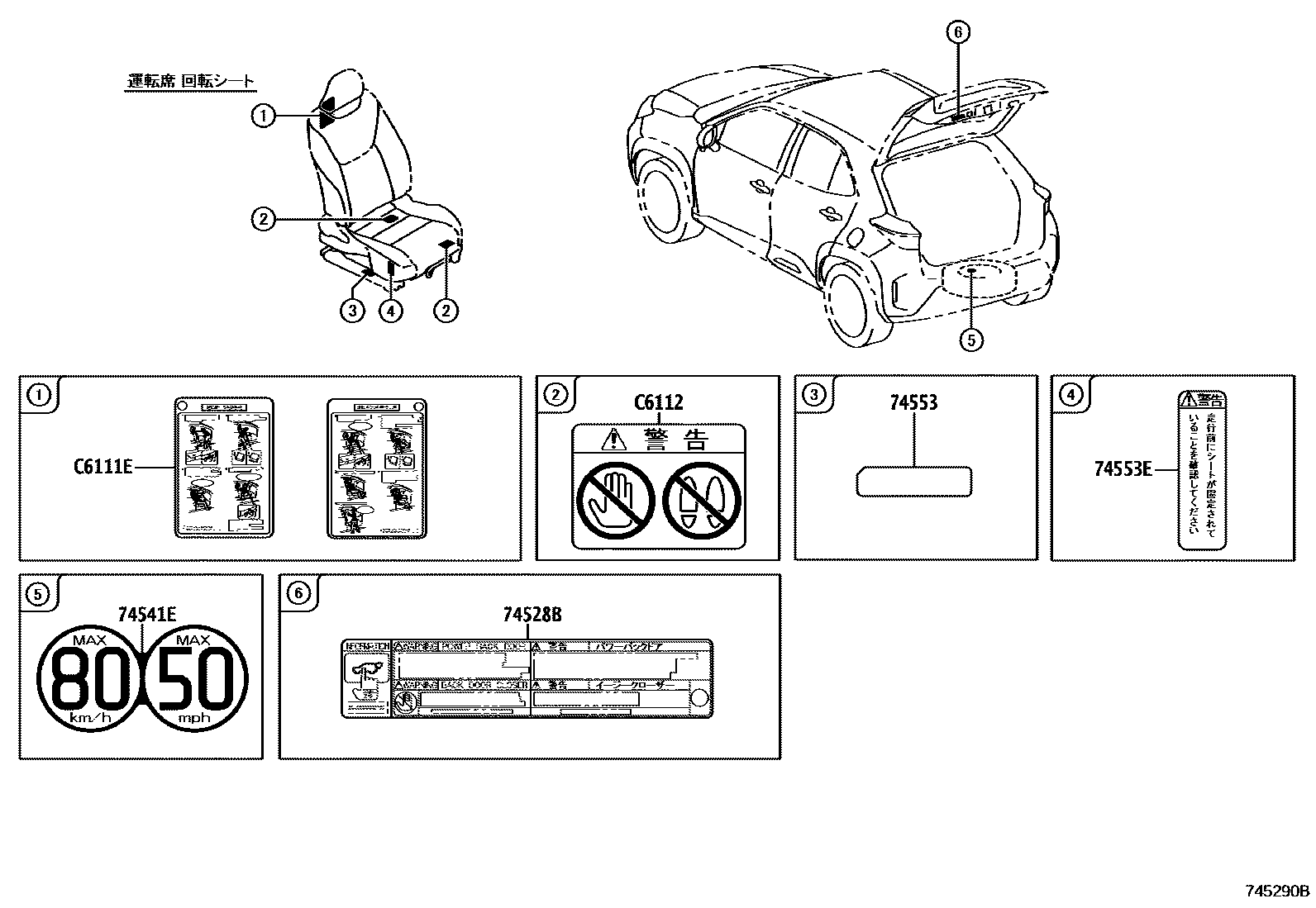

Toyota YARIS 警示铭牌(车外和车内) EPC diagram — 745290B
警示铭牌(车外和车内) — 745290B (202008 – 999999)

PNC and OE references

PNCPart nameOE numbers
11293Dengine warning label11293-36070
11296CEngine maintenance information label11296-15110 · 11296-24020
16793EToyota part16793-36030
288A2Toyota part288A2-15020
288A2AToyota part288A2-15050
41992Differential attention label41992-33010
42661Toyota part42661-52K40 · 42661-52K50 · 42661-52K60 · 42661-52K70
74511FNameplate (laser identification label)74511-2B300
74528BBack door warning label74528-78010
74541ESmall spare tire warning plate42668-42010
74553Right seat back stop warning plate74553-52100
74553EFront seat warning label74553-52160
74559Bfuel information label74559-48060
74561Afuel consumption information label74561-47130 · 74561-47140
74562BEmission information label74562-24100 · 74562-30700
82685Dwarning nameplate82684-48010
88723ECooler maintenance warning label88723-K0010 · 88723-K0020
89356AToyota part89356-47020
C6111EToyota partC6111-52120
C6112Safety Information Label No. 2C6112-52050
G9275No. 1 battery warning labelG9275-K0010
