Toyota YARIS 前排座椅和座椅滑轨 — Figure 7101

Toyota YARIS EPC diagram 7101, 前排座椅和座椅滑轨, with 11 images and 98 PNC and OE references.

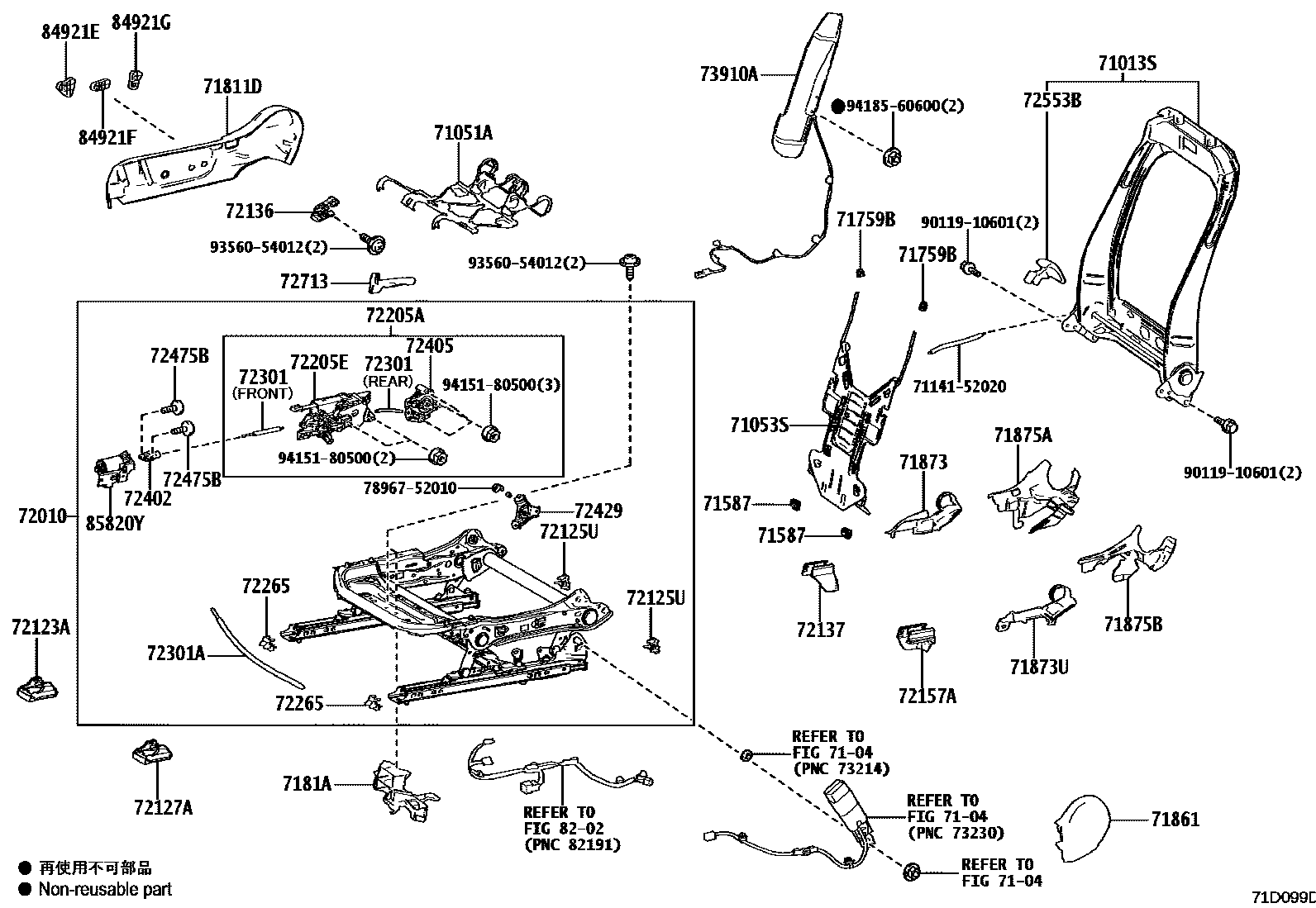

Toyota YARIS 前排座椅和座椅滑轨 EPC diagram — 71D099D
前排座椅和座椅滑轨 — 71D099D (202008 – 999999)

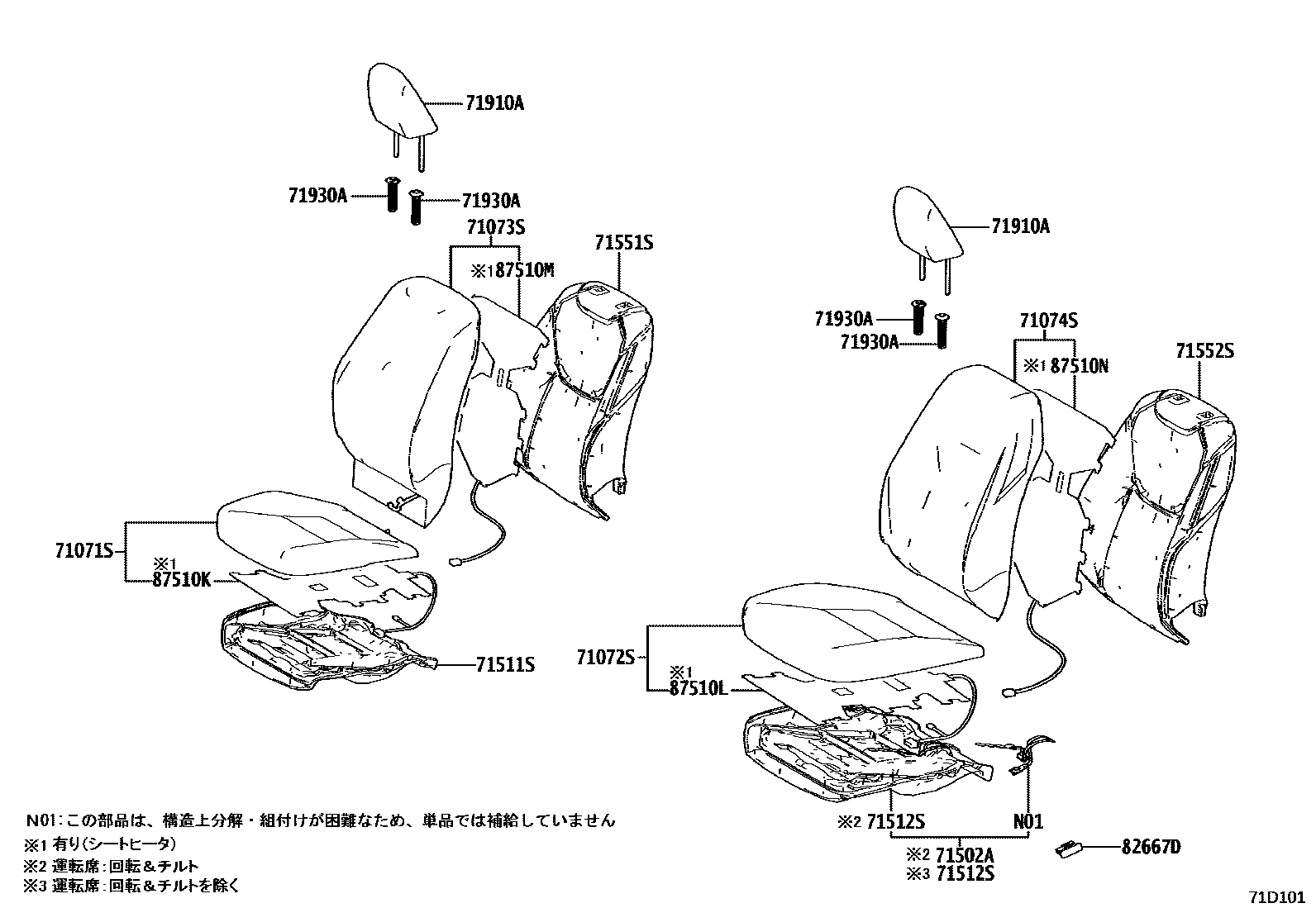

Toyota YARIS 前排座椅和座椅滑轨 EPC diagram — 71D101
前排座椅和座椅滑轨 — 71D101 (202008 – 999999)

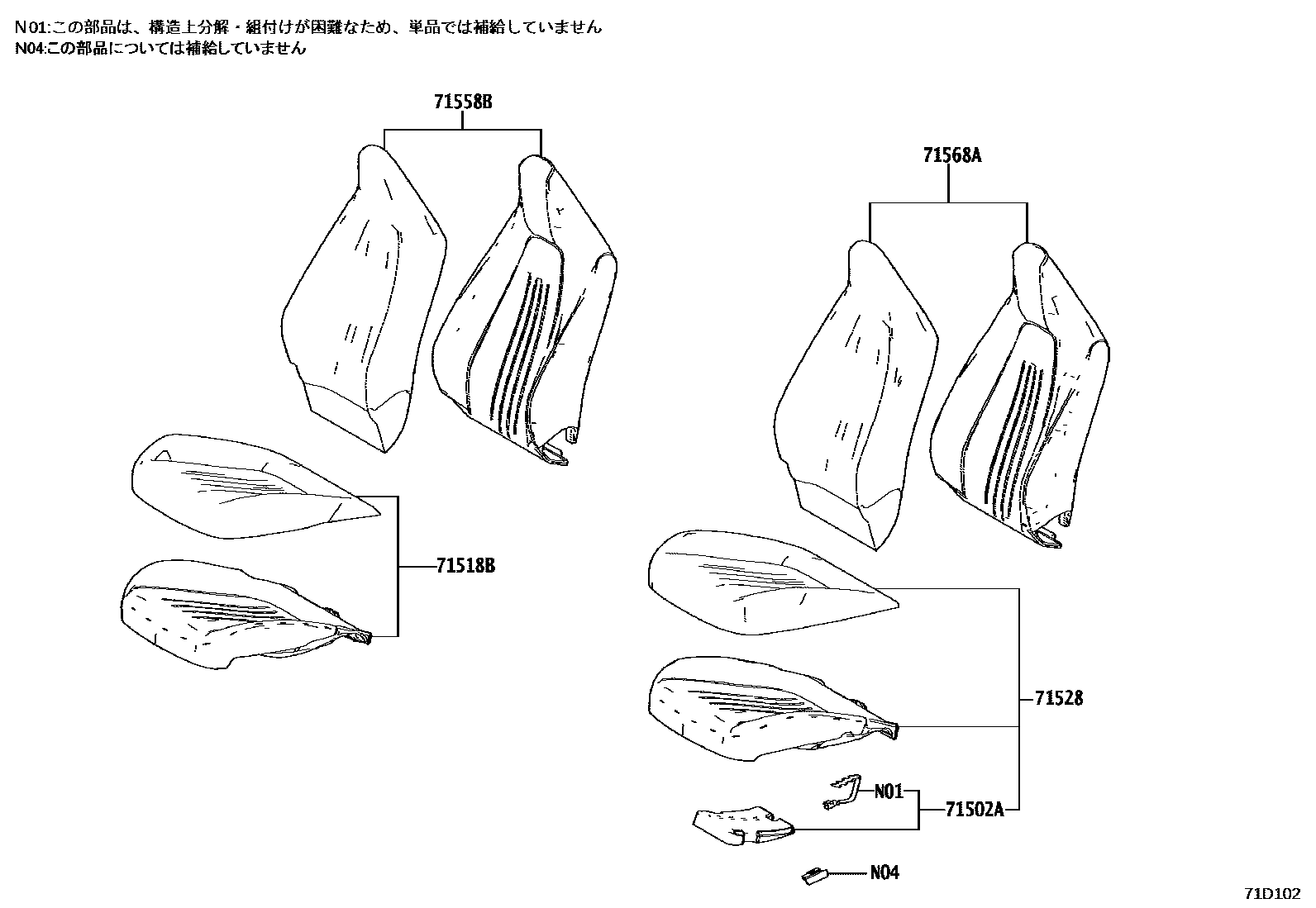

Toyota YARIS 前排座椅和座椅滑轨 EPC diagram — 71D102
前排座椅和座椅滑轨 — 71D102 (202008 – 999999)

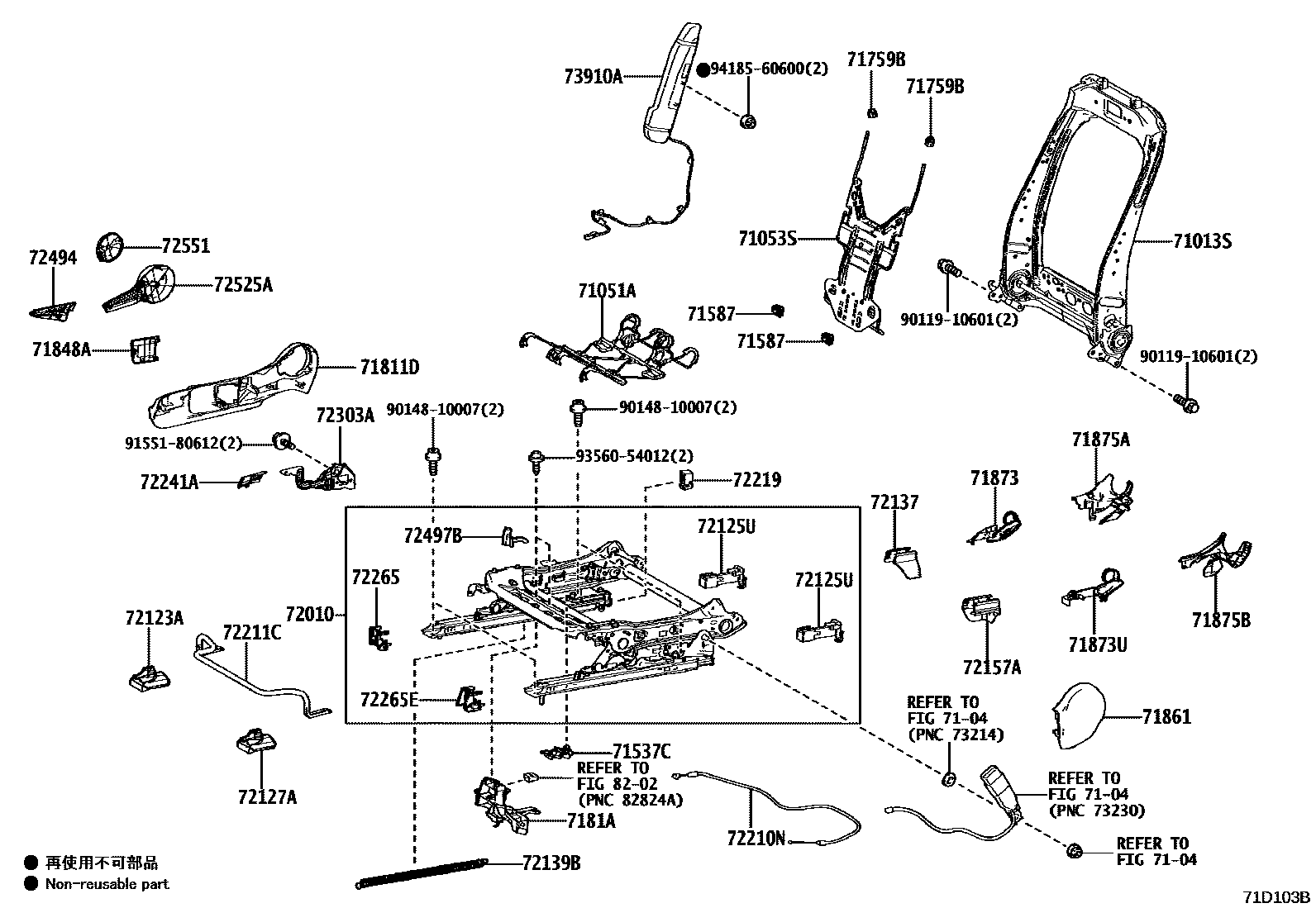

Toyota YARIS 前排座椅和座椅滑轨 EPC diagram — 71D103B
前排座椅和座椅滑轨 — 71D103B (202008 – 999999)

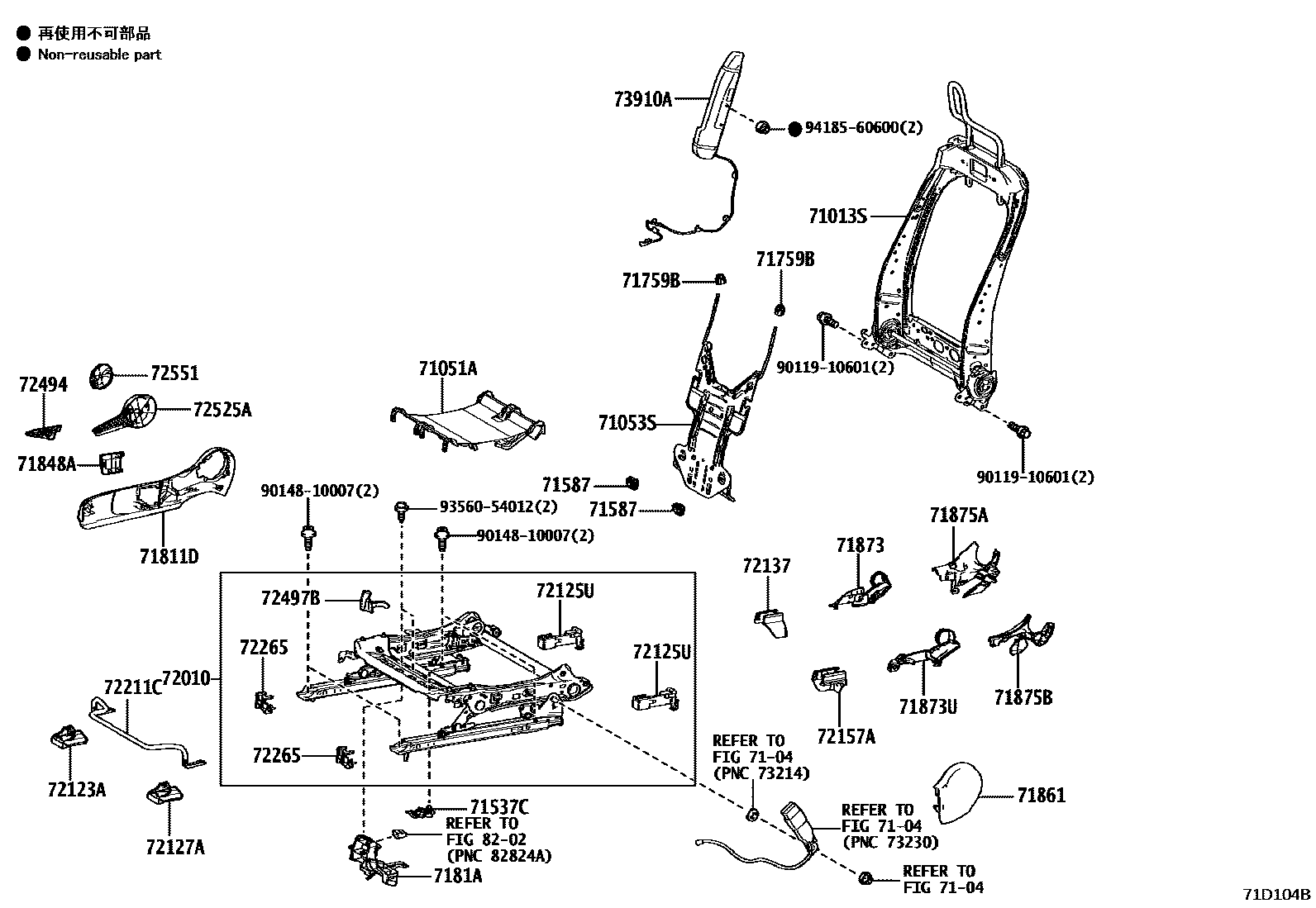

Toyota YARIS 前排座椅和座椅滑轨 EPC diagram — 71D104B
前排座椅和座椅滑轨 — 71D104B (202008 – 999999)

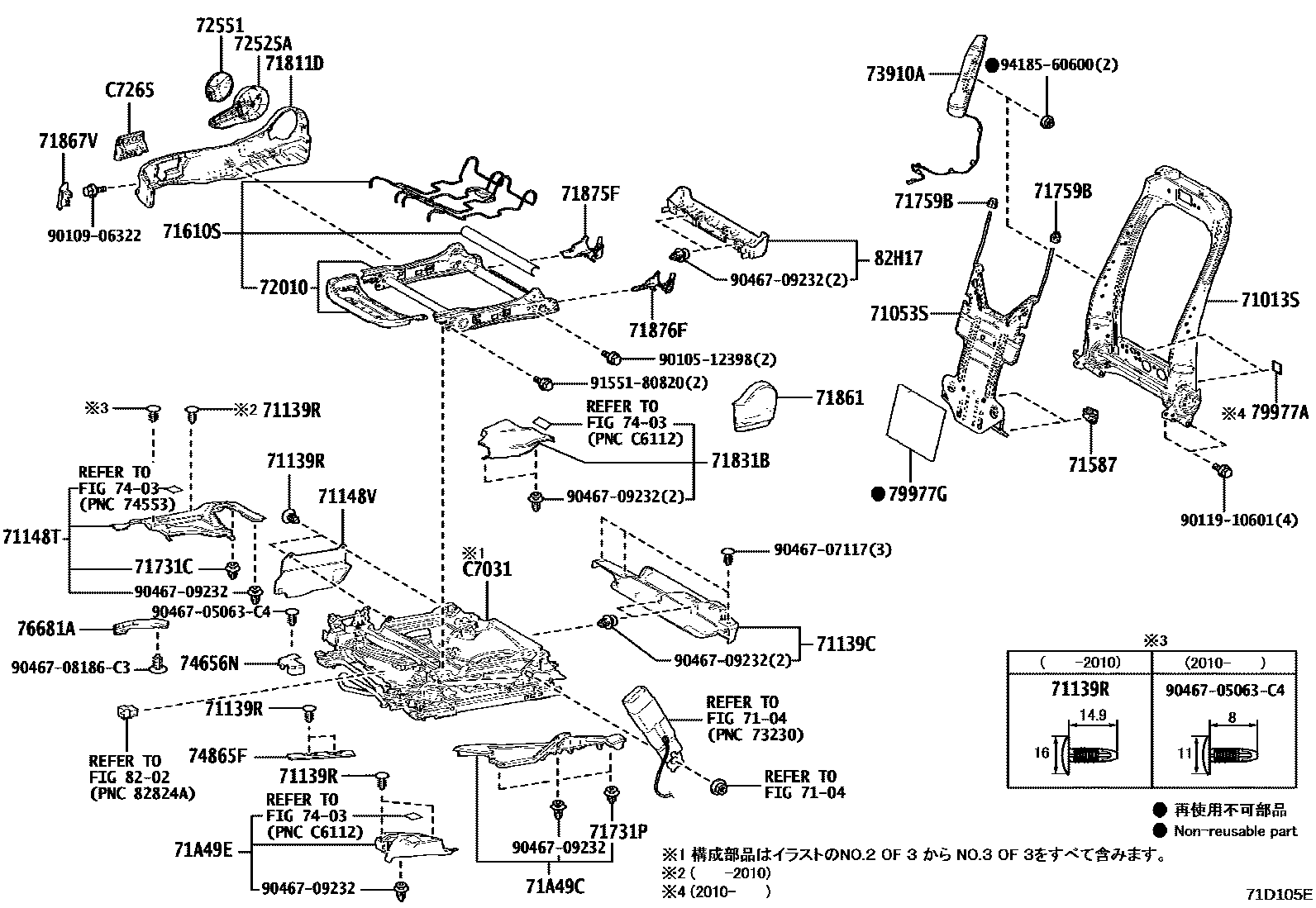

Toyota YARIS 前排座椅和座椅滑轨 EPC diagram — 71D105E
前排座椅和座椅滑轨 — 71D105E (202008 – 999999)

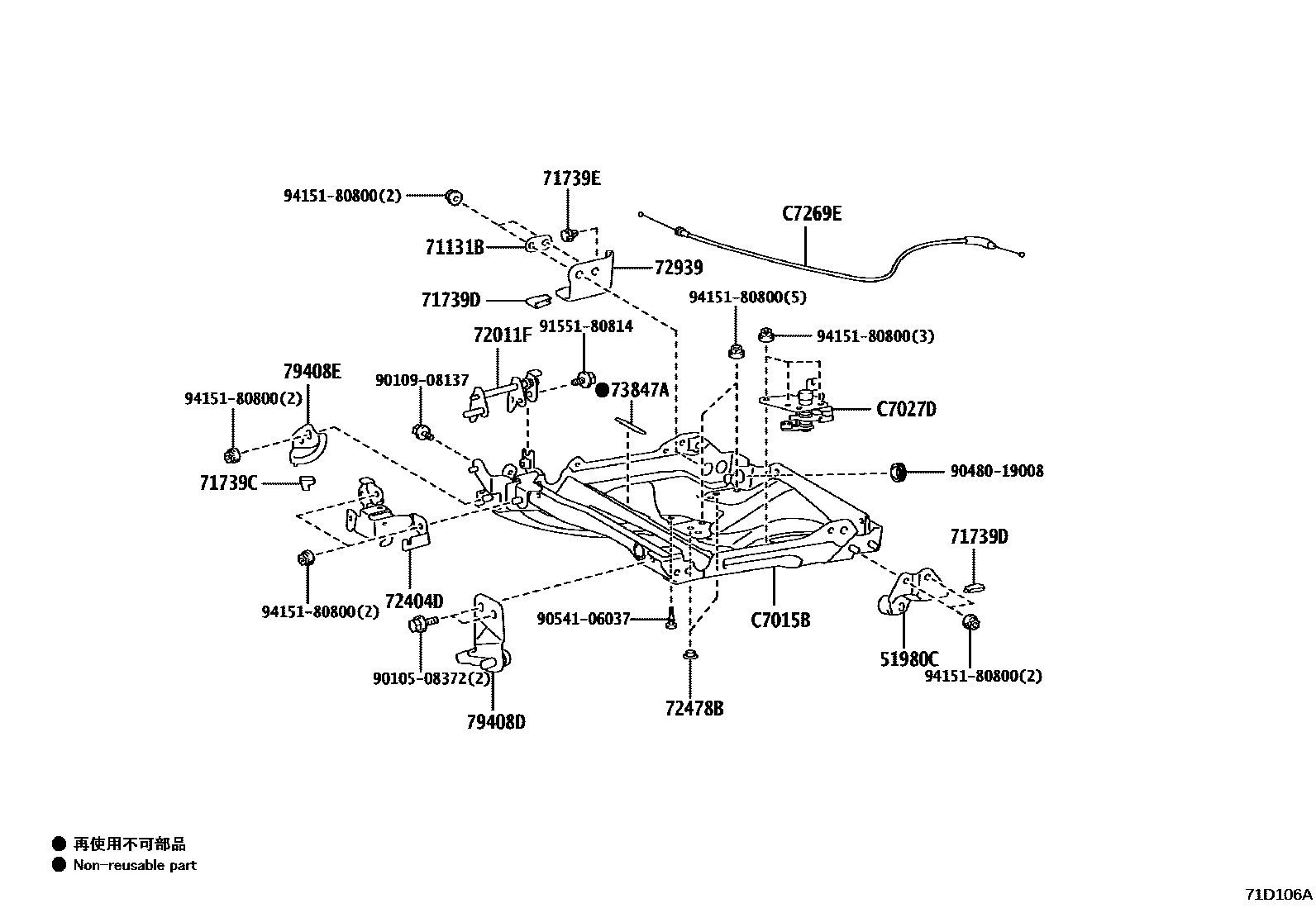

Toyota YARIS 前排座椅和座椅滑轨 EPC diagram — 71D106A
前排座椅和座椅滑轨 — 71D106A (202008 – 999999)

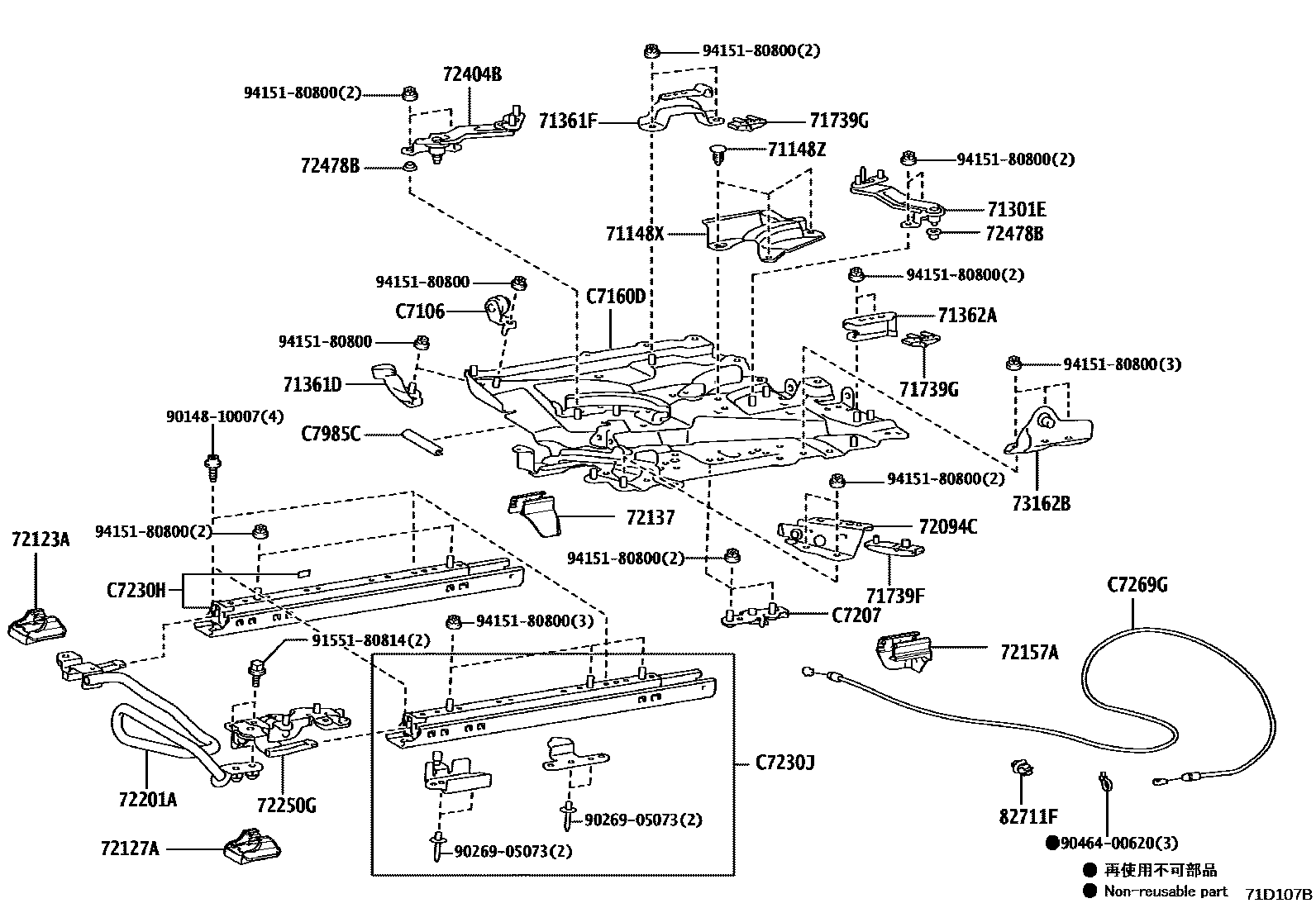

Toyota YARIS 前排座椅和座椅滑轨 EPC diagram — 71D107B
前排座椅和座椅滑轨 — 71D107B (202008 – 999999)

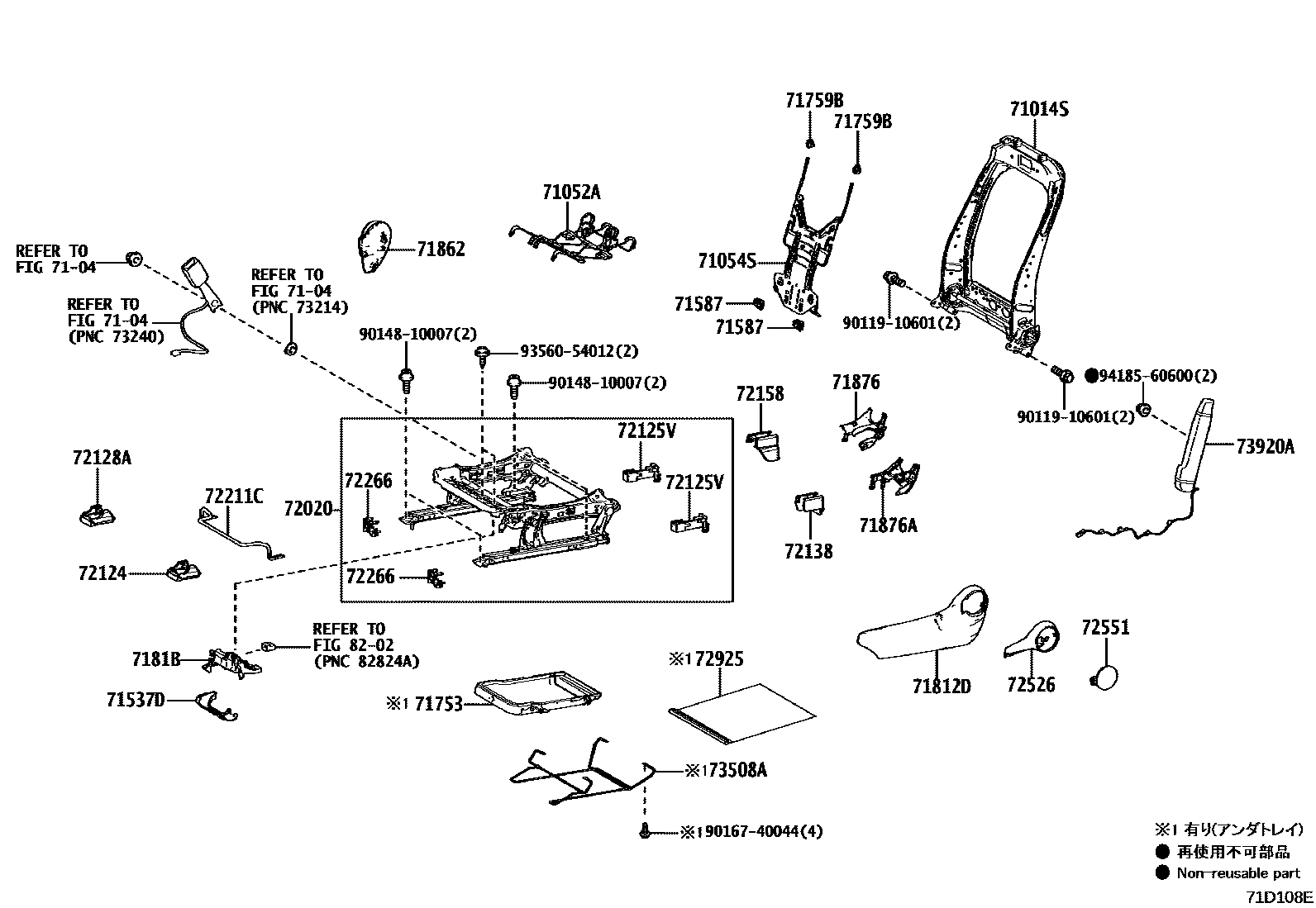

Toyota YARIS 前排座椅和座椅滑轨 EPC diagram — 71D108E
前排座椅和座椅滑轨 — 71D108E (202008 – 999999)

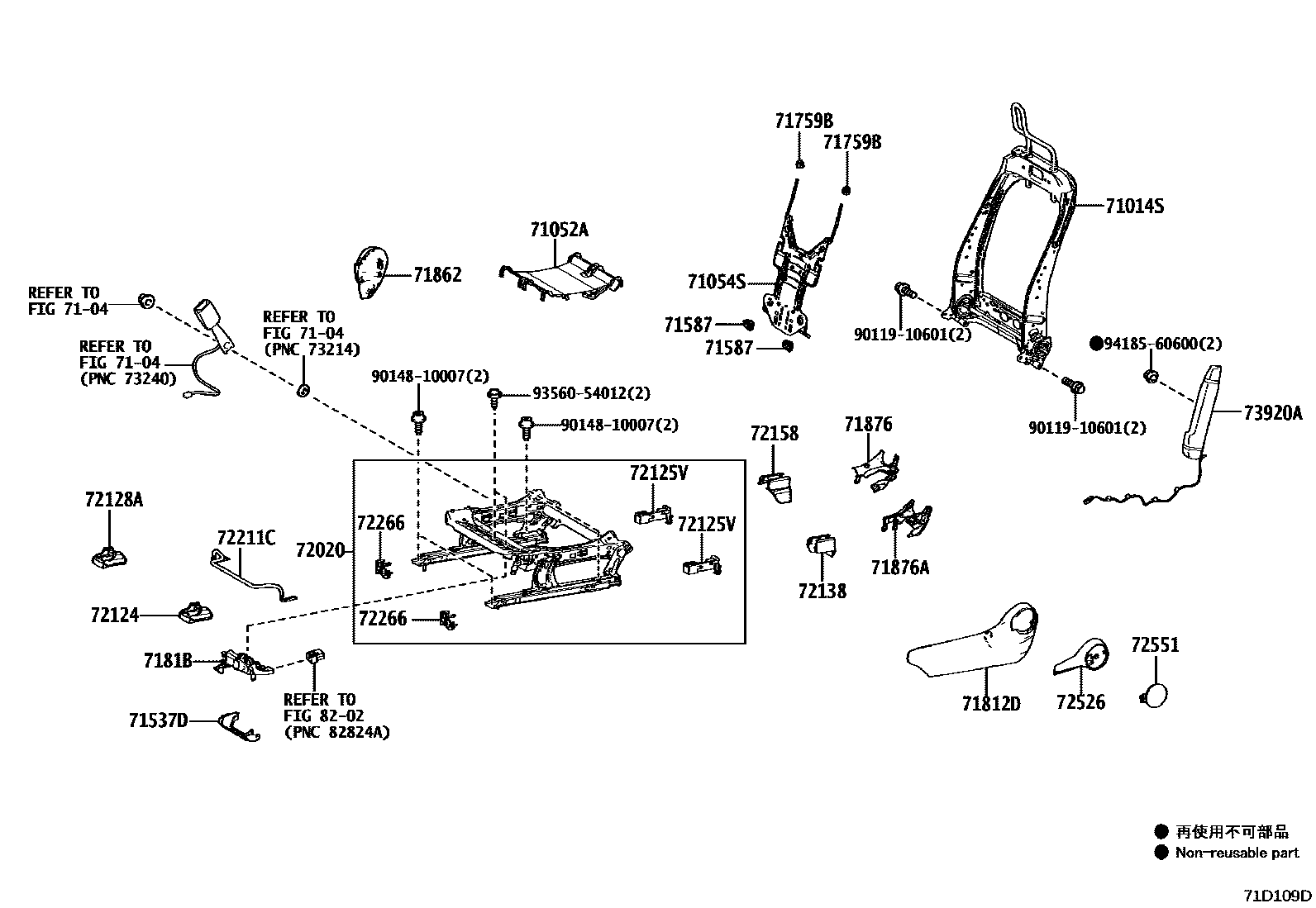

Toyota YARIS 前排座椅和座椅滑轨 EPC diagram — 71D109D
前排座椅和座椅滑轨 — 71D109D (202008 – 999999)

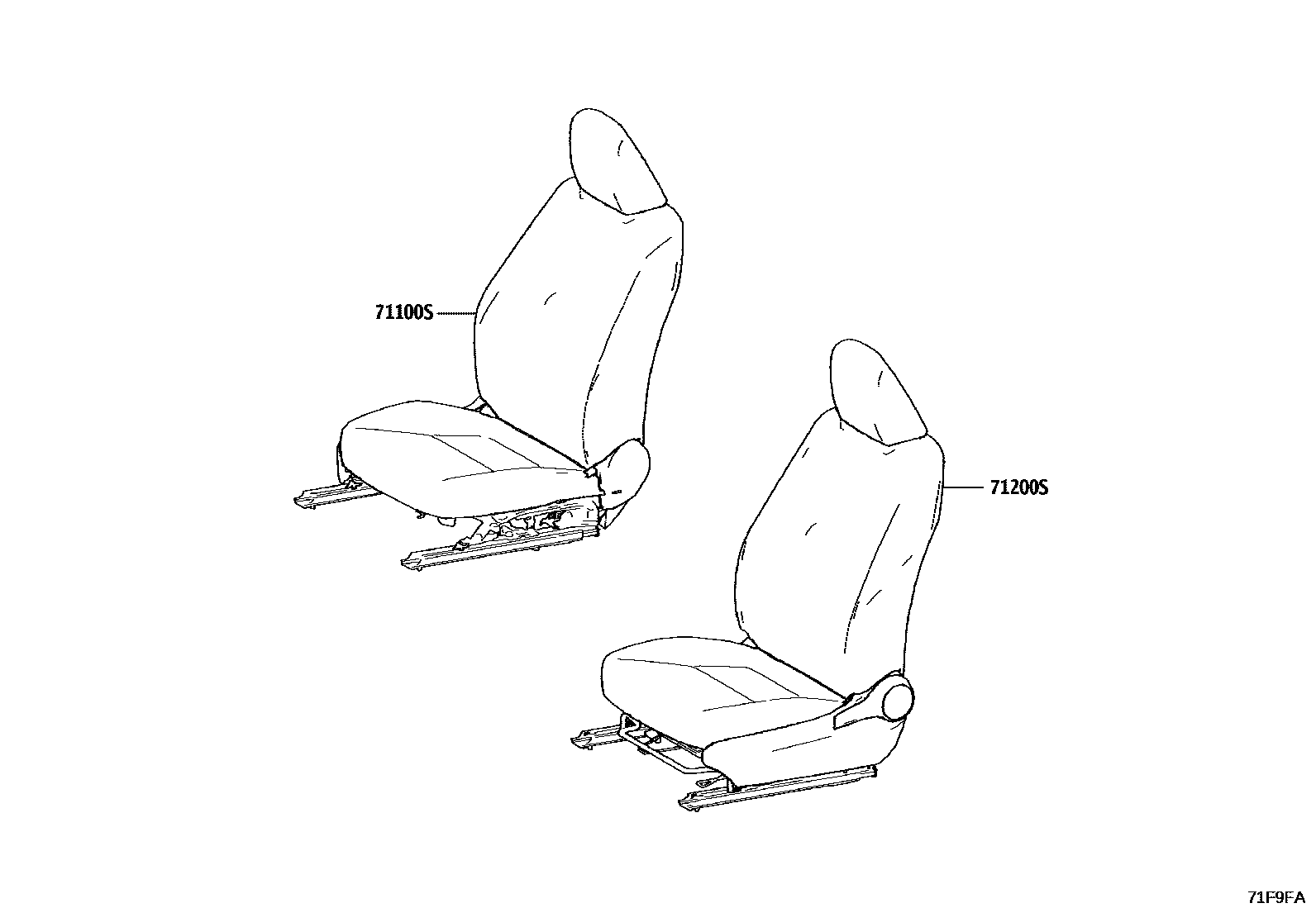

Toyota YARIS 前排座椅和座椅滑轨 EPC diagram — 71F9FA
前排座椅和座椅滑轨 — 71F9FA (202401 – 999999)

PNC and OE references

PNCPart nameOE numbers
51980CToyota part51980-D1030
71013SFront right seat back frame sub-assembly71013-52480 · 71013-K0040 · 71013-K0041 · 71013-K0070 · 71013-K0071
71014SFront left seat back frame sub-assembly71014-K0040 · 71014-K0041 · 71014-K0070 · 71014-K0071
71051AFront right seat cushion spring sub-assembly71051-47090 · 71051-K0010
71052AFront left seat cushion spring sub-assembly71051-47090 · 71051-K0010
71053SFront right seat back spring sub-assembly71053-47050
71054SFront left seat back spring sub-assembly71053-47050
71100SFront right seat assembly71010-5C472
71131BFront seat cushion 171131-D1040
71148VToyota part71148-52080
71148XToyota part71148-D1180
71301EToyota part71301-D1020
71361DToyota part71361-D1030
71361FToyota part71361-D1050
71362AToyota part71362-D1050
71502AToyota part71502-K0140 · 71502-K0141
71511SFront right seat cushion cushion (for split seats)71511-52880 · 71511-52881 · 71511-52A00 · 71511-52B30 · 71511-K0090 · 71511-K0091 · 71511-K0101
71512SFront left seat cushion cushion (for split seats)71502-K0130 · 71502-K0131 · 71502-K0140 · 71502-K0141 · 71502-K0151
71537CFront right seat cushion edge protective cover71537-K0020
71537DFront left seat cushion edge protective cover71537-52160
71551SFront right seat back cushion (for split seats)71551-52G50 · 71551-K0040
71552SFront left seat back cushion (for split seats)71552-52D10 · 71552-K0040
71587Front seat back edge protective cover71587-47010
71610SFront right seat cushion spring assembly (for split seats)71610-52380
71731CRight seat cover fastener71731-52010
71731PToyota part71731-52010
71739CToyota part71739-D1100
71739DToyota part71739-D1120
71739EToyota part71739-D1170 · 71739-D1210
71739FToyota part71739-D1130
71739GToyota part71739-D1150
71759BFront seat back hook71759-50040
7181AToyota part7181A-K0080
7181BToyota part7181B-K0030
71873Front right seat cushion lower guard panel71873-47070
71873UToyota part71873-K0010 · 71873-K0050
71910AFront seat headrest assembly71910-52Q00
72010Front right seat adjuster assembly72010-52B60 · 72010-52B61 · 72010-52B62 · 72010-52C30 · 72010-K0020 · 72010-K0021 · 72010-K0050 · 72010-K0051
72011FToyota part72011-D1020
72020Front left seat adjuster assembly72020-52B30 · 72020-52B31 · 72020-K0030 · 72020-K0031
72094CToyota part72094-D1030
72125UToyota part72125-47010 · 72125-47020
72125VToyota part72125-47010
72136No. 1 seat slide rail lower rail72136-52070
72139BToyota part72139-K0010
72201ARight seat slide rail handle sub-assembly72201-D1010
72205ANo. 1 electric seat shell sub-assembly72205-52010 · 72205-52011
72205ENo. 1 electric seat shell sub-assembly72205-52020 · 72205-52021
72210NToyota part72210-K0010
72211CSeat slide adjustment handle72211-47050
72219Adjuster spring hook cover72219-52010
72250GToyota part72250-D1020
72265Right seat rail upper rail cover72265-47010 · 72265-47020
72265EToyota part72265-47010 · 72265-52120
72266Left seat rail upper rail cover72265-47010
72301Seat slide rail balance harness sub-assembly72528-52020 · 72528-52040
72301ARight seat slide rail balance harness sub-assembly72528-52030
72303ARight seat slide rail locking lever sub-assembly72303-K0010
72402Cable side sheath sub-assembly72412-52010
72404BToyota part72404-D1010
72404DToyota part72404-D1070
72405Front vertical seat shell sub-assembly72405-52010
72429Front right seat adjuster plate72429-52010
72475BFront seat level jack outer screws72475-52010
72478BToyota part72478-D1020
72497BRight height adjuster bracket cover72498-47010
72713Toyota part72713-52010
72925Front seat cushion cover72991-K0030
72939Toyota part72939-D1070
73162BToyota part73162-D1010
73508AToyota part73508-K0011
73847ARight seat suspension stop cushion73847-D1010
73910AFront right seat airbag assembly73910-K0020 · 73910-K0030
73920AFront left seat airbag assembly73920-K0020
76681AToyota part76681-52010
79408DToyota part79408-D1010
79408EToyota part79408-D1050
79977ASeat back felt pad79977-52240
79977GToyota part79977-52310
82667DConnector holder82666-47630
82711FWire harness clip82711-1E340
82H17Toyota part82817-52L40
85820YElectric seat motor assembly85820-52010
87510KFront right seat cushion heater assembly87510-52200 · 87510-52290 · 87510-K0050
87510LFront left seat cushion heater assembly87510-52280 · 87510-K0060
87510MFront right seat back heater assembly87530-52190 · 87530-K0030
87510NFront left seat back heater assembly87530-52190 · 87530-K0030
C7015BToyota partC7015-D1370
C7027DToyota partC7027-D1200
C7031Toyota partC7031-52010 · C7031-52011
C7106Toyota partC7106-D1040
C7160DToyota partC7160-D1440
C7207Toyota partC7207-D1060
C7230HToyota partC7230-D1230
C7230JToyota partC7240-D1020
C7269EToyota partC7269-D1150
C7269GToyota partC7269-D1160 · C7269-D1161
C7985CToyota partC7985-D1050
