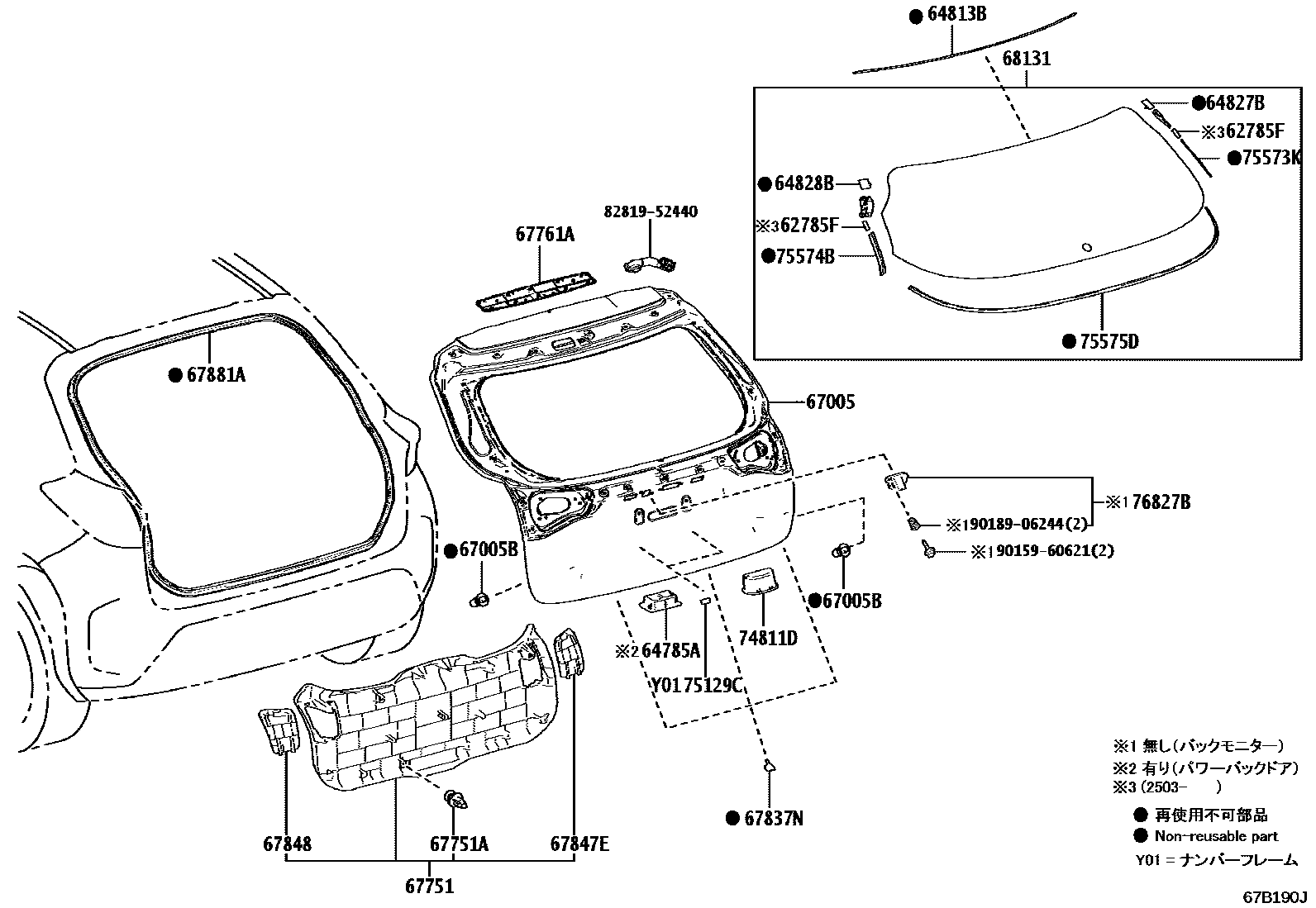

Toyota YARIS 背门板和背门玻璃 — Figure 6708
Toyota YARIS EPC diagram 6708, 背门板和背门玻璃, with 1 images and 15 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 64785A | Rear door decorative panel base | 69290-52010 |
| 64813B | Back window glass adhesive seal | 64813-K2020 |
| 64827B | Catch on the right side of the back window glass | 64827-52130 |
| 64828B | Catch on the left side of the back window glass | 64828-52130 |
| 67005 | Rear door panel sub-assembly | 67005-52E00 · 67005-52E01 · 67005-52E02 · 67005-52E03 · 67005-52G10 · 67005-52G11 · 67005-52G12 · 67005-52G13 |
| 67005B | Cushion pad (for back door panel) | 90541-09142 |
| 67751A | Clip (for rear door trim panel) | 90467-10161 |
| 67837N | Toyota part | 67837-K0040 |
| 67881A | Back door seal | 67881-52240 |
| 68131 | back door glass | 68105-52850 · 68105-52B50 · 68105-52C40 · 68105-52C50 · 68105-52C81 |
| 75129C | rear license plate cushion | 75129-30010 |
| 75573K | Toyota part | 75573-52270 · 75573-52310 |
| 75574B | Rear window left outer protective strip | 75574-52120 · 75574-52160 |
| 75575D | Protective strip under rear window | 75575-52050 |
| 76827B | Toyota part | 76827-52070 |
