Toyota YARIS 后门锁和后门把手 — Figure 6706

Toyota YARIS EPC diagram 6706, 后门锁和后门把手, with 1 images and 16 PNC and OE references.

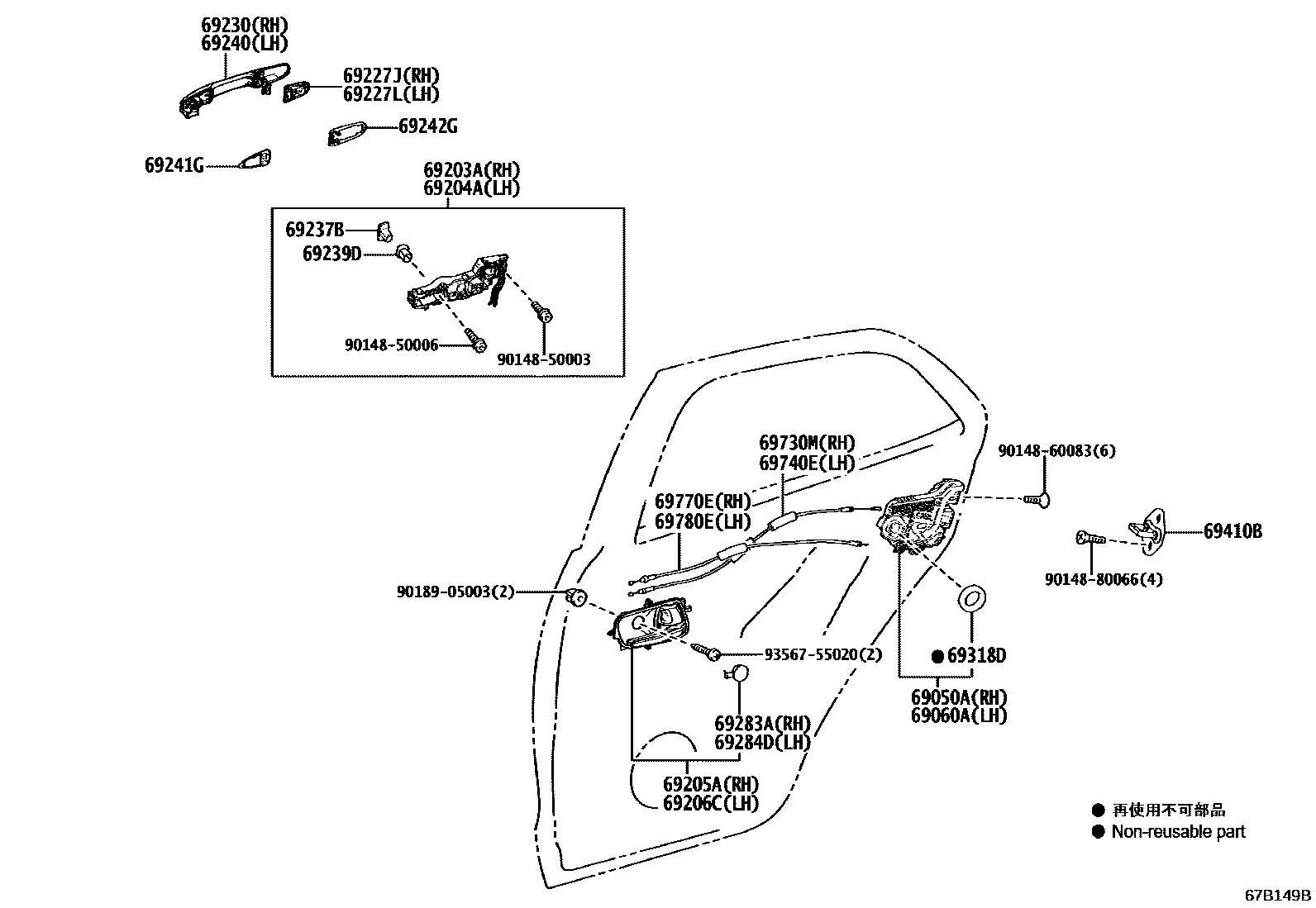

Toyota YARIS 后门锁和后门把手 EPC diagram — 67B149B
后门锁和后门把手 — 67B149B (202008 – 999999)

PNC and OE references

PNCPart nameOE numbers
69050ARight rear door lock assembly with motor69050-K0010
69060ALeft rear door lock assembly with motor69060-K0010
69203ARight rear door outer handle frame sub-assembly69203-52110 · 69203-52111
69204ALeft rear door outer handle frame sub-assembly69204-52120 · 69204-52121
69227JRight rear door outer handle cover69227-47020
69227LLeft rear door outer handle cover69227-47020
69237BToyota part69237-62010
69239DToyota part69239-47010
69241GRear door front exterior handle pad69241-47020
69242GRear door rear outer handle pad69242-47030
69318Ddoor lock harness seal69318-47010
69410BRear door lock plate assembly69410-47010
69730MToyota part69730-52270 · 69730-52271
69740EToyota part69730-52270 · 69730-52271
69770EToyota part69770-52150 · 69770-52151
69780EToyota part69770-52150 · 69770-52151
