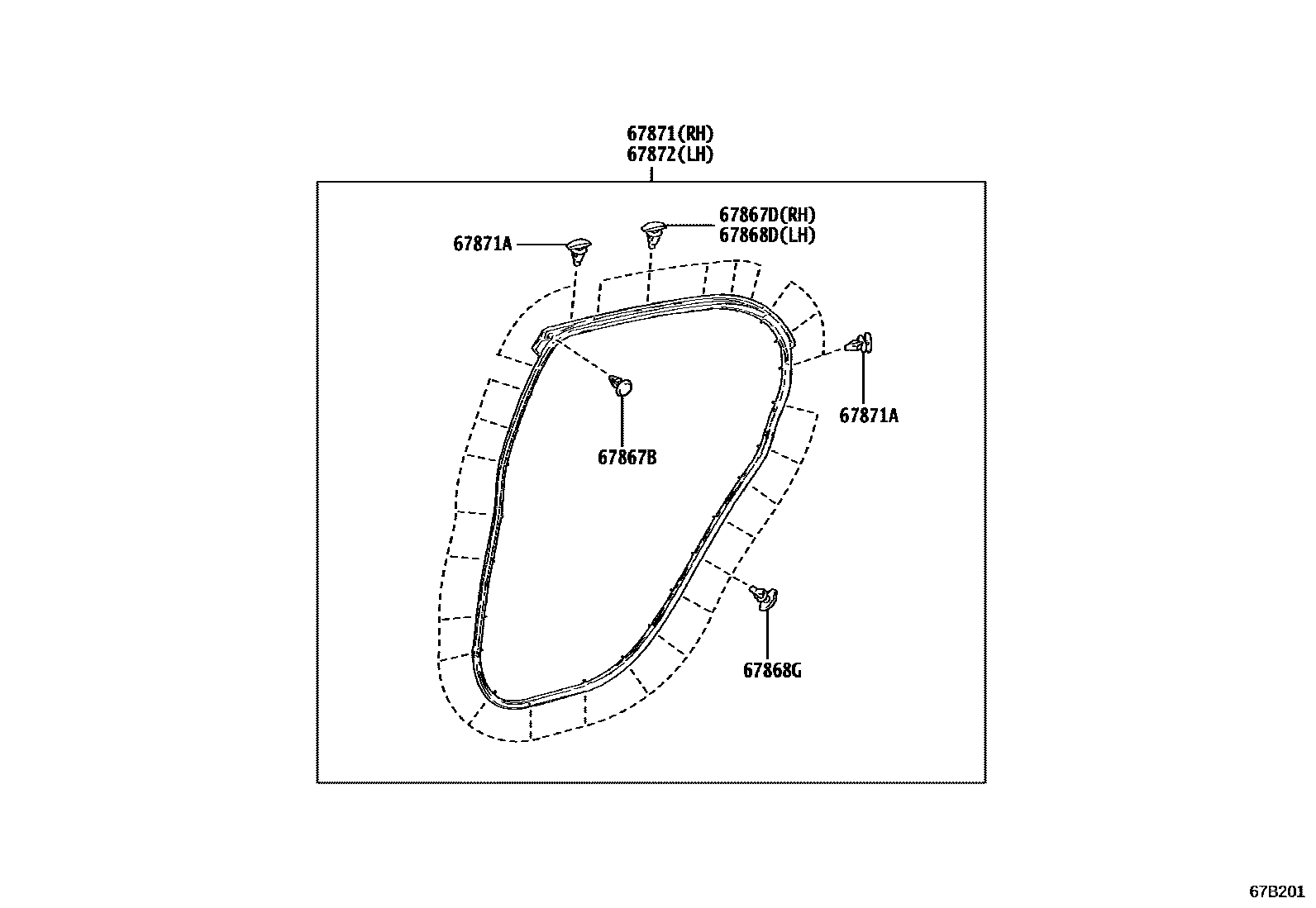

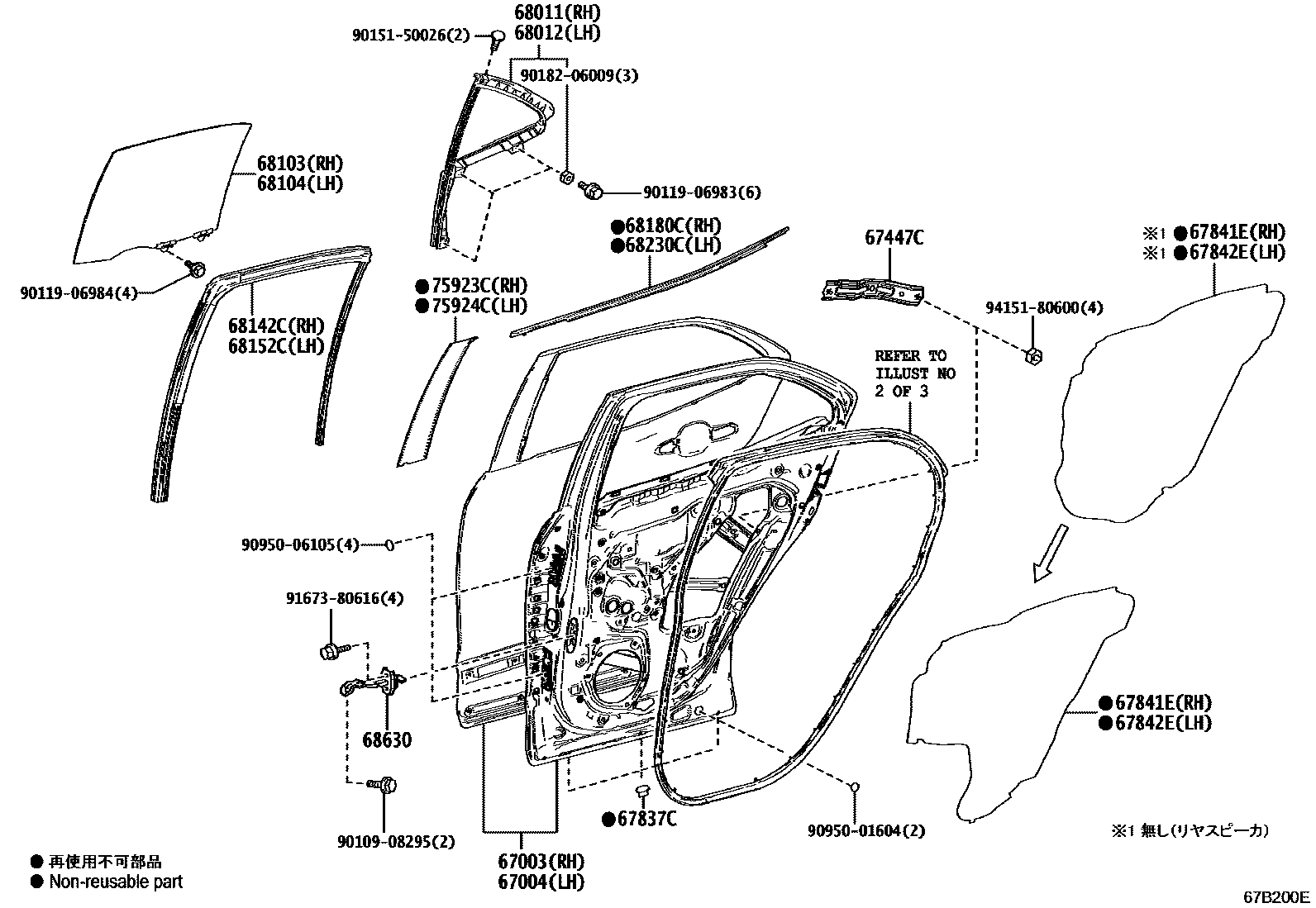

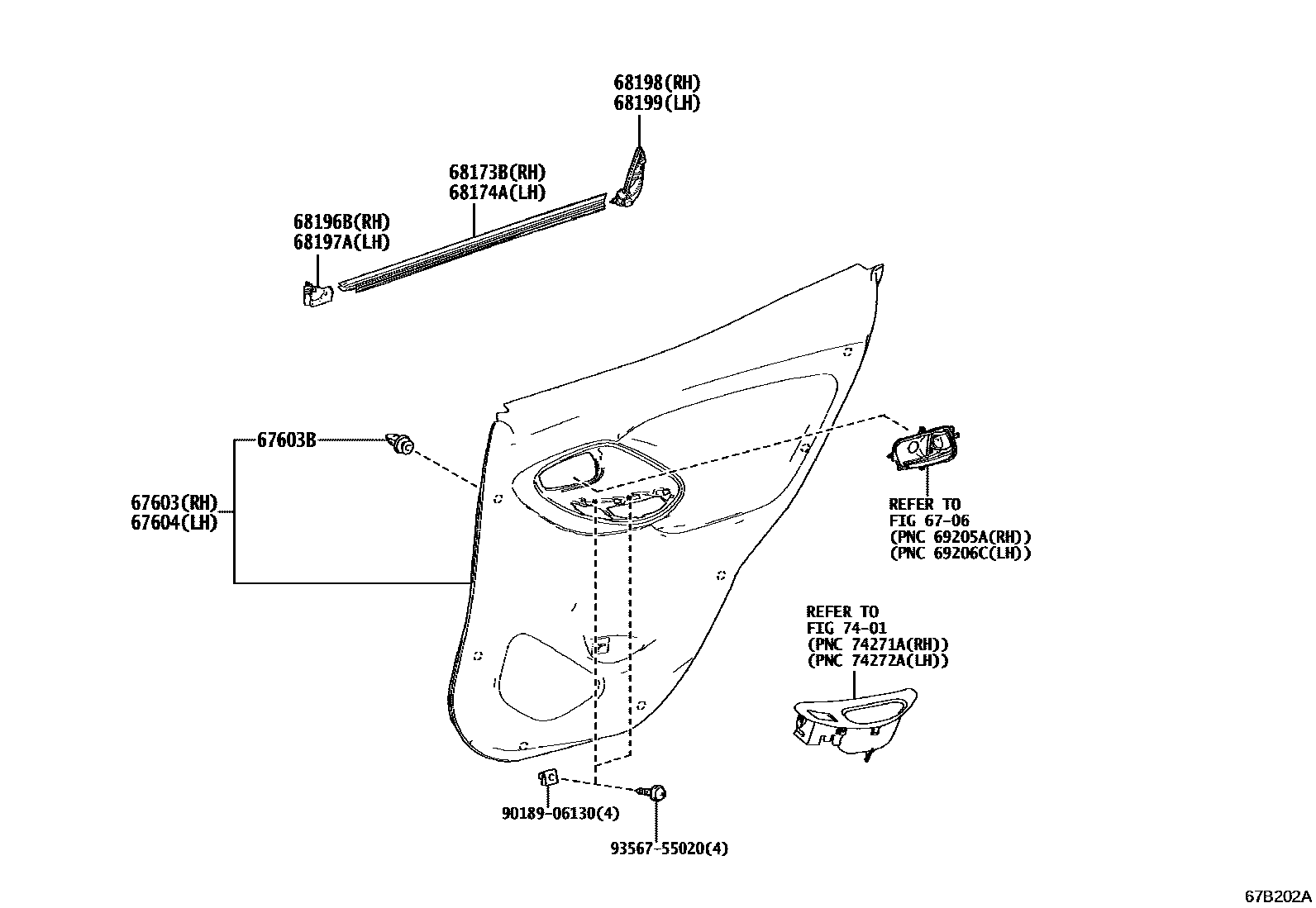

Toyota YARIS 后门板和后门玻璃 — Figure 6705
Toyota YARIS EPC diagram 6705, 后门板和后门玻璃, with 3 images and 31 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 67003 | Right rear door panel sub-assembly | 67003-52500 · 67003-52510 |
| 67004 | Left rear door panel sub-assembly | 67004-52520 · 67004-52530 |
| 67447C | Toyota part | 67447-52030 |
| 67603B | Catch (for rear door trim panel) | 90467-09206 |
| 67837C | Rear door dust seal retainer | 67837-47060 |
| 67841E | Right rear door access hole cover | 67841-K0010 · 67841-K0011 · 67841-K0020 · 67841-K0021 |
| 67842E | Left rear door access hole cover | 67841-K0010 · 67841-K0011 · 67841-K0020 · 67841-K0021 |
| 67867B | Door seal strip clip (for rear door) | 90467-06084 |
| 67867D | Right rear door seal strip fixing | 67867-30110 |
| 67868D | Left rear door seal strip fixing | 67867-52020 |
| 67868G | door seal fixings | 67867-12150 |
| 67871 | Right rear door sealing strip | 67871-K2010 |
| 67871A | Fixings (for rear door sealing strip) | 67867-30080 |
| 67872 | Left rear door sealing strip | 67872-K2010 |
| 68011 | Toyota part | 68011-52020 |
| 68012 | Toyota part | 68012-52020 |
| 68103 | Right rear door glass sub-assembly | 68103-52050 |
| 68104 | Left rear door glass sub-assembly | 68104-52090 |
| 68142C | Right rear door glass lift slot | 68142-K2010 |
| 68152C | Left rear door glass lift slot | 68152-K2010 |
| 68173B | Right rear door glass inner sealing strip | 68173-52210 |
| 68174A | Left rear door glass inner sealing strip | 68174-52210 |
| 68180C | Right rear door glass outer sealing strip assembly | 68180-52210 |
| 68196B | Right rear door beltline front seal | 68196-52030 |
| 68197A | Left rear door beltline front seal | 68197-52030 |
| 68198 | Right rear door beltline rear seal | 68198-52020 |
| 68199 | Left rear door waistline rear seal | 68199-52020 |
| 68230C | Left rear door glass outer sealing strip assembly | 68230-52210 |
| 68630 | Rear door opening limiter assembly | 68630-52160 · 68630-52161 |
| 75923C | No. 2 right side light-shielding film | 75923-52160 |
| 75924C | No. 2 left shading film | 75924-52150 |
