Toyota YARIS 前门板和前门玻璃 — Figure 6701

Toyota YARIS EPC diagram 6701, 前门板和前门玻璃, with 3 images and 45 PNC and OE references.

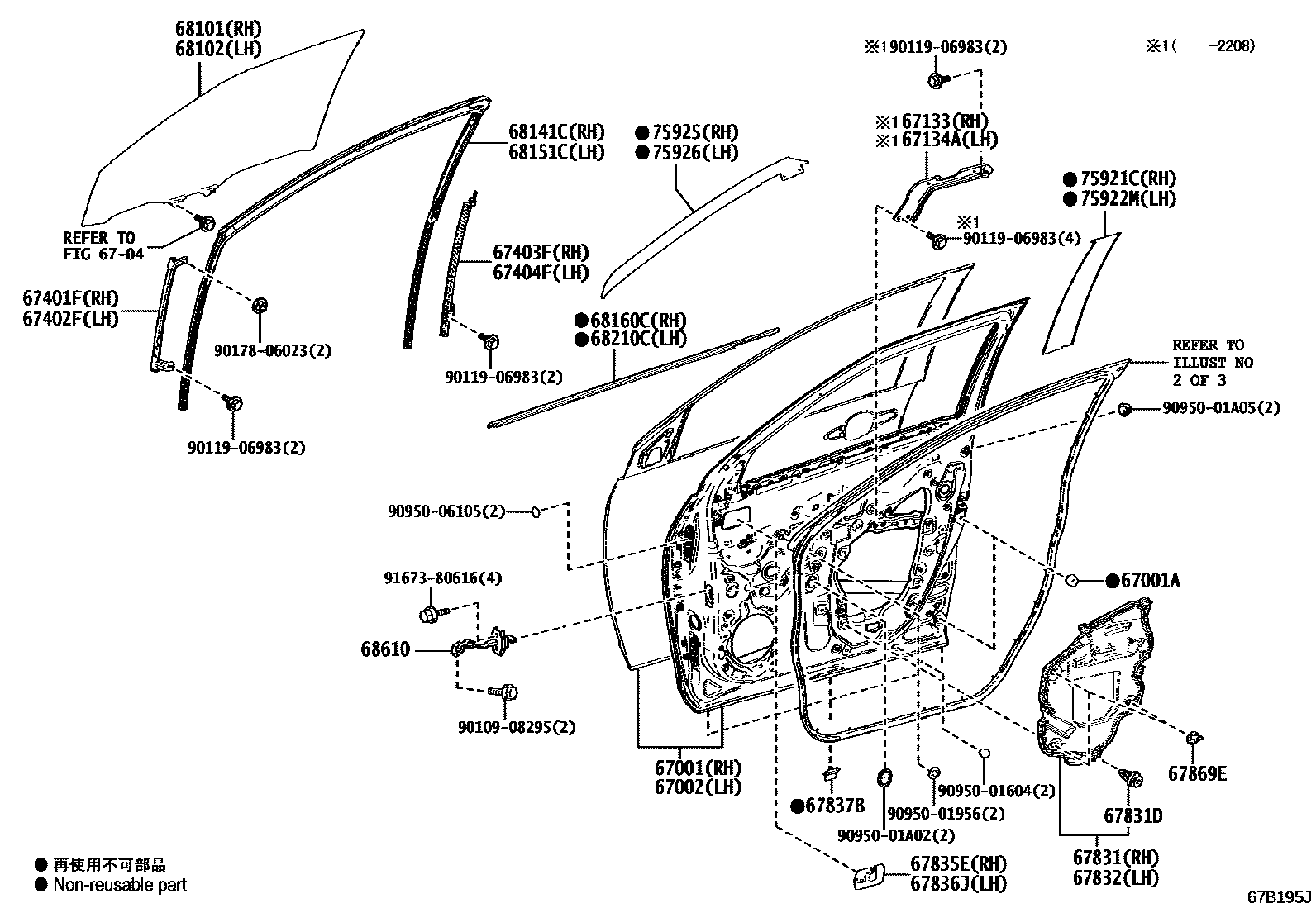

Toyota YARIS 前门板和前门玻璃 EPC diagram — 67B195J
前门板和前门玻璃 — 67B195J (202008 – 999999)

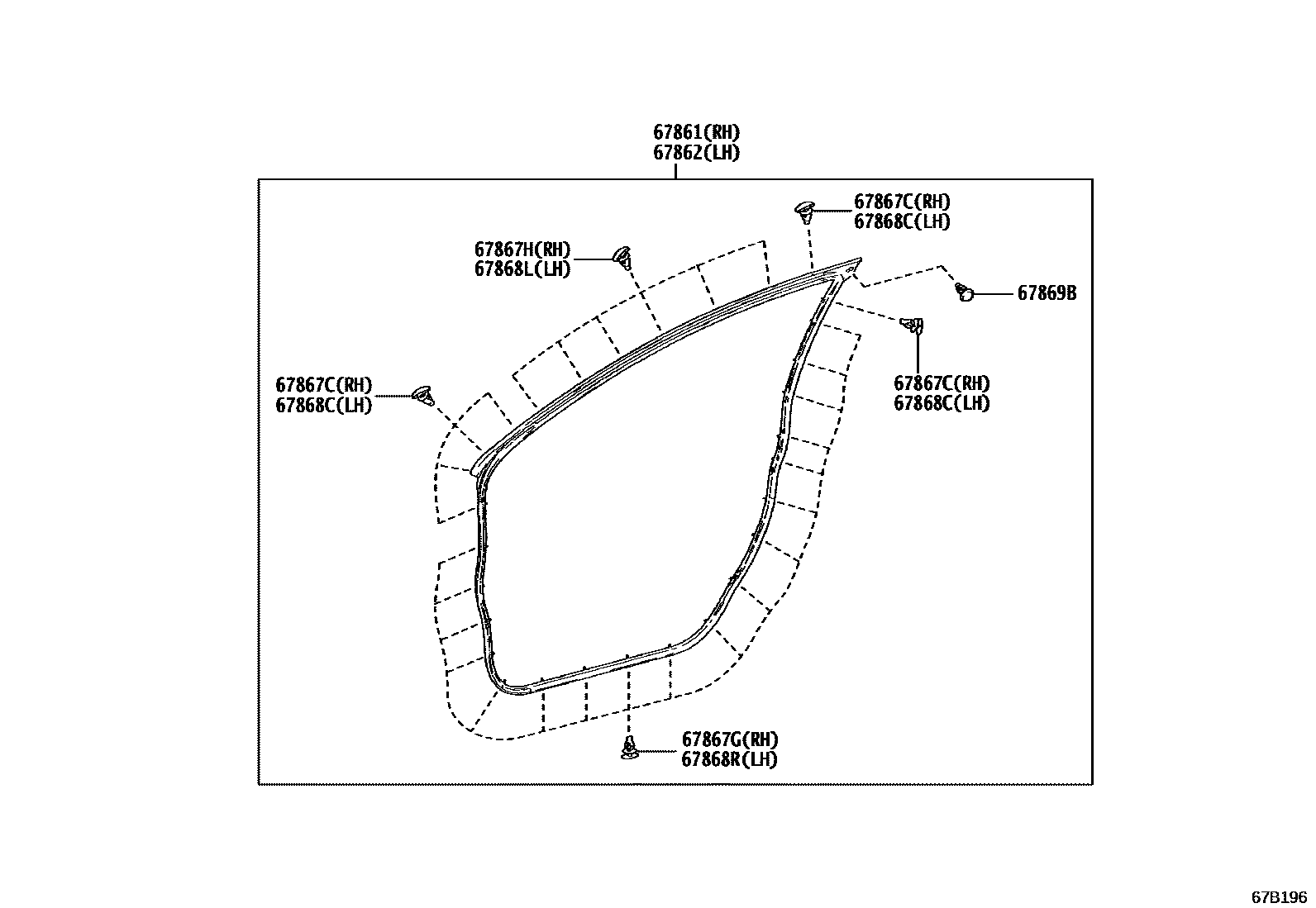

Toyota YARIS 前门板和前门玻璃 EPC diagram — 67B196
前门板和前门玻璃 — 67B196 (202008 – 999999)

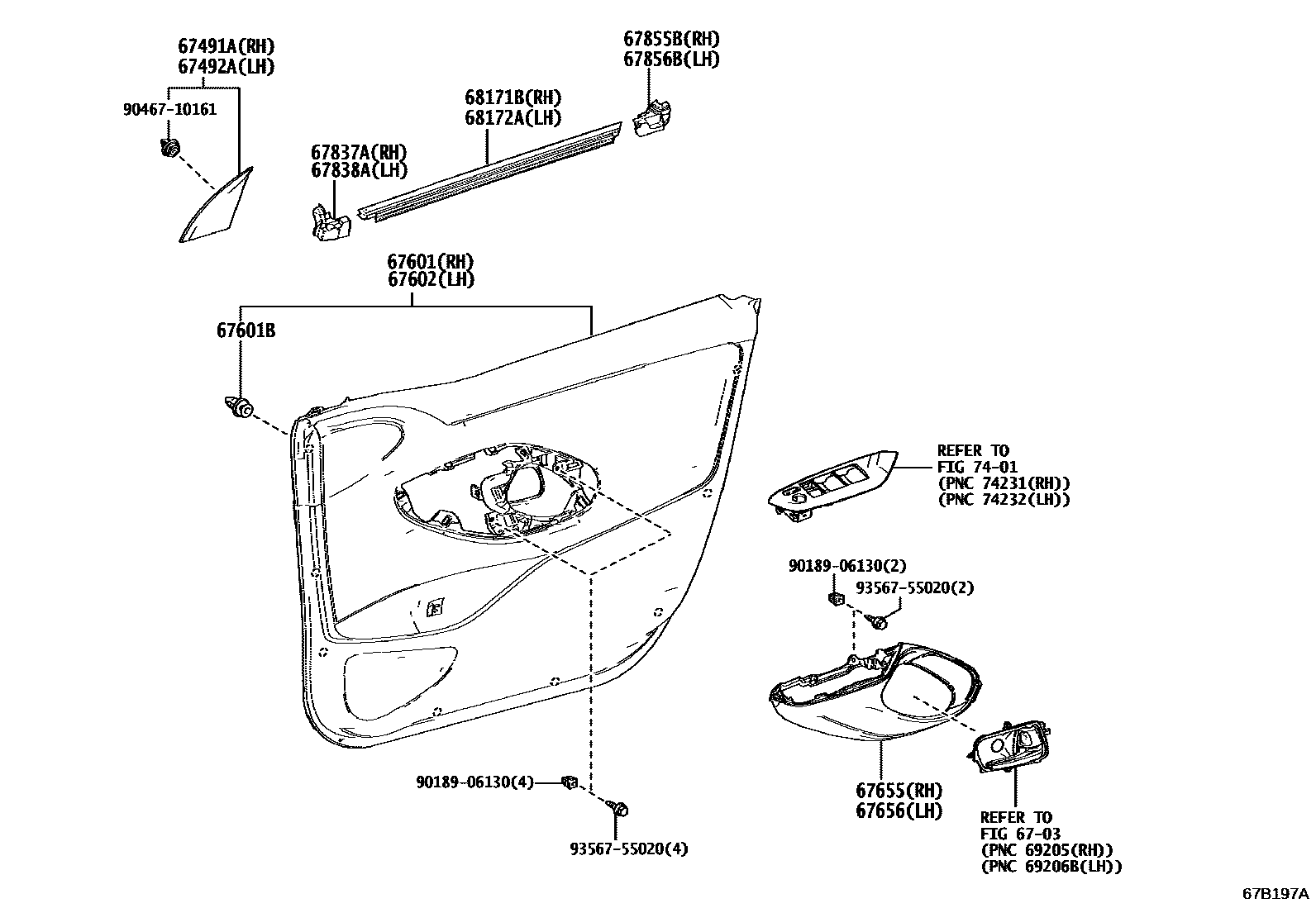

Toyota YARIS 前门板和前门玻璃 EPC diagram — 67B197A
前门板和前门玻璃 — 67B197A (202008 – 999999)

PNC and OE references

PNCPart nameOE numbers
67001Right front door panel sub-assembly67001-52550 · 67001-52551
67001AFront door panel cushion90541-09124
67002Left front door panel sub-assembly67002-52580 · 67002-52581
67133Toyota part67133-52061
67134AToyota part67134-52071
67401FRight front door front lower door frame sub-assembly67401-K2010
67402FLeft front door front lower door frame sub-assembly67402-K2010
67403FRight front door rear lower door frame sub-assembly67403-K2020
67404FLeft front door rear lower door frame sub-assembly67404-K2010
67491ARight front door lower door frame bracket decorative strip67491-52170
67492ALeft front door lower door frame bracket decorative strip67492-52160
67601BCatch (for front door trim panel)90467-09206
67831Right front door access hole cover67831-K0010
67831DCatch (for front door access hole cover)90467-09206
67832Left front door access hole cover67832-K0010
67835EToyota part67835-52010
67836JToyota part67836-52030
67837ARight front door ventilator seal67837-52110
67837BFront door dust seal retainer67837-47060
67838ALeft front door ventilator seal67838-52040
67855BRight front door panel protector67855-52020
67856BLeft front door panel protector67856-52020
67861Right front door seal67861-52350 · 67861-K2010
67862Left front door seal67862-52320 · 67862-K2010
67867CRight front door seal strip fixing67867-30080
67867GRight door sealing strip fixing67867-12150
67867HRight door sealing strip fixing67867-52040
67868CLeft front door seal strip fixing67867-30080
67868LLeft door seal strip fixing67867-52010
67868RToyota part67867-12150
67869BFront door seal strip clip90467-06084
67869EFront door seal strip clip67869-47010
68101Right front door glass sub-assembly68101-52140 · 68101-52150 · 68101-52160 · 68101-52330 · 68101-52340 · 68101-52380 · 68101-52390 · 68101-52400
68102Left front door glass sub-assembly68102-52070 · 68102-52080 · 68102-52090 · 68102-52260 · 68102-52270 · 68102-52310 · 68102-52320 · 68102-52330
68141CRight front door glass lift channel68141-52370
68151CLeft front door glass lift channel68151-52320
68160CRight front door glass outer sealing strip assembly68160-52250
68171BRight front door glass inner sealing strip68171-52300 · 68171-52301
68172ALeft front door glass inner sealing strip68172-52260 · 68172-52261
68210CLeft front door glass outer sealing strip assembly68210-52250
68610Front door opening limiter assembly68610-52200
75921CNo. 1 right side light-shielding film75921-52170
75922MNo. 1 left shading film75922-52160
75925No. 3 right side light-blocking film75935-52010
75926No. 3 left shading film75936-52010
