Toyota YARIS 底板和底板装饰罩 — Figure 6404

Toyota YARIS EPC diagram 6404, 底板和底板装饰罩, with 3 images and 8 PNC and OE references.

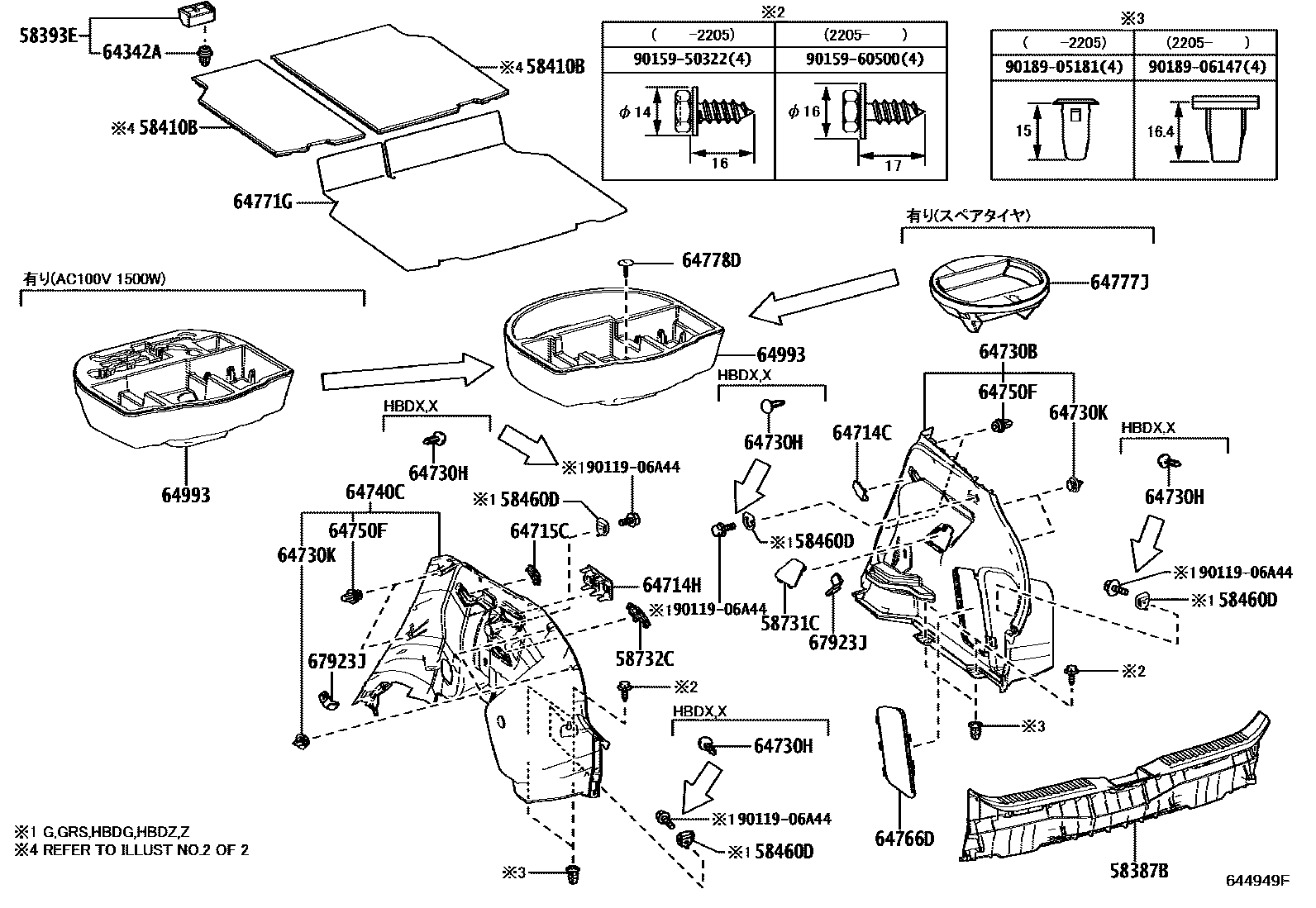

Toyota YARIS 底板和底板装饰罩 EPC diagram — 644949F
底板和底板装饰罩 — 644949F (202008 – 999999)

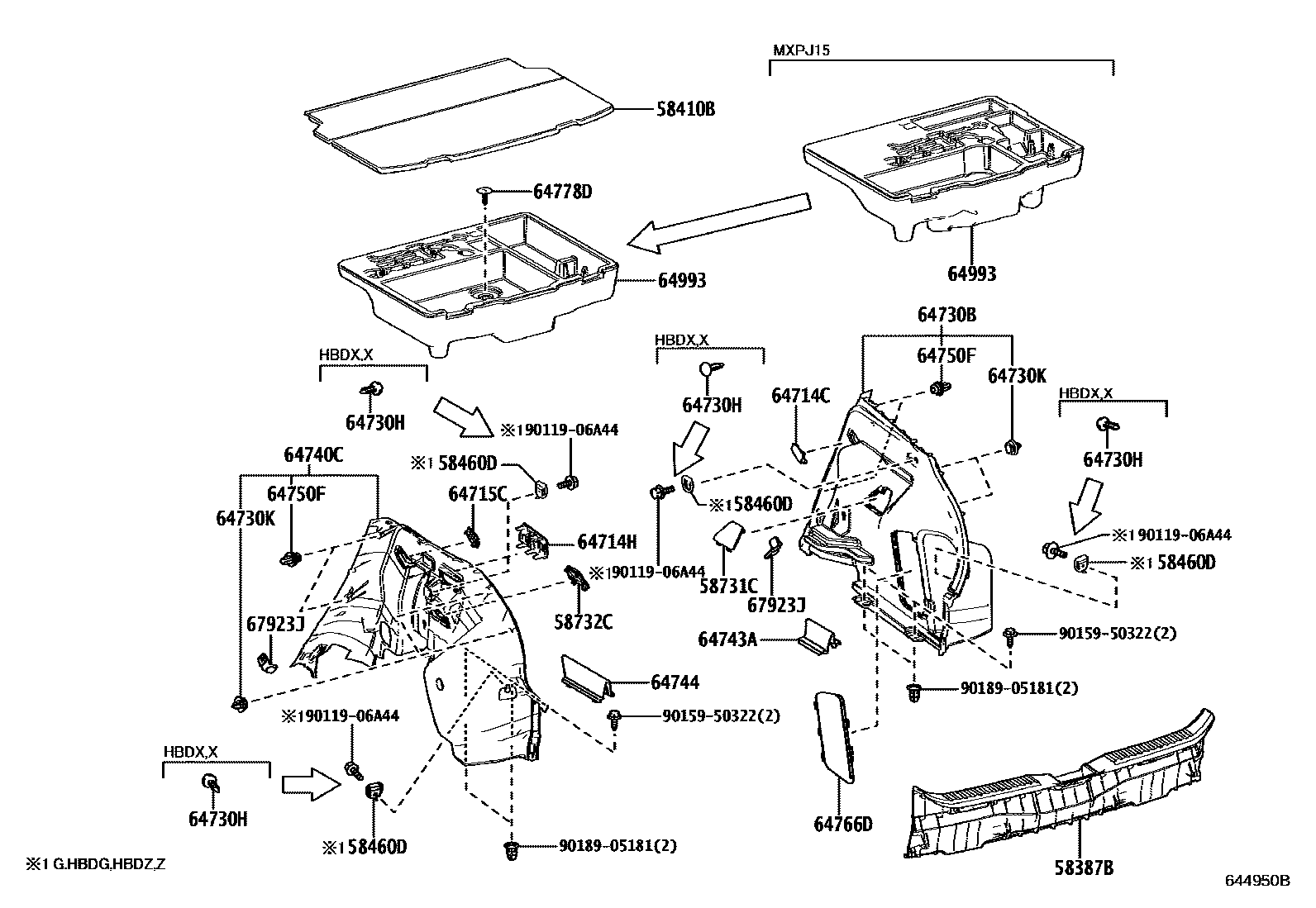

Toyota YARIS 底板和底板装饰罩 EPC diagram — 644950B
底板和底板装饰罩 — 644950B (202008 – 999999)

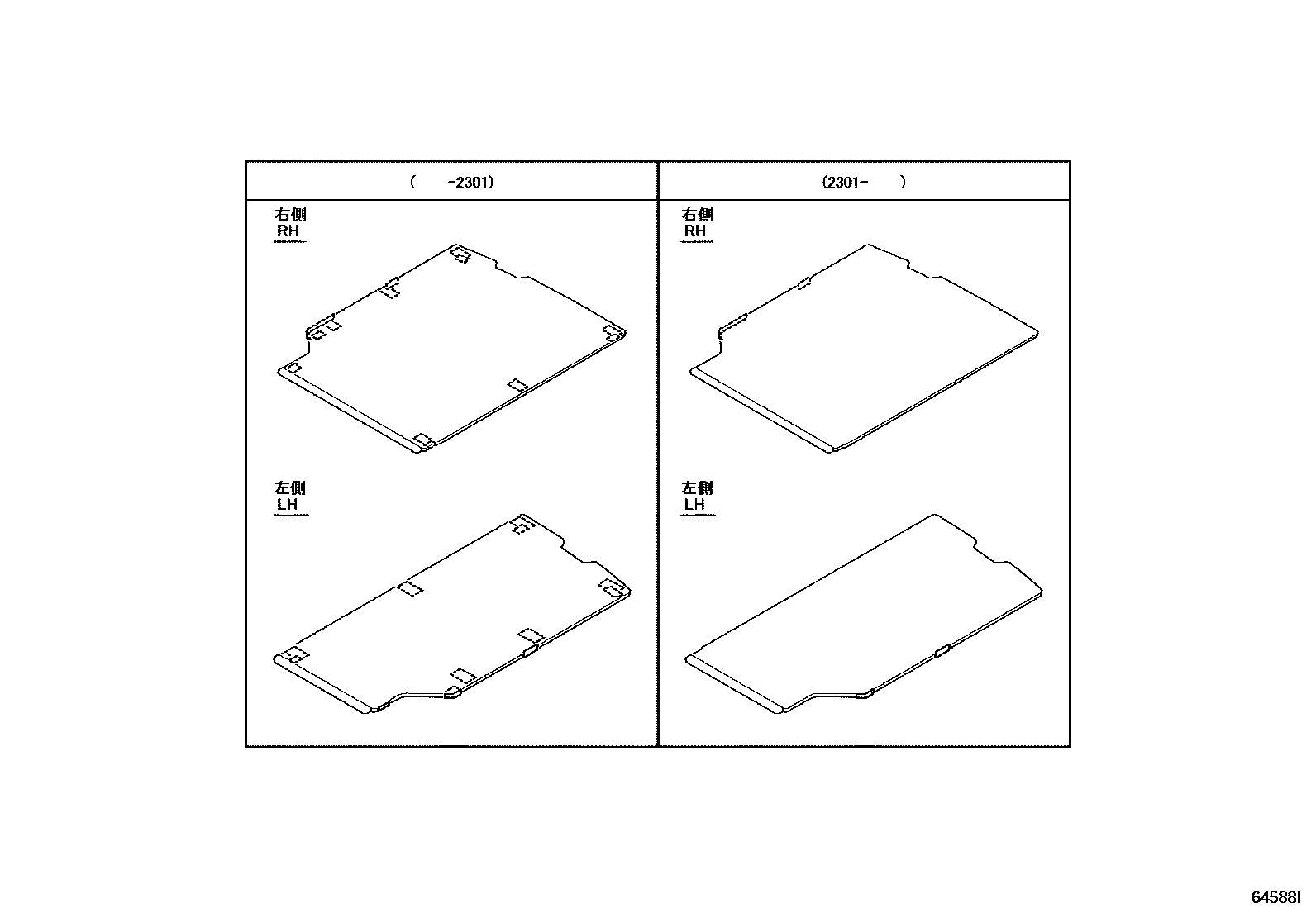

Toyota YARIS 底板和底板装饰罩 EPC diagram — 64588I
底板和底板装饰罩 — 64588I (202008 – 999999)

PNC and OE references

PNCPart nameOE numbers
58460DLuggage fixing belt lock assembly58460-33020
64342Aclip71769-47020 · 90467-10188
64730KToyota part90467-09240
64750FClip (for bottom panel side decorative panel)90467-10161
64777JSpare tire cushion64777-10020
64778DSpare tire protection device64778-52160
64993Bottom floor box64993-52380 · 64993-K0010 · 64993-K0020 · 64993-K0030 · 64993-K0040
67923JToyota part67923-52240
