Toyota YARIS 内饰板和车门防水胶条 — Figure 6401

Toyota YARIS EPC diagram 6401, 内饰板和车门防水胶条, with 1 images and 18 PNC and OE references.

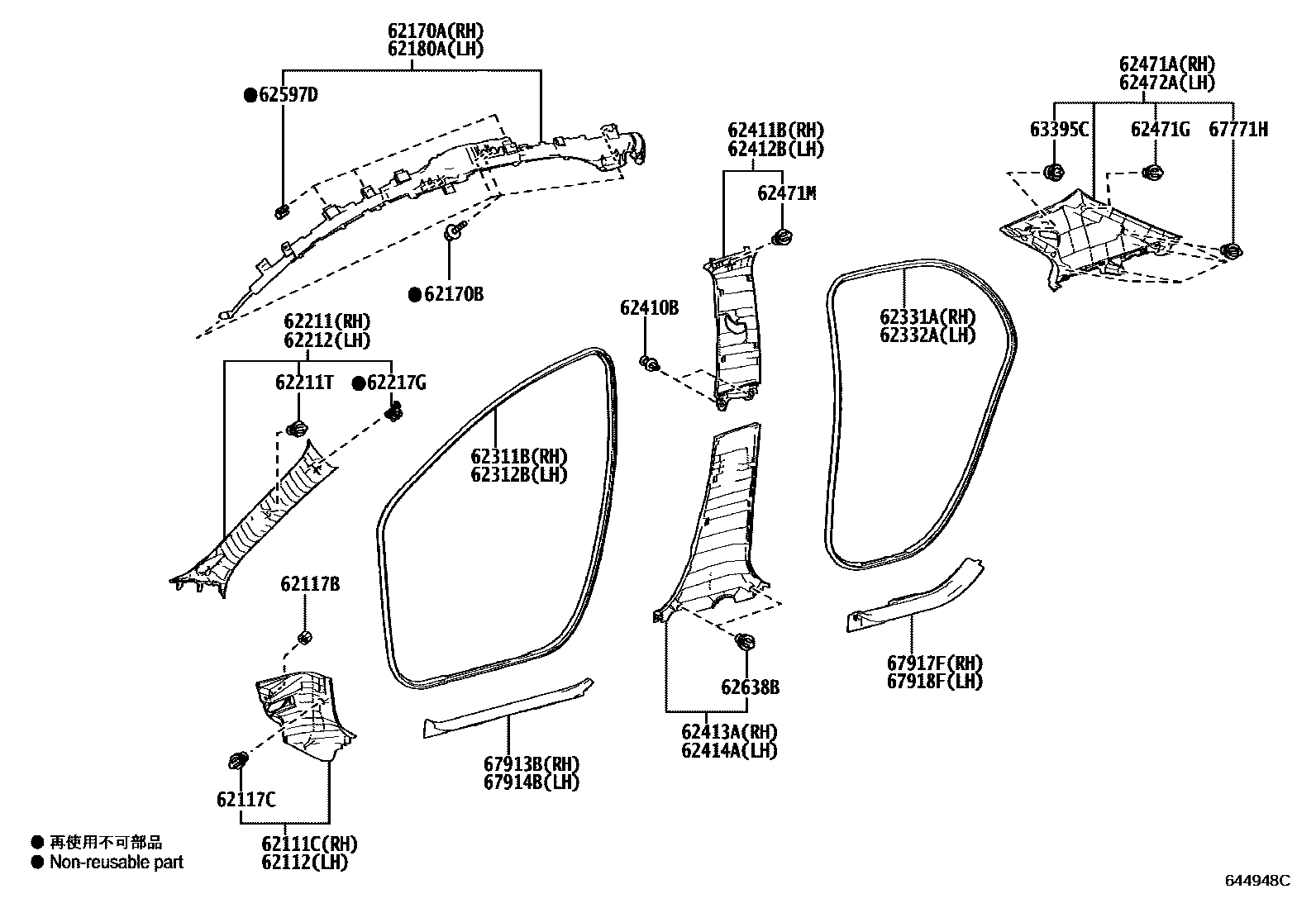

Toyota YARIS 内饰板和车门防水胶条 EPC diagram — 644948C
内饰板和车门防水胶条 — 644948C (202008 – 999999)

PNC and OE references

PNCPart nameOE numbers
62117BNo. 1 clip (for cowl side trim panel)90467-06147
62117CNo. 2 clip (for cowl side trim panel)90467-10161
62170ARight curtain air bag assembly62170-52150
62170BBolts with washers91673-80616
62180ALeft curtain air bag assembly62180-52150
62211TClip (for front pillar decorative panel)90467-10161
62217GFront pillar decorative plate clip62217-42050
62311BRight front door opening waterproof tape62311-52300 · 62311-K2010
62312BLeft front door opening waterproof tape62312-52260 · 62312-K2010
62331ARight rear door opening waterproof tape62331-K2010
62332ALeft rear door opening waterproof tape62332-K2010
62410Bclip90467-10216
62471GRoof side interior panel fixing gasket90467-10167
62471Mclip90467-10167
62597Dclip90467-18017
62638Bclip90467-10161
63395CClips (for roof side interior panels)63395-12150
67771Hdoor trim panel fixings67771-28150
